Availability: | |
---|---|
Quantity: | |
Model | ELMR-200 |
---|---|
Microplate Types | 96/48-well plate |
Photodetector | Silicon photodiode |
Light Source | 8v/50w controlled tungsten halogen lamp |
Wavelength Range | 400nm~850nm |
Standard Filters | 405, 450, 492, 630nm & 4 optional |
Reading Range | 0.000~4.000A |
Resolution | 0.001A |
Accuracy | ±0.008A |
Reproducibility | ≤0.2% |
Stability | ±0.003A |
Reading Speed | Single wavelength ≤3s; Double wavelength ≤6s |
Shaking | Linear shaking, 3 speeds |
Printer | Built-in thermal printer, optional external printer |

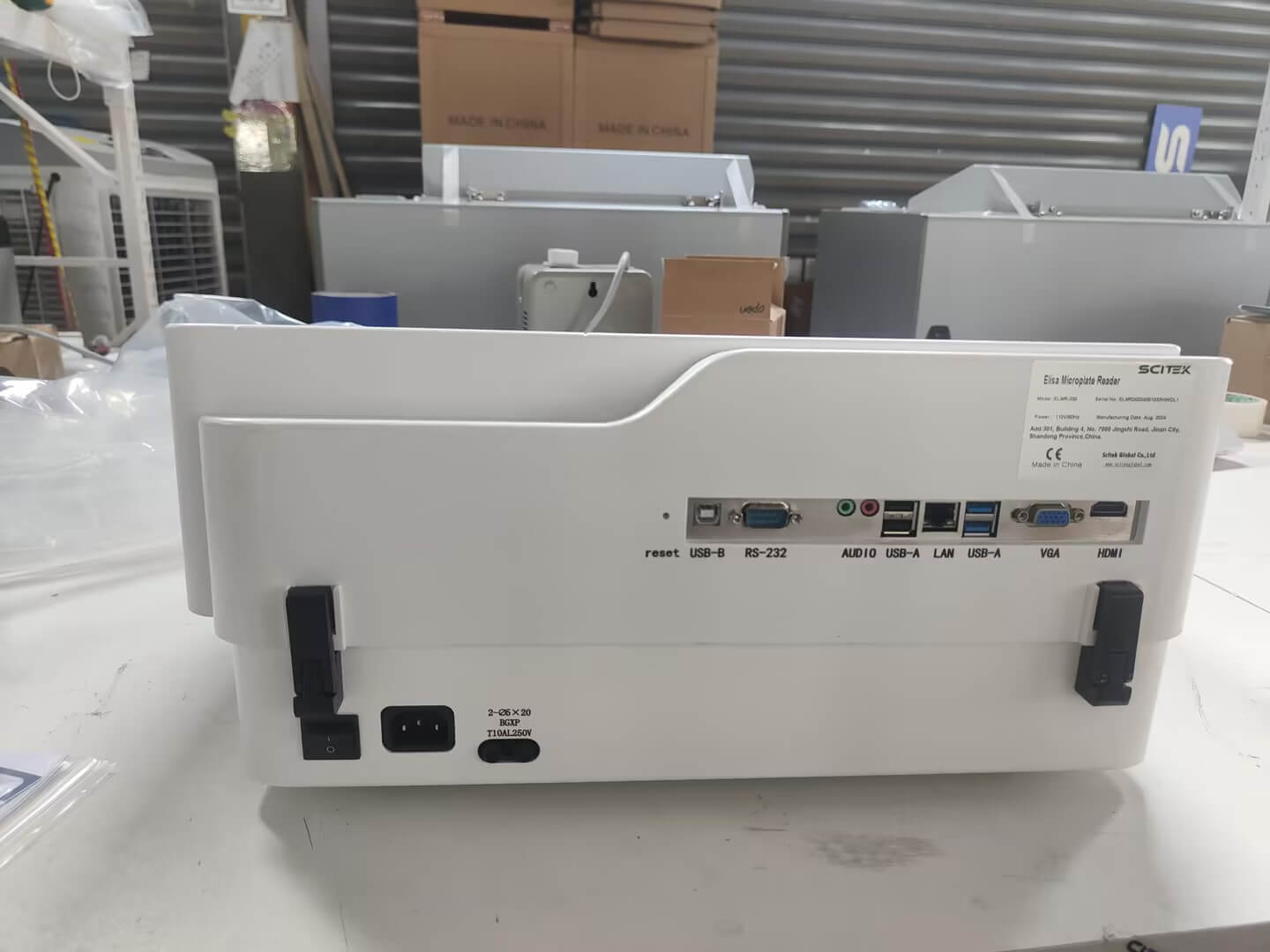

Interface Connections | DVI, VGA, NETWORK INTERFACE, USB, AUDIO INTERFACE, RS-232 |
Power Supply | 100~240V, 50~60Hz |
Sizes(W×D×H)(mm) | 460×350×197 |
Shipping Size(W×D×H)(mm) | 610x510x410 |
N.W./G.W. (kg) | 9/18 |

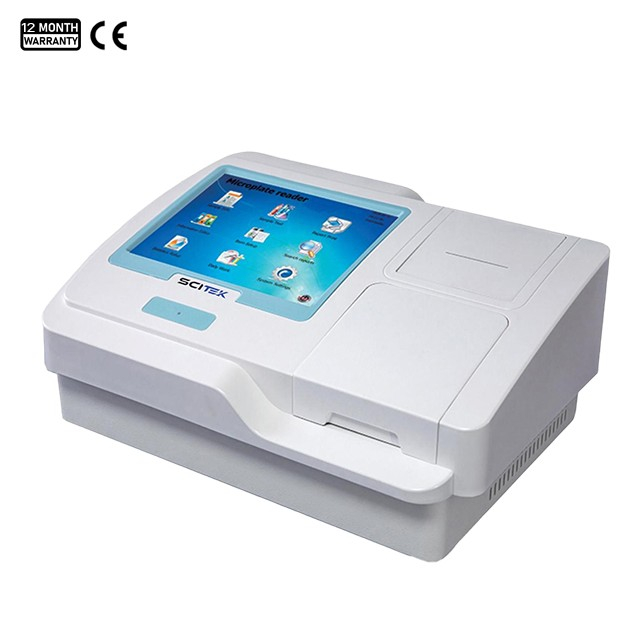

This elisa microplate reader has high sensitivity and accuracy and is equipped with automation features to make experimental operations more convenient and efficient. It is widely used in medical, biological and biotechnological research for diagnosing diseases, monitoring protein interactions, drug screening and other fields.

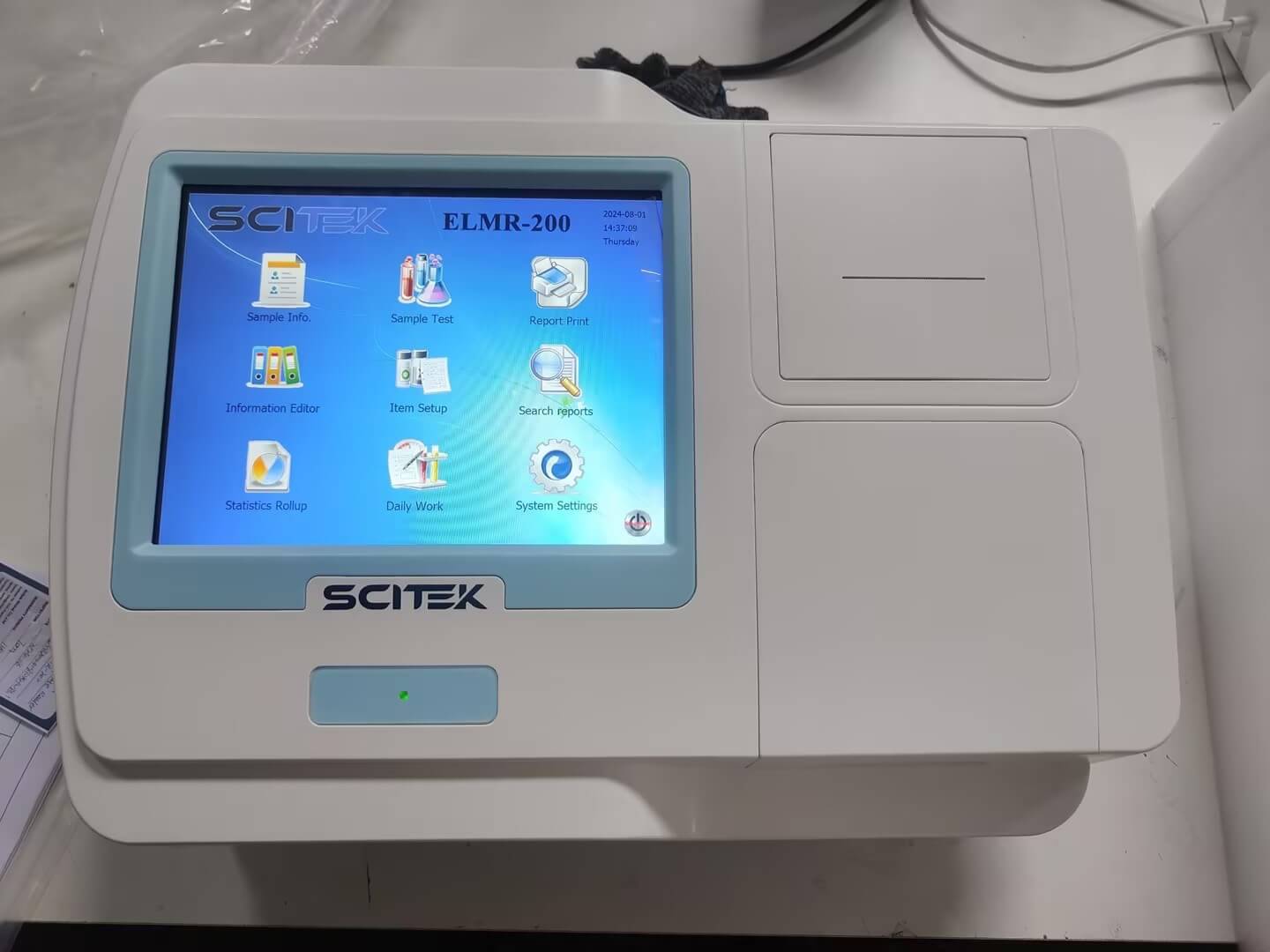

10.4-inch capacitive touch screen that can work alone or through a PC;
Flexible board layout with blank, standard, sample, reference, and QC on one screen.
Built-in thermal printer for easy data printing and transmission.
Over 20 different report formats. Storage of up to 20 million test data and 500 test items.
Comprehensive qualitative and quantitative data evaluation capabilities with cut-offs, curve fitting and conversion formulas
Eight-channel optics for fast readout;
Automatic light tuning and auto-calibration.
Reference channel with optimized light intensity ensures reliable results;
