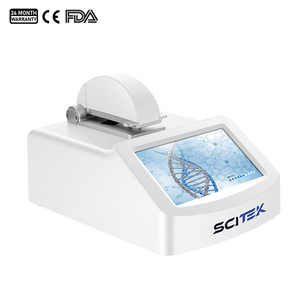

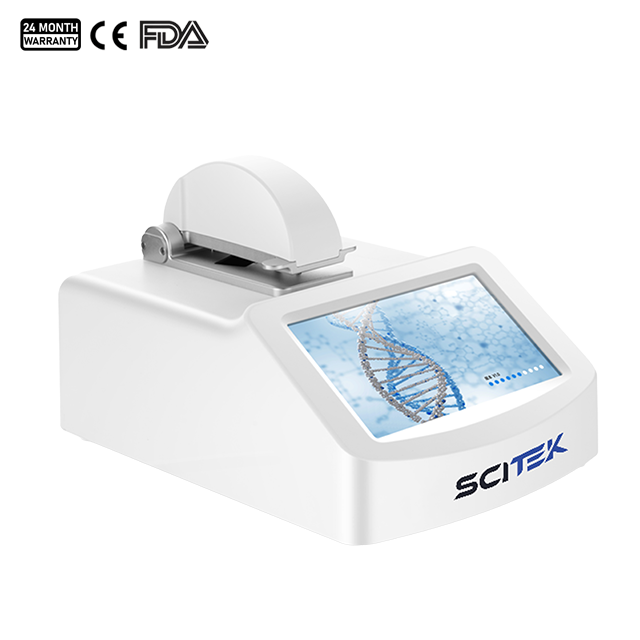

Nano Core Series Microvolume UV/Vis Spectrophotometer
Provides Precise, Fast, Flexible for Nucleic Acid & Protein UV-Assay Measurements
The Nano Core Series microvolume UV-Vis spectrophotometer is an intelligent detection platform designed specifically for the life sciences field.
Integrating advanced micro-volume detection technology and a user-friendly operating system, it can complete high-precision concentration
measurements within 5 seconds using only 0.5–2 μL of sample. The series includes two models, NC-1000 and NC-2000, respectively meeting diverse
needs from basic nucleic acid/protein quantification to full-spectrum scanning and colorimetric analysis. Our products automatic path length
switching technology, stable performance, versatile functionality and highly sensitive detector ensure data accuracy and repeatability, meeting the
fundamental and diverse needs of molecular biology laboratories, drug development centers, and clinical testing institutions.
Nano Core Series UV/Vis Spectrophotometer Core Feature
Dual-Platform Detection Mode, Multi-Functional Functionality:
Microvolume Platform: 0.5–2μL sample loading volume, with basic automatic switching From 0.05 mm to 1.0 mm optical path lengths. Patented
support allows for customizable optical path lengths to cover a wide concentration range without manual dilution.
Cuvette Platform: 10 mm standard optical path cuvette, supporting OD600 microbial assays. Suitable for various cuvettes—quartz, glass, or plastic
Stable and Reliable Light Source:
NC-2000: A long-life xenon flash lamp (flash count > 10⁹), requires no warm-up, ready to use immediately. Supports full
wavelength scanning from 190–850 nm with bandwidth of 2 nm.
NC-1000: Utilizes a UV silicon photocell with a fixed dual-wavelength design at 260/280 nm. Optimized for rapid nucleic acid/protein
concentration measurement, offering cost-effective performance.
NC-2000: A 2048-element CMOS Linear Image Sensor, enabling instantaneous acquisition of full-wavelength spectrum, with an
absorbance range extended to 0.04–300 Abs, and a LOD of 2 ng/μL dsDNA.
NC-1000: Utilizes an ultraviolet silicon photodiode, with an absorbance range of 0.2–100 Abs and repeatability ≤ 0.05 nm, ensuring high accuracy
for basic quantitative tasks.
Easy Operation & Efficient Workflow:
Detection time < 5 seconds with instant measurement and display. 7-inch high-definition capacitive touchscreen with intuitive design for
independent operation. Built-in thermal printer allows for one-click printing of test results, making data traceability more convenient.
Durable Design, Environmentally Adaptable:
The sample base is made of a composite material of quartz fiber and high-hardness aluminum, which is corrosion-resistant, easy to clean, and durable.
Wide voltage power supply (100–240 V) and low power consumption design (<15 W), energy-saving and environmentally friendly.
Nano Core Series UV/Vis Spectrophotometer Specification:
Model | NC-1000 | NC-2000 |
Light Source | UV LED/8000 h | Longevity lifeline xenon flashing light (10⁹ times) |
Detector | UV silicon photocell/8000 h | 2048-element CMOS Linear Image Sensor |
Volume Requirements | Ultra trace: 0.5–2 μL |
Detection Wavelength Range | Fixed wavelength: 260 nm, 280 nm | 190–850 nm |
Spectral Resolution (Bandwidth) | 8 nm (FWHM at Hg 546 nm) | 2nm (FWHM at Hg 546 nm) |
Wavelength Accuracy | ±0.2 nm |
Absorbance Accuracy | 0.005 Abs | 0.003 Abs |
Detecting Repeatability | 0.05 nm |
Optical Path | Ultra trace mode: 0.02-1 m mm (optical path automatic conversion, Customization)
Cuvette mode: 10 mm |
Concentration Measurement Range | Ultra trace mode: 2–15000 ng/μL (dsDNA); 0.04–400 mg/mL (BSA); |
Range of Absorbance | Ultra trace mode: 0.2–100/0.04–300 Abs (equivalent to 10 mm optical path)
Cuvette mode: 0–4 Abs (equivalent to 10 mm optical path) |
Display | 7-inch high-definition capacitive touch screen |
Print | Built-in thermal printer |
Power Supply | VAC 100–240 V, VDC 24 V, 2 A, <15 W (Stand by: 5 W) |
External Size (W×D×H) | 290×208×180 mm |
Shipping Size (W×D×H) | 500×430×290 mm |
N.W/G.W. | 3.2/5 kg |
Why Choose the Nano Core Series UV/Vis Spectrophotometer?
Economical and Flexible: Two models cover different budgets and application needs, avoiding functional redundancy.
High Efficiency and Precision: Fully automatic optical path switching and high-speed detection reduce manual dilution errors and increase throughput.
Reliable and Durable: High-quality optics and an industrial-grade touchscreen ensure long-term stable operation.
Data Traceability: Built-in printer and USB export, compliant with GLP/GMP standards.
The Nano Core Series—making trace sample analysis simpler and smarter！
For research use only！
