Number of Preset Sampling Points : Can preset 100 groups of points

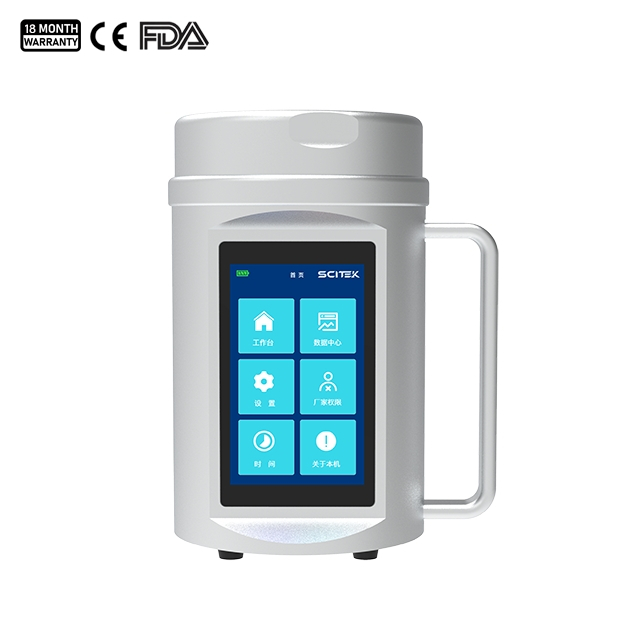

The outer shell of the microbial air sampler is made of anodized aluminum and features 397 microholes, which effectively reduce bacterial overlap and minimise errors in microbial counting.
The microbial air sampler is designed and manufactured in accordance with the requirements of the latest version of China's GMP regulations, based on the principle of the fifth level of Andersen impact classification, and with reference to domestic similar products. The shell is made of anodized aluminum which is corrosion-resistant and easy to wipe—features that facilitate cleaning and sterilization. The sampling head of the microbial air sampler is made of anodized aluminum material, with a total of 397 holes, 0.6mm - diameter micropores (straight holes, without chamfering), reducing bacterial overlap and lowering the error in microbial counting.
Microbial Air Sampler Feature:
Intuitive Operation The color-screen design makes the appearance simple and elegant, and the operation interface is clear and straightforward.
Memory Function It can preset 100 sets of points, enabling quick sampling as needed.
Reminder Function It has a reminder function for historical data deletion to prevent incorrect operations.
Time-setting It comes with a standard-equipped interval time setting and delay time setting to improve the accuracy of detection results.
Real-time Data Printing Optional Bluetooth printer can be equipped to print data in real-time, facilitating the archiving of detection data.
Compliance with Standards It meets the requirements of the latest version of GMP and can also satisfy those of most established industry standards.
High-quality Core Components It adopts an imported air pump, featuring high precision and a long service life.
Meet Detection Requirements It can be equipped with a high-pressure separator to meet the requirements for monitoring compressed air in clean rooms.
Microbial Air Sampler Specification:
Model
AMS-IV
Screen
4.3-inch color touch screen, operable with gloves
Number of Preset Sampling Points
Can preset 100 groups of points
Power Supply
AC 220 V converted to DC16.8 V
Sampling Flow Rate
100 L/min ± 5% (error)
Sampling Delay Time
0 - 99 s (adjustable)
Sampling Interval Time
0 - 99 s (adjustable)
Sampling Velocity
0.38 m/s (isokinetic sampling)
Impact Rate
10.8 m/s (based on the principle of the fifth level of Andersen impact classification)
Sampling Volume
1 - 9999 L (adjustable)
Material of Machine Body and Sampling Head
Anodized aluminum
Data Storage Capacity
10,000 records
Continuous Working Time
8 h
External Size (W×D×H)
147×115×190 mm
Package Size (W×D×H)
363×350×180 mm
N.W/G.W (kg)
1.8 / 2.5
Application:
The microbial air sampler is designed and manufactured in accordance with the requirements of the latest version of China's GMP regulations, based on the principle of the fifth level of Andersen impact classification, and with reference to domestic similar products. The shell is made of anodized aluminum which is corrosion-resistant and easy to wipe—features that facilitate cleaning and sterilization. The sampling head of the microbial air sampler is made of anodized aluminum material, with a total of 397 holes, 0.6mm - diameter micropores (straight holes, without chamfering), reducing bacterial overlap and lowering the error in microbial counting.
Microbial Air Sampler Feature:
Intuitive Operation The color-screen design makes the appearance simple and elegant, and the operation interface is clear and straightforward.
Memory Function It can preset 100 sets of points, enabling quick sampling as needed.
Reminder Function It has a reminder function for historical data deletion to prevent incorrect operations.
Time-setting It comes with a standard-equipped interval time setting and delay time setting to improve the accuracy of detection results.
Real-time Data Printing Optional Bluetooth printer can be equipped to print data in real-time, facilitating the archiving of detection data.
Compliance with Standards It meets the requirements of the latest version of GMP and can also satisfy those of most established industry standards.
High-quality Core Components It adopts an imported air pump, featuring high precision and a long service life.
Meet Detection Requirements It can be equipped with a high-pressure separator to meet the requirements for monitoring compressed air in clean rooms.
Microbial Air Sampler Specification:
Model
AMS-IV
Screen
4.3-inch color touch screen, operable with gloves
Number of Preset Sampling Points
Can preset 100 groups of points
Power Supply
AC 220 V converted to DC16.8 V
Sampling Flow Rate
100 L/min ± 5% (error)
Sampling Delay Time
0 - 99 s (adjustable)
Sampling Interval Time
0 - 99 s (adjustable)
Sampling Velocity
0.38 m/s (isokinetic sampling)
Impact Rate
10.8 m/s (based on the principle of the fifth level of Andersen impact classification)
