The use of infinite optical system, long working distance flat field objective lens, provide excellent optical image.
Ergonomic design, easy and close man-machine interaction, reduce user fatigue.
Specially designed for materials exploration, it can meet the needs of surface microscopic inspection and screening of metallic materials, nonmetallic materials and geological materials.
Mechanical structure stable, compact, ergonomic design, reasonable layout, comfortable use.
The use of infinite optical system, long working distance, reliable imaging, high contrast.

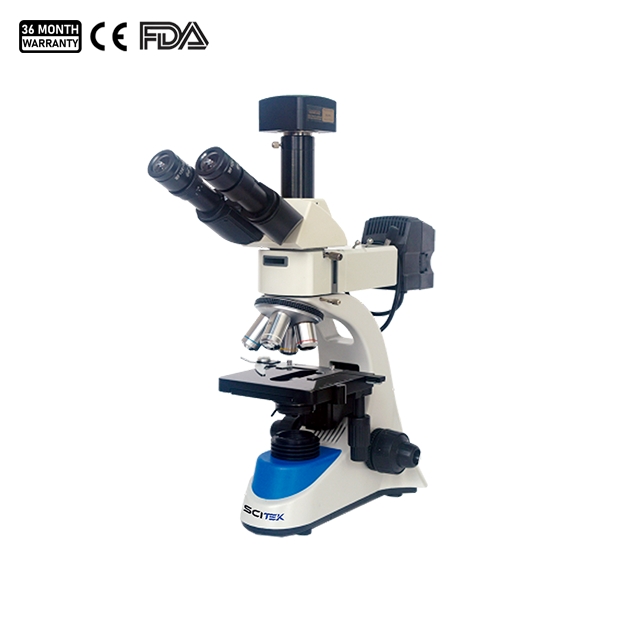

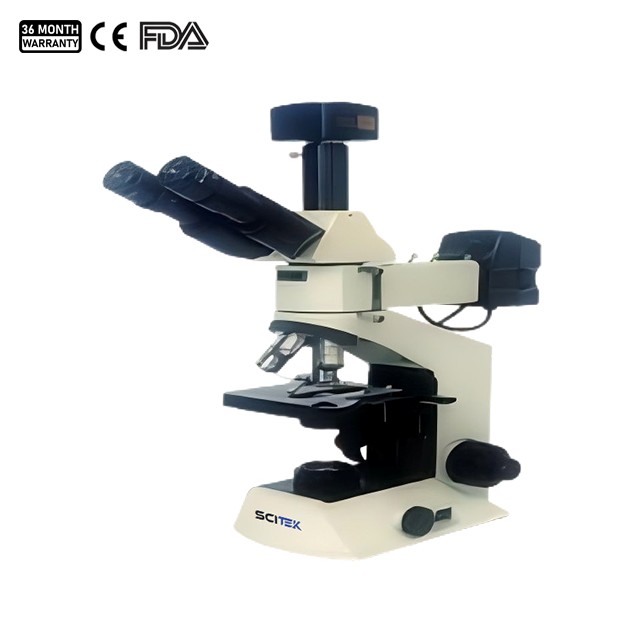

| Model | MSC-RMM200T |
|---|---|
| Optical System | Infinite Optical System |
| Viewing Head | Seidentopf Binocular Head/Seidentopf Trinocular Head,Inclined at 30°, Interpupillary 55-75mm |
| Eyepiece | WF10×20mm |
| Objective | Infinite Plan Achromatic Objective:*2.5x, 5x, 10x, *20x, 40x, *50x, 100x |
| Nosepiece | Quadruple Nosepiece/*Quintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 140X135mm/ 75X50mm |
| Condense | Abbe Condenser N.A.1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm perRotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm |
| Incident Light | Kohler llumination,Epi-illuminator with iris aperture diaphragm and iris field6V/20W Halogen lamp, Brightness adjustable |
| Kohler Ilumination,Epi-illuminator with iris aperture diaphragm and iris field diaphragm,3WLED illumination,Brightness adjustable | |
| Transmitted Light | 6V 20W Halogen Lamp, Brightness Adjustable LED IIlumination, Brightness Adjustable |
| *Optional | Fluorescent Attachment; Microscope Camera/win10 Pad/Digital display |
