Availability: | |
---|---|
Quantity: | |
Model | MSC-D201 |
---|---|
Optical System | Infinite Optical System |
Viewing Head | 10-inch display screen |
Video Adapter | C Mount 0.5×/1× |
Objective | Infinite Plan Achromatic Objective: 4×, 10×, 20×, 40×, 100× |
Nosepiece | Quadruple Nosepiece/xQuintuple Nosepiece |
Stage | Double Layers Mechanical Stage 140X135mm, Range of Movement: 75X50mm |
Condense | Abbe Condenser N.A. 1.25 with Iris Diaphragm & Filter |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, |
Fine Stroke 0.2mm per Rotation, Moving Range 20mm | |
Illumination | 3W LED Light, Brightness Continuously Adjustable |
Optional | Turret Phase Contrast Kit; Dark Field Attachment; Fluorescent Attachment |
Microscope Camera/win10 Pad/Digital Display | |
Shipping Size (W×D×H)(mm) | 370x260x470 |
G.W. (kg) | 8 |

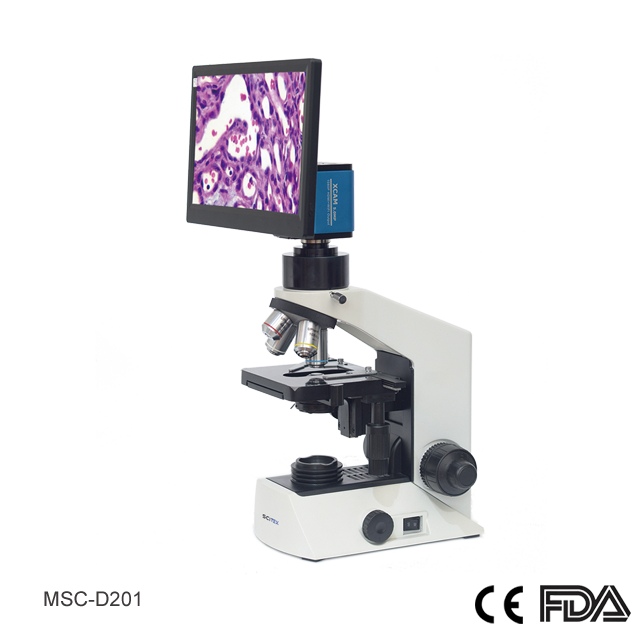

The digital microscope has an advanced infinite optics system that provides superior optical clarity for precise observation and analysis.
The 10-inch display provides a user-friendly and immersive visual experience.
The integrated display eliminates the need for traditional eyepieces, improves comfort and promotes group observation.
Microscope seamlessly connects to various imaging devices, such as cameras and digital displays, for efficient documentation and sharing of observations.
Infinite plan achromatic objective lens ensures high-quality imaging over various magnifications, making the microscope versatile for different specimen examinations.
The digital microscope is illuminated by a 3W LED lamp that provides adjustable brightness for consistent and customizable lighting conditions.
Digital microscope combines cutting-edge optics, digital integration, and versatile accessories, making it a powerful tool for research, education and clinical applications.
Model | MSC-D201 |
---|---|
Optical System | Infinite Optical System |
Viewing Head | 10-inch display screen |
Video Adapter | C Mount 0.5×/1× |
Objective | Infinite Plan Achromatic Objective: 4×, 10×, 20×, 40×, 100× |
Nosepiece | Quadruple Nosepiece/xQuintuple Nosepiece |
Stage | Double Layers Mechanical Stage 140X135mm, Range of Movement: 75X50mm |
Condense | Abbe Condenser N.A. 1.25 with Iris Diaphragm & Filter |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, |
Fine Stroke 0.2mm per Rotation, Moving Range 20mm | |
Illumination | 3W LED Light, Brightness Continuously Adjustable |
Optional | Turret Phase Contrast Kit; Dark Field Attachment; Fluorescent Attachment |
Microscope Camera/win10 Pad/Digital Display | |
Shipping Size (W×D×H)(mm) | 370x260x470 |
G.W. (kg) | 8 |
The digital microscope has an advanced infinite optics system that provides superior optical clarity for precise observation and analysis.
The 10-inch display provides a user-friendly and immersive visual experience.
The integrated display eliminates the need for traditional eyepieces, improves comfort and promotes group observation.
Microscope seamlessly connects to various imaging devices, such as cameras and digital displays, for efficient documentation and sharing of observations.
Infinite plan achromatic objective lens ensures high-quality imaging over various magnifications, making the microscope versatile for different specimen examinations.
The digital microscope is illuminated by a 3W LED lamp that provides adjustable brightness for consistent and customizable lighting conditions.
Digital microscope combines cutting-edge optics, digital integration, and versatile accessories, making it a powerful tool for research, education and clinical applications.
