Biological Microscope, Trinocular Head

Biological Microscope Specifications:

Biological Microscope Features:

The MSC-BH208T and MSC-BS208T are advanced biological microscopes designed for precise and efficient observation in various applications. Both models offer comfortable viewing angles with interpupillary adjustments ranging from 55-75 mm, allowing the user to make the optimal adjustment for their needs. Increased flexibility in observation setup.

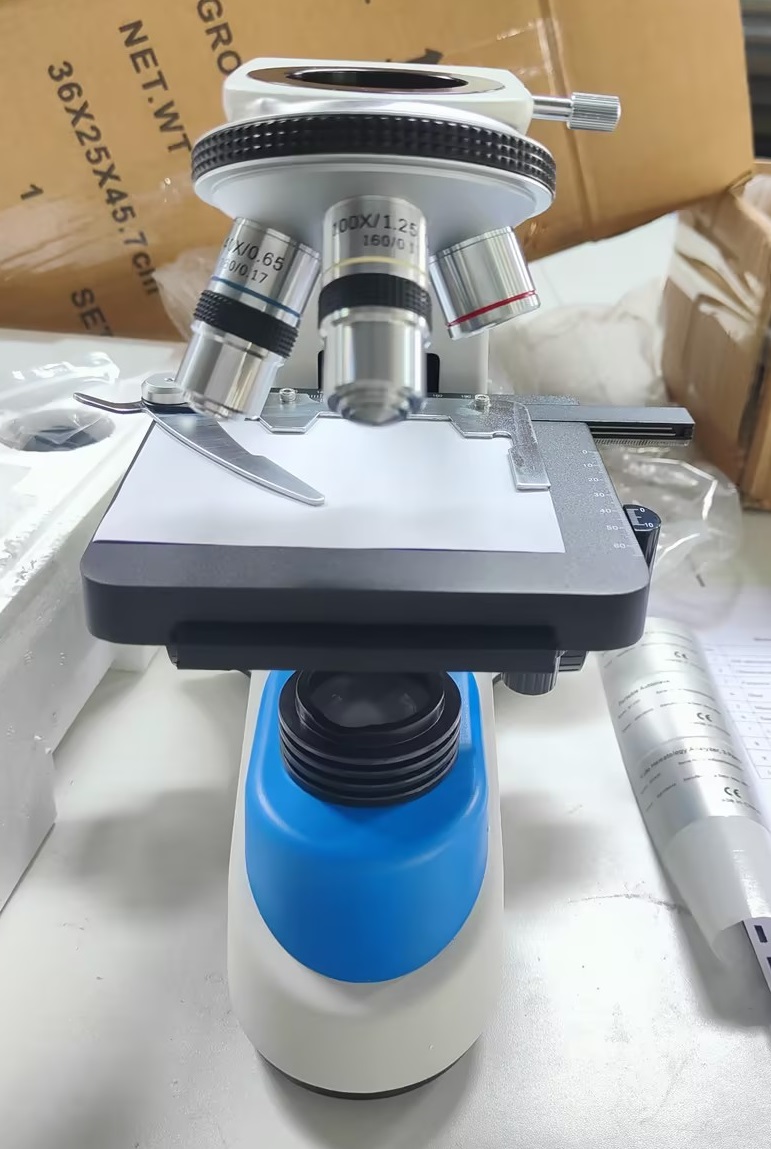

Biological microscopes have high-quality wide-field eyepieces that provide clear and detailed imaging. The quadruple nosepiece accommodates achromatic objectives (4X, 10X, 40X, 100X) and offers a wide choice of magnifications to ensure versatility in specimen examination.

The double-layer mechanical stage facilitates precise sample manipulation, accurate positioning and ease of use.

Concentrator is an Abbe NA1.25 with an iris diaphragm and filters to ensure optimal illumination and contrast control for a variety of microscope applications.

The coaxial coarse and fine adjustment system has a fine index of 0.002 mm for precise focusing, with a crude adjustment travel of 37.7 mm/turn and a fine adjustment travel of 0.2 mm/turn.
