Compensation-free binocular head for comfortable viewing and reduced eye fatigue.
Wide-field eyepiece for a larger field of view and improved clarity.
Double-layer mechanical stage for precise specimen movement and easy slide manipulation.
Multiple accessories available for versatile applications and customized experiments.
| Model | MSC-BE200E | MSC-BD500E | MSC-BE500E | MSC-BSM500E | MSC-BV500E |
| Viewing Head | Compensation free binocular head inclined at 30° | Monocular Head, Inclined at 30° | Compensation Free, Binocular Head Inclined at 30°, 360° rotatable | Compensation Free, Trinocular Head, 360° rotatable | Dual viewing head, one tube 30°, inclined and another tube vertical, 360° rotatable |
| Eyepiece | Wide Field Eyepiece: WF10X, WF16X | ||||
| Achromatic Objectives | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | ||||
| Stage | Double Layer Mechanical Stage Size 120x125mm | ||||
| Condenser | Abbe NA=1.25 with Iris Diaphragm & Filter | ||||
| Focusing | Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm | ||||
| Illumination | Halogen Lamp 220V/6V20W or 110V/6V20W; (LED lamp optional) | LED(1W) Lamp 220V or 110V, (LED 3W lamp optional) | |||
| Power Supply | AC220/110V±10%, 50/60HZ | ||||
Shipping Size (W×D×H)(mm) | 310×250×445 | 450×360×240 | |||
| G.W. (kg) | 4 | 5 | |||
| Note: Trinocular microscope can be installed camera and screen. 220/110V for LED lamp | |||||

The large, dual-layer mechanical stage features precise X-Y axis movement, enabling accurate slide positioning and stable sample handling. High-sensitivity coaxial coarse and fine focus knobs enable precise and smooth focusing adjustments.

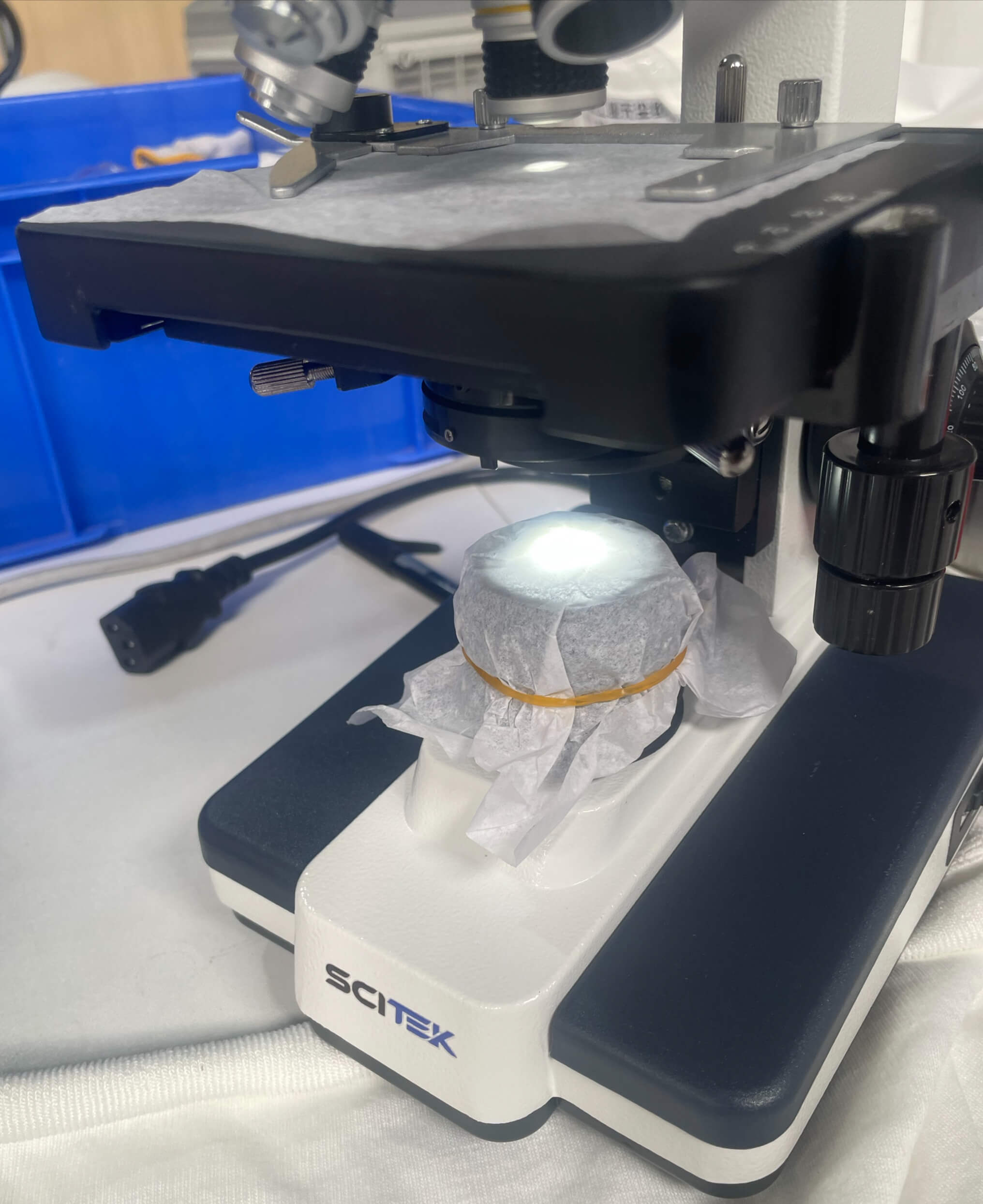

The built-in LED illumination system features adjustable brightness, providing uniform and stable lighting to ensure clear image observation.

Ergonomically designed with high-quality eyepieces to ensure a comfortable field of view during extended observation and reduce eye strain. The precision-engineered revolving objective turret is equipped with multiple achromatic objectives, ensuring smooth switching and maintaining clear imaging at various magnifications.
