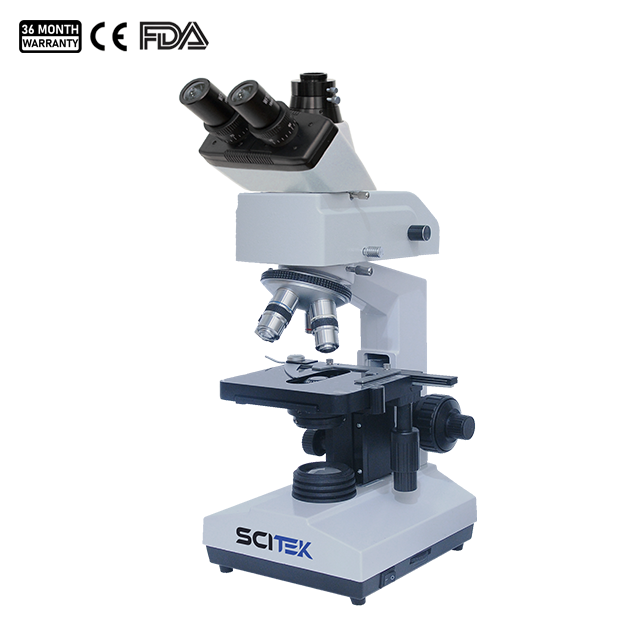

Model | MSC-F107T |
Viewing Head | Sliding trinocular head, inclined at 45°, interpupillary 55-75mm |
Eyepiece | WF10×18mm |
Objective | Achromatic objective: 4×, 10×, 40×, 100× |
Nosepiece | Quadruple nosepiece |
Stage | Double layers mechanical stage 140x135mm/ 75x50mm |
Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm |
Illumination | 3W LED illumination, brightness adjustable |
5W fluorescent LED illumination, with adjustable brightness | |
Fluorescent Attachment | DF-I fluorescent vertical illuminator equipped with a set of fluorescent channels. |
DF-II fluorescent vertical illuminator equipped with two sets of fluorescence channels | |
DF-VI fluorescent vertical illuminator can be configured with three to six groups of fluorescent channels | |
Shipping Size (W×D×H)(mm) | 330x280x440 |
G.W. (kg) | 7 |
The microscope has infinite optics to ensure superior optical clarity, precision and detailed observation.
It provides a comfortable and ergonomic viewing experience, allowing users to observe specimens for extended periods easily.
Provides a wide and clear field of view that improves overall imaging quality
Quadruple nose piece facilitates quick and precise objective changes for improved workflow efficiency.
The dual mechanical stage (140X135mm/75X50mm) provides stability and flexibility for precise sample manipulation.
Precise and efficient focusing ensures accurate observation
The microscope features adjustable brightness LED illumination for consistent and customizable illumination, combined with 5W fluorescent LED illumination to provide an alternative source of adjustable brightness.
Model | MSC-F107T |
Viewing Head | Sliding trinocular head, inclined at 45°, interpupillary 55-75mm |
Eyepiece | WF10×18mm |
Objective | Achromatic objective: 4×, 10×, 40×, 100× |
Nosepiece | Quadruple nosepiece |
Stage | Double layers mechanical stage 140x135mm/ 75x50mm |
Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm |
Illumination | 3W LED illumination, brightness adjustable |
5W fluorescent LED illumination, with adjustable brightness | |
Fluorescent Attachment | DF-I fluorescent vertical illuminator equipped with a set of fluorescent channels. |
DF-II fluorescent vertical illuminator equipped with two sets of fluorescence channels | |
DF-VI fluorescent vertical illuminator can be configured with three to six groups of fluorescent channels | |
Shipping Size (W×D×H)(mm) | 330x280x440 |
G.W. (kg) | 7 |
The microscope has infinite optics to ensure superior optical clarity, precision and detailed observation.
It provides a comfortable and ergonomic viewing experience, allowing users to observe specimens for extended periods easily.
Provides a wide and clear field of view that improves overall imaging quality
Quadruple nose piece facilitates quick and precise objective changes for improved workflow efficiency.
The dual mechanical stage (140X135mm/75X50mm) provides stability and flexibility for precise sample manipulation.
Precise and efficient focusing ensures accurate observation
The microscope features adjustable brightness LED illumination for consistent and customizable illumination, combined with 5W fluorescent LED illumination to provide an alternative source of adjustable brightness.
