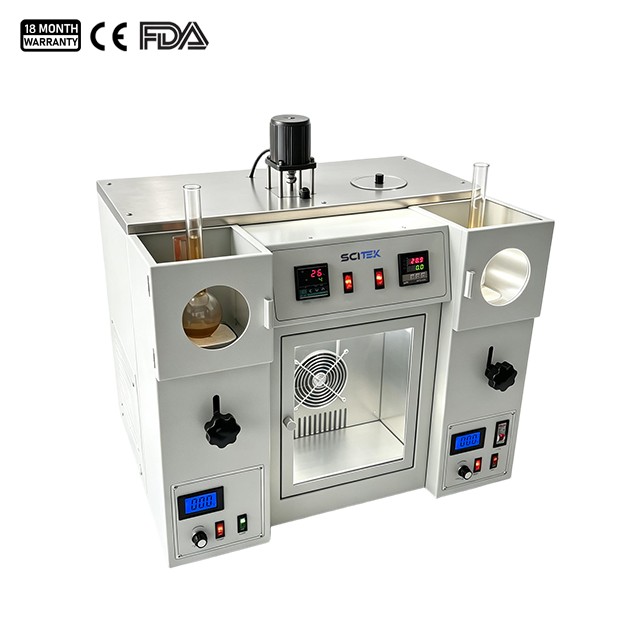

Petroleum Distillation Apparatus Application:
Commonly used for the distillation determination of natural gasoline (stabilized light hydrocarbons), motor gasoline, aviation gasoline, jet fuel, special-boiling-point solvents, naphtha, petroleum solvent oils, kerosene, diesel fuel, gas oil, distillate fuels, and similar petroleum products.
Petroleum Distillation Apparatus Feature:
Integrated benchtop design with all controls consolidated on the front panel for centralized, convenient operation (with recovery chamber).
High-efficiency cooling system featuring rapid cooling and low operating noise.
Dual-sided electric heating furnaces with adjustable height.
High-temperature-resistant, insulated observation window for real-time monitoring of the experimental process.
Digital voltmeter for real-time display, the furnace output voltage is continuously adjustable from 0V to 220V.
Compatible with both gasoline and diesel fuels, supports both sample types with quick switching between fuel modes via a single switch.
Built-in solvent recovery chamber with independently controllable recovery temperature to minimize reagent loss.
Patented sealed door for the distillation chamber, utilizing a composite PTFE and rubber sealing structure for superior airtight performance.
Compliant with ISO 3405 and ASTM D86 Standards.
Petroleum Distillation Apparatus Specification:
Model | DA-11192 |
Distillation Temperature Range | RT. to 400 ℃ |
Condenser Temperature Control Range | 0–60℃ |
Temperature Control Accuracy | ±0.1℃ |
Recovery Chamber Temperature Range | 10℃ to Ambient Temperature +3℃ |
Temperature Display | LED Digital Display |
Distillation Flask | 125 mL |
Graduated Cylinder | 100 mL×2, 1 mL Graduation |
Power Supply | AC 220±10%V, 50/60 Hz |
Cooling Bath Heating Power | 500 W |
Heater Power | 1 kW × 2 |
Consumption | 3 kW |
External Size (W×D×H) | 620×550×670 mm |
Shipping Size (W×D×H) | 700×630×750 mm |
N.W./G.W. | 45/60 kg |
Operating Temp. and Humidity | 15– 35 ℃, ≤85% RH |
