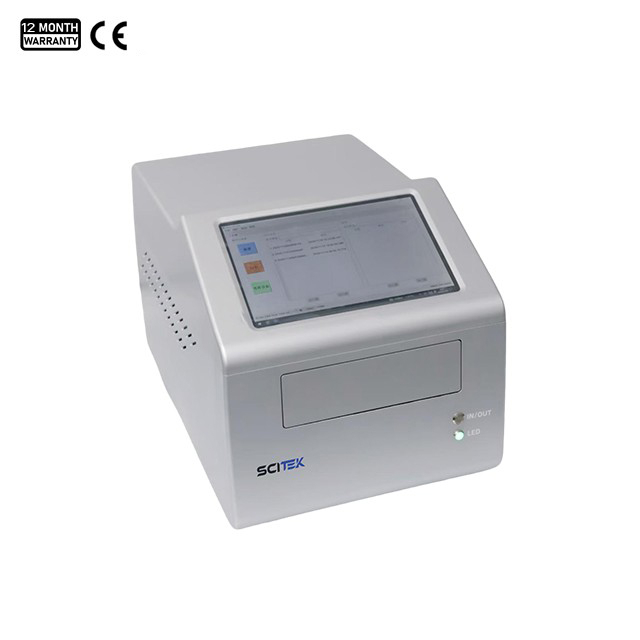

Application of Intelligent Benchtop Microplate Reader:
ELMR-6300UVF features an all-in-one design that eliminates the need for external connections, equipped with a 10.1-inch high-definition display and large-capacity storage (8GB RAM + 256GB storage). Commonly used in immunological assays, biochemical analysis, cell biology, molecular biology, drug screening, residue testing in food and environmental samples, and quality control for clinical biochemistry controls.
Intelligent Benchtop Microplate Reader Feature:
1.Physical buttons for tray loading/unloading, paired with an intuitive 3 color LED status indicator, allow for an immediate overview of the operating status.
2.High-efficiency detection enables rapid processing of 96-well plates in 15 s.
3.Features an advanced, wide-range temperature control system capable of cooling to 10°C below ambient temperature and heating up to 65°C, providing stable thermal conditions across a broad range for sensitive experiments.
4.Open filter design allows users to add filters as needed for future experimental requirements, offering flexibility for detection across various wavelengths.
5.Built-in analysis system supports complex assays, including immunoassays and quantitative detection (ELISA), enzyme kinetics, and cell viability analysis.
6.Kinetic assays can be programmed for up to 7 days and support linear shaking with adjustable speeds (10 levels) and amplitudes (3 levels).
7.Experimental data can be exported with a single click in various standard formats, including PDF, Excel, XML, and TXT.
8.An optional audit trail function is available to record and track user operations; once enabled, the audit trail cannot be disabled.
Intelligent Benchtop Microplate Reader Specification:
Model | ELMR-6300UVF |
Display | 10.1-inch HD screen |
Compatible Microplate | 96-well plates |
Absorbance Mode |
Light Source | Long-life xenon lamp (strong light intensity, stable luminescence) |
Wavelength Range | 200–850 nm |
Filter | 260nm, 280nm, 405nm, 450nm, 492nm, 600nm, 650nm (Max. 12 filters optional) |
Measure Range | 0.000–4.000 Abs |
Linear Range | 0–3 Abs (±2% for 96-well plate) |
Wavelength Accuracy | ±1% (0–3 Abs); ±2% (3–4 Abs)(@405mm) |
Wavelength Precision | CV ≤0.2% (0–3 Abs), CV ≤1.0% (3–4 Abs)(@405mm) |
Wavelength Resolution | 0.001 Abs |
Detection Mode | Absorbance, Single/dual wavelength detection , Kinetic Analysis |
Calculation Method | Absorbance mode, Cut-off qualitative calculation, linear regression, exponential regression, logarithmic regression |
Detection Speed | 15 s for 96-well plate |
Incubation & Shaker |
Incubation Temperature Range | RT +3 ℃ to 45 ℃ |
Shaking Mode | Built-in microplate oscillating mixing |
Shaking Amplitude | High / Medium / Low |
Operating system | Win10 |
Accessory | 96-well plate (absorption light transparent bottom) ×1 |
Power Supply | AC 110/220V, 50/60Hz |
External Size (W×D×H) | 470×300×330 mm |
Shipping Size (W×D×H) | 600×430×520 mm |
N.W/G.W | 11/15 kg |
