Beating type aseptic homogenizer is widely used in homogenization treatment of animal tissues and biological samples. It can be used in food, drug, cosmetics, clinical, molecular, toxin and bacterial detection fields, especially for the preparation of microbial test samples.
Beating Type Aseptic Homogenizer Specifications:
| Model No | HMG-BHS11
（Heating sterilization type） | HMG-BS09
（Sterile type） | HMG-BG08
（Standard type） |
| Control Mode | Microcomputer control
|
| Parameter Storage | 8-segment combination programming
|
| Display Mode | 4.3 inch touch screen display |
| Slap Time | 1s-99h59m59S or continuous operation |
| Clapper Material | Stainless steel with special extrusion protective cover |
| Slap Speed | 3-12 times / s |
| Heating Function | Yes | - | - |
| Temperature Range | Room temperature - 80 ℃ | - | - |
| Disinfection Function | Yes,the disinfection wavelength is 253.7nm | - |
| Effective Volume | 3～400ml |
| Aseptic Bag Size | 17*30cm |
| Tank Body | Stainless steel with anticorrosive plastic spraying |
| Slap Spacing | 0～50mm |
| Startup Mode | slow-start |
| Pause Function | Yes |
| Anti Pinch Function | With automatic stop anti pinch function |
| Other Function | Removable window with terpering glass |
| Voice Prompt Function | Yes |
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Consumption | 500W | 220W | 200W |
| External Size (WxDxH)(mm) | 460x250x330 | 460x250x330 | 460x250x330 |
| Shipping Size (WxDxH)(mm) | 540x310x410 | 540x310x410 | 540x310x410 |
| Weight G W/N.W (KG) | 23/19 | 22.5/18.5 | 22/18 |
Beating Type Aseptic Homogenizer Features:
The aseptic homogenizer can effectively separate the surface of solid sample and the microorganisms contained in it.
The sample is packed in a disposable sterile homogenization bag without contacting with the instrument.
It has the characteristics of soft homogenization, no pollution, no damage, no temperature rise, no sterilization and no washing of utensils.
The aseptic homogenizer meets the requirements of fast, accurate results and good repeatability.
Beating type aseptic homogenizer is also suitable for homogenization of tumor tissues (such as liver cancer, colorectal cancer, gastric cancer and breast cancer). It can not only obtain a large number of single cells (up to 2 * 105 in 2 minutes). If necessary, homogenizer can extend the homogenization time and accelerate the homogenization speed, so as to achieve soft fragmentation of tissue cells (such as liver, etc.).

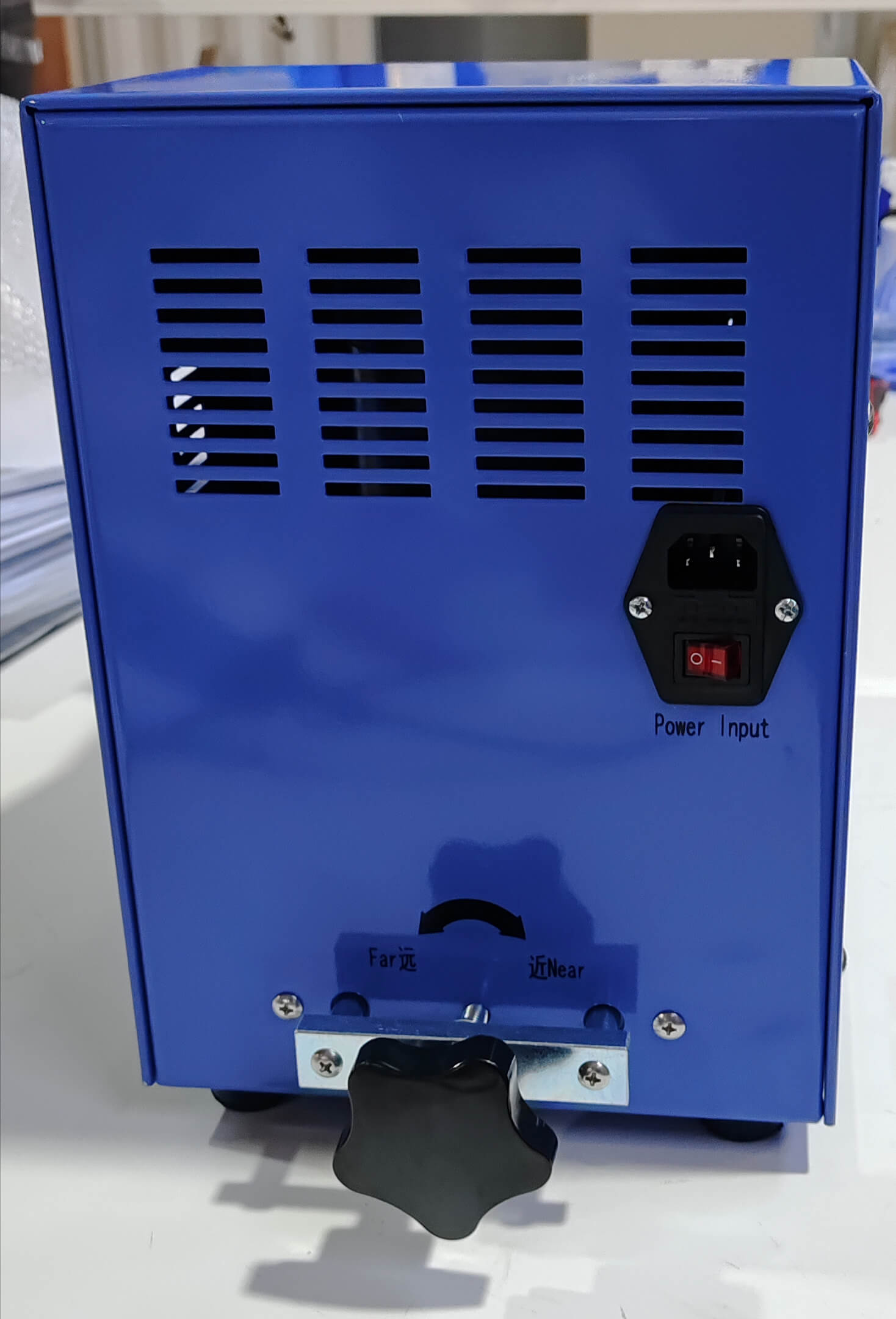

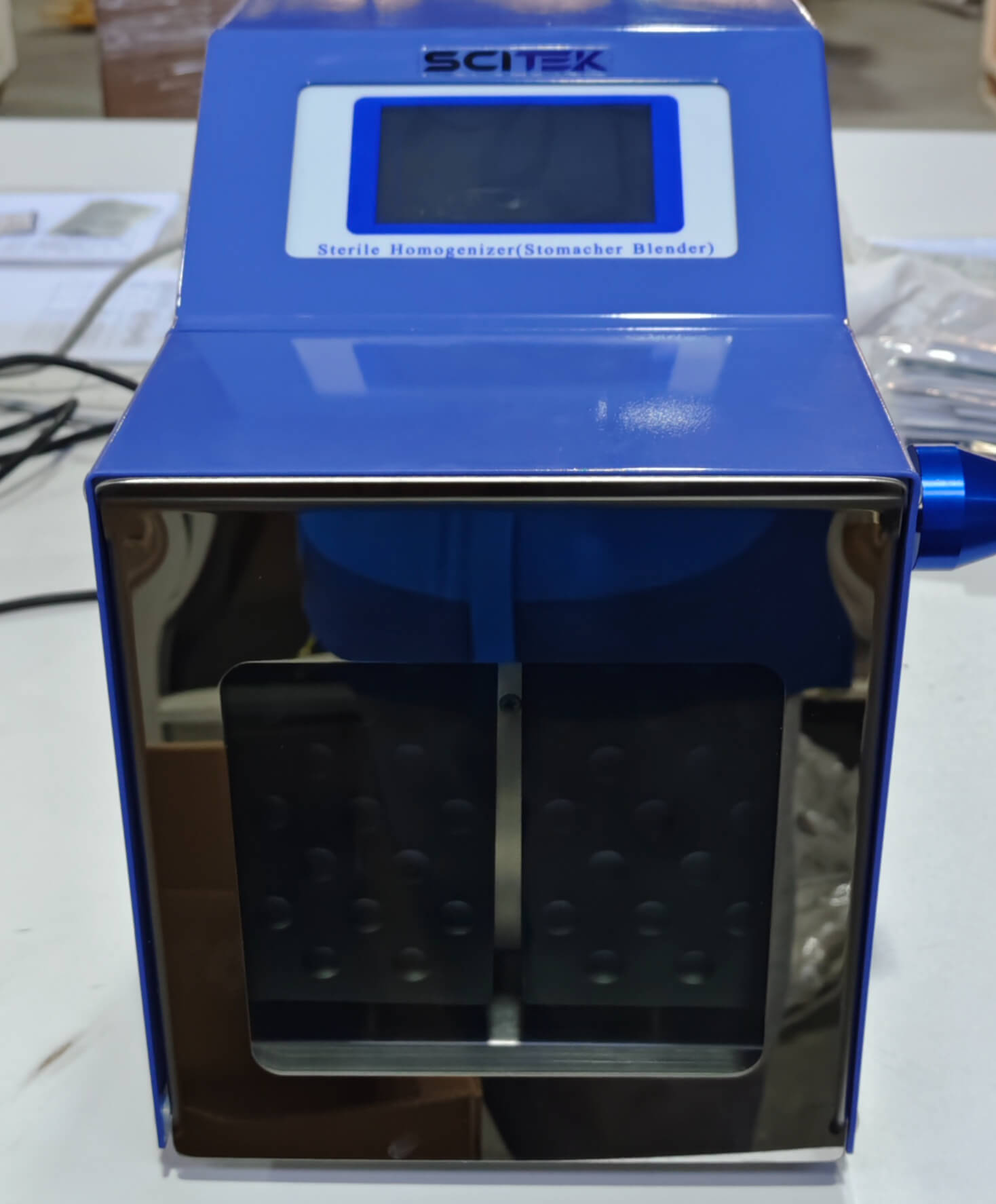

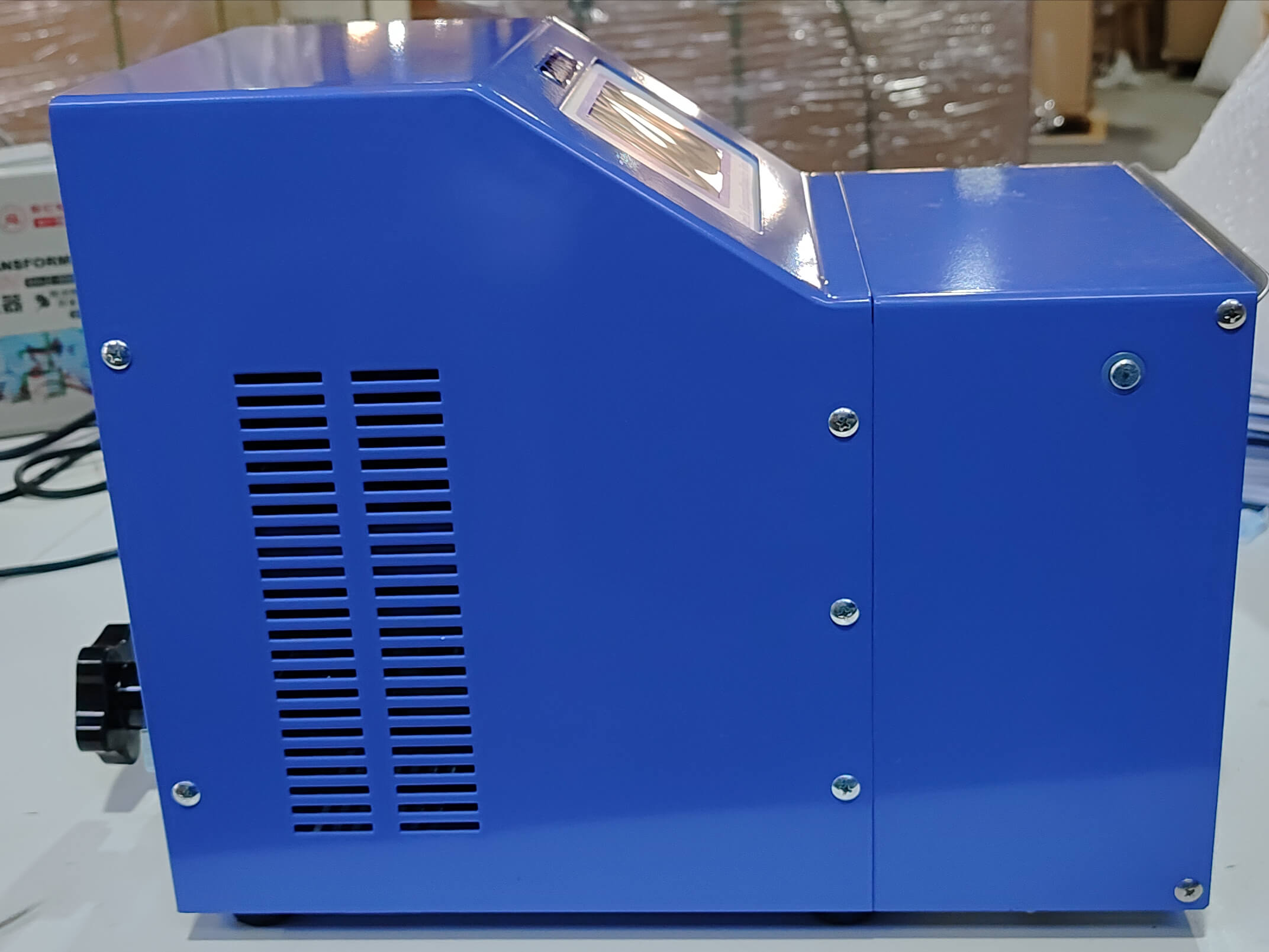

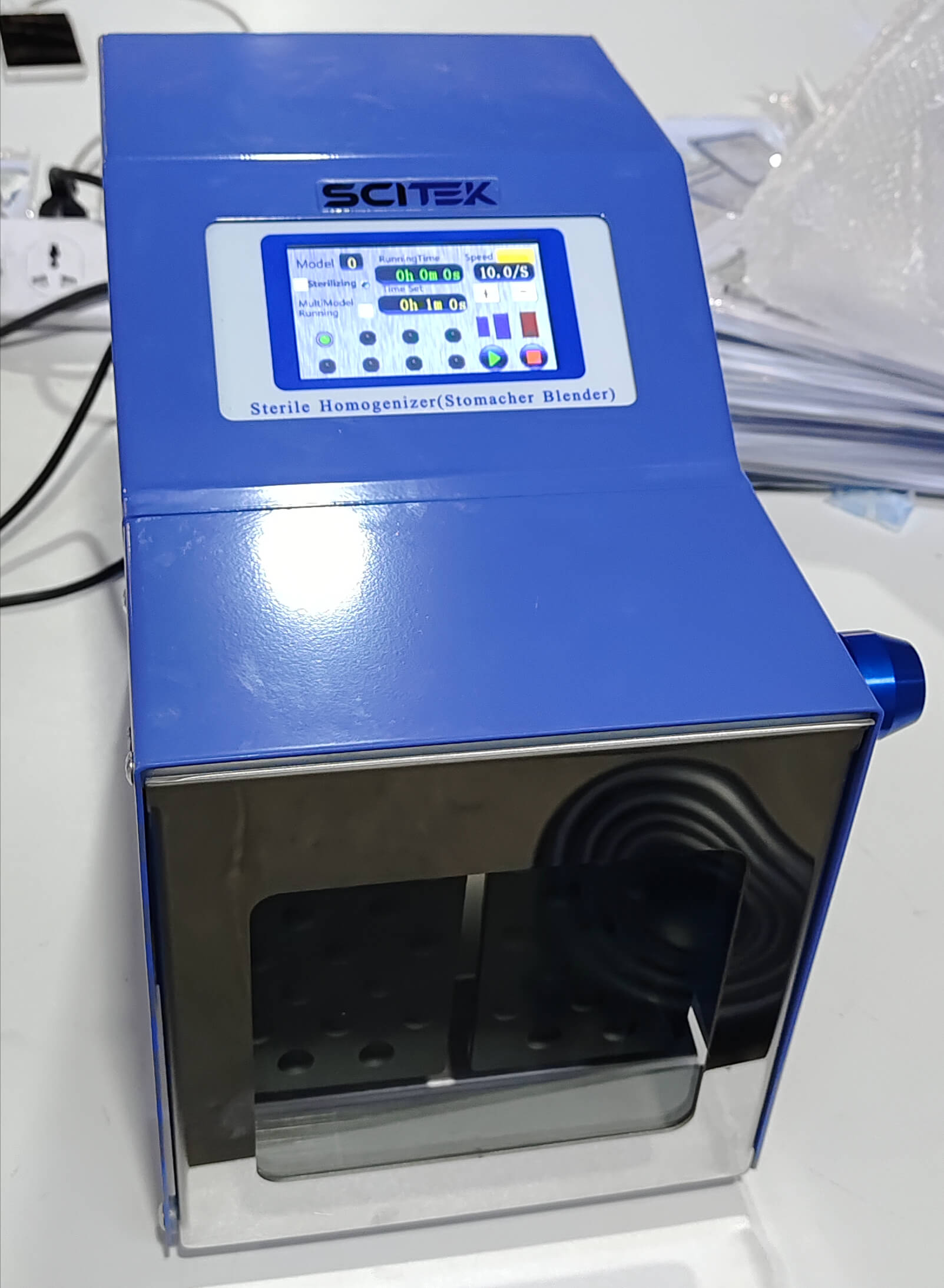

Details of Beating Type Aseptic Homogenizer (HMG-BS09):
The beating type aseptic homogenizer features a stainless steel body with a transparent door, allowing users to monitor the homogenization process. The sterile, sealed homogenization chamber accommodates various sample bags, preventing cross-contamination.
The adjustable paddles provide uniform sample blending, optimizing extraction efficiency.
The unit’s compact design and ventilation system enhance heat dissipation for prolonged operation.
