Number of Reagent station: 12 Number of Paraffin Chamber: 3 Tissues that can be processed at one time: 300 cassettes Programme: 10 sets Paraffin Chamber Temperature: 58-80 ℃
1. Equipped with a 15-inch color LCD intelligent touch screen, sensitive touch, clear display.
2. Rich human-machine interaction features such as misoperation reminders, pop-up inquiries, scrolling screens, etc.
3. Working station synchronous displays and work progress is clear at a glance.
4. Fully enclosed specimen processing system, no pollution gas leakage, in line with environmental protection requirements.
5. Advanced gas pressure conversion device, stable air pressure, low failure rate.
6. Imported vacuum pump and built-in drying filter ensure effective removal of air moisture.
7. With the power-off memory function, it starts running automatically upon power restoration.
8. Powerful timing function, you can set the tissue completion time arbitrarily according to the week, convenient for work planning.
9. The special working station design allows for thorough liquid reflux , reduces reagent mixing, improves the reagent use cycle.
10. The working station features intelligent, fully automatic cleaning, ensuring thorough cleanliness while saving time and effort.
11. The one-touch free switching between regular dehydration and fast dehydration allows for quick dehydration in just 3 hours.
12. The one-touch intelligent automatic liquid exchange with waste liquid chamber, makes fluid exchange convenient and effortless.
13. Misoperation prompts and working station intelligent alarm prompts ensure safety.
Specification:
Model
TP-EQ1
Reagent Station
Quantity: 12
Capacity: 6 L
Paraffin Chamber
Quantity: 3
Capacity: 6 L
Recycle Bottle
1
Activated Carbon Bottle
1
Capacity of Processing Station
9 L
Tissue Basket Capacity
163×163×198 mm (300 cassettes)
Processing Station Temperature
Reagent: RT - 45 ℃;
Paraffin: 58-80 ℃
Paraffin Chamber Temperature
58-80 ℃ adjustable
Vacuum Pressure
< 0.1 Mpa
Programme
10 sets
Single Reagent Processing Time
1, 2 station 0 - 6000 minutes;
other 0 - 300 minutes
the Time of Reagent Inlets and Outlets in the Processing Station
≤ 5 minutes
Agitation Time
0-9 minutes
Agitation Interval Time
0-12 minutes
Power Supply
AC 100 V - 120 V / AC 220 V - 240 V, 50 Hz / 60 Hz
Power
< 1500 W ± 10%
Dimension (W×D×H)
650×650×1350 mm
Shipping size (W×D×H)
730×730×1350 mm
N.W./G.W. (kg)
115 kg/190 kg
Details of Fully Automatic Enclosed Tissue Processor:

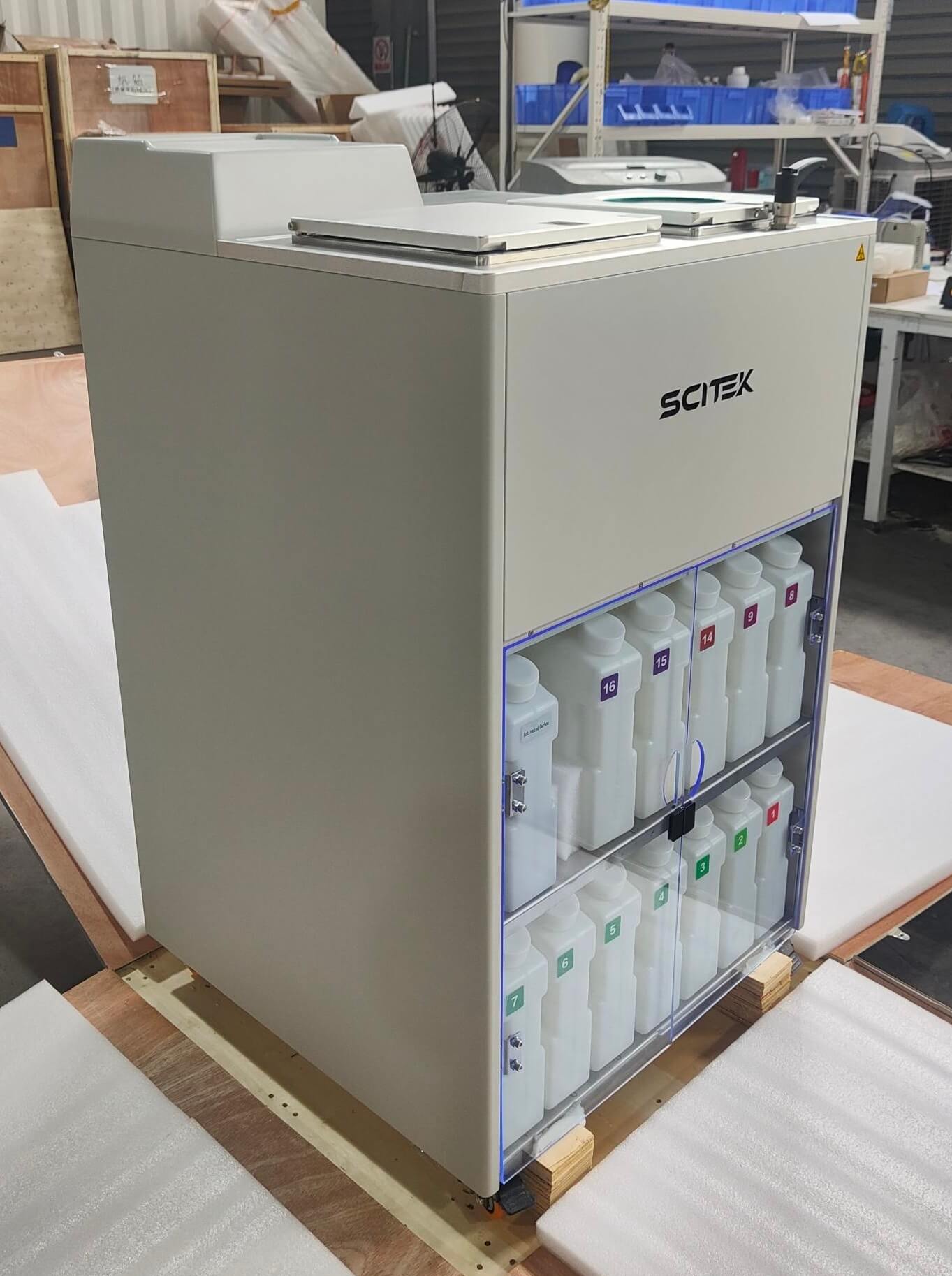

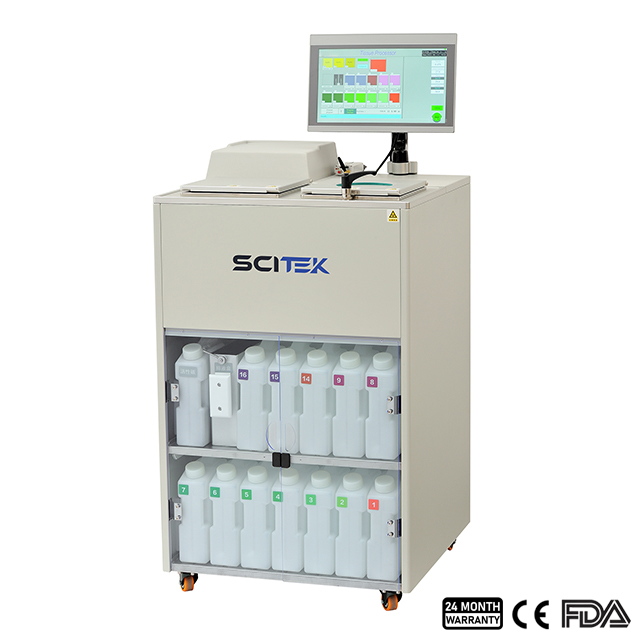

The front view of the tissue processor highlights its user interface with a digital control panel, displaying settings and operational status for easy monitoring and control. The sleek design ensures easy access to the sample processing compartment.

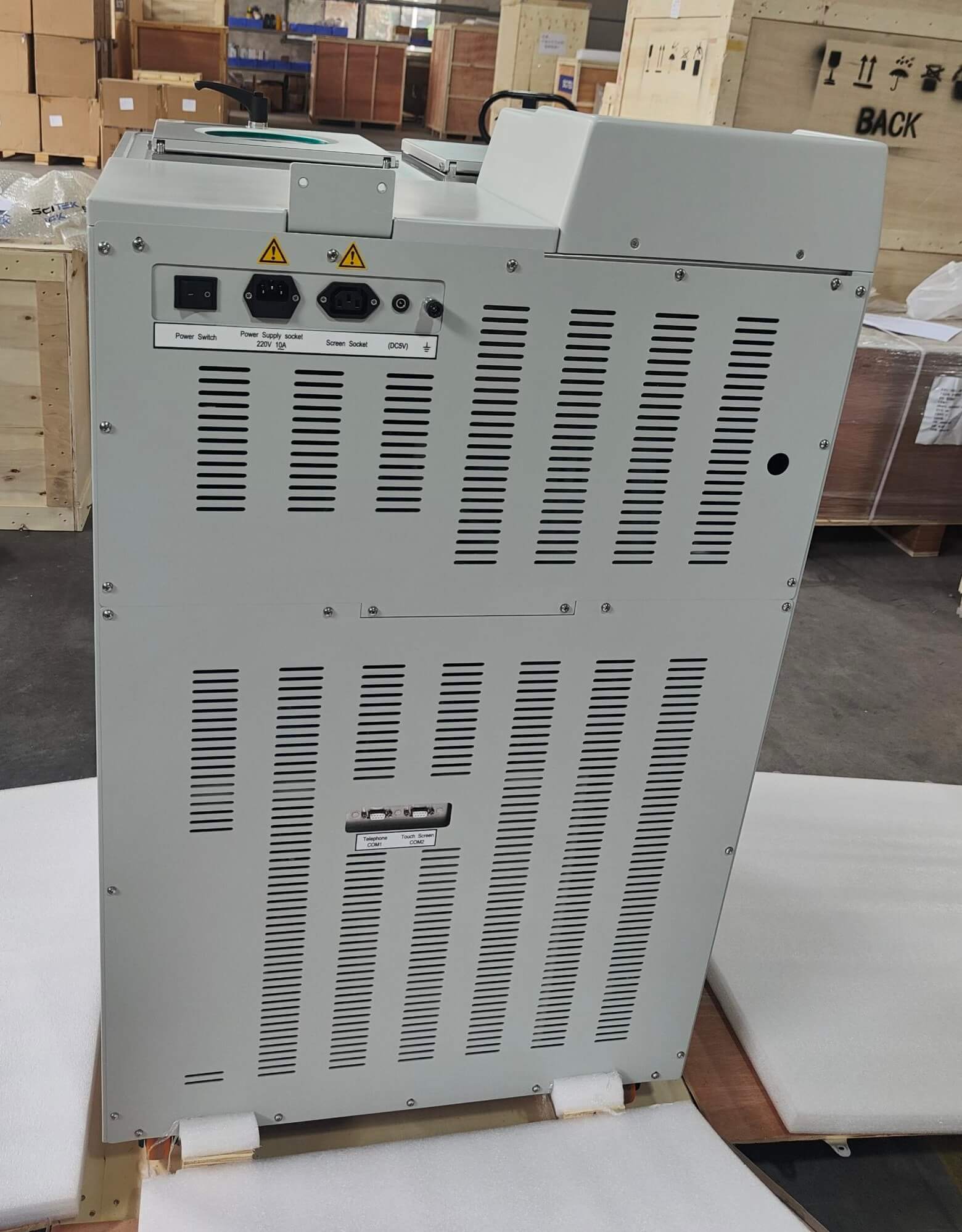

The back of the tissue processor shows its power connections, ventilation system, and exhaust ports, ensuring efficient air circulation and safe operation. It is designed for seamless integration into laboratory settings with minimal space usage.
A close-up of the internal components, including the sample holders, reagent chambers, and motorized parts, demonstrating the advanced automation and precision for tissue processing. The intricate design ensures consistent and reliable sample preparation.
Advantage:
1. Equipped with a 15-inch color LCD intelligent touch screen, sensitive touch, clear display.
2. Rich human-machine interaction features such as misoperation reminders, pop-up inquiries, scrolling screens, etc.
3. Working station synchronous displays and work progress is clear at a glance.
4. Fully enclosed specimen processing system, no pollution gas leakage, in line with environmental protection requirements.
5. Advanced gas pressure conversion device, stable air pressure, low failure rate.
6. Imported vacuum pump and built-in drying filter ensure effective removal of air moisture.
7. With the power-off memory function, it starts running automatically upon power restoration.
8. Powerful timing function, you can set the tissue completion time arbitrarily according to the week, convenient for work planning.
9. The special working station design allows for thorough liquid reflux , reduces reagent mixing, improves the reagent use cycle.
10. The working station features intelligent, fully automatic cleaning, ensuring thorough cleanliness while saving time and effort.
11. The one-touch free switching between regular dehydration and fast dehydration allows for quick dehydration in just 3 hours.
12. The one-touch intelligent automatic liquid exchange with waste liquid chamber, makes fluid exchange convenient and effortless.
13. Misoperation prompts and working station intelligent alarm prompts ensure safety.
Specification:
Model
TP-EQ1
Reagent Station
Quantity: 12
Capacity: 6 L
Paraffin Chamber
Quantity: 3
Capacity: 6 L
Recycle Bottle
1
Activated Carbon Bottle
1
Capacity of Processing Station
9 L
Tissue Basket Capacity
163×163×198 mm (300 cassettes)
Processing Station Temperature
Reagent: RT - 45 ℃;
Paraffin: 58-80 ℃
Paraffin Chamber Temperature
58-80 ℃ adjustable
Vacuum Pressure
< 0.1 Mpa
Programme
10 sets
Single Reagent Processing Time
1, 2 station 0 - 6000 minutes;
other 0 - 300 minutes
the Time of Reagent Inlets and Outlets in the Processing Station
≤ 5 minutes
Agitation Time
0-9 minutes
Agitation Interval Time
0-12 minutes
Power Supply
AC 100 V - 120 V / AC 220 V - 240 V, 50 Hz / 60 Hz
Power
< 1500 W ± 10%
Dimension (W×D×H)
650×650×1350 mm
Shipping size (W×D×H)
730×730×1350 mm
N.W./G.W. (kg)
115 kg/190 kg
Details of Fully Automatic Enclosed Tissue Processor:
The front view of the tissue processor highlights its user interface with a digital control panel, displaying settings and operational status for easy monitoring and control. The sleek design ensures easy access to the sample processing compartment.
The back of the tissue processor shows its power connections, ventilation system, and exhaust ports, ensuring efficient air circulation and safe operation. It is designed for seamless integration into laboratory settings with minimal space usage.
A close-up of the internal components, including the sample holders, reagent chambers, and motorized parts, demonstrating the advanced automation and precision for tissue processing. The intricate design ensures consistent and reliable sample preparation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
