A laboratory homogenizer is an essential tool for mixing chemical or biological samples in many laboratories. Plants, tissues and many other samples that need to be broken down before processing can be emulsified using a homogeniser.
Viscosity up to 10,000 mPas.
6 modes of motor speed from 10,000 to 30,000 rpm.
All-round safety guarantee for motor drive, overload protection and smooth operation.
316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions.
Easy dismantling for fast preparation.
All shafts are interchangeable for easy dismantling and cleaning.
Model | HMG-500 |
---|---|
Speed | 10000~30000rpm |
Rotor Speed Range | 22.7~36m/s |
Speed Level | 6 levels |
Sample Processing Volume Range | 10~40000mL |
Maximum Viscosity | 10000mPas |
Dispersion Head | Optional |
Contact Material | 316L Stainless steel/PTFE |
Sound Pressure Level | 79dB(A) |
Protection | IP20 |
Power | 500W |
Motor | AC carbon brush motor |
Size (W×D×H)(mm) | 340×300×600 |
N.W/G.W(KG) | 1.7/8.5 |
Shipping Size (W×D×H)(mm) | 630×310×230 |

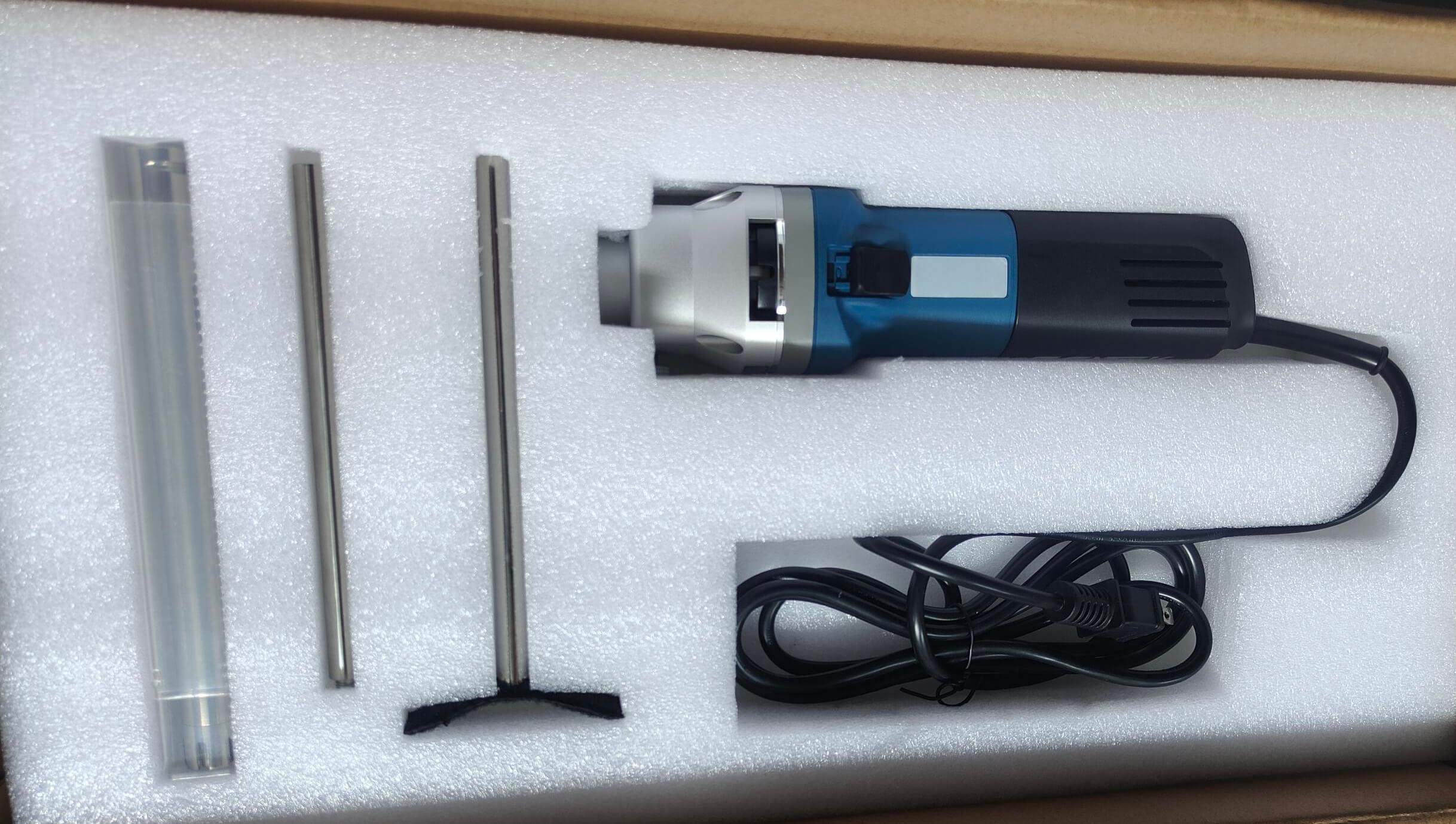

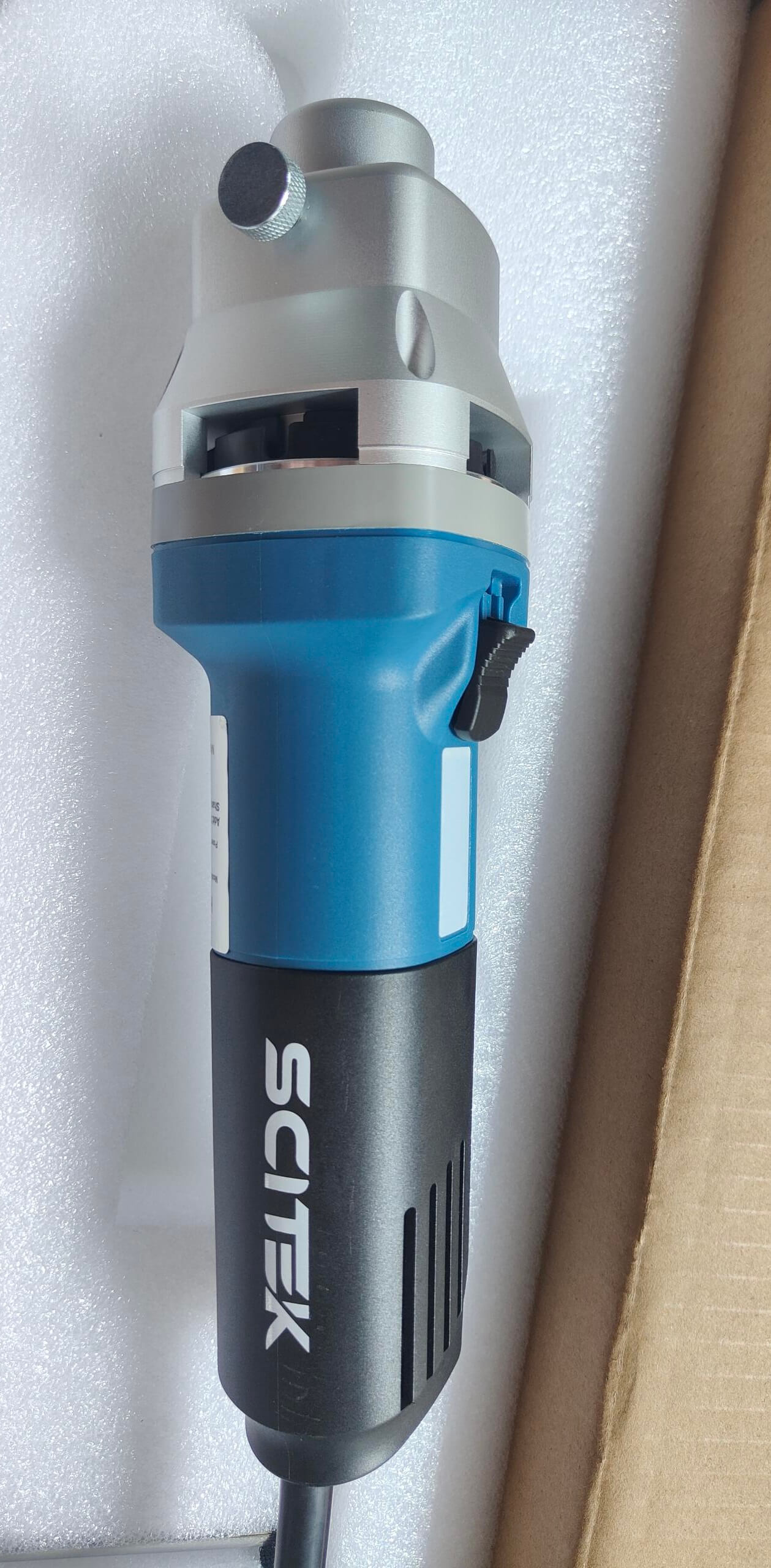

This ergonomic handheld homogenizer is lightweight, making it ideal for quickly processing smaller sample volumes.
The core of the lab homogenizer consists of a powerful motor and interchangeable homogenizing heads for rapid, homogeneous mixing, dispersion or emulsification of liquid samples.

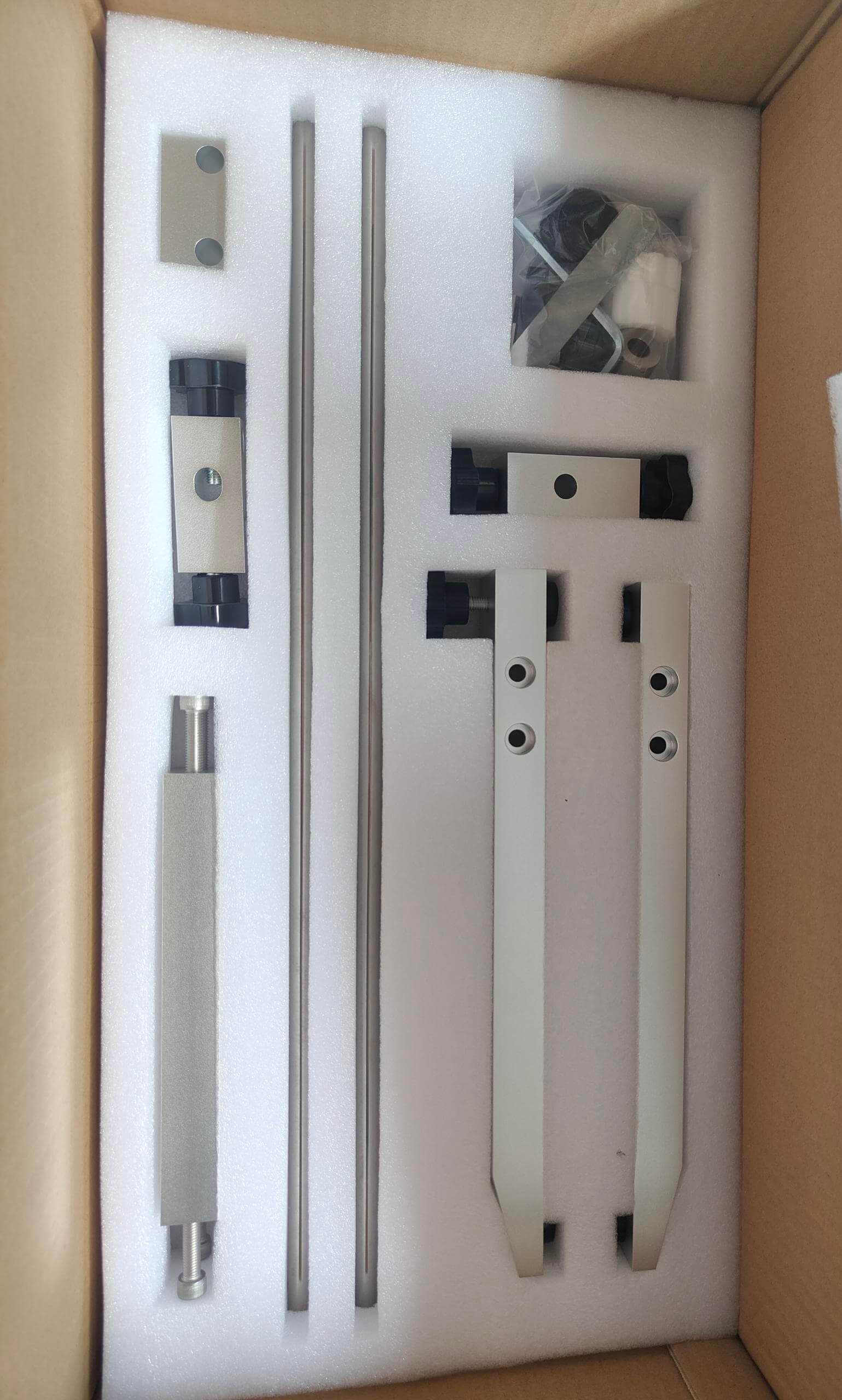

The lab homogenizer's connection between the homogenizer head and the motor ensures smooth power transmission and is equipped with a non-slip bracket to improve the stability of the unit's operation.
