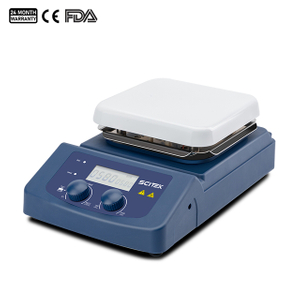

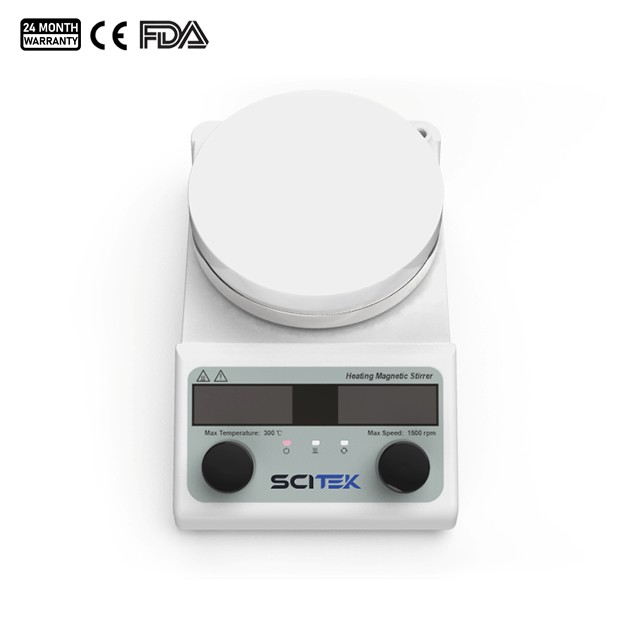

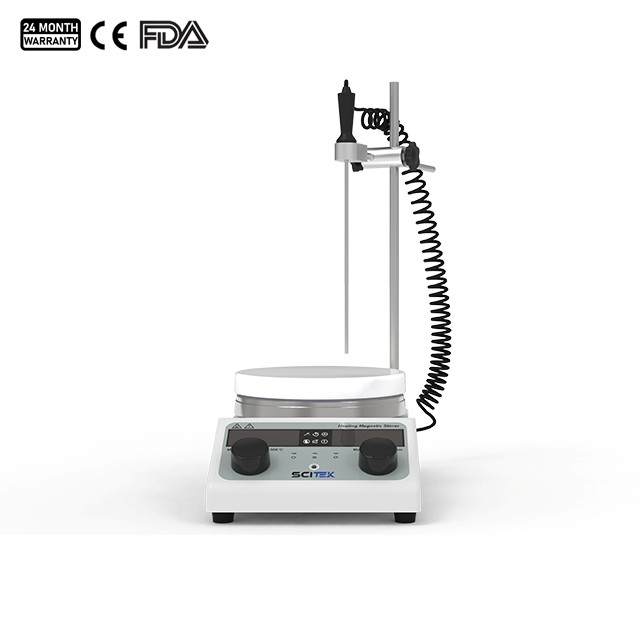

Hotplate Magnetic Stirrer, HMS-300 Series

Work Plate Size

138×138 mm

Work Plate Material

Aluminum cover with ceramic coating

Motor Type

Brushless DC motor

Stirring Position

1

Max. Stirring Quantity [H₂O]

3 L

Speed Range

200–1500 rpm

100–1500 rpm (forward/reverse rotation)

Control Accuracy of Sensor

±10 rpm

Speed Display

LED

Temperature Display

LED

Heating Temperature Range

Room temp. ±5 ℃ to 300 ℃

Over Heat Protection

320 ℃

Temperature Display Accuracy

1 ℃

External Temperature Sensor

PT1000 (accuracy ±0.5 ℃)

Timer

99 h 59 min 59 s (count-down timer)

99 h 59 min 59 s (count-down timer/count-up timer)

Alarm Function

N/A

Alarm, lock

Motor Rating Output

9 W

Heating Output

320 W

Voltage

100–120/200–240 V, 50/60 Hz

Permissible Ambient Temperature and Humidity

5–40 ℃, 80% RH

Shipping Size (W×D×H)

300×200×150 mm

G.W

2.1 kg
