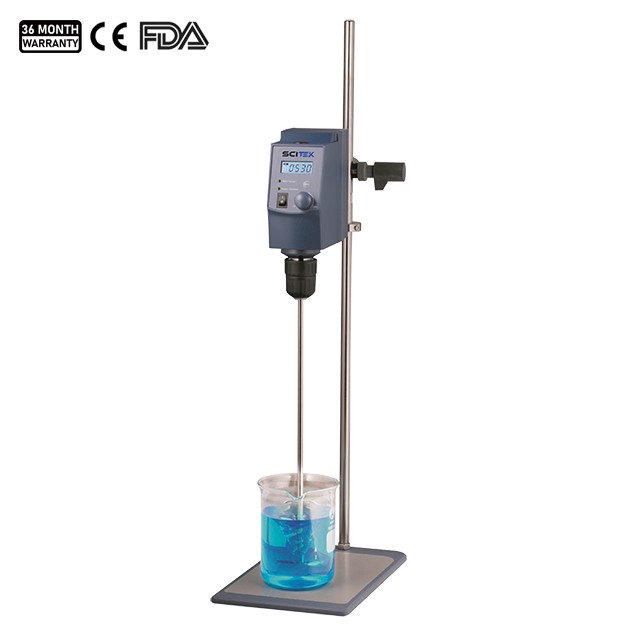

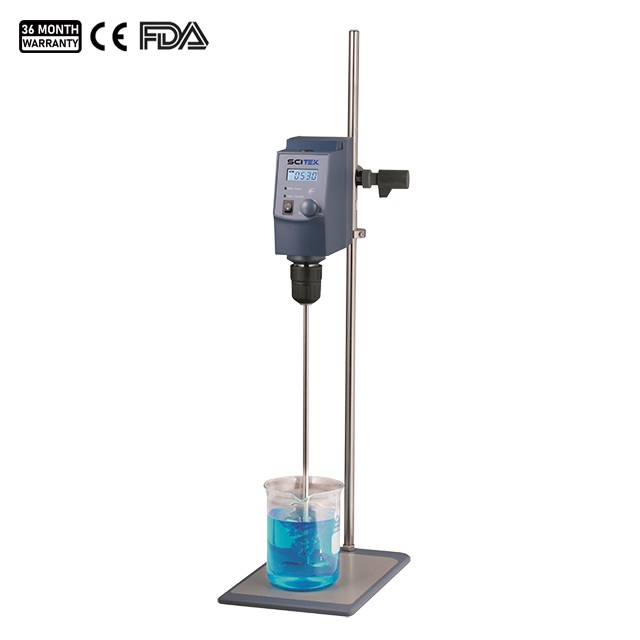

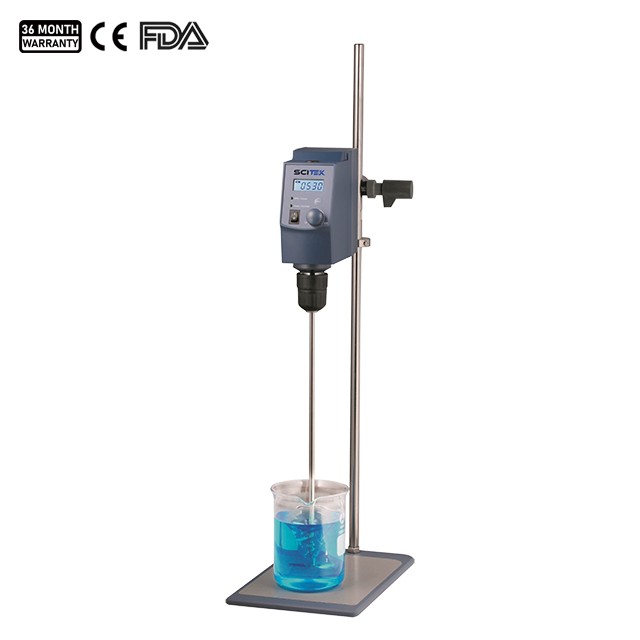

Versatile Overhead Stirrer

Model : OS-P20; OS-P40; OS-P70

Max. Stirring Quantity (H2O) : 20L / 40L / 70L
Speed Range : 50~2200rpm / 50~2200rpm / 50~1100rpm
Max. Torque : 40N.cm / 60N.cm / 300N.cm
Max. Viscosity : 10000mPa·s / 50000mPa·s / 100000mPa·s
Motor Type : Brushless DC motor
The overhead stirrer offers high performance and versatility.
Availability:
Quantity:
Inquiry Add to Inquiry List

Overhead Stirrer Specifications:

ModelOS-P20OS-P40OS-P70
Max. Stirring Quantity (H2O)20L40L70L
Speed Range50~2200rpm50~2200rpm50~1100rpm
Speed Display Accuracy±3rpm±3rpm±10rpm
Time Settings Range––0-99h59min
Max. Torque40N.cm60N.cm300N.cm
Max. Viscosity10000mPa·s50000mPa·s100000mPa·s
Motor TypeBrushless DC motor
Power Supply100~240V, 50/60 Hz
Speed DisplayLCD
Torque DisplayLCD
Overload Protection DisplayLCD
Protection ClassIP21
Permissible Ambient
Temperature and Humidity		5~40°C, 80%RH
Data InterfaceRS232
Chuck Range Diameter0.5~10mm
Motor Input/Output Power60W/50W120W/100W180W/160W
Power70W130W200W
Size(W×D×H)(mm)220x83x186
Shipping Size(W×D×H)(mm)470x310x430
N.W./G.W. (kg)2.8/52.8/5.53.2/7

Overhead Stirrer Features:

  1. Speed range cover 50~1100rpm, accuracy range is ±10rpm.

  2. Maintenance free brushless DC motor.

  3. Speed constant despite, if the sample properties change during stirring.

  4. Circuit protection.

  5. Remote function: PC control and data transmission.

  6. LCD display of set and actual speed, torque and time.
