Hotplate Magnetic Stirrer Specifications:
| Model | HMS-PA |
| Work Plate Size | φ135 mm (5 inch) |
| Work Plate Material | Aluminum |
| Motor Type | Brushless DC motor |
| Heating Temperature Range | Room temp.-340℃ |
| Increment | 1℃ |
| Temperature Display Accuracy | ±0.1℃ |
| Speed Range | 100-1500rpm resolution ±1rpm |
| Max. Stirring Quantity (H2O) | 20L |
| Speed Display | LCD |
| Temperature Display | LCD |
| Max. Magnetic Bar (Length) | 80mm |
| Temperature Control Accuracy | ±1°C(<100℃) ±1%(>100℃) |
| External Temperature Sensor | PT1000 (Accuracy ±0.2℃) |
Permissible Ambient
Temperature and Humidity | 5-40℃; 80%RH |
| Over Temperature Protection | 420℃ |
| “Hot” Warning | 50℃ |
| Data Connector | RS232 |
| Protection Class | IP21 |
| Heating Power | 600w |
| Power | 650w |
| Motor Rating Input | 18w |
| Motor Rating Output | 10w |
| Power Supply | 100~120/200-240V, 50/60Hz |
| Size(W×D×H)(mm) | 280×160×100 |
| Shipping Size(W×D×H)(mm) | 470×250×240 |
| N.W./G.W. (kg) | 2.8/4 |
Note: The external mounting bracket with temperature sensor and reagent tray are not included in standard configuration and require additional purchase.
Hotplate Magnetic Stirrer Features:
Digital control, high-resolution LCD display.
Max. temperature at 340℃.
Max. speed up to 1500rpm.
The external temperature control with an accuracy of ± 0.2℃ can be achieved by connecting a temperature sensor (PT1000).
Brushless DC motor enables more powerful speed control.
Three heating modes: Fast heating, standard heating and stable heating.
RS232 interface: Remote PC control and data transmission.
Details of Hotplate Magnetic Stirrer:

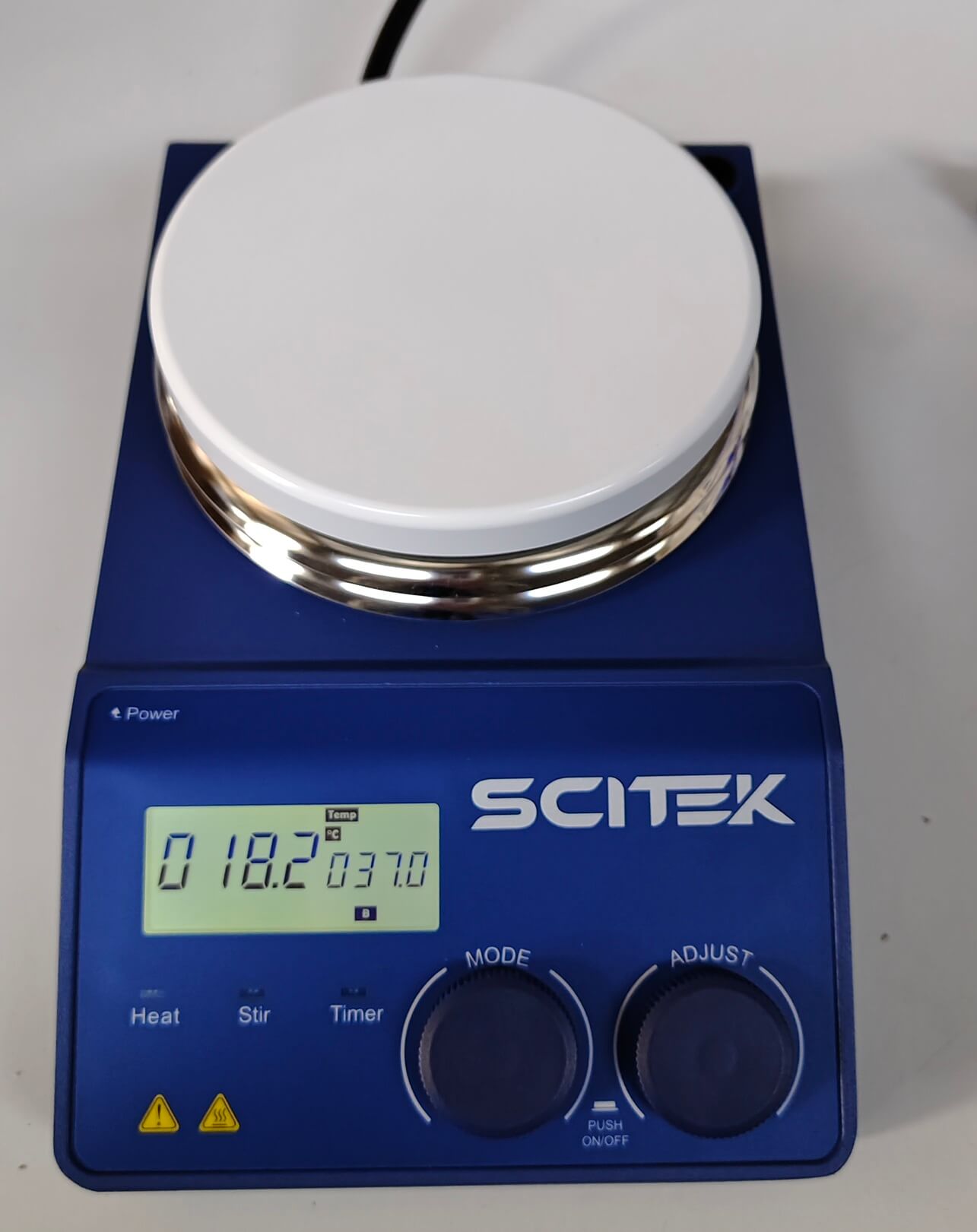

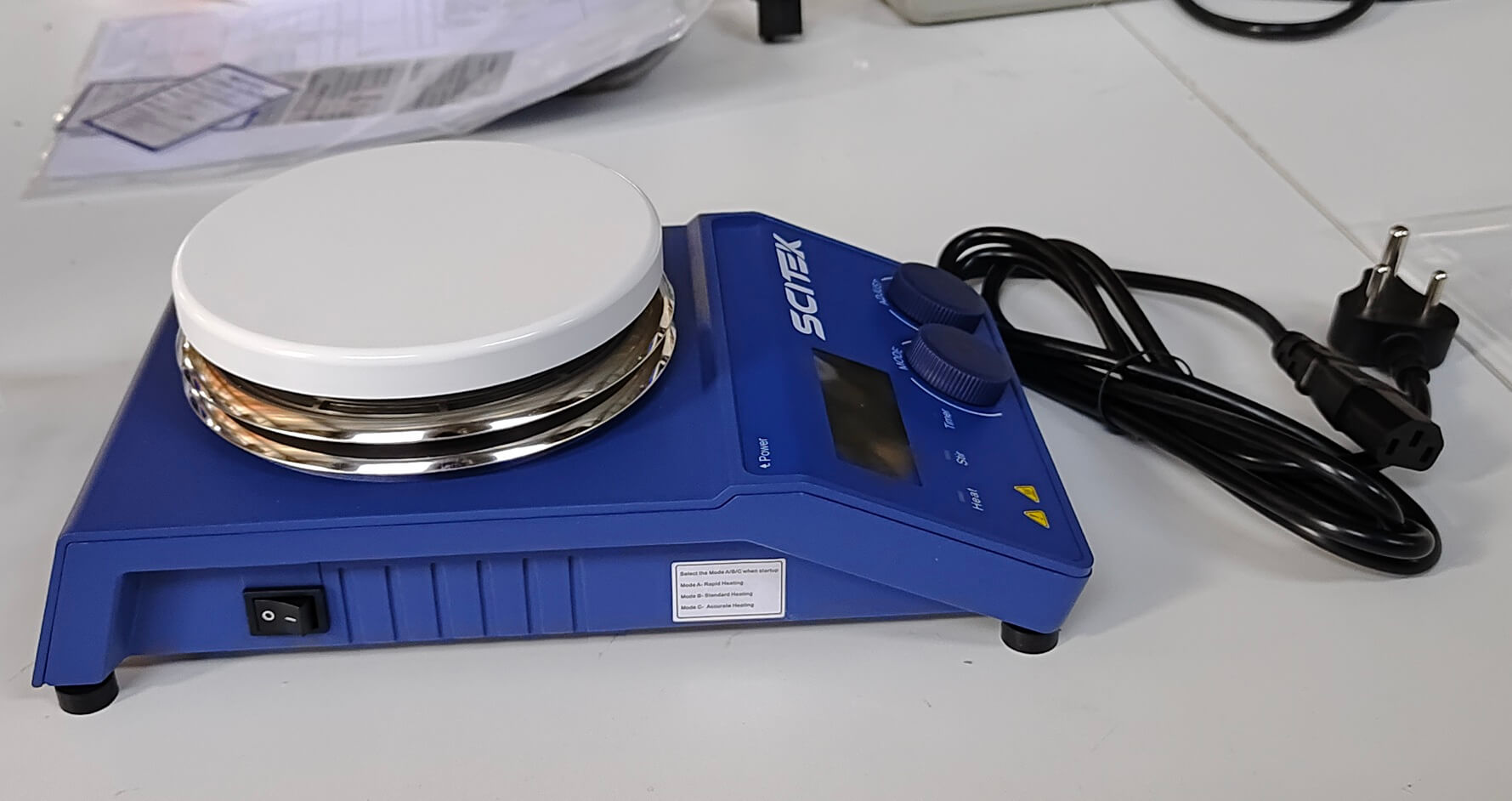

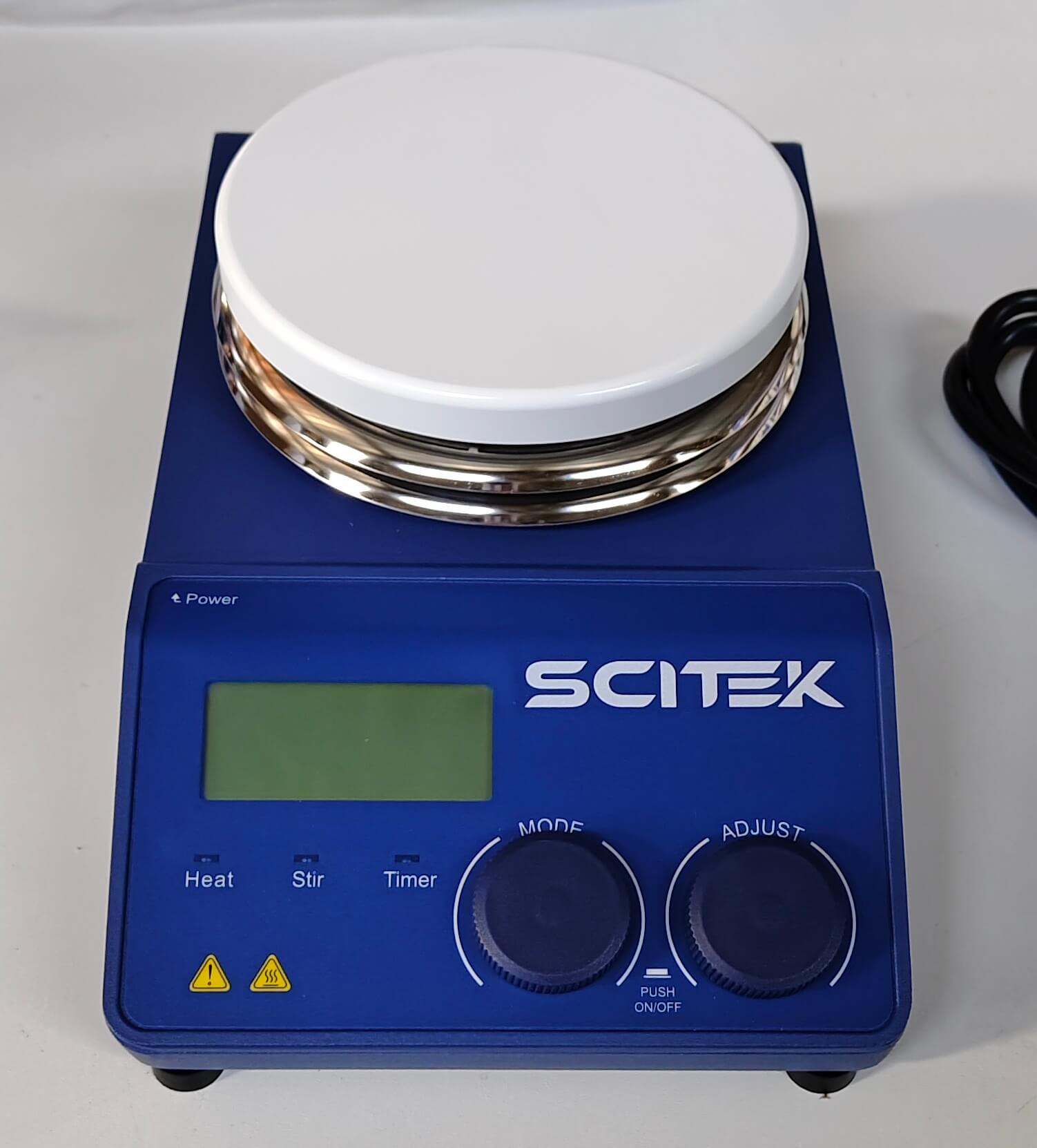

The hotplate magnetic stirrer features a sleek and functional design, with an intuitive control panel on the front for adjusting temperature and stirring speed. The large, clear display allows users to monitor the settings easily, while the durable heating plate is designed for uniform heating. The magnetic stirrer is equipped with a powerful motor to ensure smooth and consistent stirring, ideal for laboratory applications requiring precise mixing and temperature control.

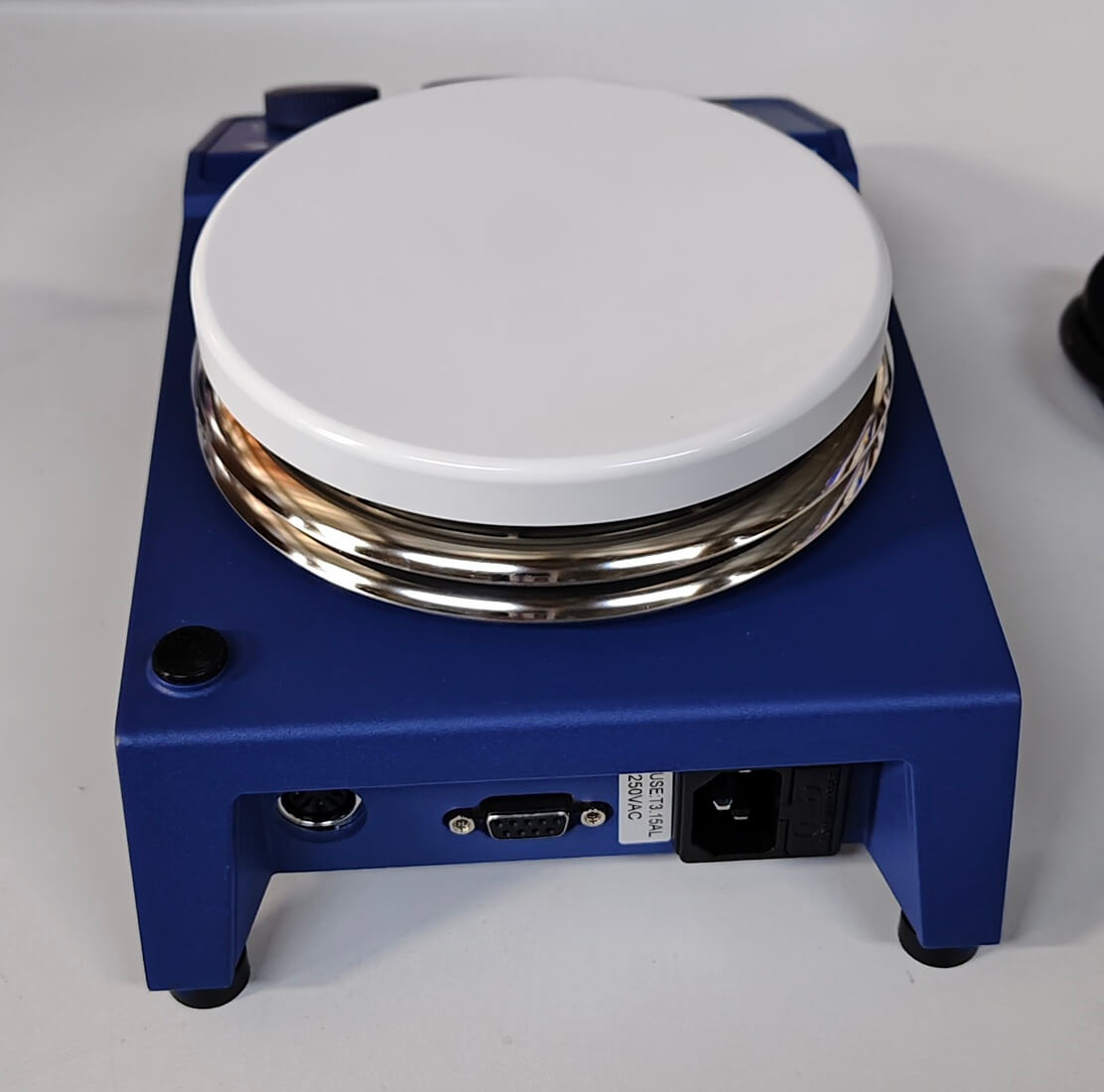

The back of the hotplate magnetic stirrer shows its robust construction and essential connection ports. The power supply port and cooling vents are strategically placed to ensure efficient operation and temperature regulation.
The hotplate magnetic stirrer is securely packaged with protective foam inserts to safeguard it during transport. The packaging is designed to minimize any risk of damage, with clear labeling for easy identification.
