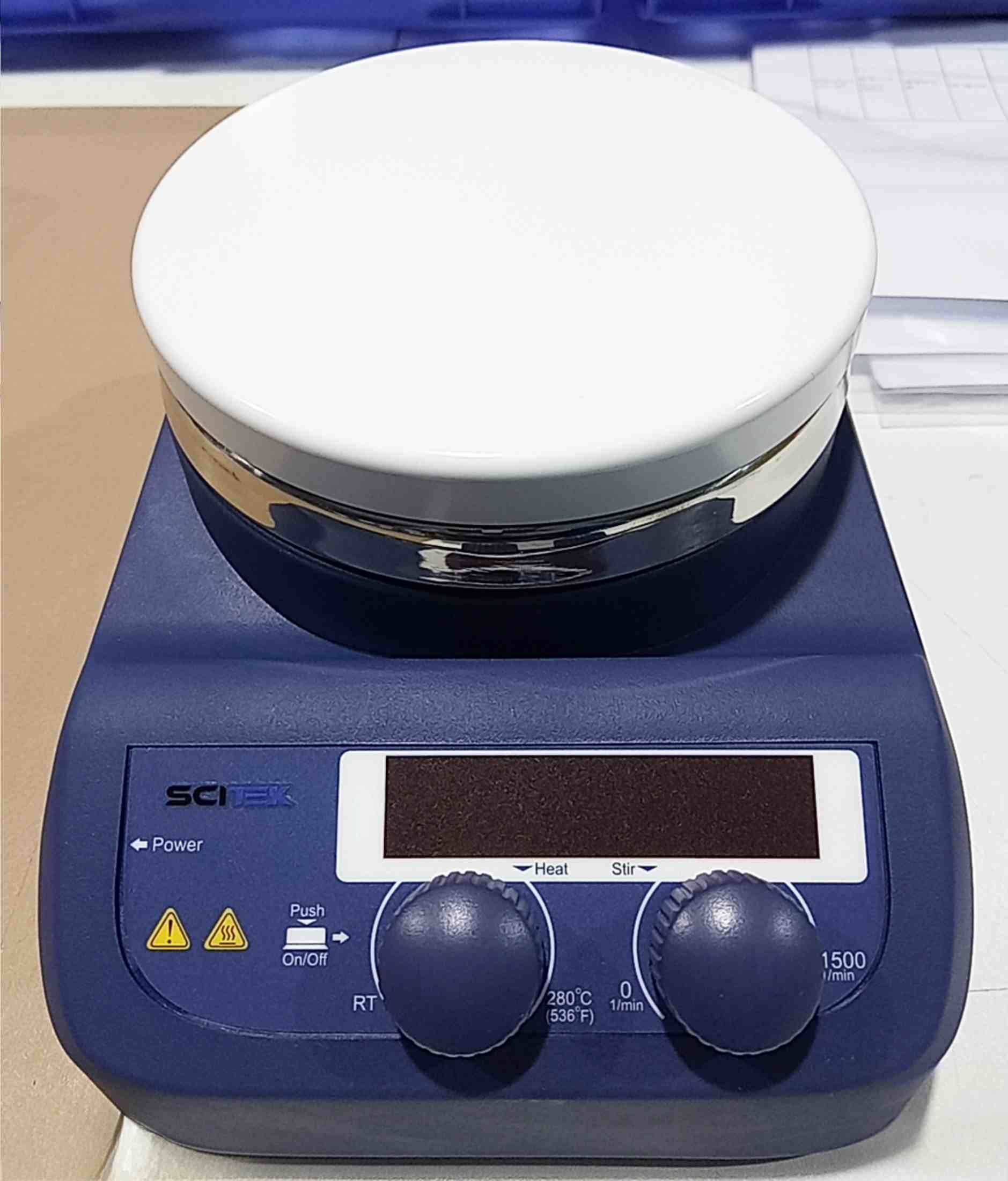

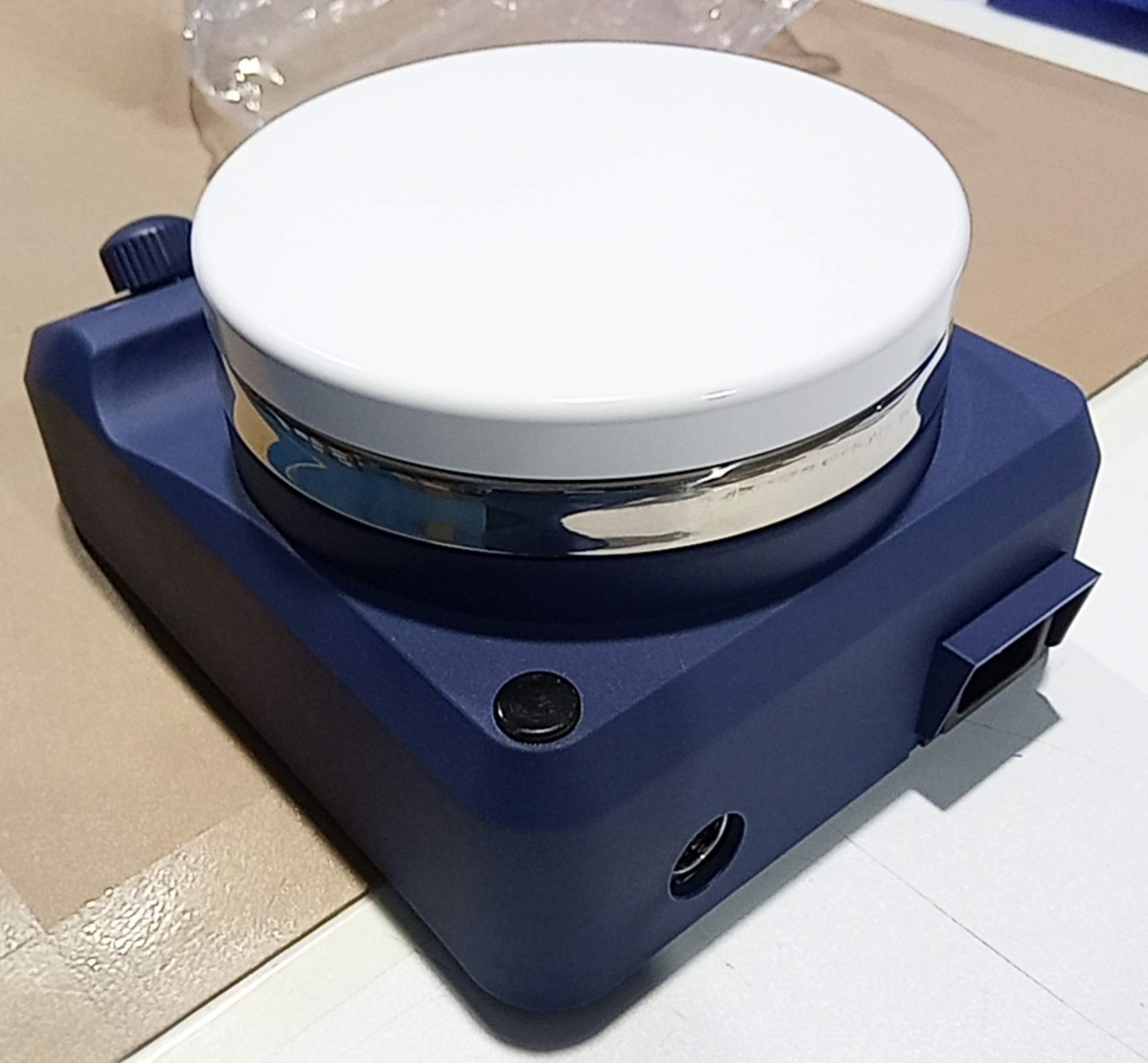

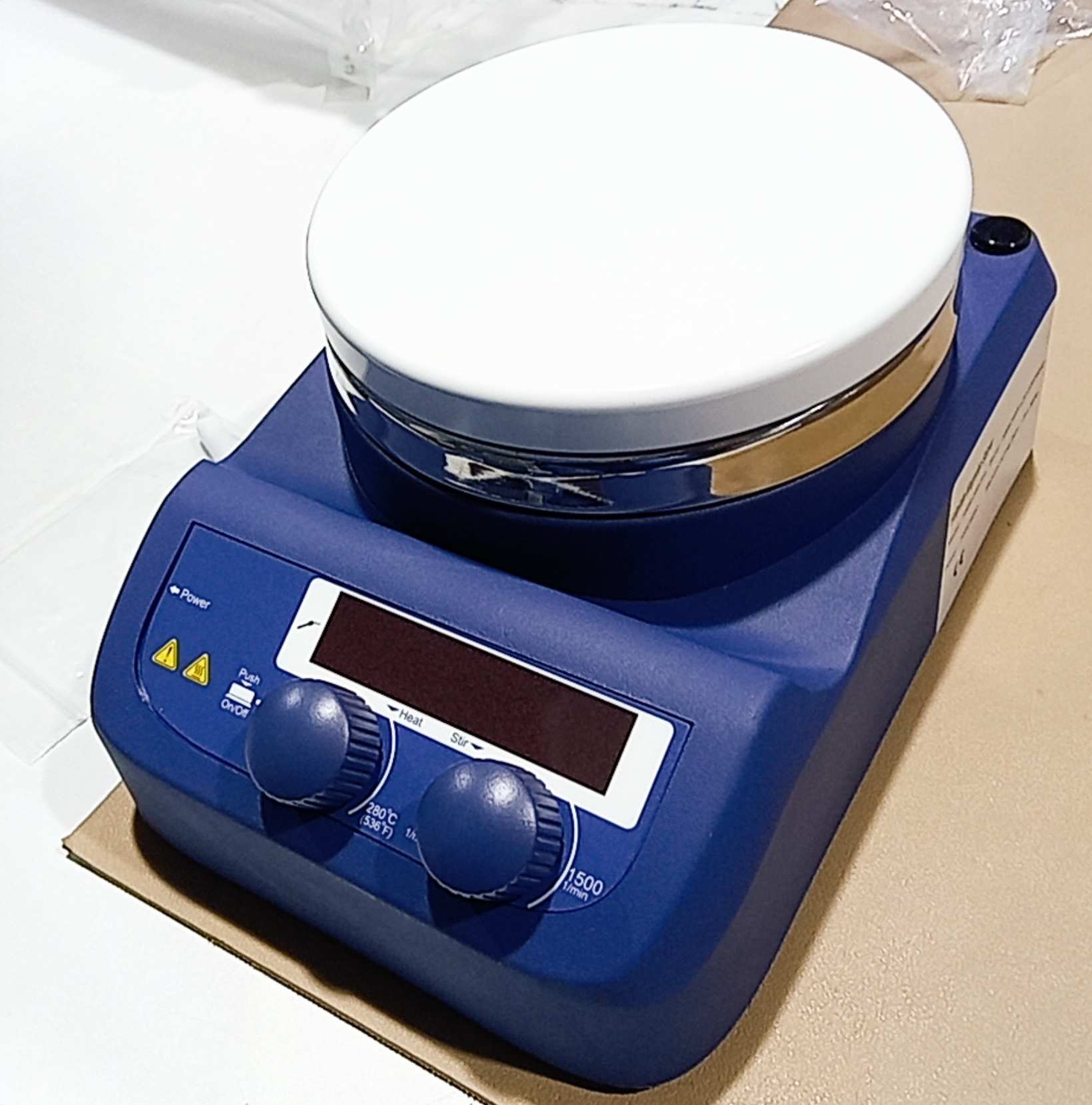

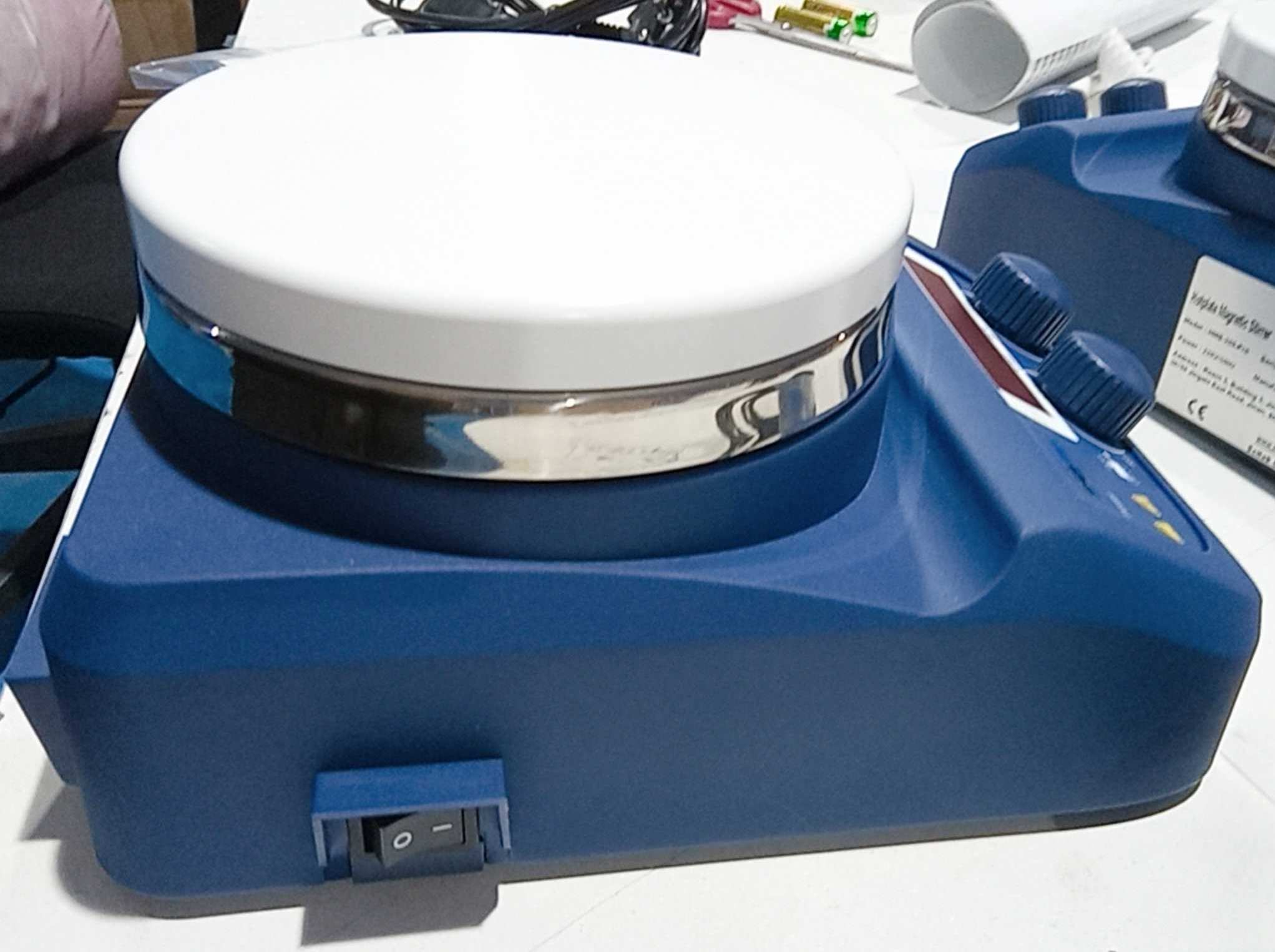

Hotplate Magnetic Stirrer, 320°C

Model : HMS-280-Pro

Work Plate Size : φ135mm (5 inch)
Work Plate Material : Stainless steel cover with ceramic
Max. Stirring Quantity : 3L
Speed Range : 200-1500rpm
Size(W×D×H)(mm) : 260×150×100
Newly designed, cost-effective magnetic stirrer equipped with a heating feature.
Availability:
Quantity:
Inquiry Add to Inquiry List

Hotplate Magnetic Stirrer Specifications:

ModelHMS-280-Pro
Work Plate Sizeφ135mm (5 inch)
Work Plate MaterialStainless steel cover with ceramic
Motor TypeBrushless DC motor
Stirring Positions1
Max. Stirring Quantity3L
Max. Magnetic Bar (Length)50mm
Speed Range200-1500rpm
Speed DisplayLED
Temperature DisplayLED
Speed Display Resolution±1rpm
Heating Temperature RangeRoom temp.-280, increment 1°C
Control Accuracy of Work Plate±1°C(<100°C) ±1%(>100°C)
Overheating Protection320°C
Permissible Ambient
Temperature and Humidity		5-40°C, 80%RH
Temperature Display Accuracy±1°C
External Temperature SensorPT1000 (Accuracy ±0.5°C)
“Hot” Warning50°C
Protection ClassIP21
Motor Rating Input5W
Motor Rating Output3W
Power515W
Heating Output500W
Power Supply100-120/200-240V; 50/60Hz
Size(W×D×H)(mm)260×150×100
Shipping Size(W×D×H)(mm)300×240×220
N.W./G.W. (kg)1.8/3

The external mounting bracket with temperature sensor and reagent tray are not included in standard configuration and require additional purchase.

Hotplate Magnetic Stirrer Features:

  1. Digital control, LED display.

  2. Max.speed up to 1500rpm.

  3. Max.temperature up to 280°C.

  4. Stainless steel work plate with ceramic coating provides good chemical resistant performance.

  5. The external temperature control with an accuracy of ± 0.5 ° C can be achieved by connecting a temperature sensor (PT1000).

  6. High temperature alarm, "HOT" warning flashes when the working board temperature is above 50 ℃.
