| Availability: | |
|---|---|
| Quantity: | |

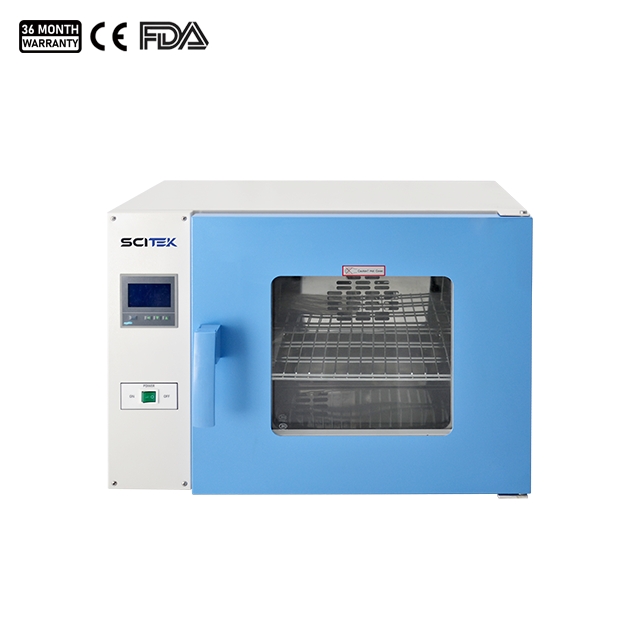

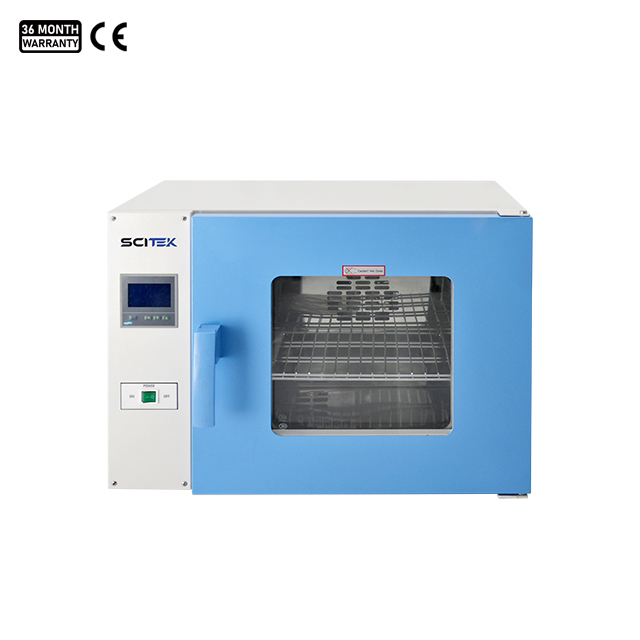

Suitable for medical, industrial and mining enterprises, medical schools, scientific research institutions to conduct drying, heating and other tests on items
Advantages:
External Material : cold-rolled steel plate surface sprayed with plastic;
Inner Material : SUS stainless steel plate.
Back inlet and outlet.
LCD display PlD temperature controller, precise temperature control, continuous operation or scheduled operation:0~9999 min.
Stainless steel tube ring heater.
Inner chamber is designed with round arc structure, easy to clean.
With drawable shelves with adjustable spacing
Without glass inner door, outer door observation window.
(Optional): Independent external temperature protection device.
(Optional):LCD screen temperature controller.
(Optional) LCD screen temperature controller+ micro dot matrix printer or RS485 communication serial port.
| Model | ST-H25AE | ST-H50AE | ST-H80AE | ST-H100AE | ST-180AE | |
| Capacity (L) | 25 | 50 | 80 | 105 | 180 | |
| Circulation | Forced air convection | |||||
| Temperature | Range | RT+10-250 ℃ | ||||
| Fluctuation | ±1 | |||||
| Control Accuracy | 0.1℃ | |||||
| Uniformity | ≤ Max operating temperature±2.5% | |||||
| Shelves | 2 | |||||
| Safety Device | Over temperature alarm, Temperature probe damage alarm,Timing alarm | |||||
| Electricity | Power supply | 220/110 V, 50/60 HZ | ||||
| Consumption (W) | 650 | 1000 | 1500 | 1600 | 2450 | |
| Size(WxDxH) | Internal (mm) | 298×290×274 | 419×332×348 | 450×397×450 | 550×348×550 | 602×498×602 |
| External (mm) | 600×554×455 | 728×595×532 | 750×680×635 | 850×620×735 | 900×775×785 | |
| Shipping Size (WxDxH)(mm) | 670×610×600 | 790×660×670 | 840×750×770 | 930×670×870 | 960×830×910 | |
| G.W. (kg) | 37 | 50 | 62 | 78 | 89 | |
