Effective Volume (L) : 23 Working Temperature (℃) : 50±3 Heating Method : Electric heating Sterilization Time : 0-99 hours adjustable Selected Gas : Pure ethylene oxide gas
Ethylene oxide sterilizer is mainly through its non-specific alkylation with genetic materials such as protein and DNA / RNA in microorganisms, resulting in the denaturation of proteins and genetic materials, and finally the death of microorganisms due to blocked metabolism.
Installation and Usage Ethylene Oxide Sterilizer:
Ethylene Oxide Sterilizer Features:
Humidification: Utilizes steam degradation analysis method with built-in steam generator for comprehensive and uniform humidification and heating while minimizing water mist.
3.5" LCD screen: Equipped with a filter for stability, prolonging the service life and accuracy of the control screen.
Power-off memory function: Preserves sterilization data and automatically resumes unfinished work procedures in case of accidents or power loss.
Safety protection function: Includes alarm protection for abnormal temperature, ultra-high temperature, abnormal pressure, low vacuum rate, residual faults, phase sequence errors, and power shortage in the sterilization chamber to prevent further issues.
Ethylene Oxide Consumable: Steam EO sterilization pouch roll, chemistry indicator strip, biological indicator, chemistry indicator tape, chemical indicator label, EO sterilization gas, medical non-woven fabric, sealing machine, EO sterilization gas.
Ethylene Oxide Sterilizer Specifications:
Model
ST-EO40
Effective Volume
23L
Product Form
Desktop
Heating Method
Electric heating
Working Temperature
50℃ ±3℃
Selected Gas
Pure ethylene oxide gas
Sterilization Time
0-99 hours adjustable
Temperature Display
3.5 inch LCD display
Maximum Anti-stress Value
-140kpa
Voltage/Frequency(V/Hz)
AC220V, 50Hz
Power
3.3KW
Size(WxDxH)
Internal (mm)
Diameter x Depth: Ø246x450
External (mm)
730x510x410
Shipping Size (WxDxH) (mm)
900x700x600
N.W./G.W. (kg)
56/76
Details of Ethylene Oxide Sterilizer:

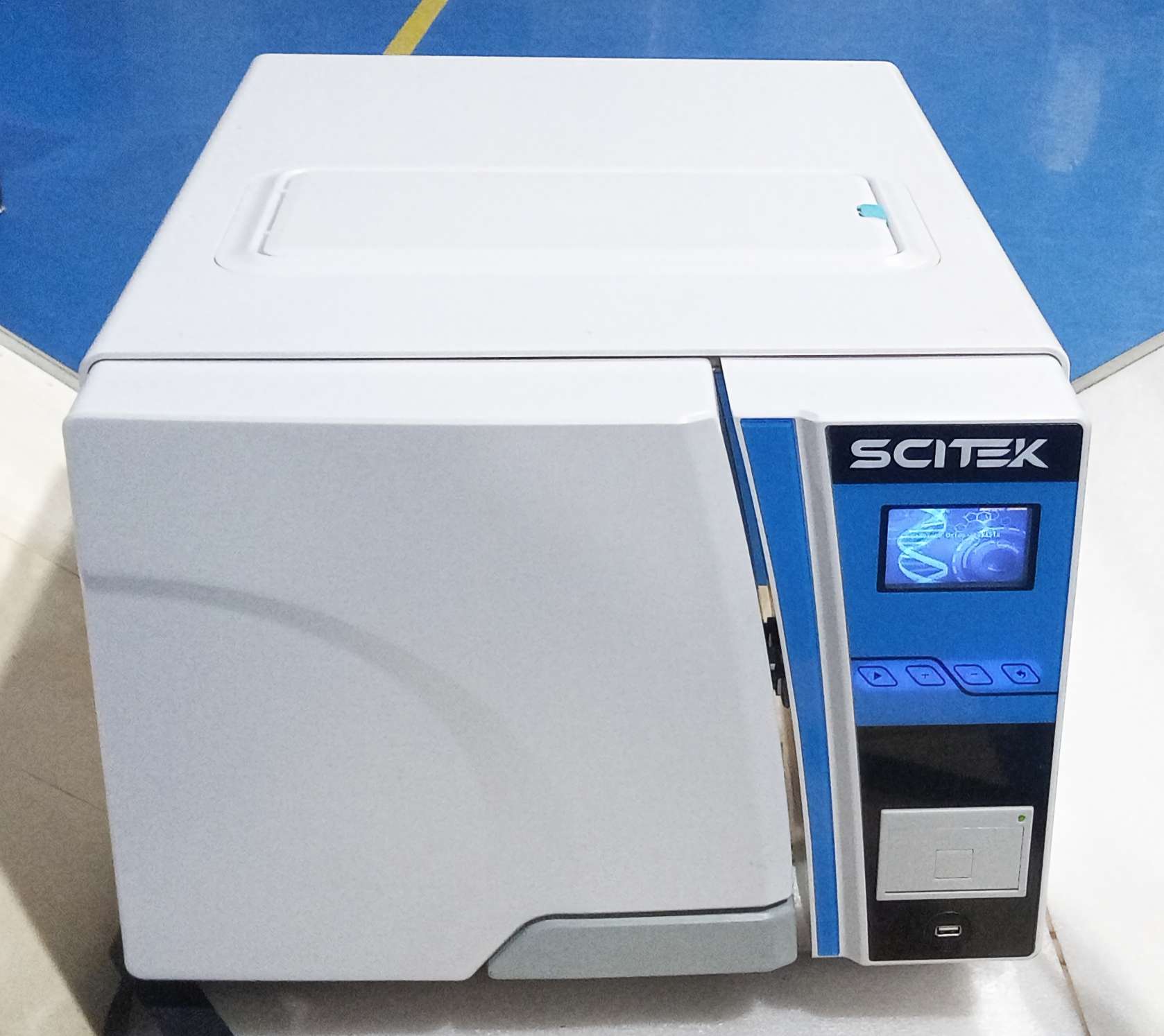

Compact 23L design with a clean, professional appearance and intuitive front control interface, making the sterilizer easy to operate and integrate into laboratory workflows.

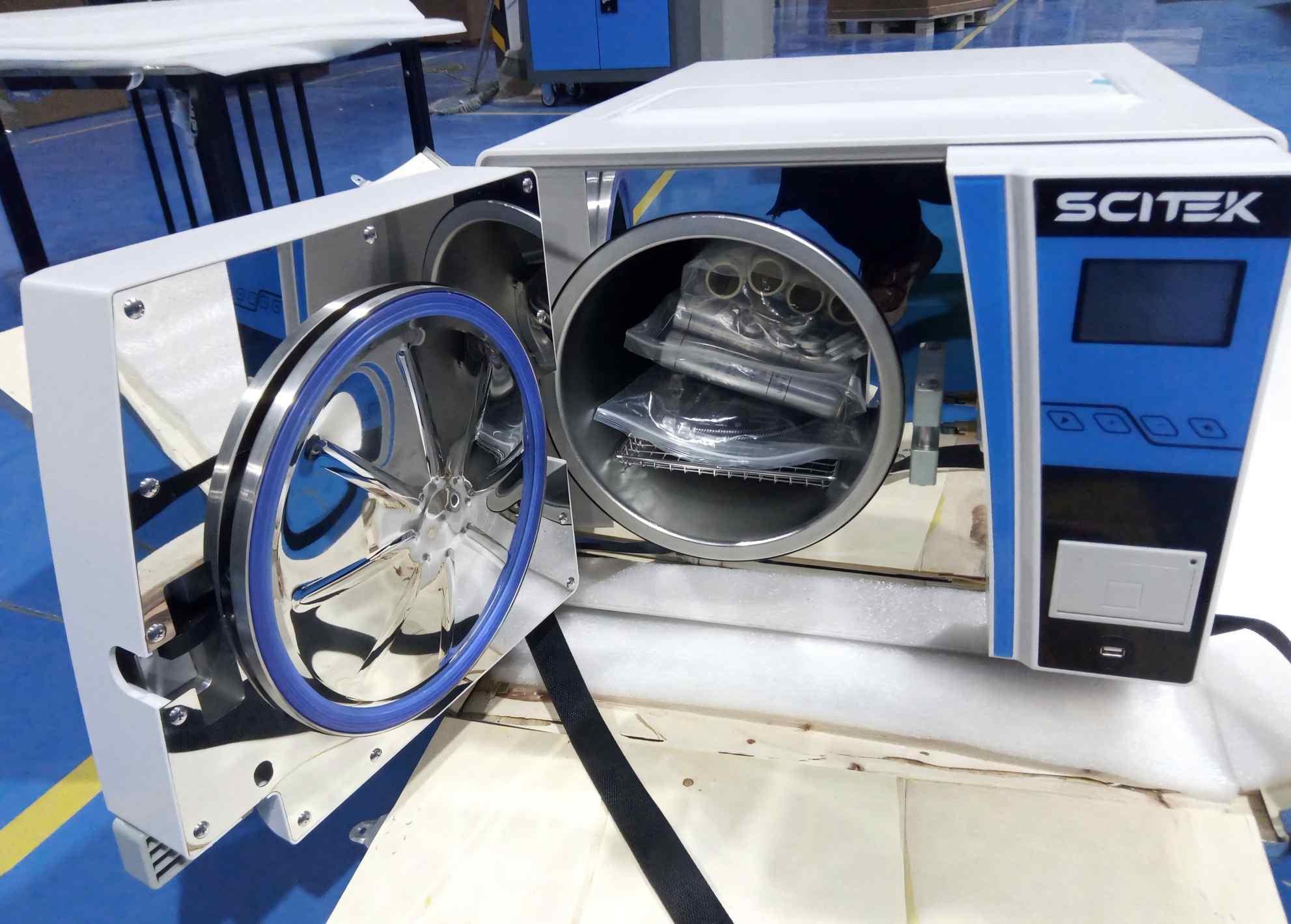

The opened chamber provides clear visibility of the internal structure and loading space, allowing convenient access for item placement, removal, cleaning, and routine inspection.

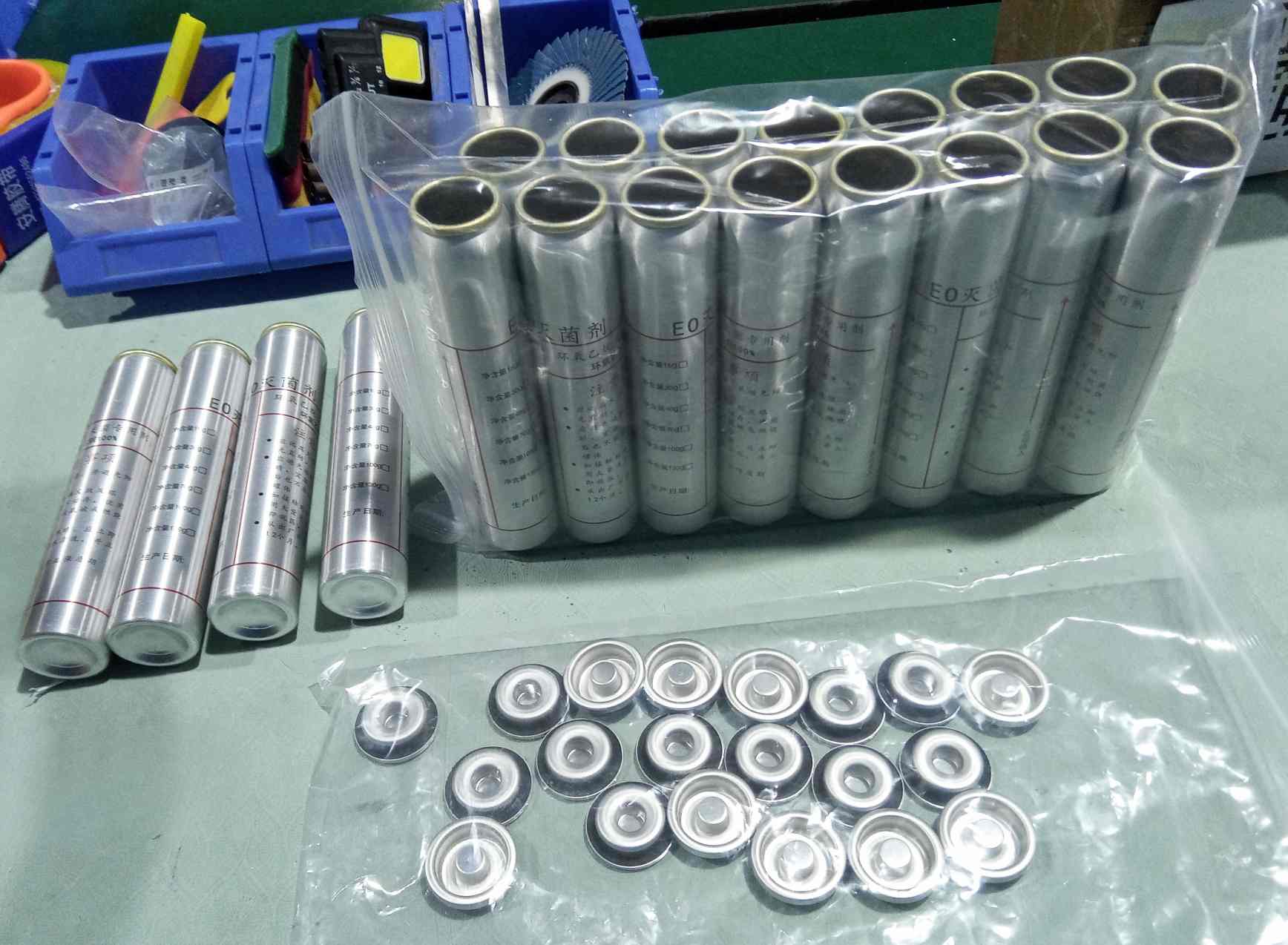

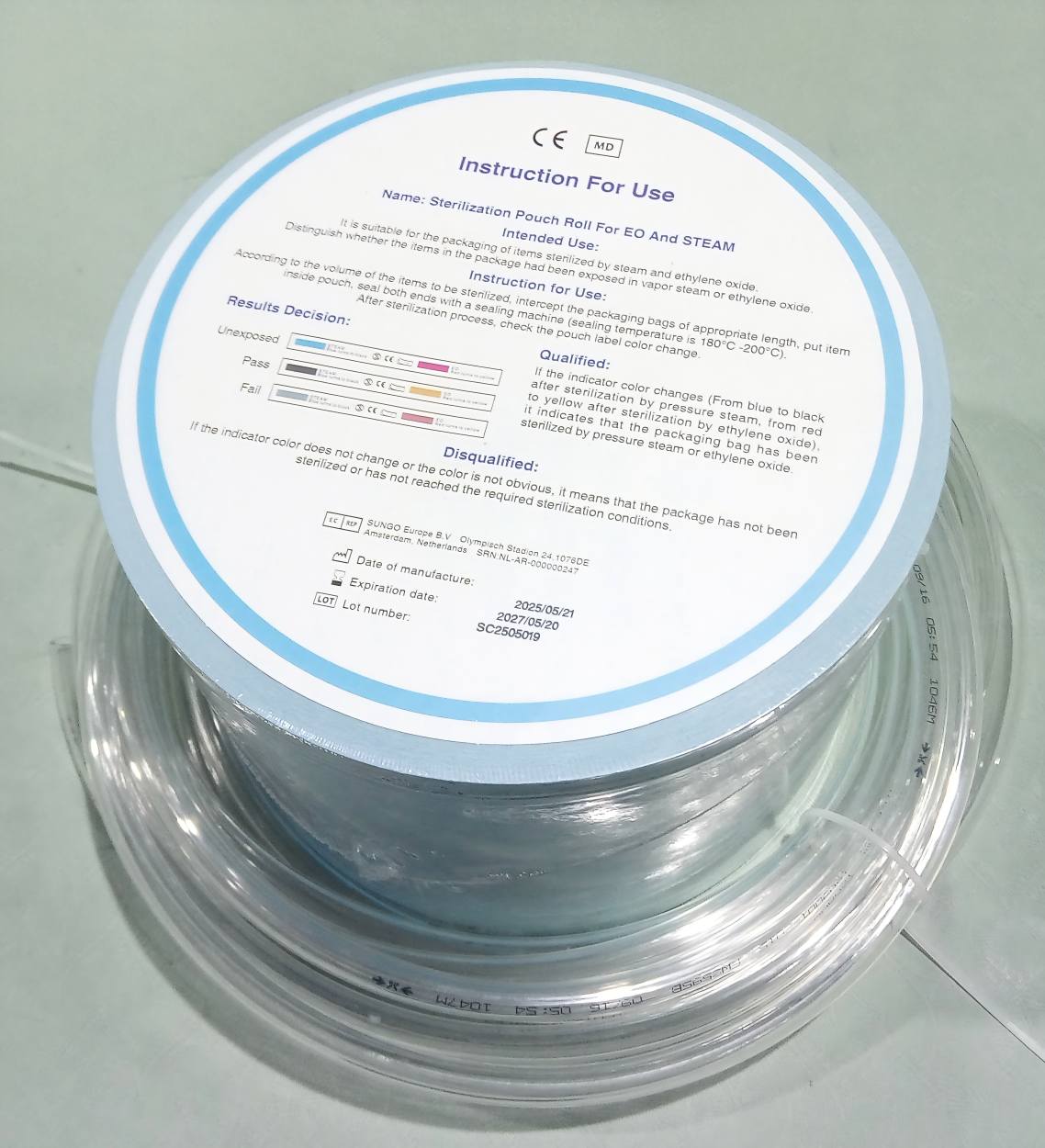

Carefully prepared sterilization accessories and consumables provide a complete setup for efficient ethylene oxide sterilization workflows, supporting convenient and organized operation.

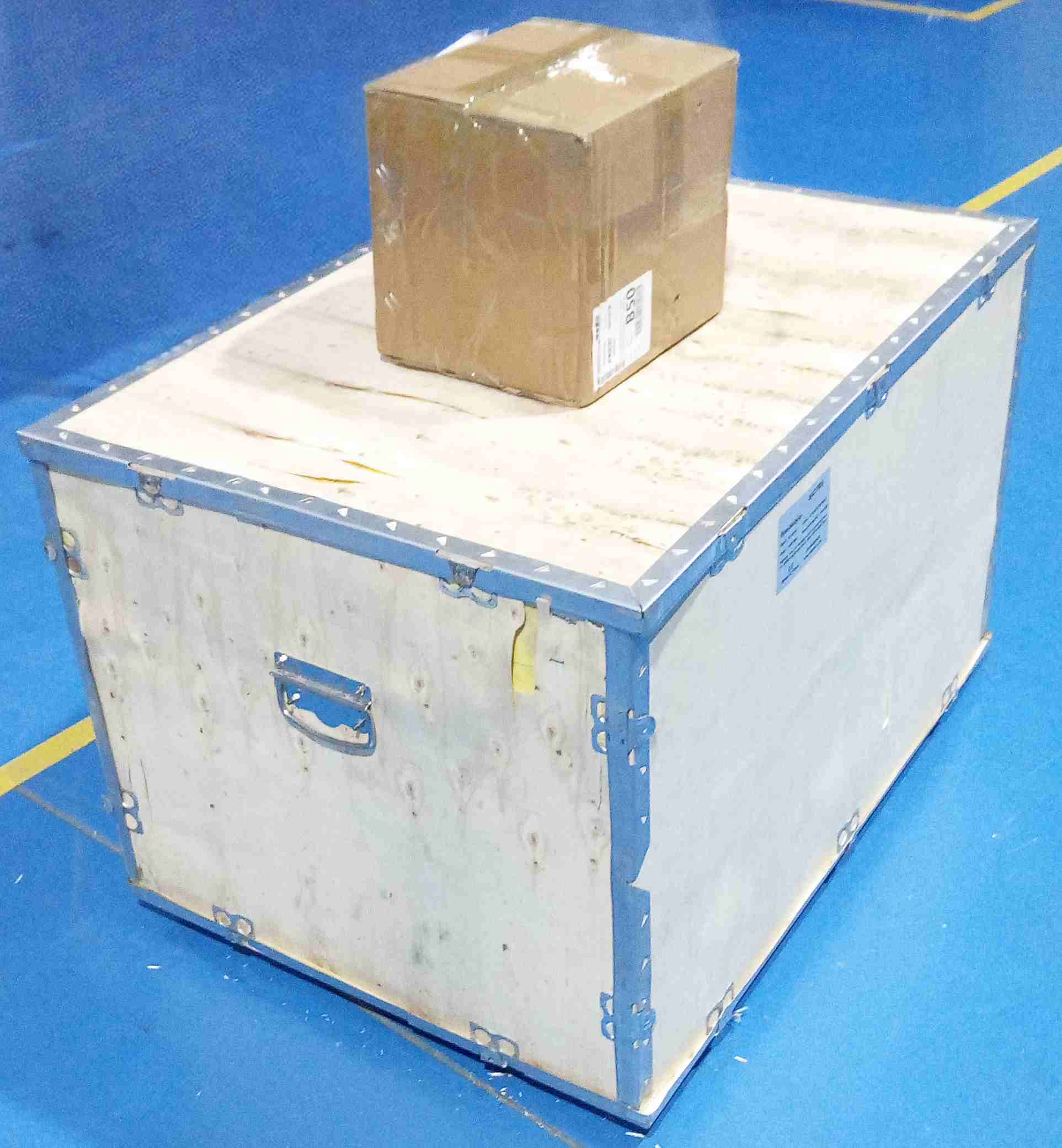

The sterilizer is securely protected with a reinforced wooden crate and internal cushioning, helping minimize impact and vibration during long-distance transportation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
