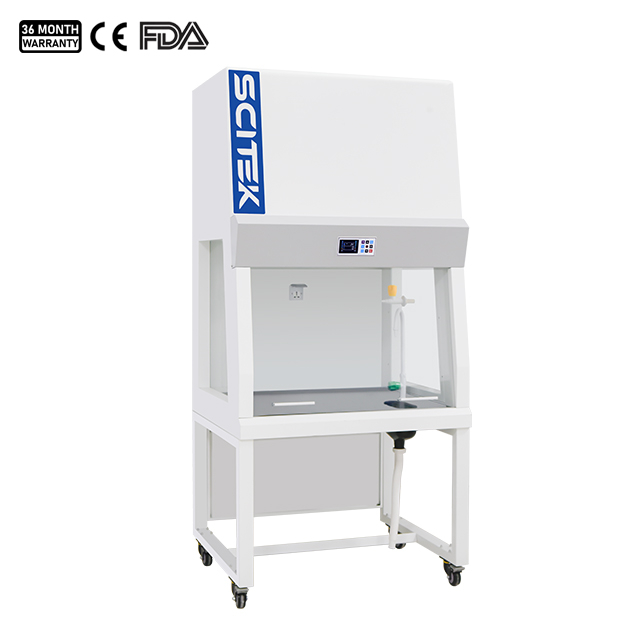

The fume hood's carefully designed extraction system quickly removes harmful gases, vapors, and particulate matter. Our fume hood uses advanced ventilation technology to ensure stable airflow during experiments, effectively preventing the retention of toxic gases. Designed to meet the needs of various experiments, Scitek is committed to providing you with a clean and safe laboratory environment.
Model | FMH-1000D | FMH-1200D | FMH-1500D | FMH-1800D | |||
---|---|---|---|---|---|---|---|
External Size (WxDxH)(mm) | 1000×850×2150 | 1220×850×2150 | 1525×850×2150 | 1830×850×2150 | |||
Internal Size (WxDxH)(mm) | 880×730×745 | 1100×730×745 | 1405×730×745 | 1710×730×745 | |||
Max.Opening | 520mm | ||||||
Work Surface Height | 750mm | ||||||
Control System | Display | Microprocessor controller with LCD display, display the operating status of each function | |||||
Interlock | Front sliding sash interlock with fan and UV lamp | ||||||
Life Indicator | Filter and UV life indicators facilitate a timely replacement plan | ||||||
Airflow System | Airflow Velocity | 0.3~0.8 m/s, speed adjustable | |||||
Air filtration System | Filter | 1pcs Active Carbon Filter | |||||
Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating | |||||
Work Surface | Solid physicochemical board, resistant to acid and alkali | ||||||
Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | ||||||
Side window | 5 mm UV resistant tempered glass | ||||||
Electrical System | UV Lamp | 20W×1 | 30W×1 | 30W×1 | 30W×1 | ||
With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | |||||||
LED Lamp | 6.5W×1 | 9.6W×1 | 9.6W×1 | 9.6W×1 | |||
Consumption | 400W | 500W | 500W | 500W | |||
Not include socket loading power consumption | |||||||
Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | ||||||
Illumination | ≥900Lux | ||||||
Sound Emission | ≤68dB(A) | ||||||

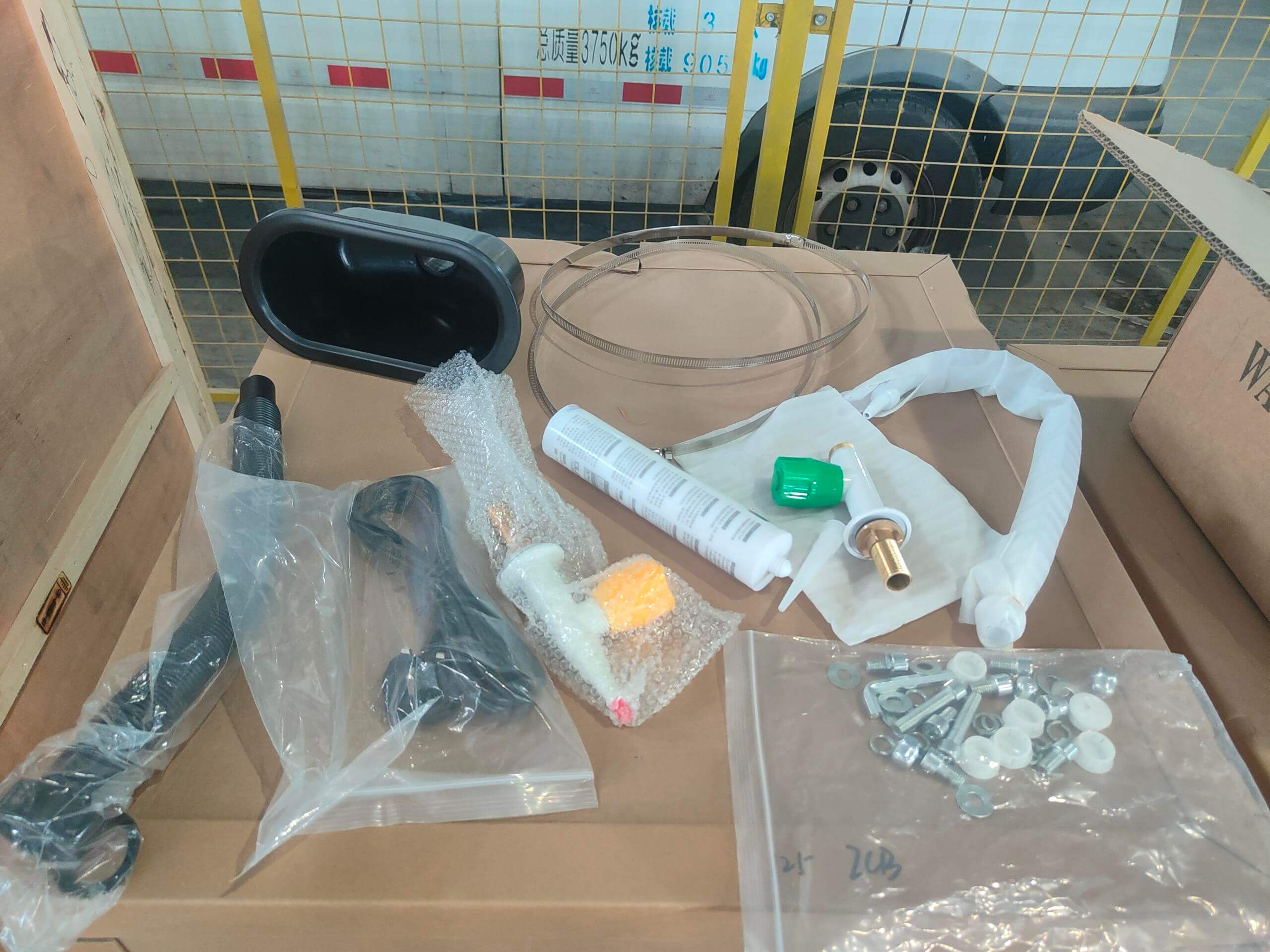

Standard Accessory | 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket; 5. Water Tap; 6. Gas Tap; 7. Water Sink; 8. 10m Exhaust Duct; 9. Active Carbon Filter | ||||||
Optional Accessory | Base Cabinet | ||||||
Net Weight (kg) | 195 | 215 | 250 | 315 | |||
Gross Weight (kg) | 250 | 280 | 330 | 390 | |||
Shipping Size (W×D×H)(mm) | 1140×1100×1635 | 1360×1100×1635 | 1665×1100×1635 | 1970×1100×1635 | |||
Shipping Volume (m³) | 2 | 2.5 | 3.1 | 3.6 |

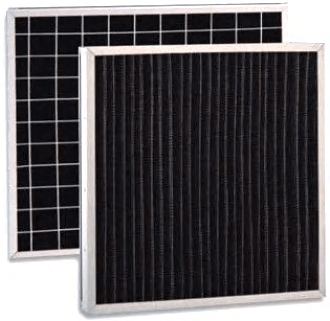

This fume hood utilizes active carbon filtration to protect laboratory personnel from toxic chemical fumes, odors. Known for its plug-and-play feature and mobility, ductless fume hood guarantees a hassle-free installation and no lab work interruption.
Humanized:
Ergonomic control panel location, centered and angled down for an easy reach & viewing.

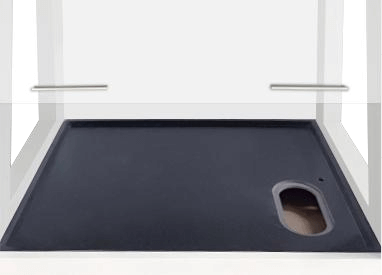

Made of solid psychological board, resistant to strong acid and alkali.
The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.

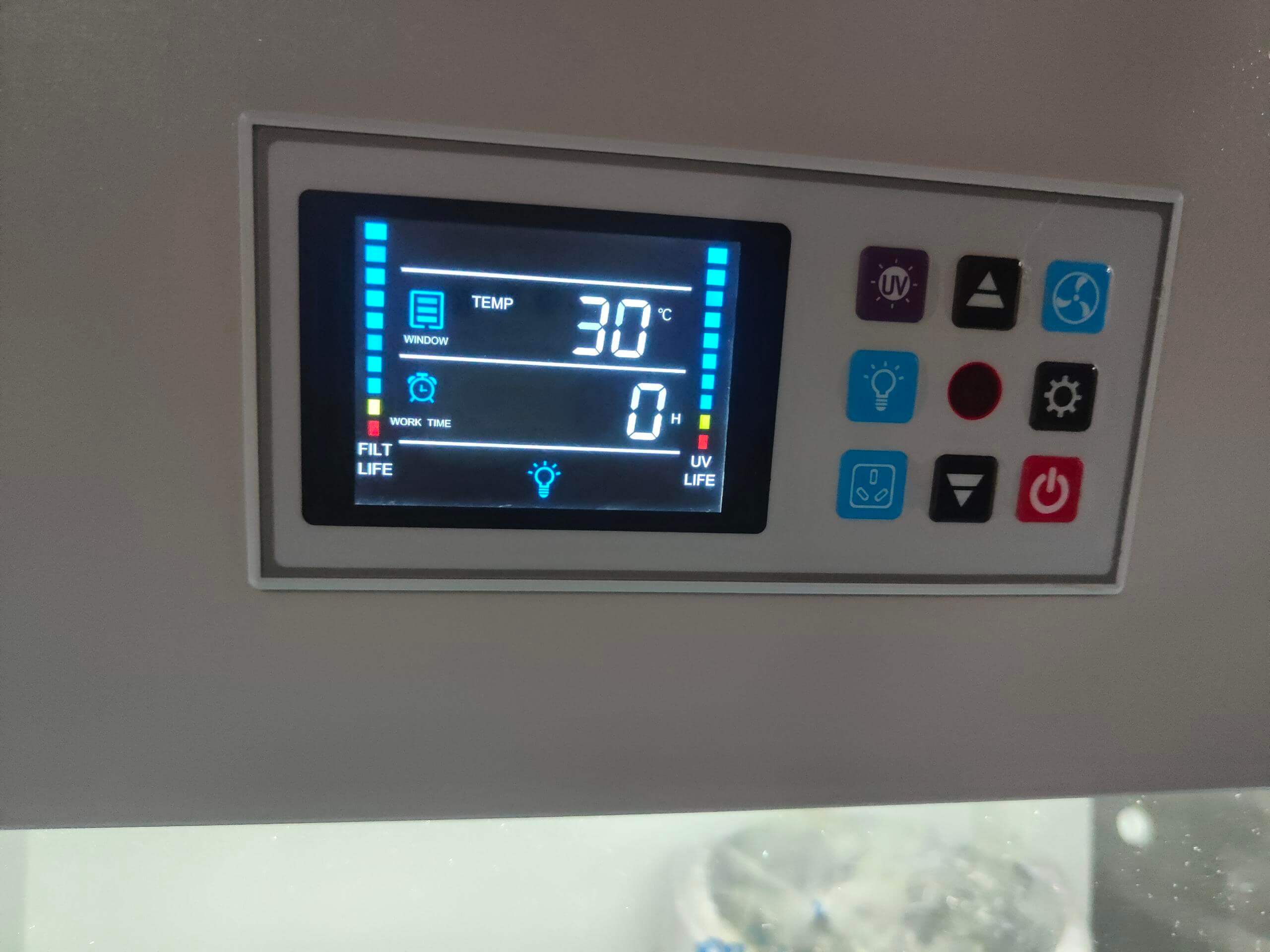

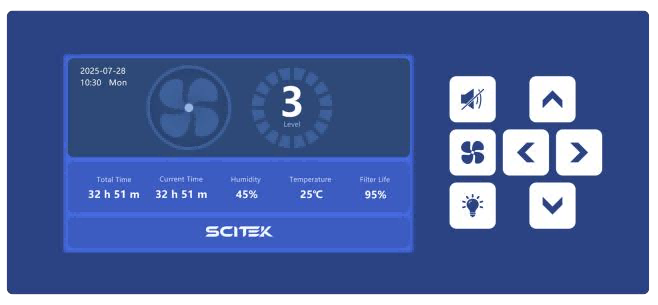

Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.
Reliability:
Front sliding sash interlock with fan and UV lamp.
UV sterilization with UV lamp timing function.
Front sash and side windows are made of UV-resistant tempered glass.
The host and sockets have independent capacitors to prevent current overload.
Memory function in case of power-failure.
Convenience:
HEPA filter and UV life indicators facilitate a timely replacement plan.
Two side glass windows installed for easy experiment observation.
Easy-to-change pre-filter installed could extend the HEPA filter’s lifetime.
Fume hood equipped with temperature sensor to show the real temperature during operation.
Waterproof socket provide convenience for small instruments to be used in the operating area.
Does Fume Hood meet the relevant quality and safety certification standards?
Scitek's fume hood products are subject to stringent quality control and safety certifications that comply with industry standards and regulations. We provide detailed quality certification documentation to ensure your purchased equipment is tested for quality and safety.
If I find a problem with my fume hood after purchase, can I return it?
We have a clear returns policy and will support you through the whole process of after-sales service. If there is a quality problem with the equipment, we will assist you with machine repairs, exchanges, etc. In addition, our after-sales service team will provide you with timely technical support to ensure that the equipment operates properly and provide regular maintenance services to guarantee the smooth operation of your laboratory.

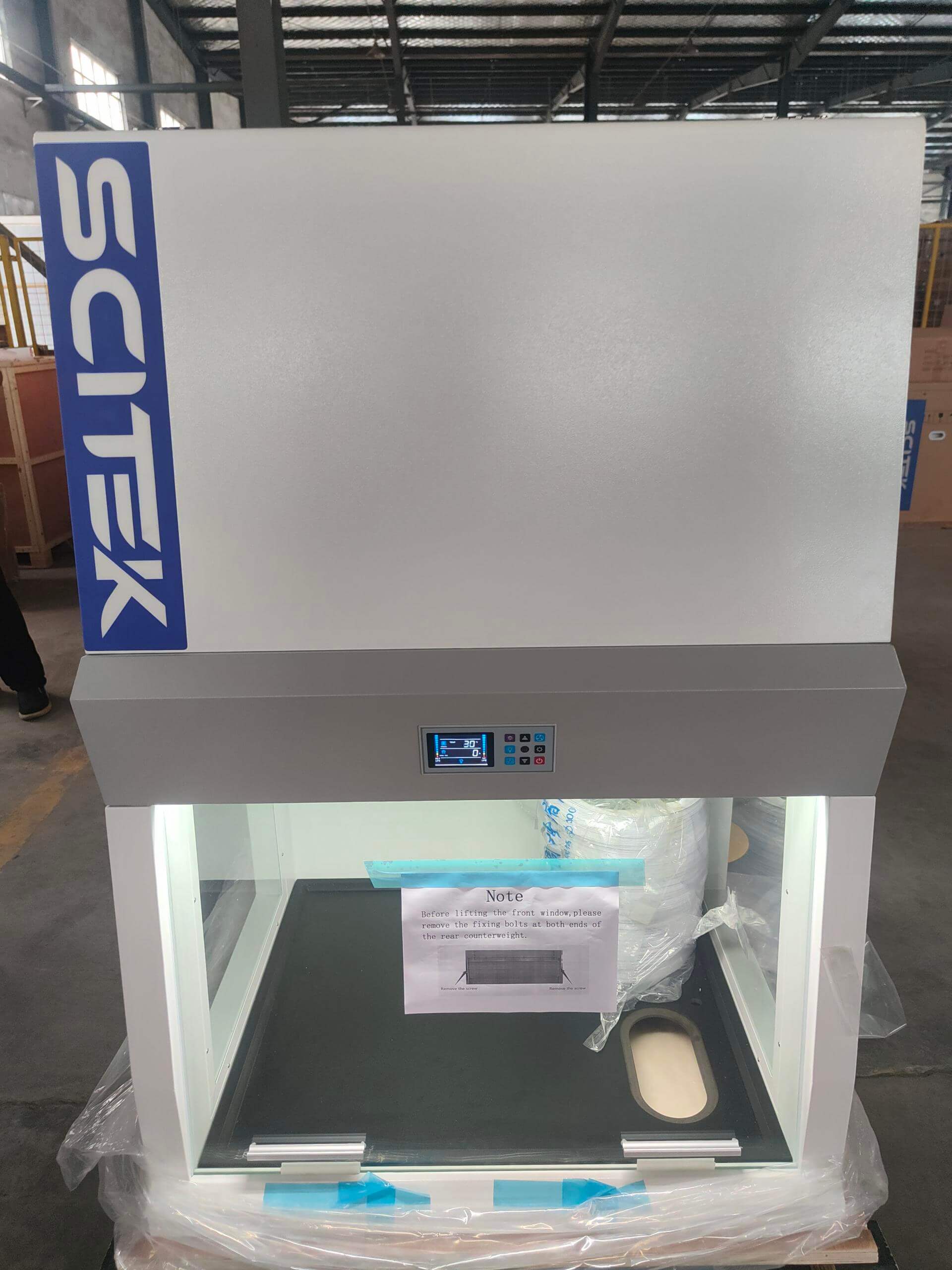

The front view shows the lab ventilation hood’s wide opening with a transparent sash, providing a clear view of the workspace. It features control panels for adjusting airflow and monitoring exhaust levels, ensuring safety and efficiency during use.

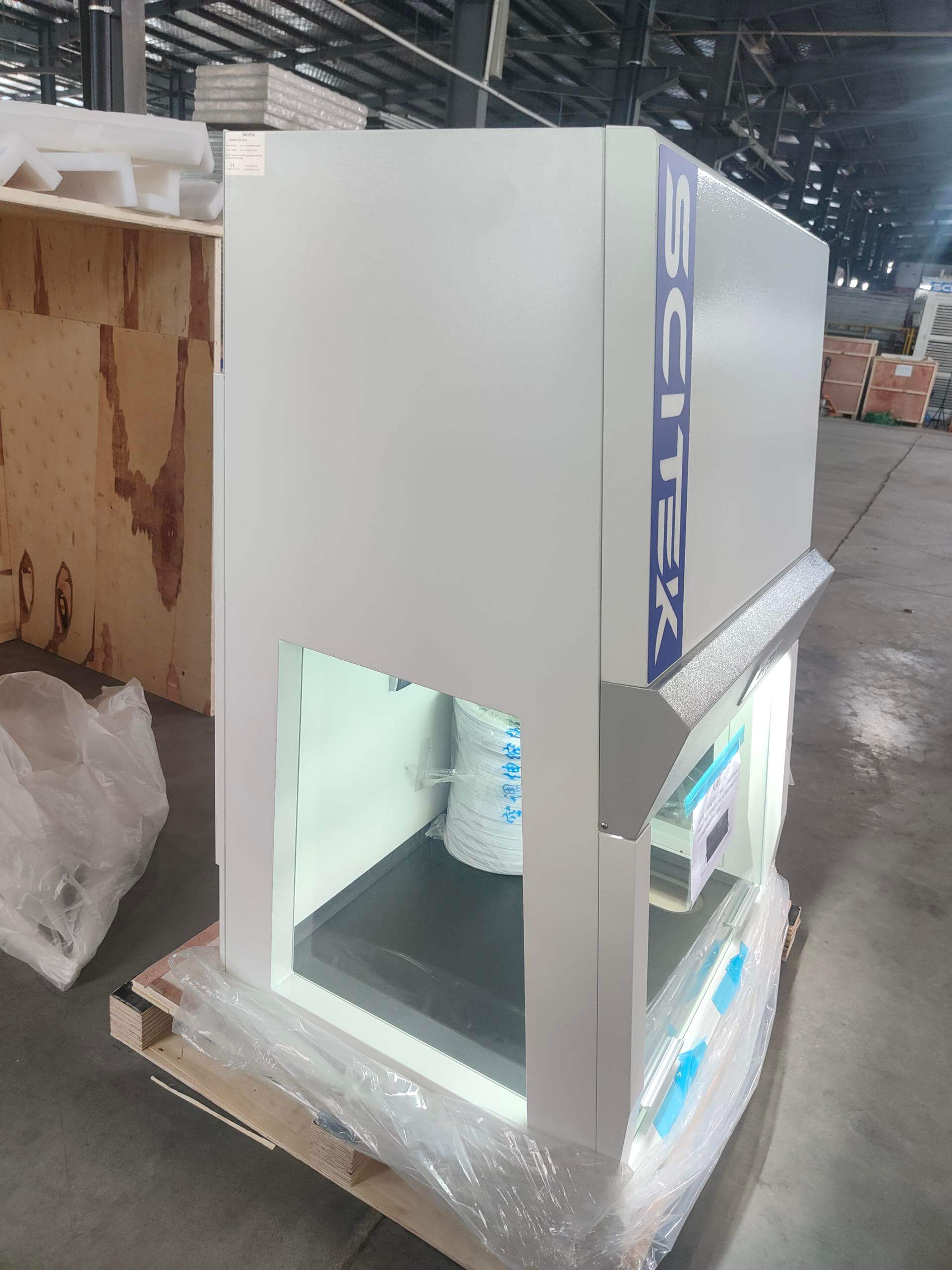

The side view highlights the hood’s sleek design with visible ventilation and air intake systems. The structural frame is sturdy, and the side panels house filters and additional airflow management systems to enhance ventilation.

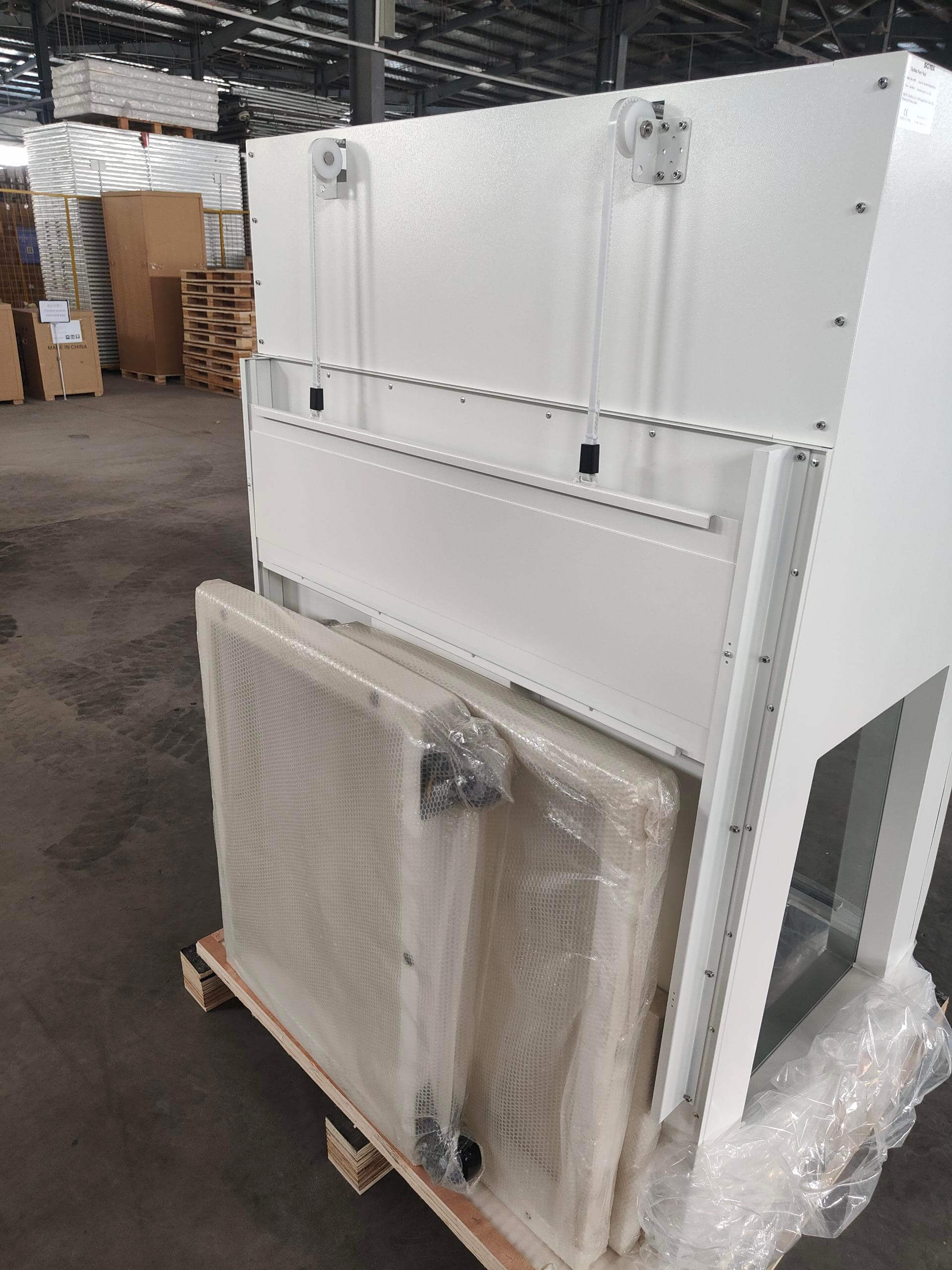

The back view reveals the exhaust ports and electrical connections, ensuring proper air filtration and safe disposal of fumes. It shows the back panel with integrated airflow pathways designed to maintain consistent ventilation performance.
