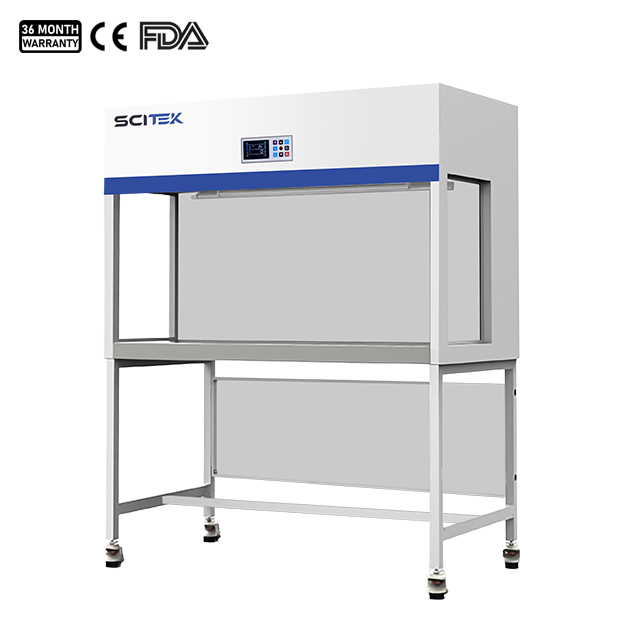

Economic Horizontal Laminar Flow Cabinet

Model : LCB-H1100E ; LCB-H1300E ; LCB-H1500E; LCB-H1800E

External Size : 3ft / 4ft / 5ft
Work Surface Height : 750mm
Airflow Velocity : Adjustable, 0.2~0.5 m/s
HEPA Filter Efficiency : > 99.995% at particle size at 0.3μm
Sound Emission : ≤65dB(A)
The horizontal laminar flow cabinet is ideal for use with non-hazardous contaminants and when flexible access to equipment in the work area is required.
Availability:
Quantity:
Inquiry Add to Inquiry List

Horizontal Laminar Flow Cabinet Features:

  1. Ergonomic control panel location, centered and angled down for an easy reach & viewing.

  2. Brushed stainless steel work surface is for easy cleaning.

  3. The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.

  4. Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.



Reliability:


  1. UV sterilization with UV lamp timing function.

  2. Side windows are made of UV-resistant tempered glass.

  3. The host and sockets have independent capacitors to prevent current overload.

  4. Memory function in case of power-failure.



Convenience:


  1. HEPA filter and UV life indicators facilitate a timely replacement plan.

  2. Two side glass windows installed for easy experiment observation.

  3. Easy-to-change pre-filter installed could extend the HEPA filter lifetime.

  4. Equipped with temperature sensor to show the real temperature during operation.

  5. Waterproof socket provide convenience for small instruments to be used in the operating area.

Laminar Flow Cabinet Specifications:

Model LCB-H1100E LCB-H1300E LCB-H1500E LCB-H1800E
External Size (W×D×H)(mm) 1100×750×1750 1300×750×1750 1500×750×1750 1800×750×1750
Internal Size (W×D×H)(mm) 1020×510×620 1220×510×620 1420×510×620 1720×510×620
Work Surface Height 750mm
Control System Microprocessor controller with LCD display, display the operating status of each function
Airflow System Airflow Velocity 0.2~0.5m/s, speed adjustable
Air filtration System Pre-Filter 1pcs, Polyester fiber,washable
HEPA Filter 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Cleanliness Grade ISO Class 5 (formerly Class 100)
Cabinet Construction Main Body Electro-galvanized steel with antimicrobial powder coating

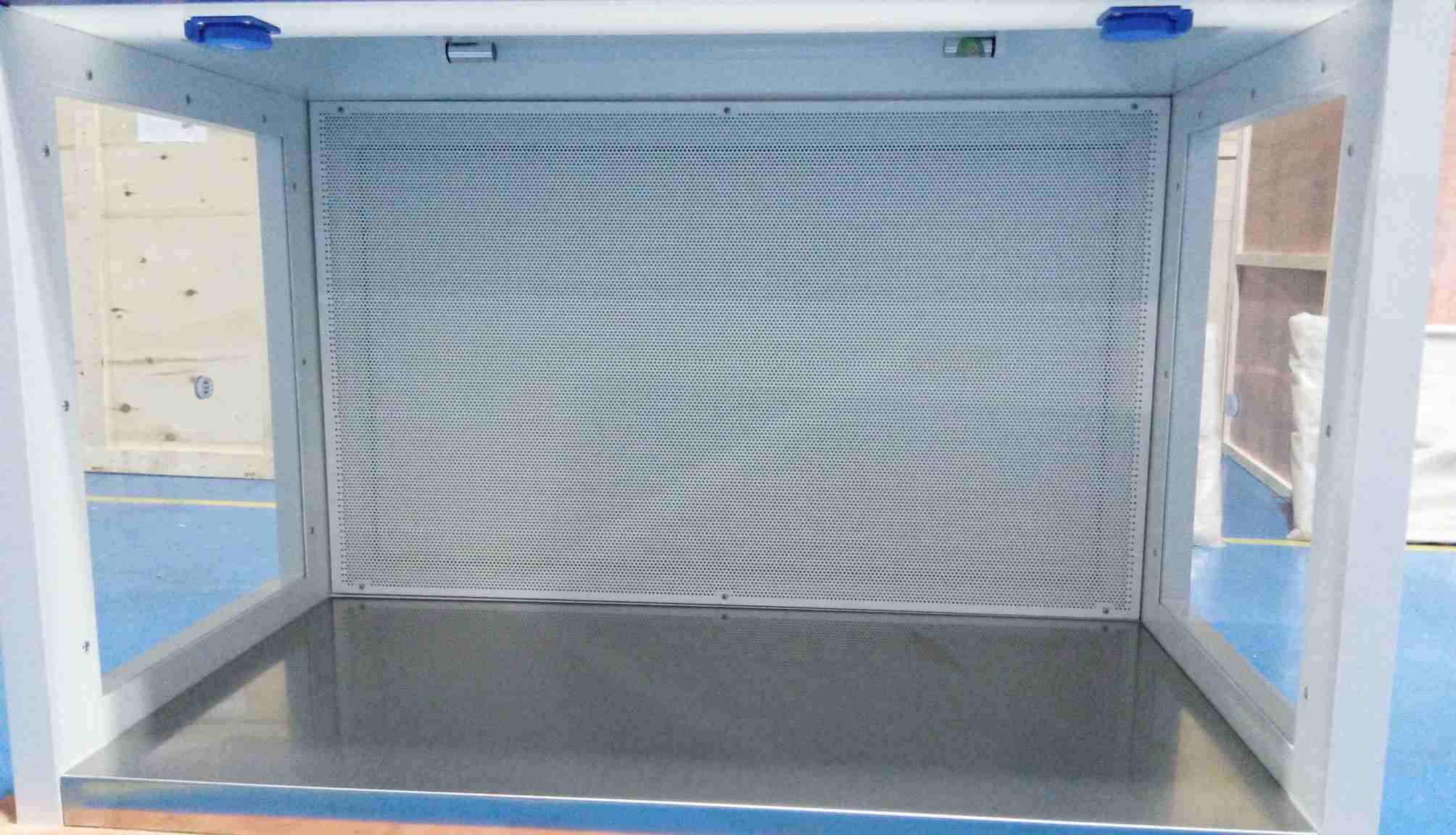

Work Surface 304 Stainless steel
Side Window 5 mm UV resistant tempered glass
Electrical System UV Lamp 20W×1 30W×1 30W×1 18W×2
With timing function, Interlock with LED lamp, blower, Socket. Emission of 253.7 nanometers for best sterilization effect.
LED Lamp 6.5W×1 9.6W×1 9.6W×1 6.5W×2
Consumption 160W 170W 300W 310W
Not include socket loading power consumption
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination ≥900Lux
Sound Emission ≤65dB(A)
Standard Accessory 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2; 5. Footmaster Caster
Optional Accessory 1. Air Velocity Sensor; 2. IV Bar with Hooks
Net Weight (kg) 150 170 200 225
Gross Weight (kg) 210 230 260 290
Shipping Size (W×D×H)(mm) 1240×930×1255 1440×930×1255 1640×930×1255 1940×930×1255
Shipping Volume (m³) 1.45 1.7 1.9 2.3

Details of Laminar Flow Cabinet:

14

LCD Display (Real-time show the Time, Temperature, UV life and Filter life)

9

HEPA Filter

8

UV Lamp

1(3)

Waterproof Socket (IP54)

11

Gas Tap (Optional)
