The PCR-TC96A PCR thermal cycler features a reinforced aluminum module with anodic oxidation technology that maintains fast thermal conductivity and is sufficiently corrosion-resistant. Multiple data protection features, including automatic restart after power failure, allow it to continue running unfinished procedures when power is restored. It also supports USB storage and copying of PCR data and users can control the PCR via a USB mouse.
Thermocycler pcr machine Specifications:
| Model | PCR-TC96A |
| Capacity | 96×0.2ml |
| Formats | 0.2ml tube, 8 strips, 12 strips, Half skirt 96 wells plate, No skirt 96 wells plate |
| Temperature Range | 0-105℃ |
| MAX. Ramp Rate | 5℃/s |
| Uniformity | ≤±0.2℃ |
| Accuracy | ≤±0.1℃ |
| Display Resolution | 0.1℃ |
| Temperature Control | Block/Tube |
| Ramping Rate Adjustable | 0.01-5℃ |
| Gradient Temp. Range | 30-105℃ |
| Gradient Type | Nolinear Gradient |
| Gradient Spread | 0.1-42°C |
| Hot Lid Temperature | 30-115°C |
| Number of Programs | 20000+(USB FLASH) |
| Max. No.of Step | 30 |
| Max. No.of Cycle | 200(Up to 100,000 in nested cycles) |
| Time. Increment/Decrement | 1 Sec-600 Sec |
| Temp.Increment/Decrement | 0.1-10℃ |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Hold at 4℃ | Forever |
| Touchdown Function | Yes |
| Long PCR Function | Yes |
| Language | English |
| Computer Software | Yes |
| Mobile Phone APP | Yes |
| LCD | 10.1 inch, 1024×600 pels |
| Communication | USB2.0, WIFI |
| Power Supply | AC100-240V, 50/60Hz |
| Power | 600W |
| Size(W×D×H)(mm) | 385×270×255 |
| Shipping Size(W×D×H)(mm) | 580×460×440 |
| N.W./G.W. (kg) | 10/16 |
PCR Thermal Cycler Features:
Reinforced aluminum module and peltier heating units for rapid heating and cooling, saving assay time
Adaptive pressure heating lid and closing lid, suitable for different heights of tubes
Side-by-side placement of Front and rear ducts makes the PCR thermal cycler compact and small.
Built-in 11 standard program file templates for quick editing of required files
Real-time display of the running program and time remaining, allowing editing of the file while the program is running
One-touch incubation function for denaturation, digestion, ELISA, and other experiments.
lFront and rear air ducts can be placed side by side.
Details of thermocycler pcr machine:

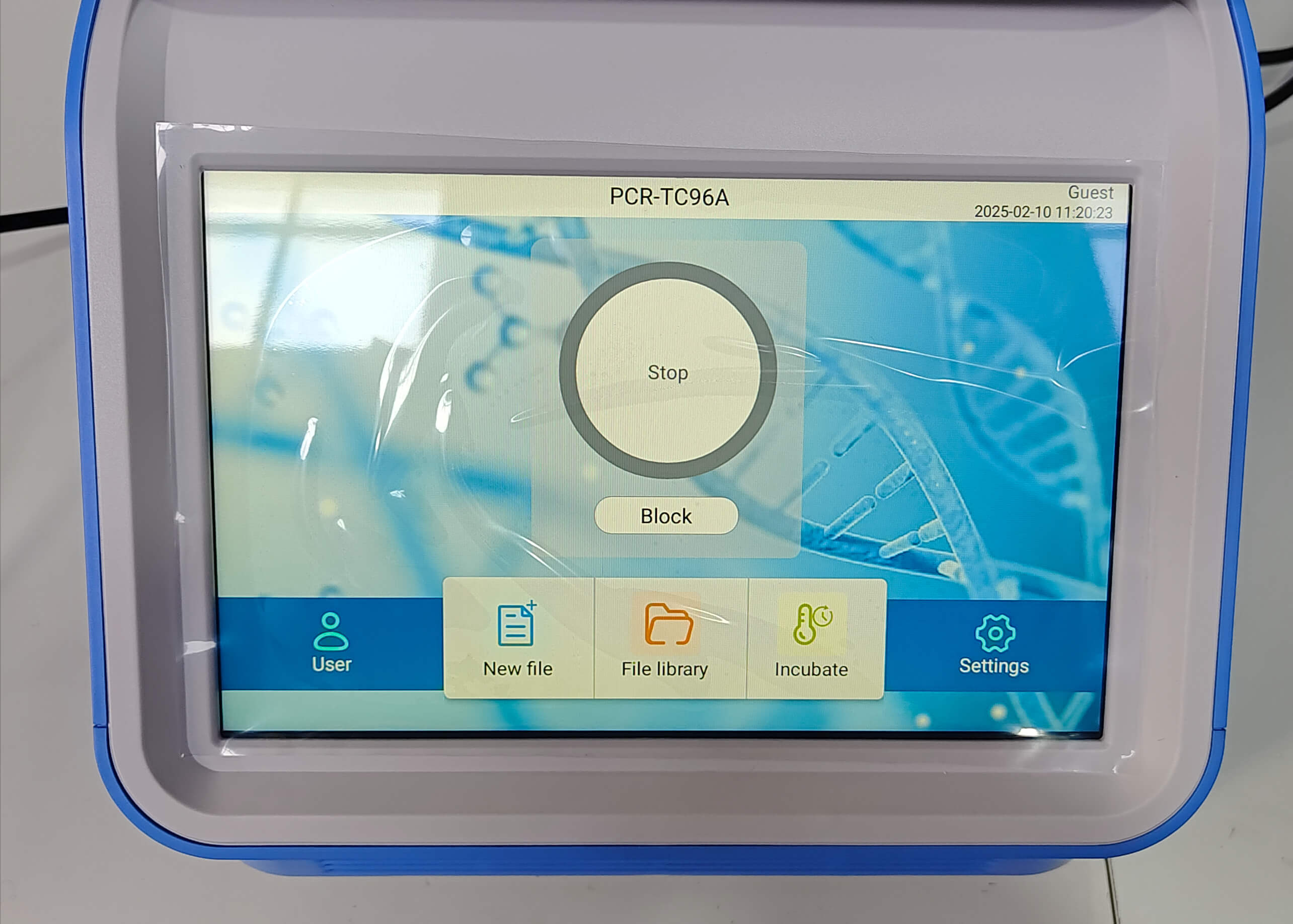

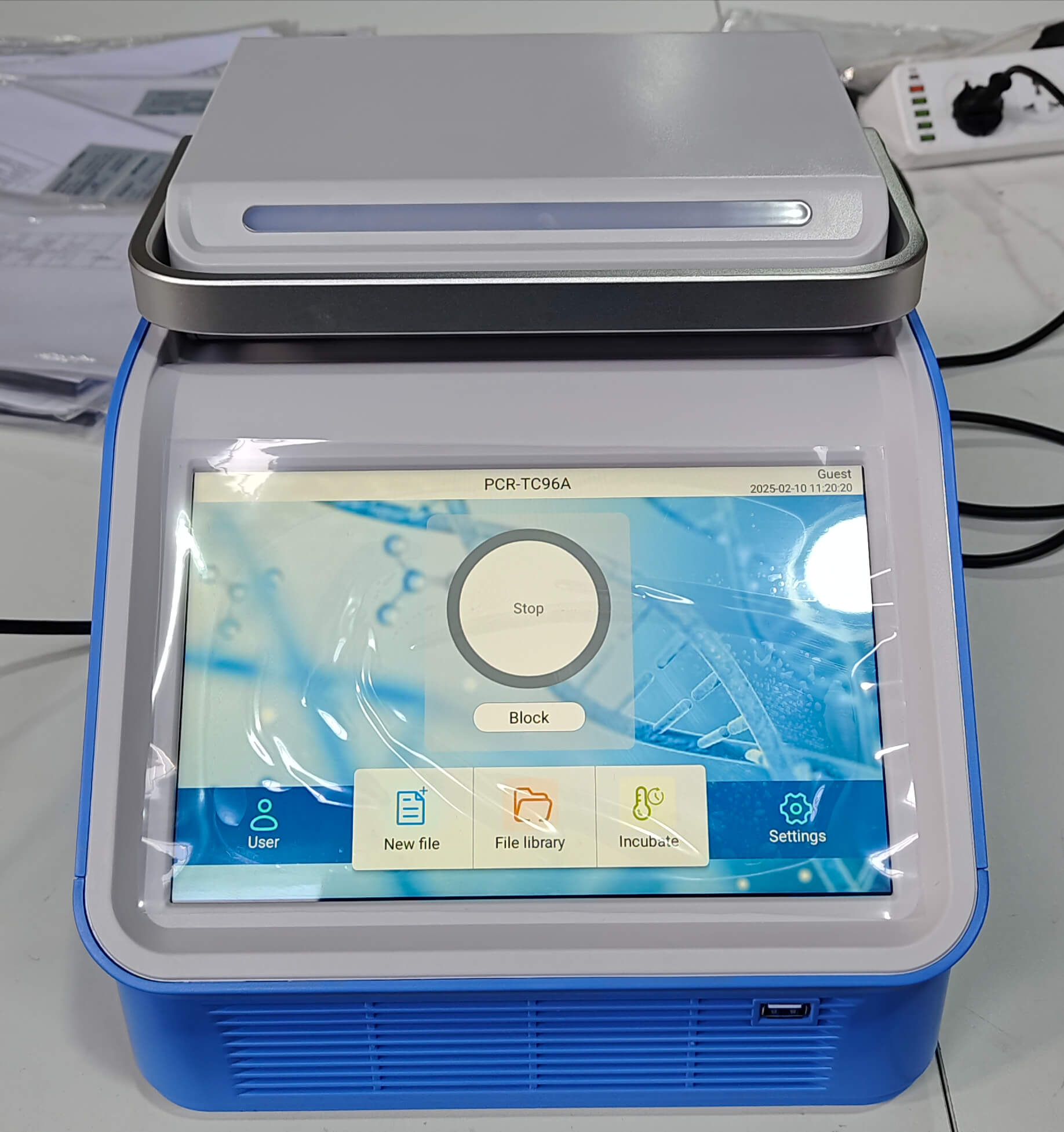

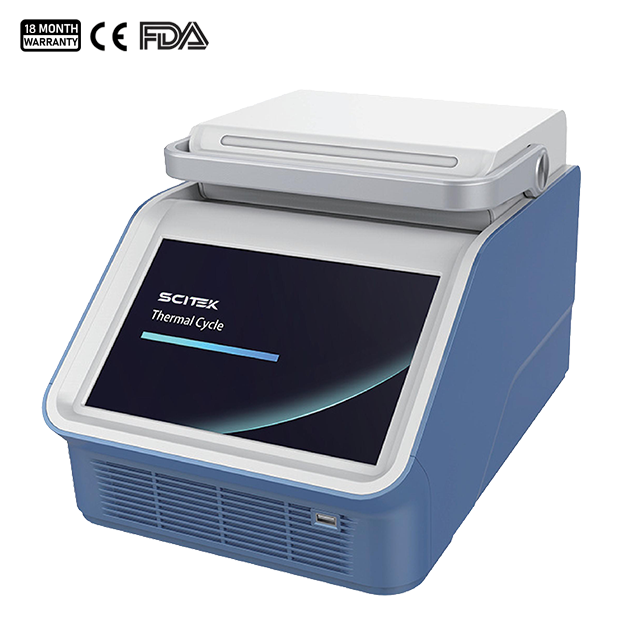

The pcr thermal cycler has a protective film on the screen, and the operating interface is the same as the previous single-screen interface, with the main body of the device in blue and gray colors. The simple design and clear operation interface make it easy for laboratory personnel to operate and monitor the PCR reaction process.

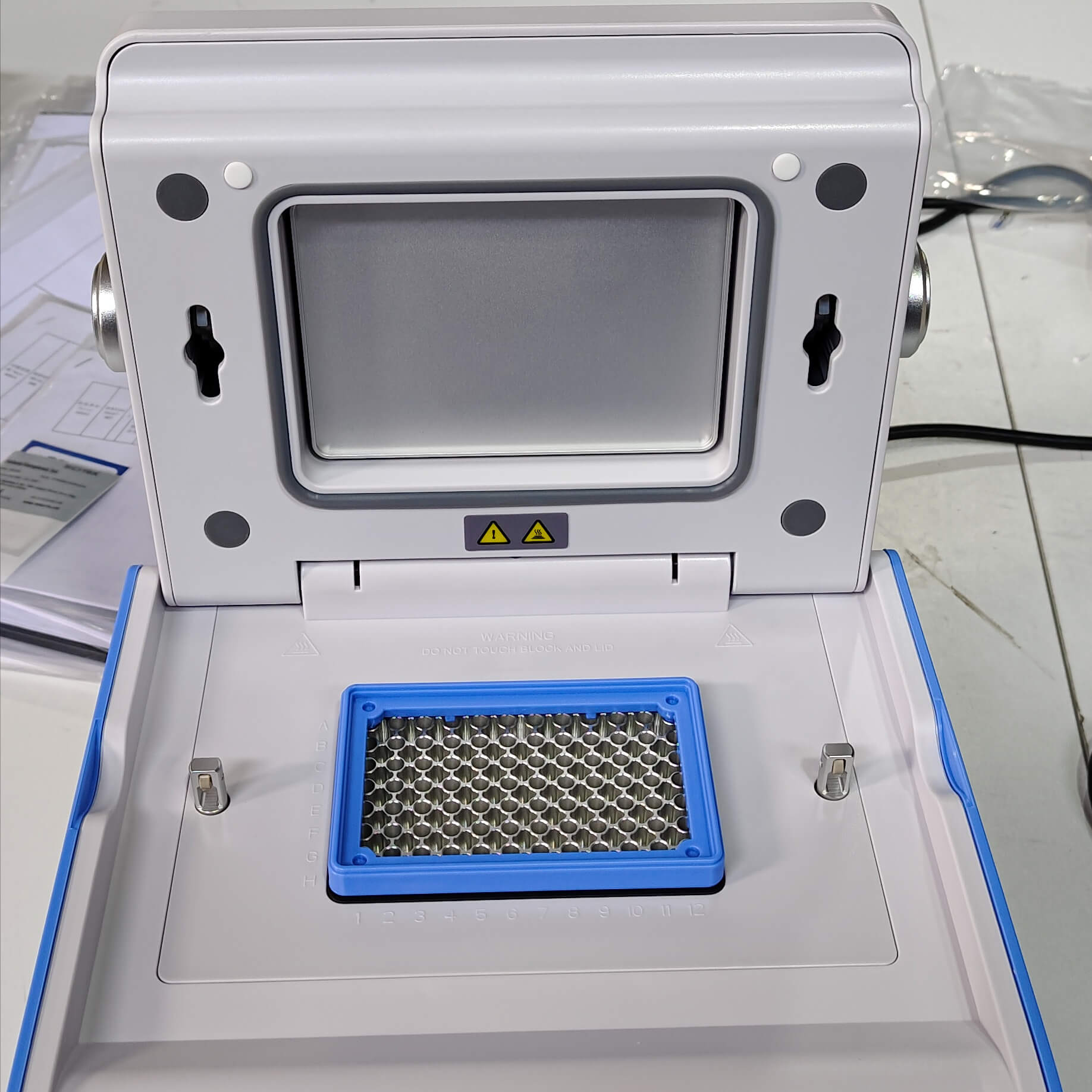

When you open the top cover of the pcr thermal cycler, you can see the internal reaction tank, which has a metal porous plate for placing PCR reaction tubes. There are warning signs around the tank to remind the operator of potential hazards such as high temperatures and to ensure the safety of the operator.

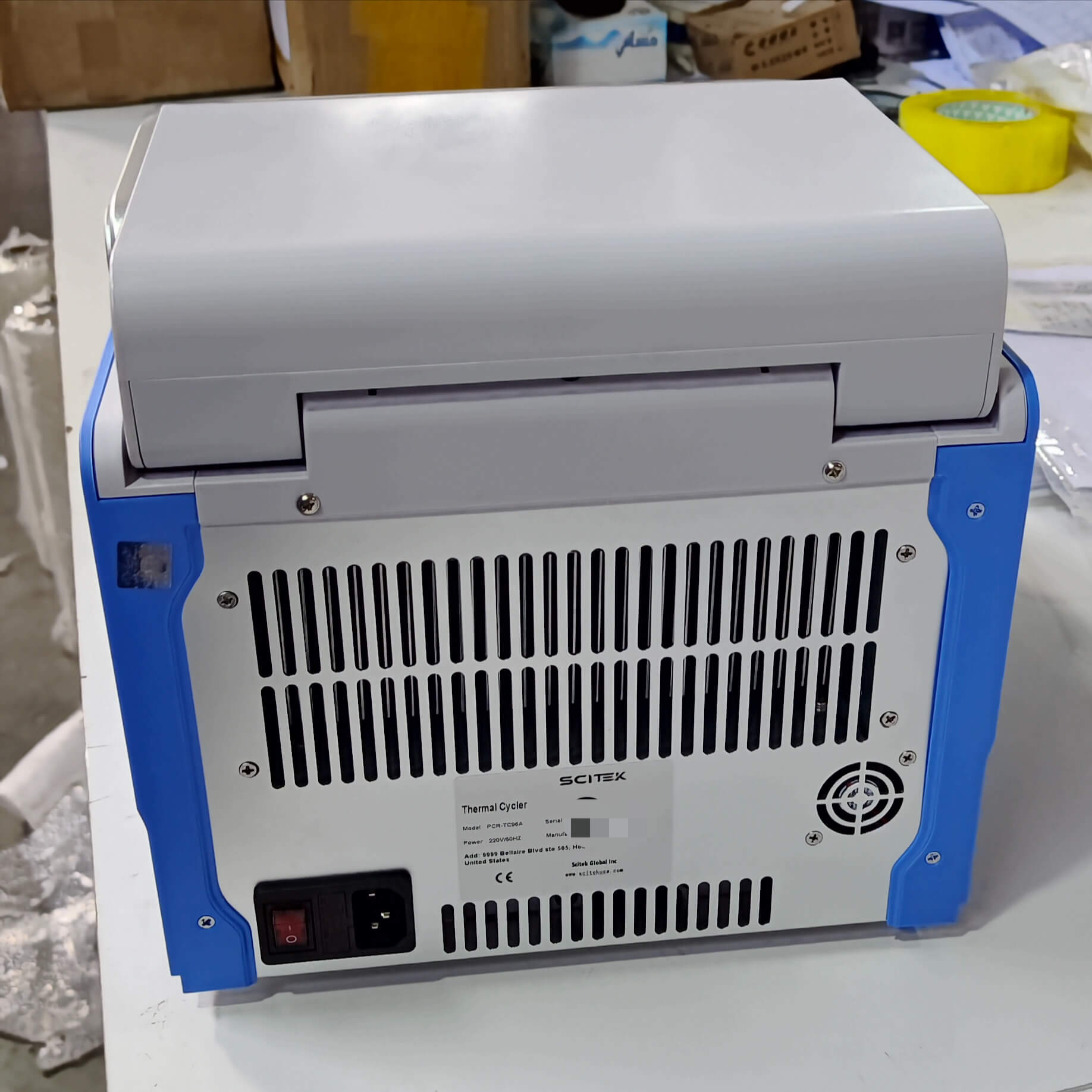

Showing the back of thermocycler pcr machine, visible cooling holes are used to dissipate heat when the device is running, to ensure the normal working temperature of the instrument; the power connector is used to connect the power supply;
Thermocycler pcr machine surrounded by white pearl cotton package, play a cushion shockproof role, and transparent plastic bag wrapped equipment body. The overall packaging is tight, can effectively avoid the transportation process equipment due to collision, vibration damage.
