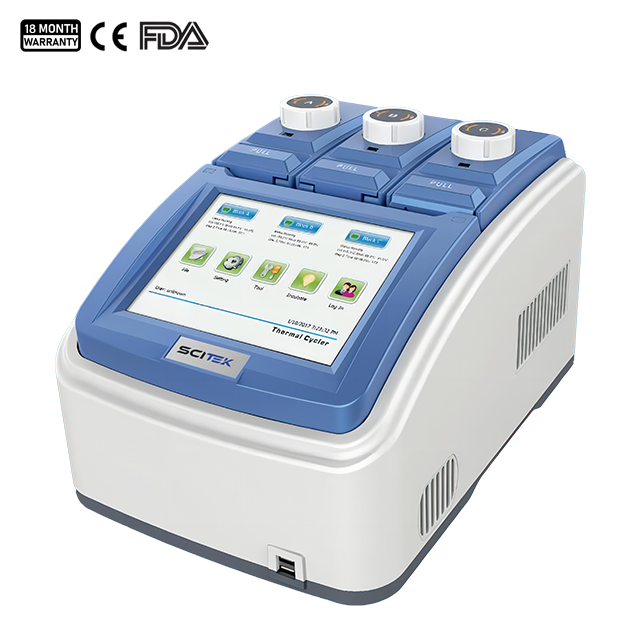

The PCR-TC96XG thermal cycler uses 6 pall paste heating units to form 3 loops and control 3 temperature zones to improve the accuracy and reliability of PCR reactions. It is also equipped with a capacitive touch screen and a high-definition TFT display that is convenient for one-key parameter settings and makes it easy to view the test results. Email notification at the end of the experiment allows you to know the results immediately without waiting or checking manually.
Thermal Cycler Specifications:
| Model | PCR-TC96XG |
| Capacity | 3×(32×0.2ml ) |
| Temperature Range | 0-100℃ |
| Heating Rate | 5℃/s |
| Cooling Rate | 4℃/s |
| Uniformity | ≤±0.3℃ |
| Accuracy | ≤±0.2℃ |
| Display Resolution | 0.1℃ |
| Temperature Control | Block/Tube |
| Ramping Rate Adjustable | 0.1-5℃ |
| Gradient Temp. Range | 30-100℃ |
| Gradient Spread | 1-30°C |
| Hot Lid Temperature | 30-110°C |
| Hot Lid Height Adjustable | Stepless Adjustable |
| Number of Programs | 10000+(USB FLASH) |
|
| Max. No.of Step | 30 |
| Max. No.of Cycle | 100 |
| Time. Increment/Decrement | 1 sec-600 sec |
| Temp. Increment/Decrement | 0.1-10.0℃ |
| Pause Function | Yes |
| Auto Data Protection | Yes |
| Hold at 4℃ | Forever |
| Touchdown Function | Yes |
| Long PCR Function | Yes |
| Language | English |
| Computer Software | Yes |
| Mobile Phone APP | Android |
| LCD | 8 inch, 800×600 pels, TFT |
| Communication | USB2.0, LAN |
| Power Supply | AC100-240V, 50/60Hz, 600W |
| Size(W×D×H)(mm) | 390×270×255 |
| Shipping Size(W×D×H)(mm) | 570x460x430 |
| N.W./G.W. (kg) | 9/15 |
Thermal Cycler Features:
Incorporating various advanced technologies, the temperature rise rate of 5 ℃/s, cycle times greater than 1 million times, greatly saving the experimental time!
Anodized reinforced aluminum module, which can maintain fast thermal conductivity and sufficient corrosion resistance.
Adjustable heat cover with pressure protection, suitable for different heights of test tubes to avoid melting and evaporation.
Real-time display of the running program and time remaining, allowing file editing while the program runs.
One-touch rapid incubation function to meet the needs of ELISA, denaturation, etc.
USB interface supports receiving data via USB stick or PC.
Built-in 11 standard program file templates can store up to 10000 PCR files, which is convenient for team communication or viewing past results.
Details of Thermal Cycler:

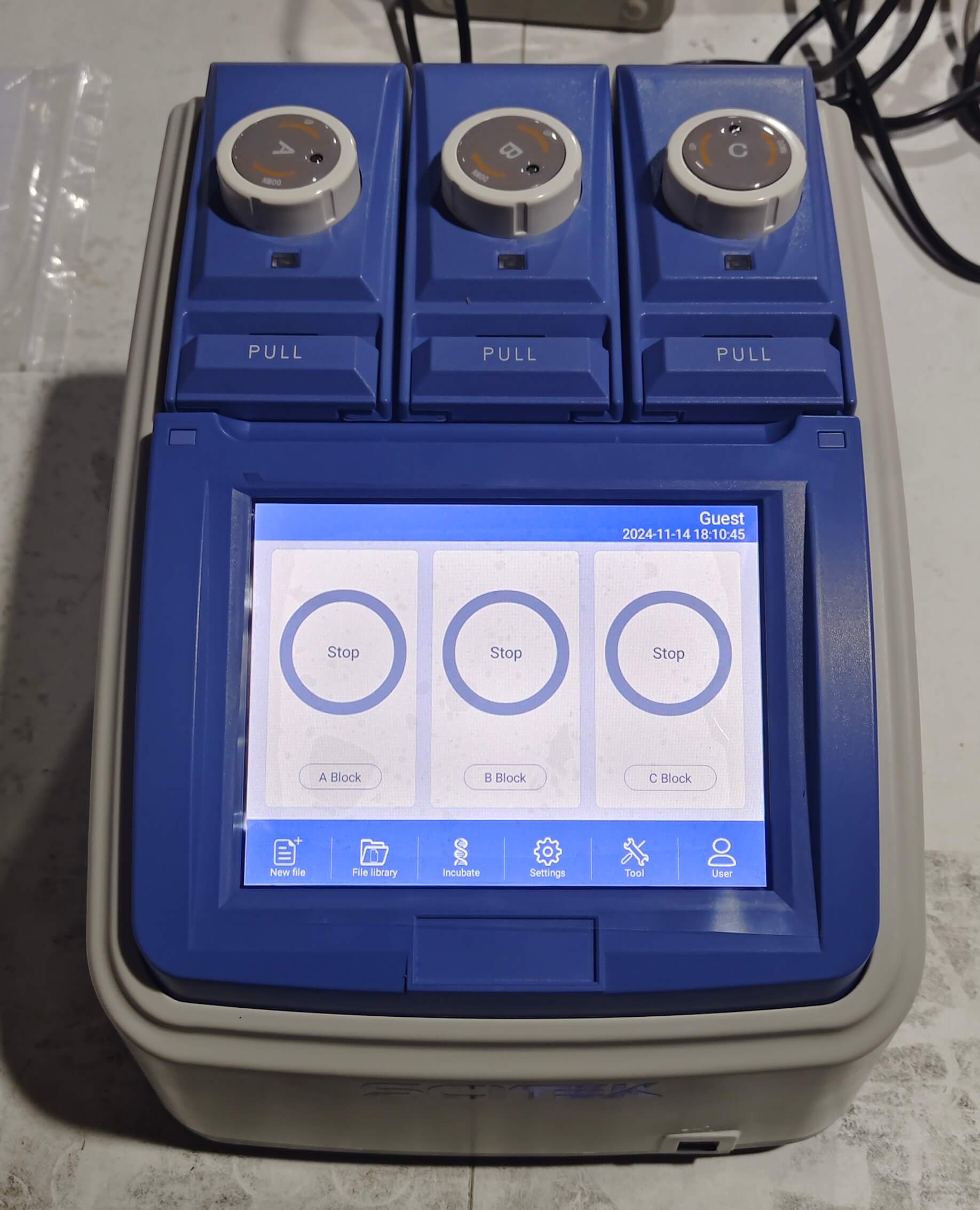

Touch screen control panel for easy operator setup of experimental programs. Knobs are used to adjust temperature, time and cycle times.

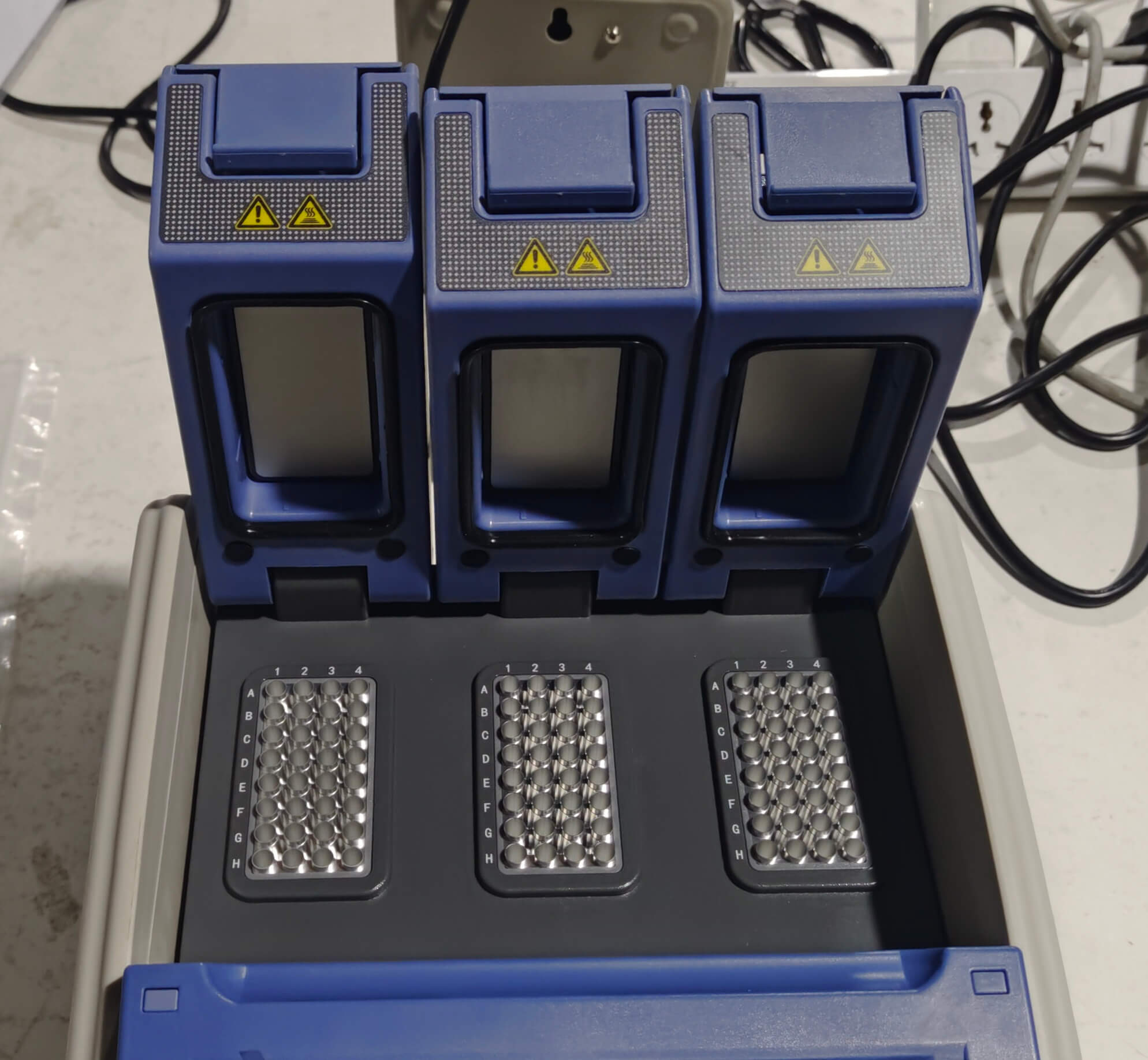

The layout of the internal space of the thermal cycler can be seen in the picture, including the sample racks where the PCR tubes are placed. The internal temperature control system is highly sophisticated, ensuring that each tube position receives a uniform temperature distribution.
The thermal cycler is protected by a sturdy cardboard box and foam material to ensure that no damage occurs during transportation.
What is the thermal cycler used for?
The thermal cycler, also referred to as a thermocycler, PCR machine, or DNA amplifier, is a laboratory device primarily used to amplify specific segments of DNA through the process of polymerase chain reaction (PCR).
