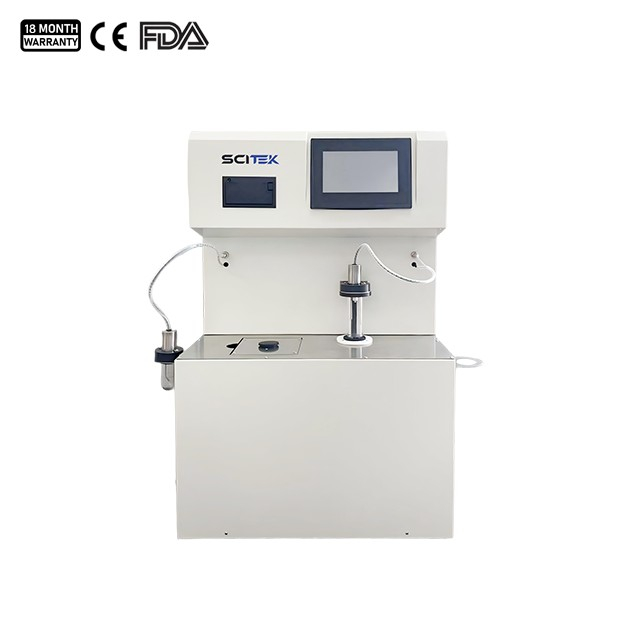

Fully Automatic Pour Point Tester Application:
Precisely designed and manufactured in accordance with mainstream international standards (ASTM D97, ISO 3016) and Chinese national standards (GB/T 3535 for pour point; GB/T 510 for solidification point). It is suitable for the fully automated determination of pour points and solidification points for dark petroleum products, crude oil, and other transparent or translucent petroleum products.
Fully Automatic Pour Point Tester Feature:
7-inch color LCD touchscreen, a unique mechanical rotation mechanism, and a stylish, aesthetically pleasing control interface.
Two independent test units capable of simultaneous or separate pour point and cloud point testing, effectively doubling testing efficiency.
High-power Danfoss refrigeration compressor, ensuring rapid cooling and stable performance during long-term, continuous operation.
Employs high-sensitivity photoelectric sensors to automatically and precisely detect liquid flow, completely eliminating parallax and errors associated with manual visual observation.
Microprocessor-controlled automation manages stepped cooling, automatic lifting and rotation of the test tube, automatic detection of both cloud and pour points, and intelligent shutdown protection.
High-precision industrial temperature control module for minimal measurement error, supports automatic data storage and one-touch printing, facilitating efficient traceability and archiving of test results.
Fully Automatic Pour Point Tester Specification:
Model | ACP-A1117 |
Temperature Control Range | RT. to -70 ℃ |
Temperature Control Accuracy | ±0.1℃ |
Detection Method | Photoelectric sensor |
Refrigeration System | Imported cascade compressor |
Test Station | 2 independent testing station |
Data Storage | 200 |
Data Output | Built-in micro thermal printer |
Power Supply | AC 220±10%V, 50/60Hz |
Consumption | 1200 W |
External Size (W×D×H) | 540×650×880 mm |
Shipping Size (W×D×H) | 620×730×960 mm |
N.W./G.W. | 80/99 kg |
