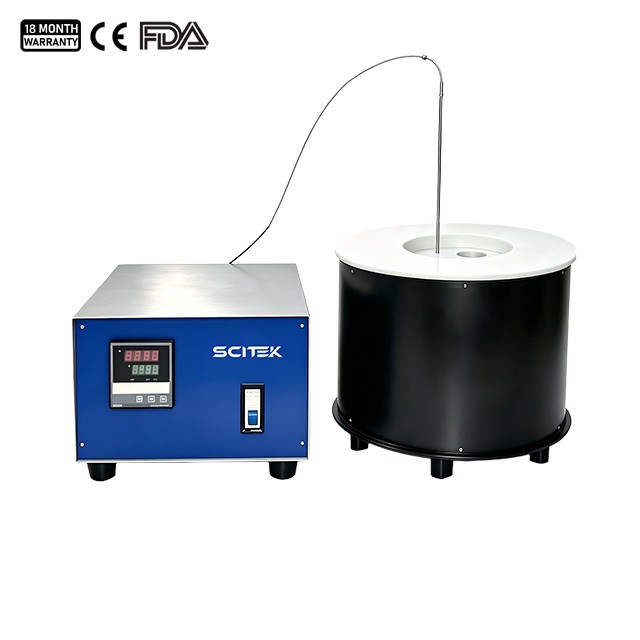

Carbon Residue Tester

Model: CRT-1114

Test Method: Electric Furnace Method
Temperature Control: 520 °C
Temperature Accuracy: ≤ ±5 °C

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Carbon Residue Tester Application:

CRT-1114 was designed to determine the coking tendency of diesel, heavy fuel oil, and lubricating base oils following thermal cracking. Widely used in oil refineries, lubricant formulation R&D, and coking monitoring for in-service heat transfer fluids and compressor oils, as well as by customs authorities and third-party testing agencies.

Carbon Residue Tester Feature:

Split-unit design, consisting of a high-efficiency heating unit and an intelligent temperature control unit.
Heating unit integrates a metal bath, a high-power electric heater, and a high-sensitivity thermocouple.
Control unit is equipped with a high-precision temperature controller and an SCR (Silicon Controlled Rectifier) regulation system.
The system delivers high overall power and rapid heating.

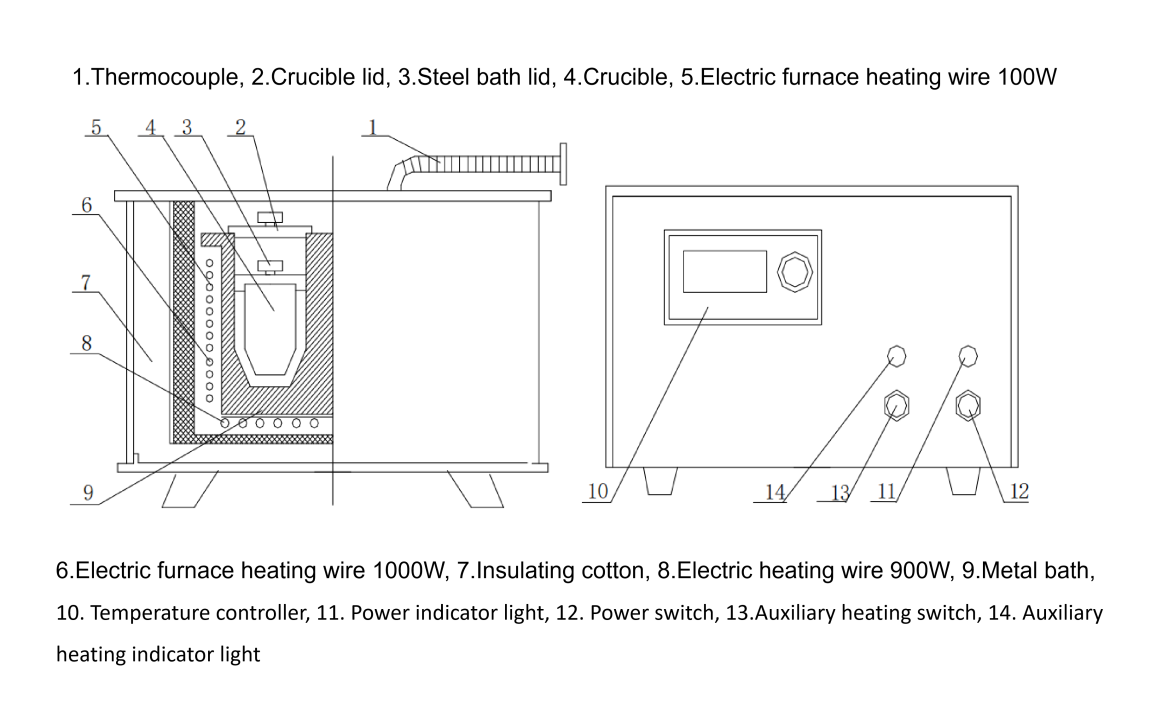

Structural diagram of Carbon Residue Tester

Carbon Residue Tester Specification:

Model	CRT-1114
Test Method	Electric Furnace Method
Temperature Control	520 °C
Temperature Accuracy	≤ ±5 °C
Metal Bath	Φ 140 mm, Height: 120 mm
Bath Cavity Size	Φ 38 mm×72 mm
Porcelain Crucible Size	Outer Dia: Φ 30 mm, Height: 41 mm, Base Dia: Φ 20 mm
Crucible Lid Size	Outer Dia: Φ 34 mm, Center Vent Hole: Φ 1.0 mm to 1.5 mm
Heating Power	Constant Temp (Compensation): 900W;
	Temperature Control (Heating 1): 1000W;
	Auxiliary Heating (Heating 2): 1000W;
Power Supply	AC 220±10%V, 50 Hz
Consumption	2900 W
External Size (W×D×H)	200×130×120 mm;
External Size (W×D×H)	Electric furnace (D×H): 300×280 mm;
Shipping Size (W×D×H)	420×420×620 mm
N.W./G.W.	27/38 kg

Automatic Penetrometer

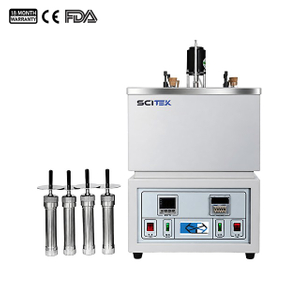

Silver Strip Corrosion Tester

Copper Strip Corrosion Tester

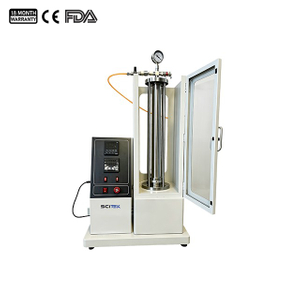

Corrosion of Cast Aluminum Alloys in Engine Coolants Tester
