| Wavelength coverage | 190nm-1000nm |
| Light source | Long life scintillation xenon lamp |
| No preheating required for startup, allowing direct detection |
| Wavelength accuracy | ±1.0nm |
| Wavelength repeatability | < 0.2nm |
| Resolution ratio | 0.001Abs (display) 0.000001Abs (internal calculation) |
| Measurement range | 0~40D |
| The CMOS detector enables real-time full-wavelength UV-VIS spectral scanning across the entire plate. |
| Single-well UV-VIS full-wavelength scanning takes only 1 second |
| Real-time output of UV-Vis full-wavelength spectrum |
| Board pattern | Freeboard visualization |
| Incubation temperature | Equipped with incubation heating function (room temperature +2°C) up to 65°C |
| Microplate type | Standard 96-well microplate (rest expandable and customizable) |
| Can achieve 1~24 cuvette detection (cuvette selection) | Absorbance mode, Cut-off qualitative calculation, linear regression, exponential regression, logarithmic regression |
| Microplate Module | The absorbance, concentration, and purity of nucleic acids and proteins can be directly measured using a specially designed microplate (96-well microplate optional). |
| The output of with various forms comprehensive Chinese reports | List report, layout report, single hole report; Reports can be exported in formats such as Excel, Word, PDF, and TXT. |
| Capable of performing OD value, quantitative or qualitative detection, with multiple calculation methods available |
| Applicable to most life science research tasks, as well as endpoint ELISA, kinetic assays, nucleic acid protein quantification, bacterial suspension concentration analysis, MTT experiments, etc. |
| The detection wavelength can be customized, and the wavelength range is 190nm-1000nm. |
Main components of K6600A:
1. Host (including light source, detector,incubation device, oscillation device, and cuvette analysis device);
2. K6600-A model light-absorbing full-wavelength microplate reader workstation software;
3. Built-in 10-inch Windows 10 PC operating system |

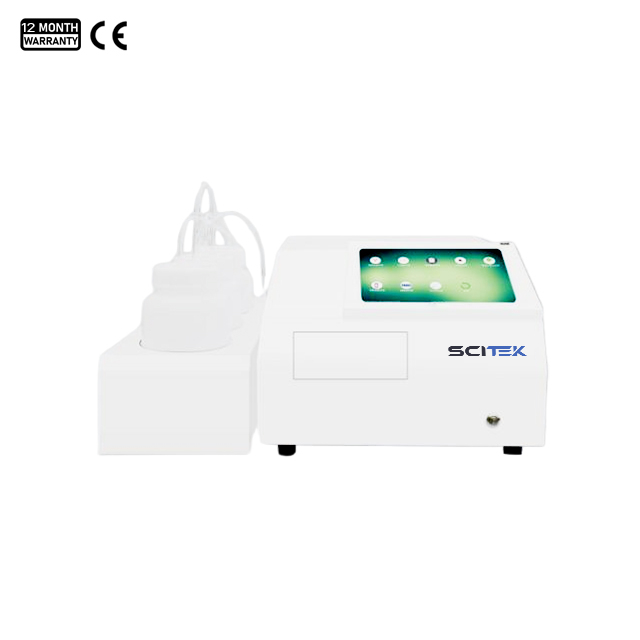

K 6600B comes with the washing function,without the need for a separate washing machine.
1. Clean the 8 needles in the channel.
2. Washing solution bottles and waste liquid buffer bottles ≥2L;
3. The applicable microplate specifications are 96-well flat-bottom and UV-bottom microplates.
4. Select 0 to 50 cleaning cycles;
5. Select 1 to 12 cleaning strips.
6. The function of the vibration plate is adjustable;
7. Pipeline cleaning can be performed;
8. Features dual-point liquid suction and bottom flushing function. |
