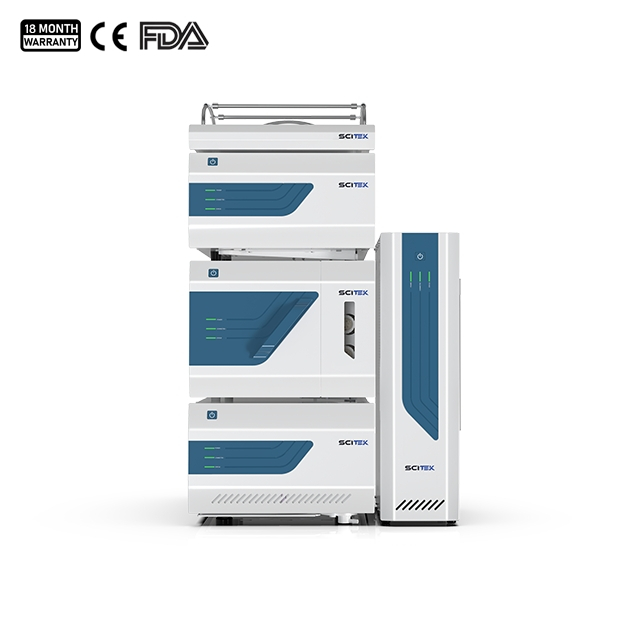

Column oven with valve switching, providing 2 installation clips for 250mm HPLC columns, expandable to 4+ columns.
Innovative Technology: Effectively identifies shoulders and small peaks with guided operation and intelligent integration.
Key Components
High-Pressure Pump
Maximum Pressure and Compatibility: Capable of withstanding up to 75 MPa, compatible with smaller particle size chromatographic columns, enabling seamless method transfer.
Acetonitrile-Resistant Valve: Features a high-precision, self-restoring, acetonitrile-resistant one-way check valve, ensuring stable fluid delivery in acetonitrile applications. The further optimized two-stage floating patent technology significantly reduces wear on high-pressure seals, extending the lifespan of consumables.
Flow Stability and Gradient Accuracy: Proprietary fluid compression compensation technology with real-time feedback electronic pulsation suppression control ensures stable flow and precise gradient accuracy.
Quaternary Pump with Degassing: Quaternary pump integrated with 5-channel degassing (A, B, C, D, AS).
Binary Pump with Solvent Switching: The binary pump comes with a standard solvent switching valve, enabling binary and four-way expansion for analysis.
User-Friendly Design: Standardly equipped with a touch panel switch, meeting the needs for offline operation and human-machine separation.
Autosampler
Needle-in-flow design ensures zero sample loss during injection.
Compatible with different specifications of sample trays, expanding user application scenarios.
Metering pump for precise sampling, offering longer lifespan and higher accuracy compared to syringe pumps.
Standard empty bottle detection function to prevent invalid sample injection.
Fullrangeofsamplepretreatmentfunctionssupportingonlineenrichment,online derivatization, online dilution and mixing, further expanding user method development scenarios.
Optional refrigeration component to ensure detection accuracy of thermally unstable substances.
Optional condensation peristaltic pump active drainage function to effectively prevent damage to the equipment from overflow of condensation accumulation.
Pump and autosampler can be linked for purge operation, eliminating the need for manual purge valve operation.
Column Oven
Default configuration with semiconductor cooling module and electric-resistive heating module, achieving full temperature range control with heating and cooling functions. Two control modes ensure longer lifespan and higher reliability of temperature control components.
Forced air circulation for precise and uniform temperature control throughout the chamber.
Standard preheating module with the same temperature range as the set temperature to ensure optimal temperature consistency.
Multi-column capacity design supporting up to 3 chromatographic columns of 300mm .
Supports upgrade to 2D configuration with built-in high-pressure switching valve , and can be expanded to support multiple external switching valve .
Optional chromatographic column GLP information recording function.
Full Range of Liquid Chromatography Detectors
Diode Array Detector
Capable of acquiring chromatographic signals across all wavelengths from 190 to 800 nm, exhibiting detailed spectral structures.
Features a high-intensity deuterium lamp, concave holographic grating, 1024-element photodiode array,andall-solid-state, highly stable optical path structure.
Provides three-dimensional spectra, contour plots, chromatograms, spectra, maximum intensity plots, and other information to suppo multiple application needs, including advanced functions such as peak purity calculations.
Achieves extreme low signal noise and drift through independent chamber temperature control, active fan speed control,a nd passive temperature stabilization of internal materials.
Refractive Index Detector
Designed with a two-chamber conguration and upgraded to a long-life LED light source for maintenance-free operation over its life time.
Freely switchable between entry and exit of rinse modes for automatic rinsing of the reference flow cell.
Utitize a high-precision data acquisition system with sequential rinsing, polarity control, and temperaturecontrol.
Impoed PD tube ensures high sensitivity.
Equipped with temperature and leak detection alarms for real-time monitoring of instrument status.
Features a touch-sensitive LCD display suppoing both local user control and chromatography software work station modes.
Suppos analog and digital signal outputs, compatible with chromatography systems from other brands.
Ultraviolet Detector
Dual-lamp design with a high-transparency deuterium lamp and an optional tungsten lamp, greatly extending the detector's detection range and enabling full-ranged etection from 188nm to 900nm.
Built-in multi-dimensional wavelength calibration functions (including holmium oxide, potassium dichromate, erbium perchlorate, and deuterium lamp characteristic wavelength calibration) for extremely high wavelength accuracy.
Capabilities include ow-stop spectra scanning, dual-wavelength detection, and wavelength programming.
Suppos propoional chromatogram analysis and aids inextended peak purity analysis.
Fluorescence Detector
Dual monochromator structure allows exible setting of excitation and emission wavelengths, simultaneously monitoring four wavelength channels.
Suppos multiple scanning modes including laser spectral scanning, emission spectral scanning, and lamp spectrum scanning.
Provides a stable light source with a direct-current xenon lamp, and multi-level precision detection gain settings for a large dynamic range and high signal-to-noise ratio.
Features a touch-sensitive LCD display suppoing both local user control and chromatography software work station modes.
Suppos analog and digital signal outputs, compatible with chromatography systems from other brands.
Evaporative Light Scattering Detector
Designed for low-temperature evaporation, oering high sensitivity for thermally unstable and semi-volatilecompounds.
Built-in gas mass ow meter with capilla heat transfer dierential calorimet for precise gas ow control. Independent ailow control for nebulization, evaporation, and detection ensures excellent response reproducibility.
Drift tube features corrosion-resistant treatment and stainless steel construction (excluding fragile glass and easily corroded components).
Impoed nebulizer and photomultiplier tube ensure high signal sensitivity, long lifespan, and wide adjust able range.
Equipped with temperature, leak, and gas leakage detection alarms for real-time monitoring of instrument status.
Features a touch-sensitive LCD display suppoing both local user control and chromatography software work station modes.
Suppos analog and digital signal outputs, compatible with chromatography systems from other brands.
Smart Lab Chromatography Workstation
Self-devloped CDS with built-in database with proprietary.
Validated at CMMI Maturity Level 5, Ensures international quality standards for software development.
Featuring a comprehensive audit trail function compliant with GMP, CGMP, 21 CFRPart 11, ICH guidelines, and other laws and regulations, ensuring full-process data traceability. Audit trail records are not allowed to be edited and deleted, and can be printed.
Convenient data organization and storage capabilities, utilizing an efficient database system to safeguard user data security. Automatic backups and cyclic updates ensure complete backups within the latest 7 days, preventing data loss.
Developing the SmartPeak intelligent peak detection function, and employing a second-order algorithm combined with Gaussian, exponential, and tangent skimming to achieve effective identification and intelligent selection of chromatographic peaks (screenshots of shoulder peak recognition and advanced skimming software provided). This simplifies the integration process, providing consistent and reliable peak detection across multiple chromatograms.
Modularized device components enable integration with third-party manufacturers. Full control capabilities for multi-brand and multi-model instruments provide ample scalability for future laboratories.
Unique H.B.C-ApexFinder Algorithm System - Efficient, Intelligent, and Compliant:
Introducing the Smart Peak intelligent peak detection feature, powered by a second-order algorithm that simplifies the integration process, providing consistent and reliable peakdetection across multiple chromatograms. It can identify shoulder peaks, small peaks, and perform high-order integration simulations, including Gaussian skimming, tangent skimming, and exponential skimming. Combined with valley-to-valley and vertical line manipulation, along with interactive tools for intelligent integration, it offers customers a diverse selection and convenient experience.
Awizard-based approach guides operators in specifying initial chromatographic peak detection parameters. It provides intuitive visual instructions to assist customers in optimizing integration,withreal-time display of modification effects. This aligns with a trial-and-error approach, minimizing user input and significantly enhancing the analyst's experience.
