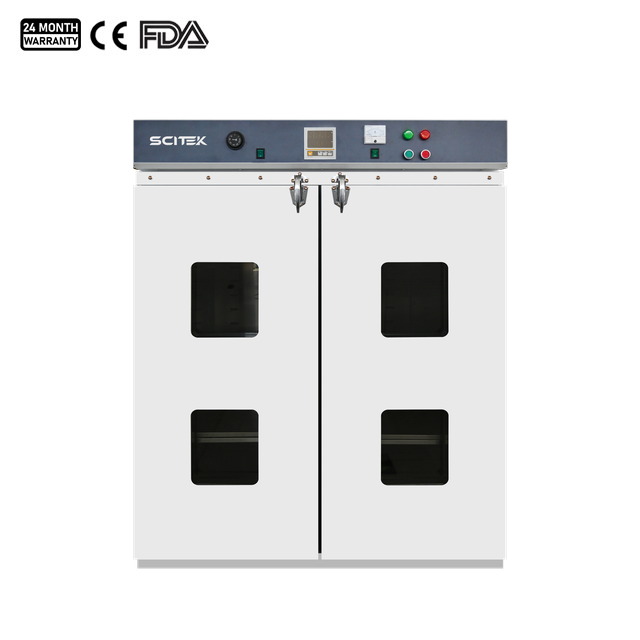

Big Forced Air Drying Oven Application:
Large-capacity electric heating forced-air drying oven facilitates the loading and unloading of large workpieces and batches of samples from either side. Widely used in factory workshops, manufacturing facilities, laboratories, etc.
Big Forced Air Drying Oven Feature:
Robust construction from high-quality galvanized steel sheet with electrostatic powder coating, corrosion-resistant, and durable.
Double-layer tempered glass observation window with adjustable-height shelves, provides clear visibility and user-friendly operation.
Microcomputer intelligent digital display temperature control, with timing and over-temperature alarm.
Comprehensive forced-air circulation technology guarantees uniform temperature distribution throughout the chamber.
High-temperature silicone rubber sealing strip with latch-type adjustable door lock, ensures excellent airtightness and minimizes heat loss.
One-touch start/stop functionality, with indicators for power, operation status, and current output, ensuring safe and reliable operation.
High-temperature-resistant silicone seal, ceramic fiber insulation, and latch-style adjustable door lock design, provide excellent sealing, minimize heat loss, and maintain a consistent temperature with low energy consumption.
High-quality stainless steel heating elements combined with a rear air duct design with compact footprint, ideal for manufacturing workshops and laboratory applications.
Big Forced Air Drying Oven Specification:
Model | FDO-640E | FDO-640S | FDO-640P | FDO-1200E | FDO-1200S | FDO-1200P |
Display | LCD screen |
Capacity (L) | 640 | 1200 |
Internal Size (W×D×H)(mm) | 800×800×1000 | 1000×1000×1200 |
Internal Material | Galvanized steel | 201 Stainless Steel | 304 Stainless Steel | Galvanized steel | 201 Stainless Steel | 304 Stainless Steel |
Shelve (Standard/Max.) | 2/10 | 2/11 |
Shelve Load | 30 kg |
Operating Mode | Continuous running, Timer running, Auto-stop |
Temp. Range | RT+10 ℃ to 300 ℃ |
Temp. Resolution | 0.1 ℃ |
Temp. Fluctuation | ±1 ℃ (at 100 °C) |
Temp. Uniformity | ±3 ℃ (at 100 °C) |
Consumption (W) | 6000 | 9000 |
Fan | 2 (Rear) | 4 (Rear) |
Exhaust/Access Port | 35 mm×2 (Top) |
Timer | 0–9999 min |
Power Supply | AC 220 single-phase/380V three-phase, 50/60Hz | AC 380V three-phase, 50/60Hz |
External Size (W×D×H)(mm) | 1035×980×1400 | 1235×1160×1580 |
Shipping Size (W×D×H)(mm) | 1200×1100×1600 | 1260×1420×1860 |
G.W. (kg) | 275 | 380 |
