Capacity : 65/125/230/625 L Temperature Range : RT+10 to 300 ℃ Display Resolution : 0.1 ℃ Temperature Fluctuation : ±1 ℃ Temperature Uniformity : ±2.5%
The enclosure features explosion-proof construction, and the electrical equipment is equipped with integrated explosion-protection technology. The centralized protection of the explosion-proof control cabinet prevents the leakage of high temperatures, static electricity, sparks, and other hazardous factors.
The shelf height is adjustable, inner chamber is easy to clean.
P.I.D temperature controller, with parameter memory and scheduled start functions.
Heating is provided by explosion-proof 304 stainless steel heating tubes.
The system employs a tiered convection design: small-capacity with high-efficiency forced convection, medium-capacity with rear duct homogeneous air supply, and large-capacity with dual-duct cyclone air supply, balancing efficiency, uniformity, and stability.
The equipment top has a vent hole with an inner diameter of 28 mm. (EDO-625B:28 mm × 2)

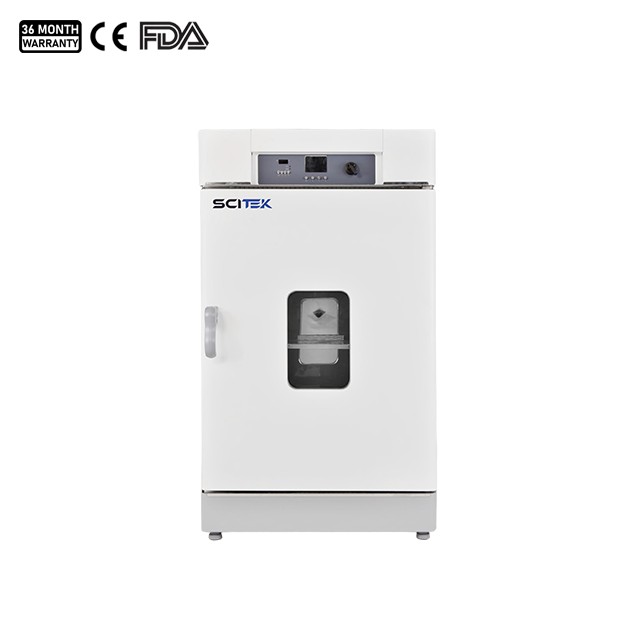

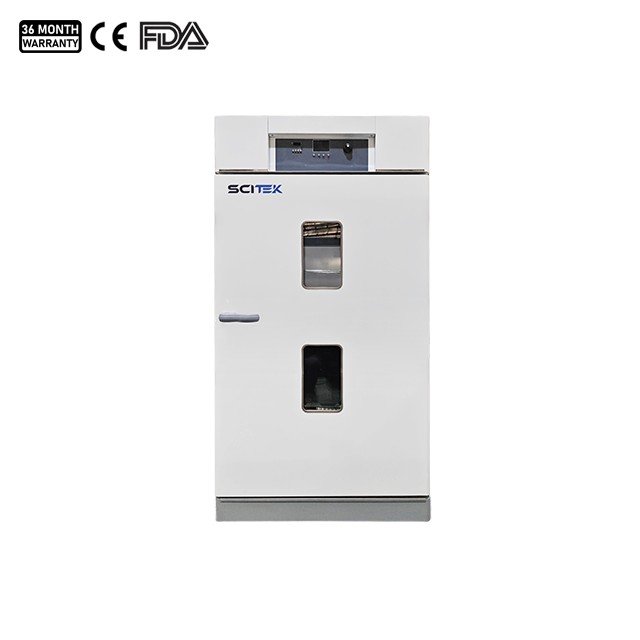

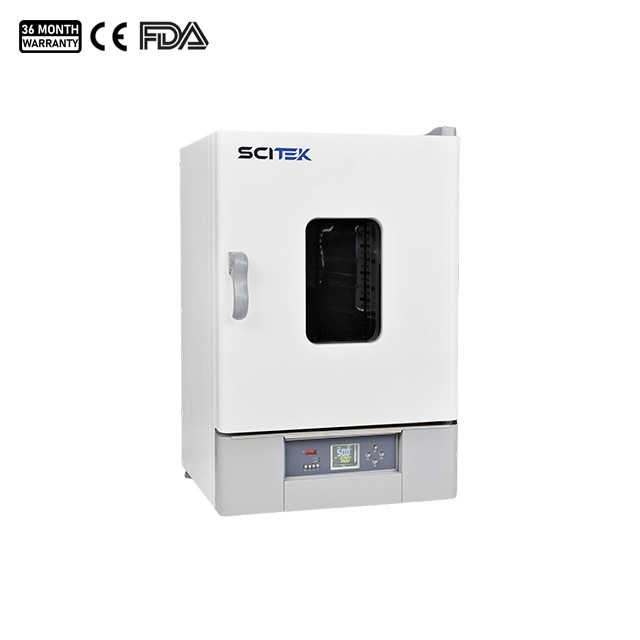

Explosion-Proof Drying Oven Specifications:
Model
EDO-65B
EDO-125B
EDO-230B
EDO-625B
Capacity (L)
65
125
230
625
Circulation Mode
Forced convection
Rear Duct Homogeneous Air Supply
Dual-Duct Cyclone Air Supply
Temperature Range
RT+10 to 300 ℃
Display Resolution
0.1 ℃
Temperature Fluctuation
±1 ℃
Temperature Uniformity
±2.5%
Timer
0-9999 min/h (units are selectable: minutes or hours)
Shelves; 7-inch touch screen (with curve display and programming function)
Application of Forced Air Drying Oven:
With an explosion-proof enclosure and integrated explosion-proof electrical technology, as well as an independent explosion-proof control box for centralised protection, explosion-proof drying oven effectively eliminates risks caused by high temperatures, static electricity and electrical sparks.It is specifically designed for drying, heating, aging tests, and isothermal treatment of flammable, explosive, volatile, or hazardous samples. Widely used in industrial and research fields such as petroleum, chemical, pharmaceutical, coatings, inks, cosmetics, and laboratories, it provides a safe, stable, and reliable temperature control solution for handling hazardous materials.
Explosion-Proof Drying Oven Feature:
The enclosure features explosion-proof construction, and the electrical equipment is equipped with integrated explosion-protection technology. The centralized protection of the explosion-proof control cabinet prevents the leakage of high temperatures, static electricity, sparks, and other hazardous factors.
The shelf height is adjustable, inner chamber is easy to clean.
P.I.D temperature controller, with parameter memory and scheduled start functions.
Heating is provided by explosion-proof 304 stainless steel heating tubes.
The system employs a tiered convection design: small-capacity with high-efficiency forced convection, medium-capacity with rear duct homogeneous air supply, and large-capacity with dual-duct cyclone air supply, balancing efficiency, uniformity, and stability.
The equipment top has a vent hole with an inner diameter of 28 mm. (EDO-625B:28 mm × 2)
Explosion-Proof Drying Oven Specifications:
Model
EDO-65B
EDO-125B
EDO-230B
EDO-625B
Capacity (L)
65
125
230
625
Circulation Mode
Forced convection
Rear Duct Homogeneous Air Supply
Dual-Duct Cyclone Air Supply
Temperature Range
RT+10 to 300 ℃
Display Resolution
0.1 ℃
Temperature Fluctuation
±1 ℃
Temperature Uniformity
±2.5%
Timer
0-9999 min/h (units are selectable: minutes or hours)
Shelves; 7-inch touch screen (with curve display and programming function)
Application of Forced Air Drying Oven:
With an explosion-proof enclosure and integrated explosion-proof electrical technology, as well as an independent explosion-proof control box for centralised protection, explosion-proof drying oven effectively eliminates risks caused by high temperatures, static electricity and electrical sparks.It is specifically designed for drying, heating, aging tests, and isothermal treatment of flammable, explosive, volatile, or hazardous samples. Widely used in industrial and research fields such as petroleum, chemical, pharmaceutical, coatings, inks, cosmetics, and laboratories, it provides a safe, stable, and reliable temperature control solution for handling hazardous materials.
