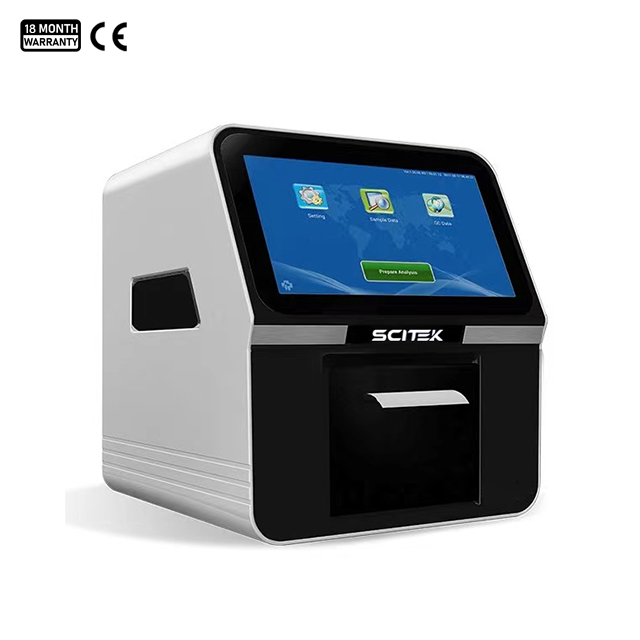

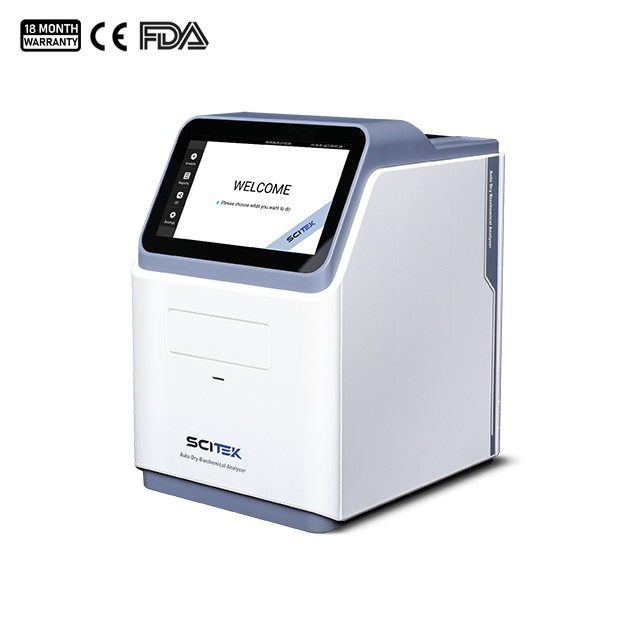

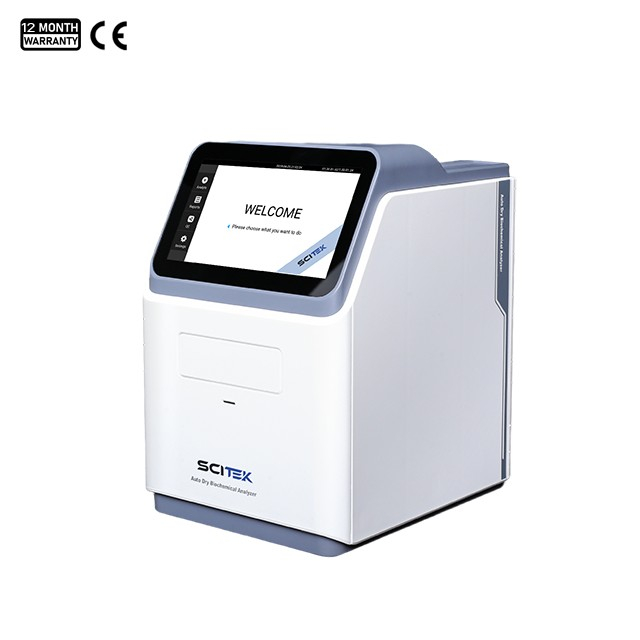

BA-120P automatic chemistry analyzer is a biochemistry analysis system integrating routine coagulation, biochemistry, electrolytes, and some immunity items. Adopting microfluidic technology, it integrates sample pre-processing, analysis, separation, and detection required by routine laboratories on a few square centimeters chip. Then, through optical, electrical, and thermal detectors and reading devices, it realizes biochemical tests' convenience and high accuracy.

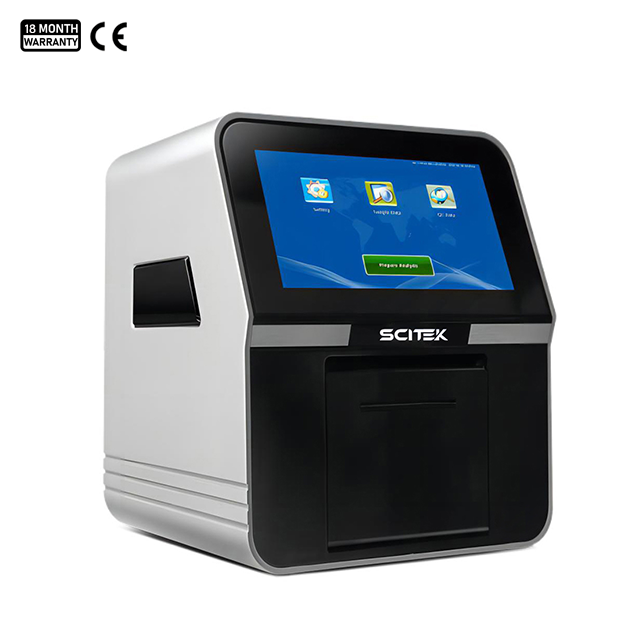

The BA-120VP is a multi-functional, fully automated biochemistry analyzer that miniaturizes and automates the biochemistry analysis platform through microfluidic technology. It has an intelligent quality control system to ensure the accuracy and reliability of test results. Tests include routine biochemistry, coagulation, blood gas electrolytes, and dog and cat inflammation tests, which can help veterinarians diagnose. The veterinary biochemistry analyzer has become the professional choice for thousands of pet hospitals and veterinary clinics.
Fully Automatic Dry Biochemistry Analyzer Specifications:
| Model | BA-120P | BA-120VP |
| Sample Volume | 90-120μL |
| Bar Code | Two-dimensional bar code |
| Testing Time | 12 minutes/sample |
| Temperature | 37℃±0.3℃ | 37℃±0.2℃ |
| Resolution | 0.001Abs |
| Absorbance | 0-3.0Abs | 0-3.0Abs |
| Sample Type | Anti-coagulated whole blood, serum, plasma | Anti-coagulated whole blood, serum, plasma |
| QC & Calibrate | Real time full-auto finish | Real time full-auto finish |
| Operational Environment | Temperature: 10-32℃; Humidity: <85% | Temperature: 10-32℃; Humidity: <85% |
| Testing Principle | Absorption spectroscopy, transmission turbidimetry | Absorption spectroscopy, transmission turbidimetry |
| Testing Method | End point, kinetic, fixed time and turbidmetry | End point, kinetic, fixed time and turbidmetry |
| Light Source | 12V/20W, halogen tungsten lamp’s life span is over 2500 hours | 12V/20W, halogen tungsten lamp’s life span is over 2500 hours |
| Power Supply | AC100V-240V, 50/60Hz | AC100V-240V, 50/60Hz |
| Display | Android 6.5 inch 800x480, multi-point capacitive touch screen | Android 6.5 inch 800x480, multi-point capacitive touch screen |
| Storage | 500000 results | 4G, > 100.000 results |
| Printer | Built-in thermal printer | Built-in thermal printer |
| Connector | 4 USB ports, 1 LAN port | 2 USB ports |
| Sizes (W×D×H)(mm) | 315×375×475 | 345×315×405 |
| Shipping Size (W×D×H)(mm) | 665×335×425 | 665×335×425 |
| N.W./G.W. (kg) | 5/10 | 5/10 |
Fully Automatic Dry Chemistry Analyzer Features (BA-120P):
Versatility: Analyses biochemistry, coagulation, electrolytes, and immunology in one device.
Microsampling: Only a small amount of blood sample is required, solving the problem of collecting blood from infants and children.
Rapid testing: Results in as little as 10 minutes
Simple operation: Only three steps are required: no sample pre-treatment, automatic centrifugation, calibration, and calibration
Single-serve reagents: With a validity period of up to 12 months, single-serve reagent packaging, avoiding reagent waste.
Compact and convenient Weighing only 4KG, small footprint and easy to carry.
Maintenance-free No liquid circuit system, maintenance-free
Mass storage can store 500,000 pieces of data.
Fully Automatic Dry Chemistry Analyzer (POCT) Feature (BA-120VP):
Micro blood sampling: Sampling only 100ul, supports whole blood, plasma or serum, more convenient and safe for small animals and pets blood collection.
Simple operation: No need to centrifuge or add diluent, add sample, release sample and read the report. Even non-professional doctors can quickly test.
Rapid testing: 12 minutes to test results, reduce the waiting time for diagnosis.
Accurate results: Built-in Intelligent Real-time Quality Control (IRQC) system ensures the accuracy of the test.
Versatility: Tests cover routine biochemistry, coagulation, blood gases, canine and feline inflammation (c-CRP, f-SAA).
Compact and Portable: The single unit weighs only 4kg and has a volume of less than 0.01m³, making it a space-saving device.
Details of Dry Chemistry Analyzer (BA-120P):
The dry chemistry analyzer is simple and compact, occupies less space in the laboratory, and is easy to place and use in various environments.
High-definition touch screen, intuitive interface, easy to operate
