Throughput : 10/20 items simultaneously Max Test Speed : 20/40 samples/hour Accuracy Range of Sample : 50–64 mm Samples Volume : 1.6–2.0 mL anticoagulant blood Read Resolution : ±0.1 mm (westergren method result±1 mm)
The ESR-10/20 Erythrocyte Sedimentation Rate Analyzer employs advanced infrared obstacle detection technology to achieve fully automated, high-precision ESR analysis.
The ESR-10/20 Erythrocyte Sedimentation Rate Analyzer employs advanced infrared obstacle
detection technology to achieve fully automated, high-precision ESR analysis.
By combining periodic infrared scanning with intermittent automatic detection of the erythrocyte-plasma
interface, it continuously monitors the dynamic separation process between erythrocytes and plasma.
This enables automatic measurement of erythrocyte sedimentation rate in vertical tubes,
delivering precise and efficient test results.
All test data is processed instantly by the built-in computer and directly converted into internationally recognized
results of Wechsler, meeting standard clinical testing requirements.
This instrument serves as a vital tool for diagnosing and monitoring various inflammatory
and autoimmune diseases, such as infections, rheumatoid arthritis, and certain cancers.
ESR Analyzer Specification:
Model

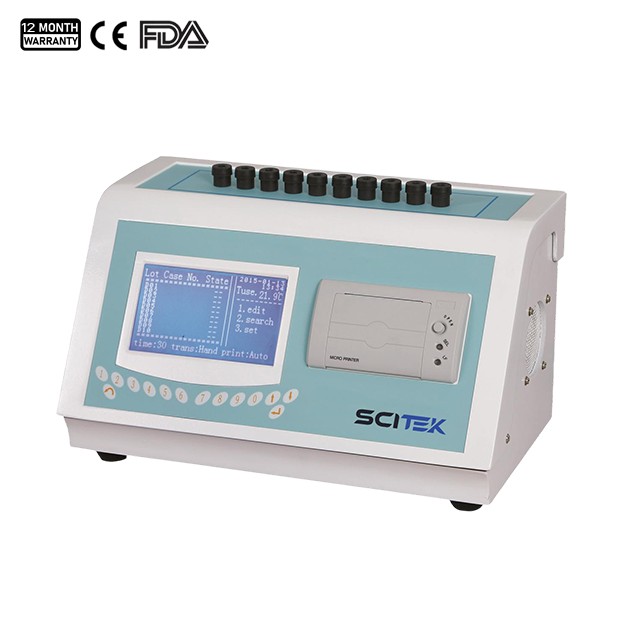

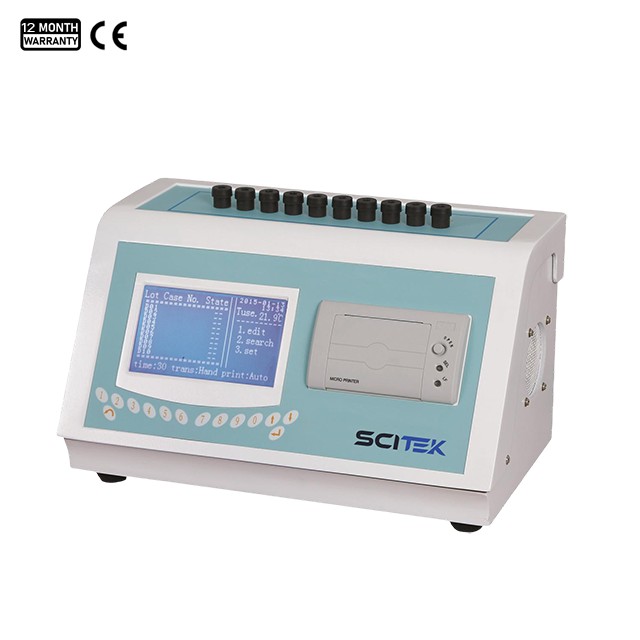

ESR-10A

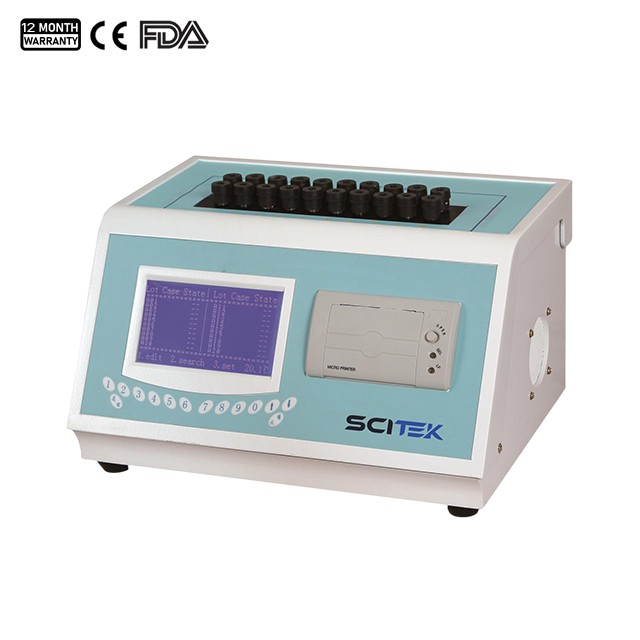

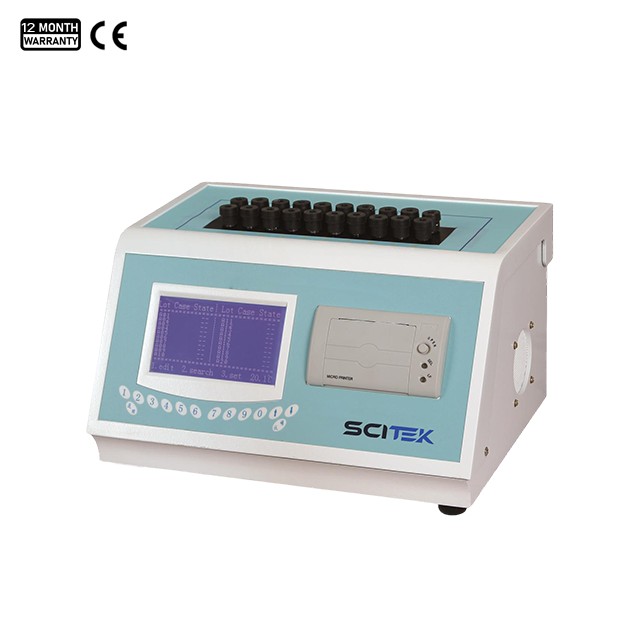

ESR-20A
Throughput
10 items simultaneously
20 items simultaneously
Max Test Speed
20 samples/hour
40 samples/hour
Suited Esr Tube
1.6 mL ESR tube (vacuum or normal),Φ 8.3×120 mm (vacuum or normal)
Samples Volume
1.6–2.0 mL anticoagulant blood
Accuracy Range of Sample
50–64 mm
Read Resolution
±0.1 mm (westergren method result±1 mm)
Interval of Reading
1 min
Test Time
The test time 30 min, equivalents to 1 h westergren method; The test time 60 min, equivalents to 2 h westergren method;
Power
12 V(SELV) by external power supply
Display
128×240 mm LCD screen
Packing Detail
505×445×365 mm, 0.09 CBM
N.W/G.W.
9/16 kg
ESR Analyzer Feature:
Equipped with an advanced optical system and data processing software, our instrument features automatic reagent addition signal detection. It supports testing, configuration, result retrieval, and display/storage of test outcomes.
Two independent detectina places:detect different items or different samples ofthe same item contemporary (ESR-20A, only)
Sampling Mode: The time when the sample is placed, it will be test immediately.
Save 200 test results at most, including the sample number (serial number), erythrocyte sedimentation rate values and the dynamic curve.
Results Output: Show and print sample number, test results by Westergren method and the dynamic ESR (erythrocyte sedimentation rate) curve.
It has environment temperature compensating function. When choosing this function, When selecting the function, when the room temperature is 18–30 ℃, it amends to 18 ℃ according to the blood sedimentation calibration test results. (It can be selected in accordance with laboratory, the default of equipment is no compensated).
There are power-off protection function, when a sudden power failure, automatic detection has been completed the tested results.
Built-in thermal printer preparation equipment, it has automatic, manual printing options.
Communication Interface: RS-232 serial interface.
It allows to input the HCT value, and calculate the ESR equat.
ESR Analyzer Application:
The ESR-10/20 Erythrocyte Sedimentation Rate Analyzer employs advanced infrared obstacle
detection technology to achieve fully automated, high-precision ESR analysis.
By combining periodic infrared scanning with intermittent automatic detection of the erythrocyte-plasma
interface, it continuously monitors the dynamic separation process between erythrocytes and plasma.
This enables automatic measurement of erythrocyte sedimentation rate in vertical tubes,
delivering precise and efficient test results.
All test data is processed instantly by the built-in computer and directly converted into internationally recognized
results of Wechsler, meeting standard clinical testing requirements.
This instrument serves as a vital tool for diagnosing and monitoring various inflammatory
and autoimmune diseases, such as infections, rheumatoid arthritis, and certain cancers.
ESR Analyzer Specification:
Model
ESR-10A
ESR-20A
Throughput
10 items simultaneously
20 items simultaneously
Max Test Speed
20 samples/hour
40 samples/hour
Suited Esr Tube
1.6 mL ESR tube (vacuum or normal),Φ 8.3×120 mm (vacuum or normal)
Samples Volume
1.6–2.0 mL anticoagulant blood
Accuracy Range of Sample
50–64 mm
Read Resolution
±0.1 mm (westergren method result±1 mm)
Interval of Reading
1 min
Test Time
The test time 30 min, equivalents to 1 h westergren method; The test time 60 min, equivalents to 2 h westergren method;
Power
12 V(SELV) by external power supply
Display
128×240 mm LCD screen
Packing Detail
505×445×365 mm, 0.09 CBM
N.W/G.W.
9/16 kg
ESR Analyzer Feature:
Equipped with an advanced optical system and data processing software, our instrument features automatic reagent addition signal detection. It supports testing, configuration, result retrieval, and display/storage of test outcomes.
Two independent detectina places:detect different items or different samples ofthe same item contemporary (ESR-20A, only)
Sampling Mode: The time when the sample is placed, it will be test immediately.
Save 200 test results at most, including the sample number (serial number), erythrocyte sedimentation rate values and the dynamic curve.
Results Output: Show and print sample number, test results by Westergren method and the dynamic ESR (erythrocyte sedimentation rate) curve.
It has environment temperature compensating function. When choosing this function, When selecting the function, when the room temperature is 18–30 ℃, it amends to 18 ℃ according to the blood sedimentation calibration test results. (It can be selected in accordance with laboratory, the default of equipment is no compensated).
There are power-off protection function, when a sudden power failure, automatic detection has been completed the tested results.
Built-in thermal printer preparation equipment, it has automatic, manual printing options.
Communication Interface: RS-232 serial interface.
It allows to input the HCT value, and calculate the ESR equat.
