This blood gas and electrolyte analyser provides fast and accurate results for blood gases, ionised calcium, electrolytes, acid-base balance, glucose and lactate.
This blood gas and electrolyte analyser offers fully automated testing of ppH , pCO2, pO2, K+ , Na+, Cl- , Ca++, Hct in addition to blood gas parameters. The system offers individually adjustable parameter configurations for flexibility to meet your needs.
Blood Gas and Electrolyte Analyzer Specifications:
Model
BGE-95
Analyte
Measuring range
Unit
Hydrogen Ion Activity (pH)
6.000―9.000
pH scale
Carbon Dioxide
0.667―26.67
kPa
Partial Pressure (pCO2)
5.0―200.0
mmHg
Oxygen Partial Pressure (pCO2)
0―106.7
kPa
0―800.0
mmHg
Potassium Ion(K+)
0.50―10.00
mmol/L
Sodiumion(Na+ )
50.0―200.0
mmol/L
Chloride Ion(Cl- )
20.0―200.0
mmol/L
Ionized Calcium (Ca2+)
0.10―5.00
mmol/L
Hct
12.0―65.0
%
B.P.
500―800
mmHg
Glucose
1.1―66.7
mmol/L
Lactate
0.4―30.0
mmol/L
Derived(Calculated) Parameters:
pH (TC)
pH temperature corrected
pCO2 (TC)
pCO2 temperature corrected
pO2 (TC)
pO2 temperature corrected
TCO2
0-50mmol/L
HCO3
0-50mmol/L
Beb
-25.0-25mmol/L
Beecf
-25.0-25mmol/L
SBC
0-50mmol/L
SO2%
40-100.0%
Ca2+(7.4)
Ionized calcium“normalized” to pH 7.4
TCa
Total calcium content
AG
Anion gap
RI
0.0-70.0
AaDO2
0-700mmHg
O2SAT
Oxygen Saturation
tHb(c)
Hemoglobin (Calculated)
Sample
Whole blood, Serum, Plasma, Dialysate, CSF
Test Items
pH, pCO2, pO2, K+, Na+, Cl- , Ca++, Hct
Input Parameter
Patient temperature
Hemoglobin
FiO
B.P.
Interface
Serial Line RS-232
TCP/IP interface
USB port
Integrated Bar-code reader
Analysis Time
<90s
Sample Volume
95μL Whole blood
50uL Capillary blood
Calibration
Automatic, programmable 1-point and 2-point calibration
Data Storage
>10000
Display
10.4” TFT touch screen
Battery
Nickel-metal hydride battery 3.0Ah
Printer
Build-in Thermal printer 70mm
Barcode Reader
Up to 14 kinds barcode type
Work Environment
15℃-30℃
Storage Environment
5℃-40℃
Power Supply
100-240V, 50/60Hz
Cal Pak(WxHxD)(mm)
258x180x70
Autoqc(WxHxD)(mm)
103x180x70
Sizes(W×D×H)(mm)
400x574x344
Shipping Size (W×D×H)(mm)
940x670x620
N.W./G.W. (kg)
30/60
Blood Gas and Electrolyte Analyzer Features:

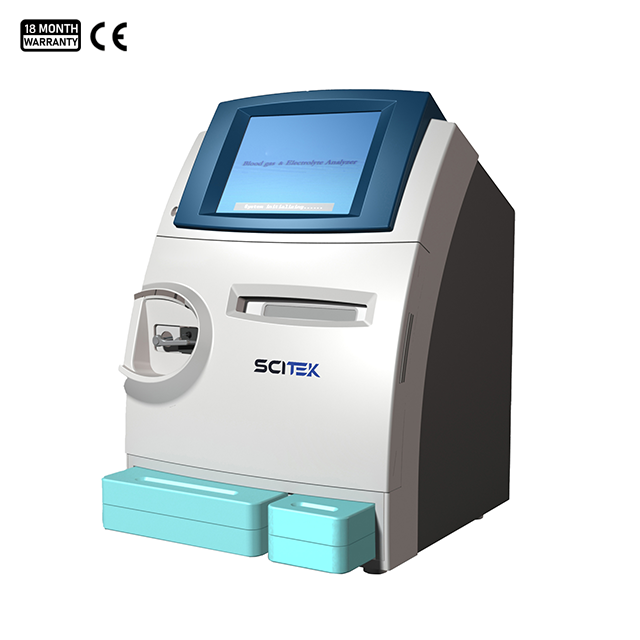

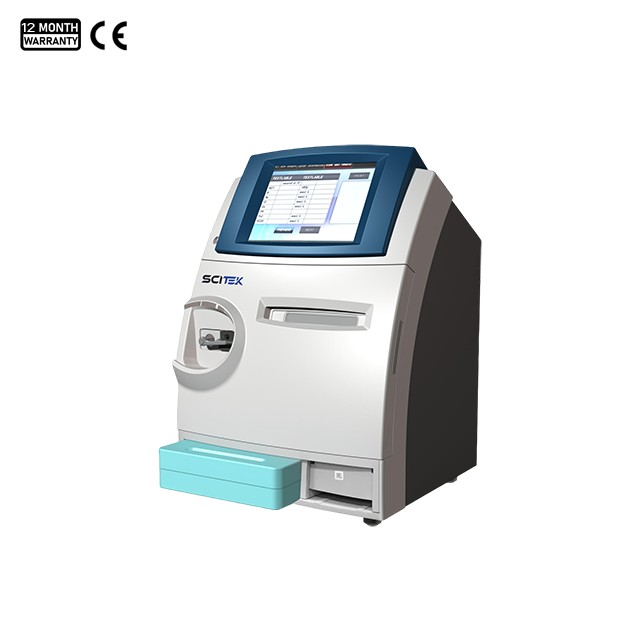

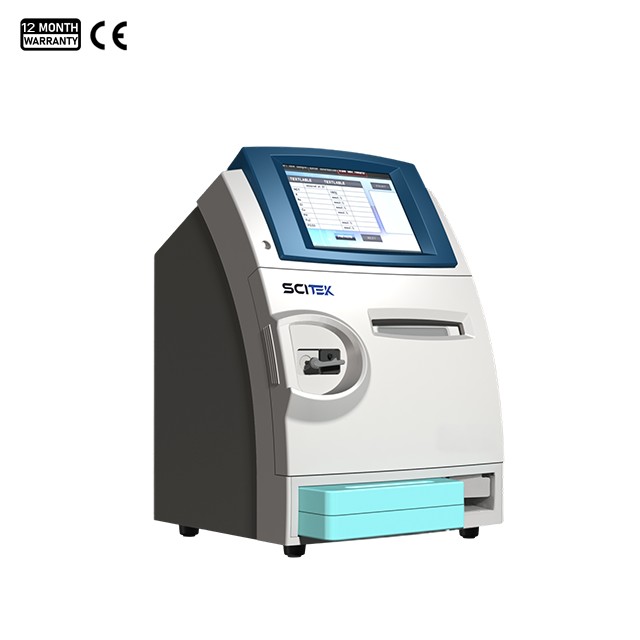

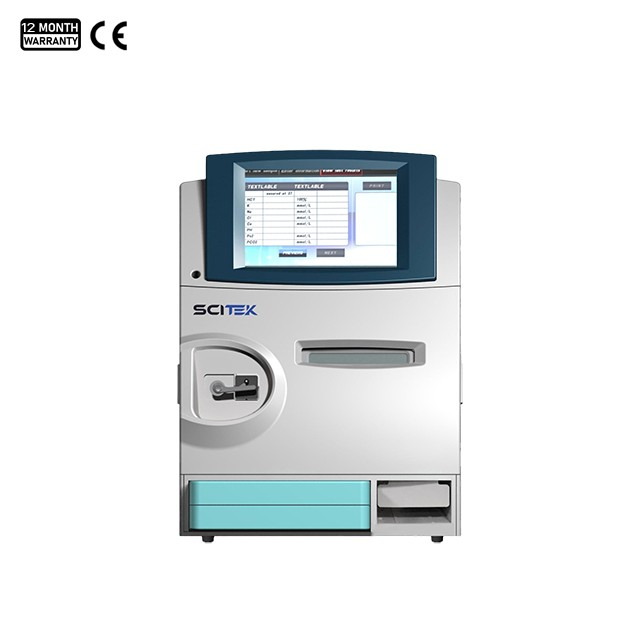

The BGE-95 is an easy-to-use portable blood gas analyzer that provides accurate blood gas, electrolyte and critical care biochemistry results and is widely used in the healthcare industry.
Multiple combinations can test multiple parameters at once
Maintenance-free electrodes, saving maintenance cost and time
Capillary 35 UL, whole blood 95 UL, suitable for syringes and capillaries
Fast detection time can produce results in a short period
Automatic alarm in case of malfunction
Data storage >5000 items, you can easily view the monitoring data
High-resolution color touch screen, user-friendly operation interface
Built-in thermal printer for real-time printing of test data
The blood gas and electrolyte analyzer is equipped with a battery backup, even if the power outage can work normally
Steps in the use of blood gas and electrolyte analysers:
Scan the cassette bar code.
Remove the cassette from the package.
Place the cassette in the sample measurement chamber and close the lid.
Take a sample and view the data directly on the screen.
Details of Electrolyte Analyzer:
Large colour touch screen with clear display and friendly interface, users can easily carry out testing and data viewing.
This blood gas and electrolyte analyzer measures a number of key indicators such as pH, partial pressure of oxygen, partial pressure of carbon dioxide, sodium, potassium and calcium in a single test to meet clinical needs.
The electrolyte analyzer is compact and takes up little space, making it suitable for placement in a variety of laboratory and clinical environments.
Built-in data storage and export functions for easy transfer via USB and other interfaces for easy information management and record keeping.
FAQ:
A: Does the blood gas and electrolyte analyzer require regular maintenance?
Q: It does not require daily or weekly maintenance. However, regular calibration is required every three months.
A: Does the analyser have a QC lockout feature?
Q: Yes, the analyser ensures regulatory compliance by providing QC lockout.
