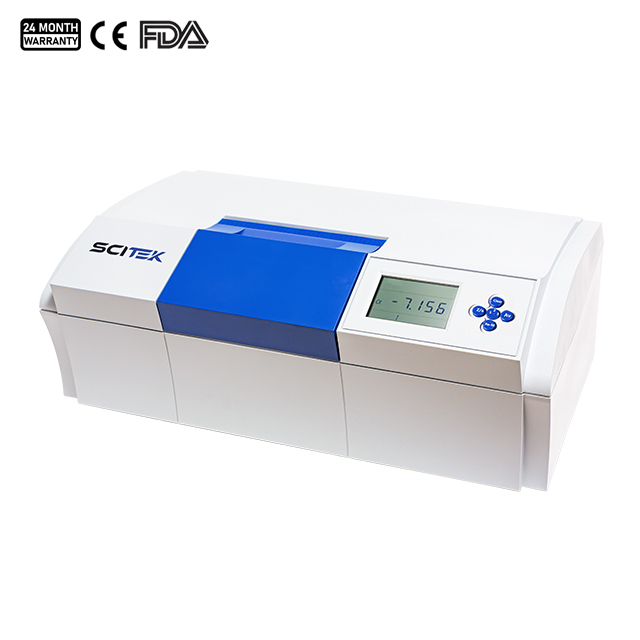

Digital Automatic Polarimeter

Model : POL-2S; POL-2B

Wavelength : 589nm
Light source : LED + interference filter
Measurement range : ±45° (OR); ±120°Z (ISS)
Accuracy : 0.001° (OR); 0.01°Z (ISS); 0.002°(OR)
Availability:
Quantity:
Inquiry Add to Inquiry List

Digital Automatic Polarimeter Specifications:

ModelPOL-2SPOL-2B
Measurement modesOptical rotation, sugar degreeOptical rotation
Wavelength589nm
Light sourceLED + interference filter
Measurement range±45° (OR); ±120°Z(ISS)±45° (OR)
Accuracy0.001° (OR); 0.01°Z (ISS)0.002° (OR)
Minimum indicating value± (0.01+measuring value x 0.05%)° (OR)± (0.01+measuring value x 0.05%)° (OR)
± (0.03+measuring value x 0.05%)°Z (ISS)
Repeatability≤0.002° (OR)≤0.01° (OR)
Transmission1%10%
Display5-inch LCD
Test tubes100mm / 200mm (regular)
InterfaceRS232
Power supplyPower supply
Weight (Gross)36kg
Overall Dimensions730mm×480mm×470mm

Digital Automatic Polarimeter Feature:

  1. Photoelectric test and microcomputer control.

  2. Measuring optical rotation and sugar degree (POL-2S).

  3. Storage of three times results.

  4. Calculation of average values.

  5. Measurement of dark-colored sample

Previous:
Next:
Get Quotation/Become Distributor

Related Products

Disc Polarimeter
Disc Polarimeter

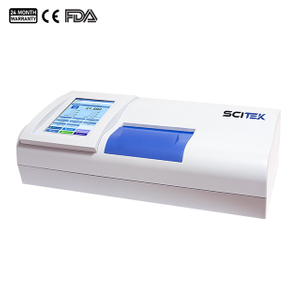

High-Speed Automatic Polarimeter POL-A Series
High-Speed Automatic Polarimeter POL-A Series

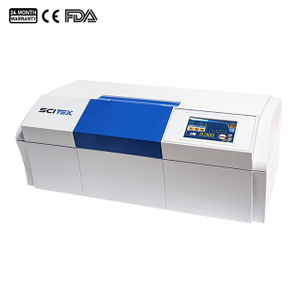

Automatic Polarimeter POL-3
Automatic Polarimeter POL-3

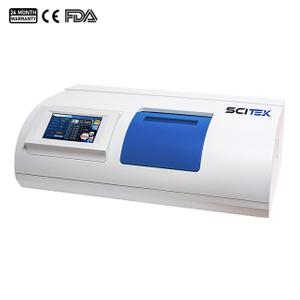

High-Speed Automatic Polarimeter
