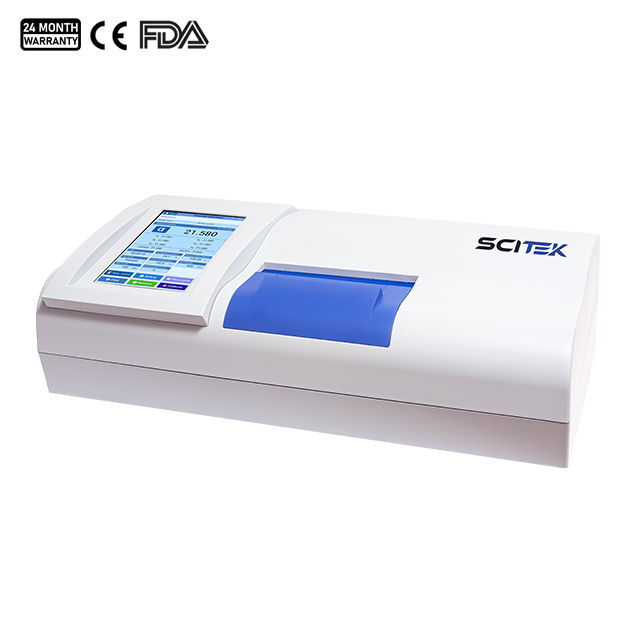

High-Speed Automatic Polarimeter POL-A Series

Model : POL-568A; POL-537A; POL-533A

Measuring range : ±90°(OR) ±259°Z(ISS)
Resolution : 0.0001°
Accuracy : ±0.003°; ±0.004°
Repeatability : ≤0.002°
Availability:
Quantity:
Inquiry Add to Inquiry List

High-Speed Automatic Polarimeter Feature:

  1. Unique and state-of-art control technology, equipped with high quality prisms.

  2. High response speed, less noise, and minimum transmittance makes measurement more accurate and efficient.

  3. LED light source that lasts over 100000 hours.

  4. Large database, and user hierarchical management. Up to 1000 pre-stored measurement methods.

  5. Fast and stable temperature control minimizes measuring time.

  6. Comply with pharma standards and audit trail function is optional.

  7. Access control (4 grades) and 500 users accounts.

  8. POL-537A has eight different wavelengths to select. (365 nm to 880 nm, various combinations)

High-Speed Automatic Polarimeter Specifications:

Model POL-568A POL-537A POL-533A
Measuring mode Optical Rotation, Specific Rotation, Concentration, International Sugar Scale and User defined
Light source LED + precision   interference filters Tungsten halogen lamp (20W) LED + precision interference filters LED + precision   interference filters
Wavelength 589nm Multiple wavelength Dual wavelength 589nm
Standard: 546, 589nm Standard: 589nm
Optional: 365, 405, 436, 578, 633nm Optional(one): 365, 405, 436, 546, 578, 633, 880nm
Measuring range ±90°(OR) ±259°Z (ISS)
Resolution 0.0001° 0.001° 0.001°
Accuracy ±0.003° ±0.004° ±0.004°
Repeatability ≤0.002°
Min. transmission 0.01% 0.10% 0.05%
Response speed 8°/S
Measuring time 6 times/26s
Temp. Control range Peltier temperature control: 10-50℃
Temp. accuracy ±0.2℃
Operating system Android
Display 10.1 inch color touch LCD
Calibration method Multi-point automatic calibration
Data storage 128G
GMP Regulations Qualified
Audit trail Optional
Interface RS232, USB, U disk, Keyboard, Mouse, WIFI, Ethernet
Test tubes Standard: 200mm(regular), 100mm(regular), 100mm(temp control)
Optional: 50mm(regular), 200mm(temp control)
Power supply 220V±22V, 50Hz±1Hz, 200w
Overall dimensions 860mm×510mm×470mm
Weight(Gross) 36kg

Details of High-Speed Automatic Polarimeter:

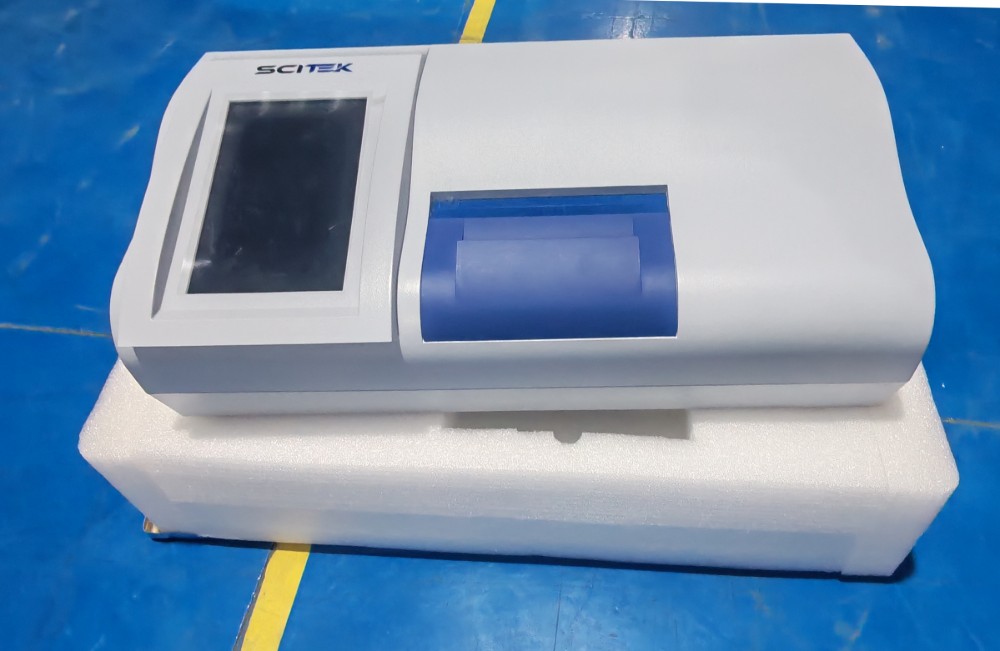

Automatic Polarimeter (High Speed) (1)

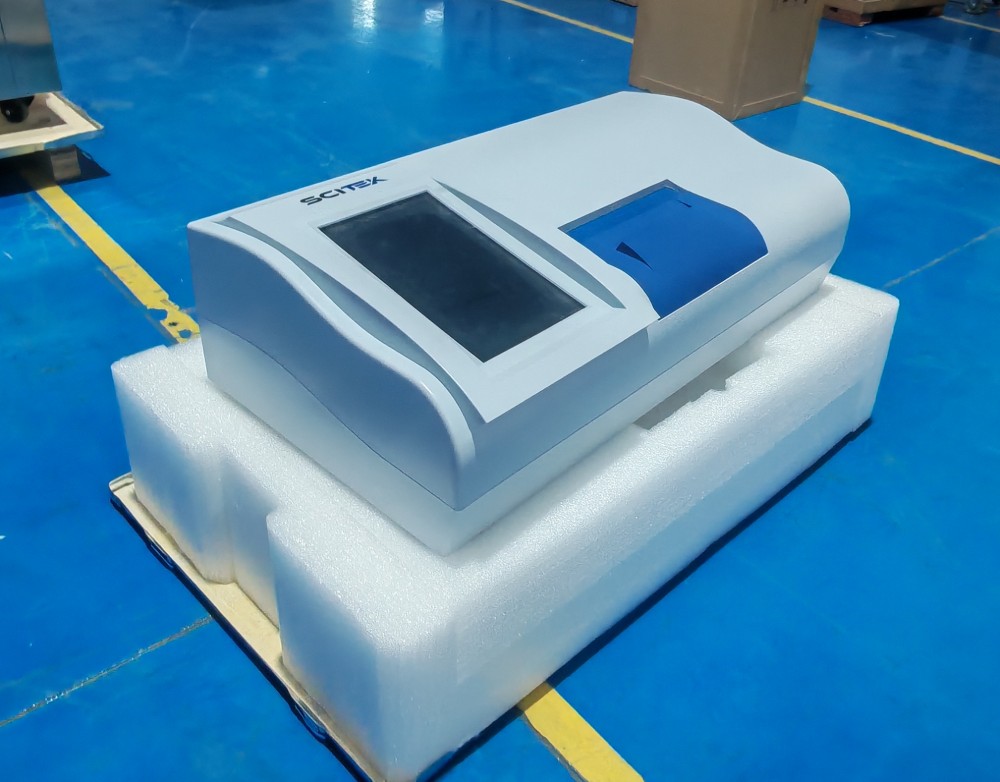

Automatic Polarimeter (High Speed) (3)

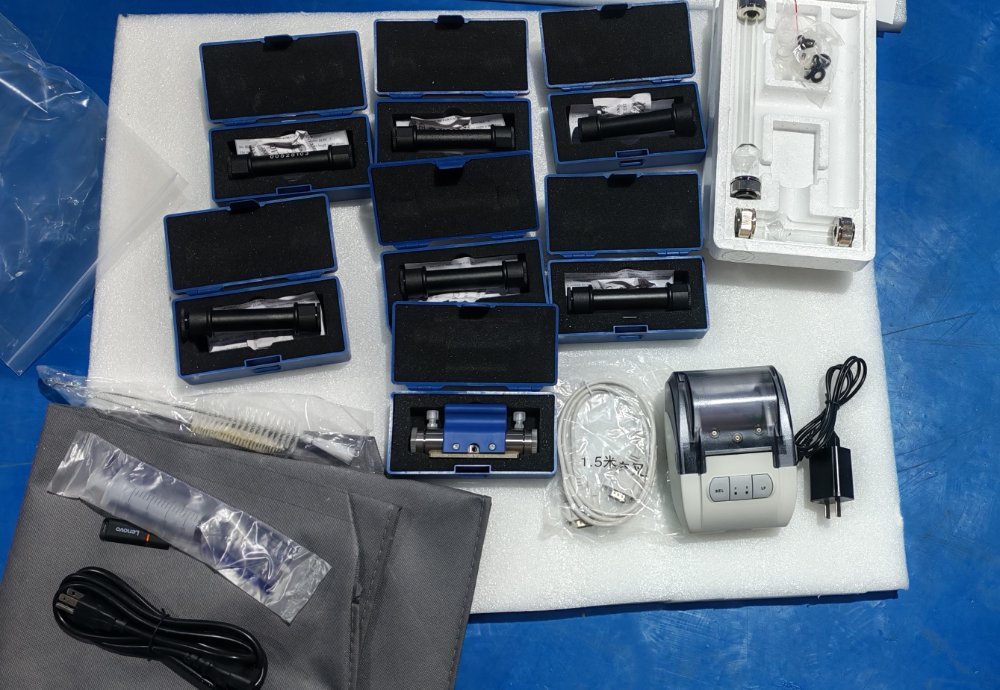

Automatic Polarimeter (High Speed) (2)

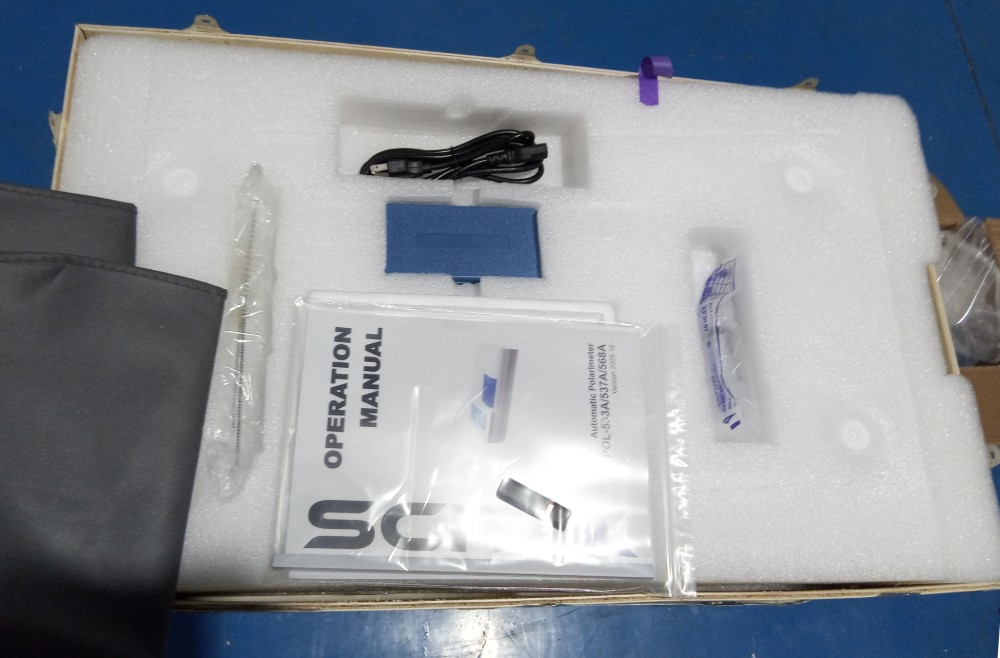

Automatic Polarimeter (High Speed) (4)

Automatic Polarimeter (High Speed) (6)
