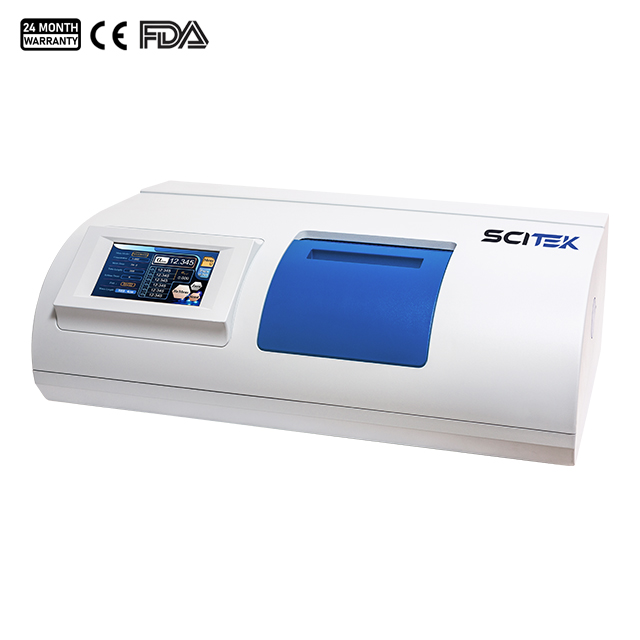

High-Speed Automatic Polarimeter

Model : POL-2; POL-1

Wavelength : 589nm
Light source : LED + interference filter
Measurement range : ±45° (optical rotation); ±120°Z (sugar)
Suitable for analyzing chiral compounds such as sugars and pharmaceuticals. Now the best high-speed automatic polarimeter for sale at cost price.
Availability:
Quantity:
Inquiry Add to Inquiry List

High-Speed Automatic Polarimeter Feature:

  1. Need not prewarm when turning on.

  2. Measuring specific rotation, optical rotation, sugar degree and concentration.

  3. Automatic repetition-measurement for 6 times, and calculation of average value and means square root.

  4. Peltier principle to control the temperature(POL-2).

  5. Measurement of dark-colored sample.

  6. USB & RS232.

High-Speed Automatic Polarimeter Specifications:

Model POL-2 POL-1
Measurement modes Optical rotation, specific rotation, sugar degree, concentration
Wavelength 589nm
Light source LED + interference filter
Measurement range ±45° (optical rotation) ±120°Z (sugar)
Accuracy ±0.01° (-15° ≤optical rotation ≤+15°) ±0.02° (optical rotation<-15° or optical rotation>+15°)
Minimum indicating value 0.001°(optical rotation)
Repeatability 0.002 °( optical rotation)
Transmission 1%
Display 7 Inch Colorful Touch LCD
Test tubes 100mm / 200mm (regular) 100mm(temp control) 100mm / 200mm (regular)
Temperature control range 15-30℃ -----
Temperature Accuracy ±0.5℃ -----
Interface RS232/USB
Weight (Gross) 43kg
Overall Dimensions 820mm×500mm×510mm

Details of High-Speed Automatic Polarimeter:

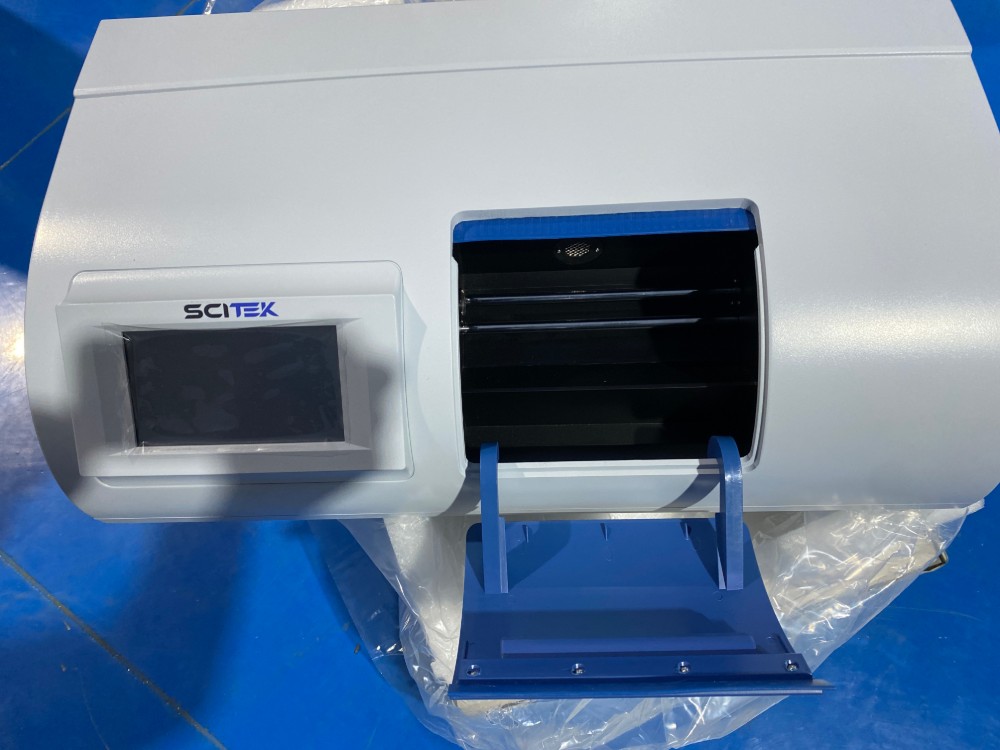

Automatic Polarimeter POL-1 (1)

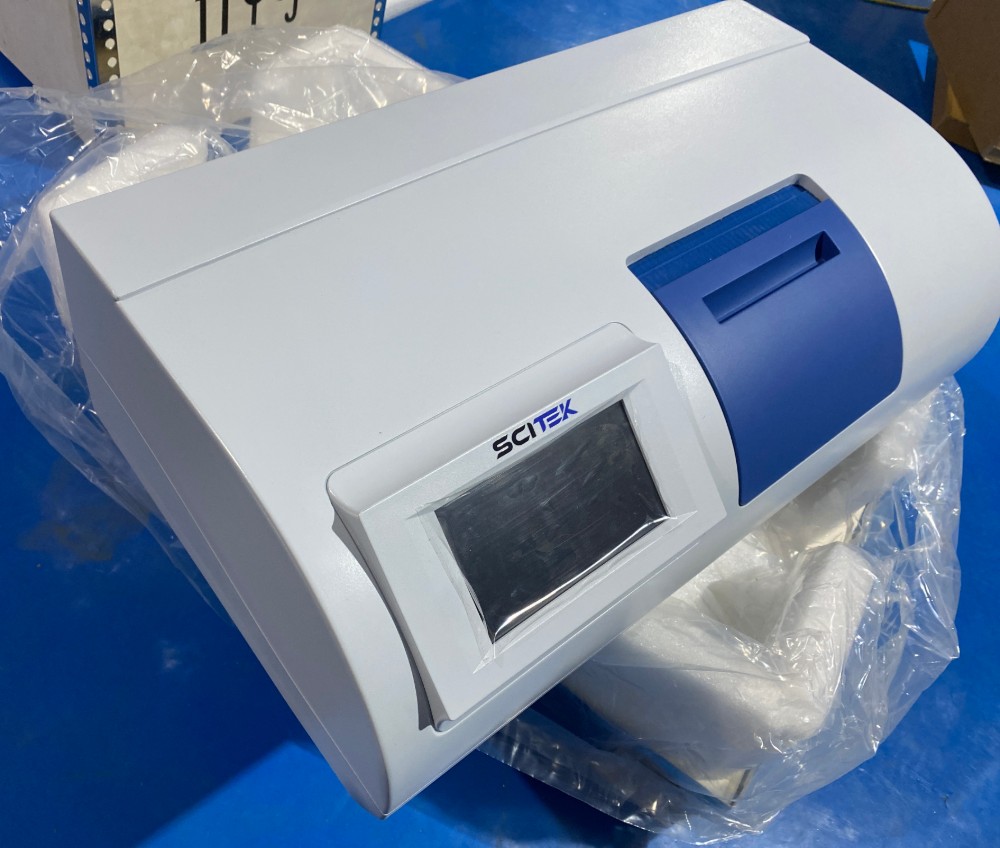

Automatic Polarimeter POL-1 (3)

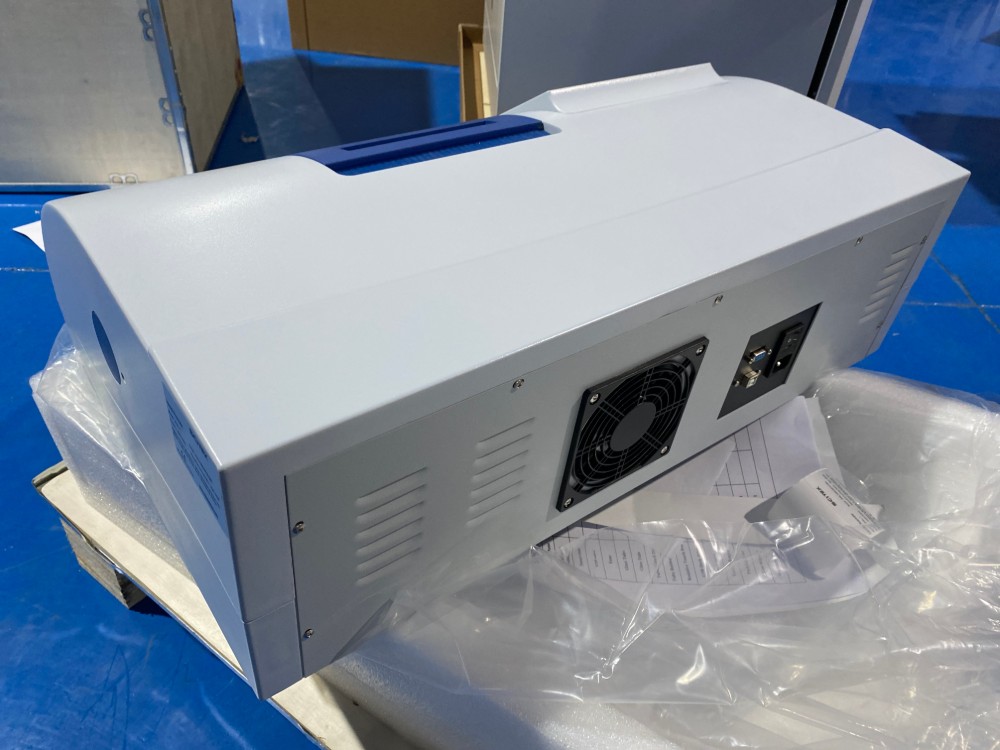

Automatic Polarimeter POL-1 (4)

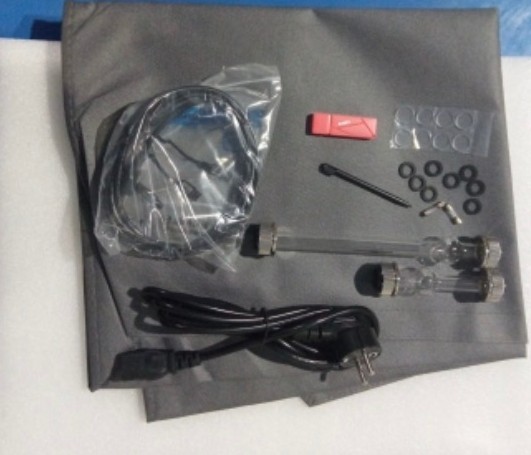

Polarimeter Accessioes

Automatic Polarimeter Packing
