| External Size (W×D×H)(mm) | 1087×760×2100 | 1380×760×2100 | 1880×760×2100 |
| Internal Size (W×D×H)(mm) | 910×600×630 | 1220×600×630 | 1700×600×630 |
| Tested Opening | Safety height 200 mm (8") |
| Max Opening | 440 mm |
| Work Surface Height | 800 mm |

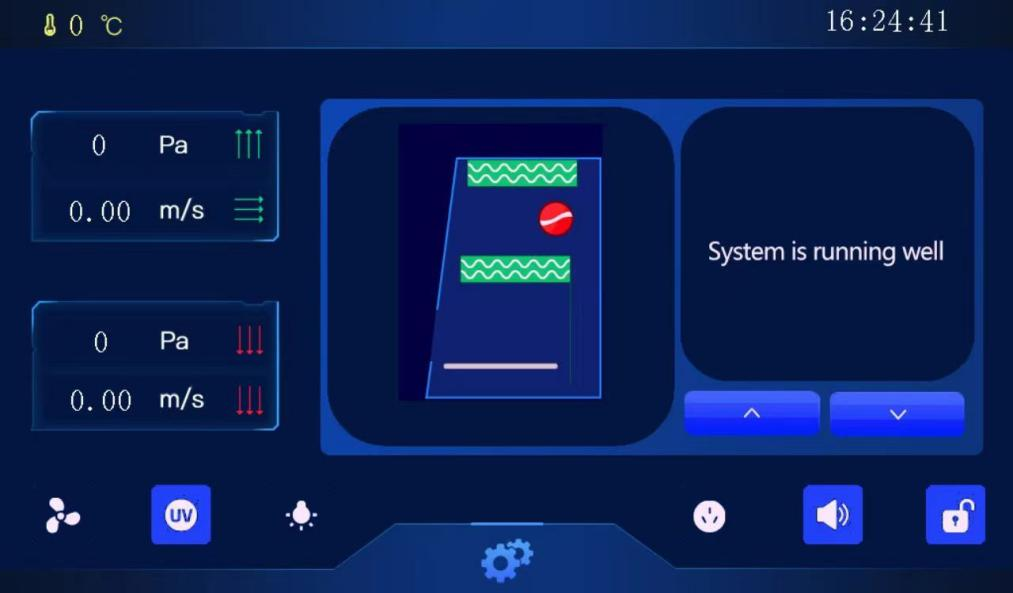

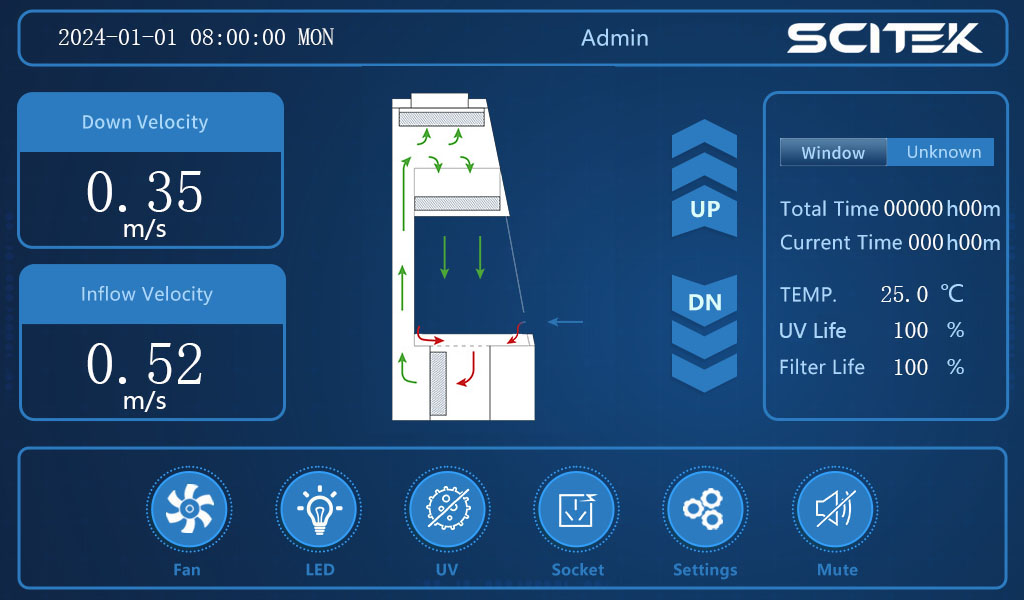

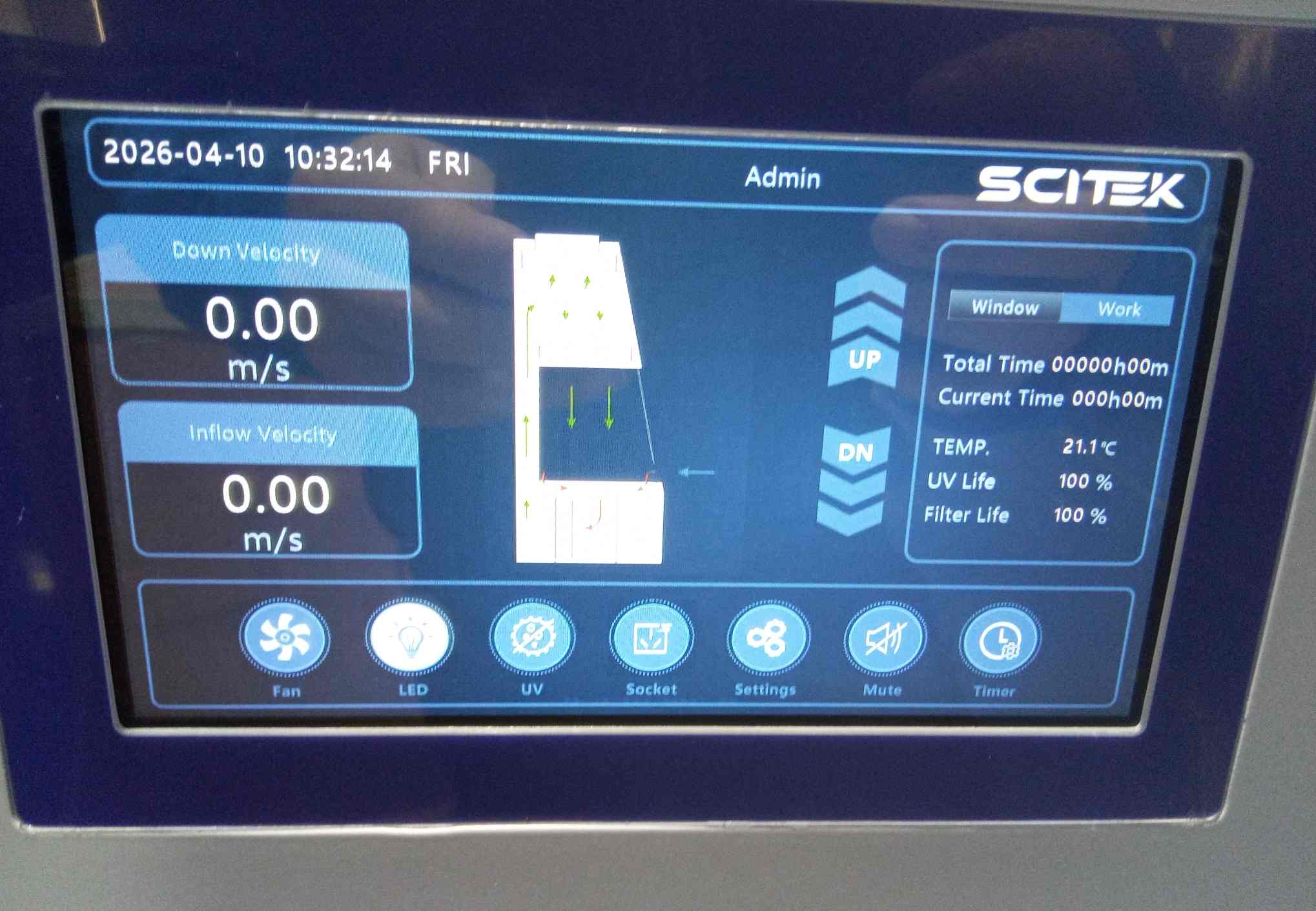

| Control System | Display | 7 inch LCD Touch Screen, Microprocessor;
Humidity and temperature can be displayed on the control panel. |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm |
| Airflow System | Downflow Velocity | 0.33m/s±0.025m/s |
| Inflow Velocity | 0.53m/s±0.025m/s |
| Exhaust Air Volume | 347 m³/h | 465 m³/h | 648 m³/h |
| Air filtration System | Supply Filter | ULPA filter, efficiency>99.9995% for particle size at 0.1–0.3 μm |
| Exhaust Filter | ULPA filter: first exhaust filter: 0.1–0.3 μm efficiency 99.9995%;
HEPA filter: secondary exhaust filter: 0.3 μm efficiency 99.995% |
| Cabinet Construction | Main Body | Cold-rolled steel with anti-bacteria powder coating |
| Work Surface | 304 stainless steel |
| Front Window | Motorized, tempered glass ≥6 mm, anti-UV |

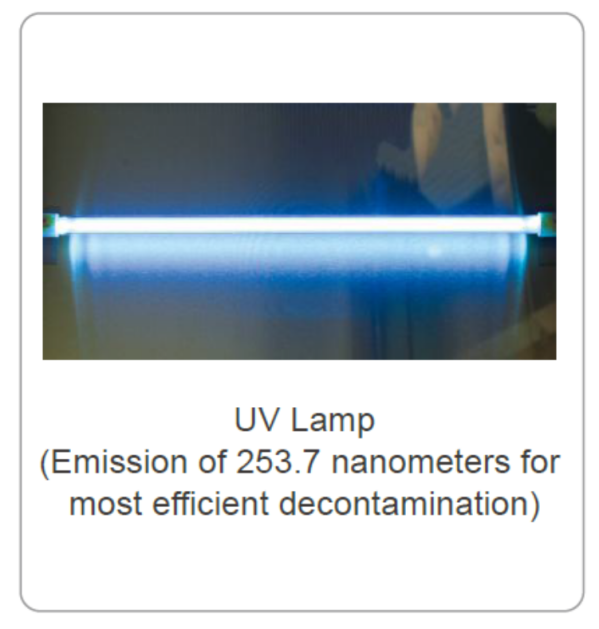

| Electrical System | UV Lamp | 20W×1 | 30W×1 | 40W×1 |
| Emission of 253.7 nanometers for most efficient decontamination UV life indicator, UV timer |
| LED Lamp | 12W×2 | 16W×2 | 16W×2 |

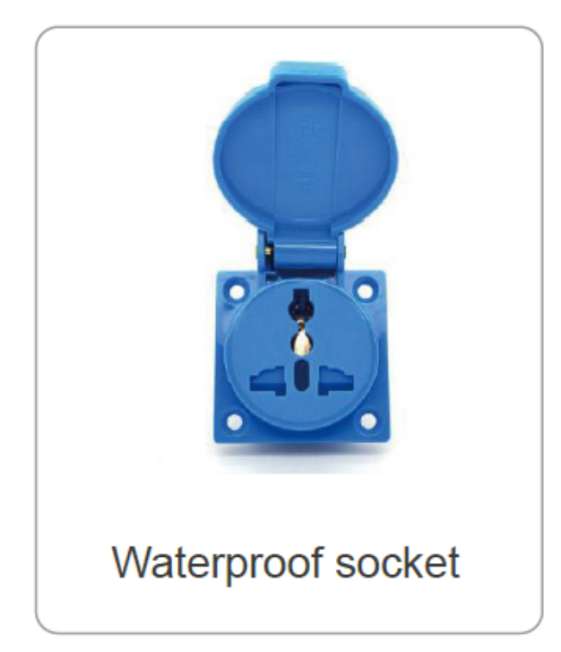

| Waterproof Socket | Two, total load of two sockets: ≤500W |
| Consumption | 700 W | 900 W | 1300 W |
| Not include socket loading power consumption |
| Power Supply | AC 220±10% V, 50/60 HZ; 110±10% V, 60 Hz |
| Illumination | ≥1000 Lux |
| Sound Emission | ≤67 dB |
| Standard Accessory | 1. Base Stand 2. Drain Valve; 3. Waterproof Sockets×2; 4. LED Lamp×2; 5. UV Lamp×1; 6. Water Tap×1; 7. Gas Tap×1; 8. Footmaster Caster; 9. Air Velocity Sensor |
| Gross Weight (kg) | 320 | 371 | 470 |

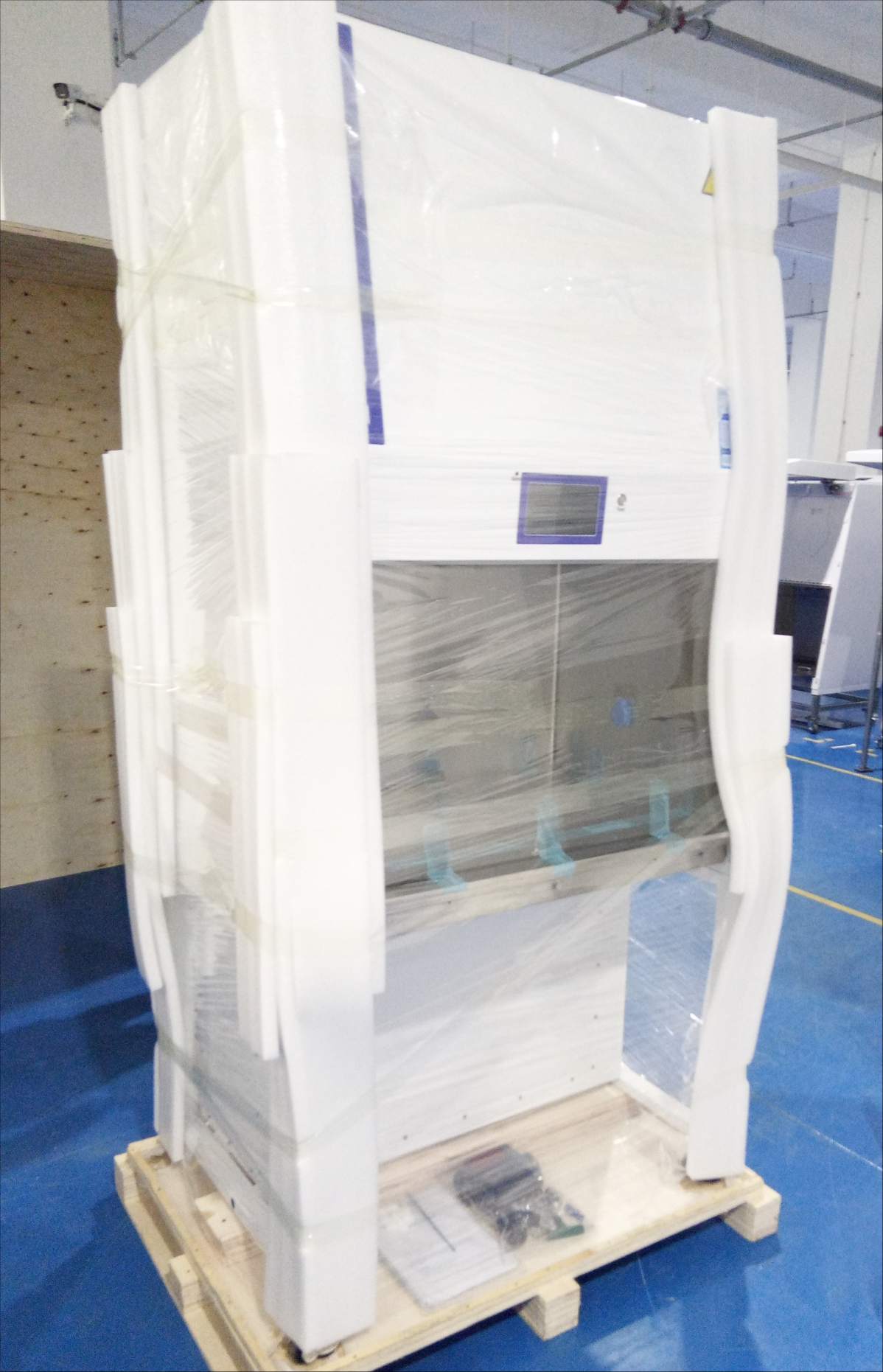

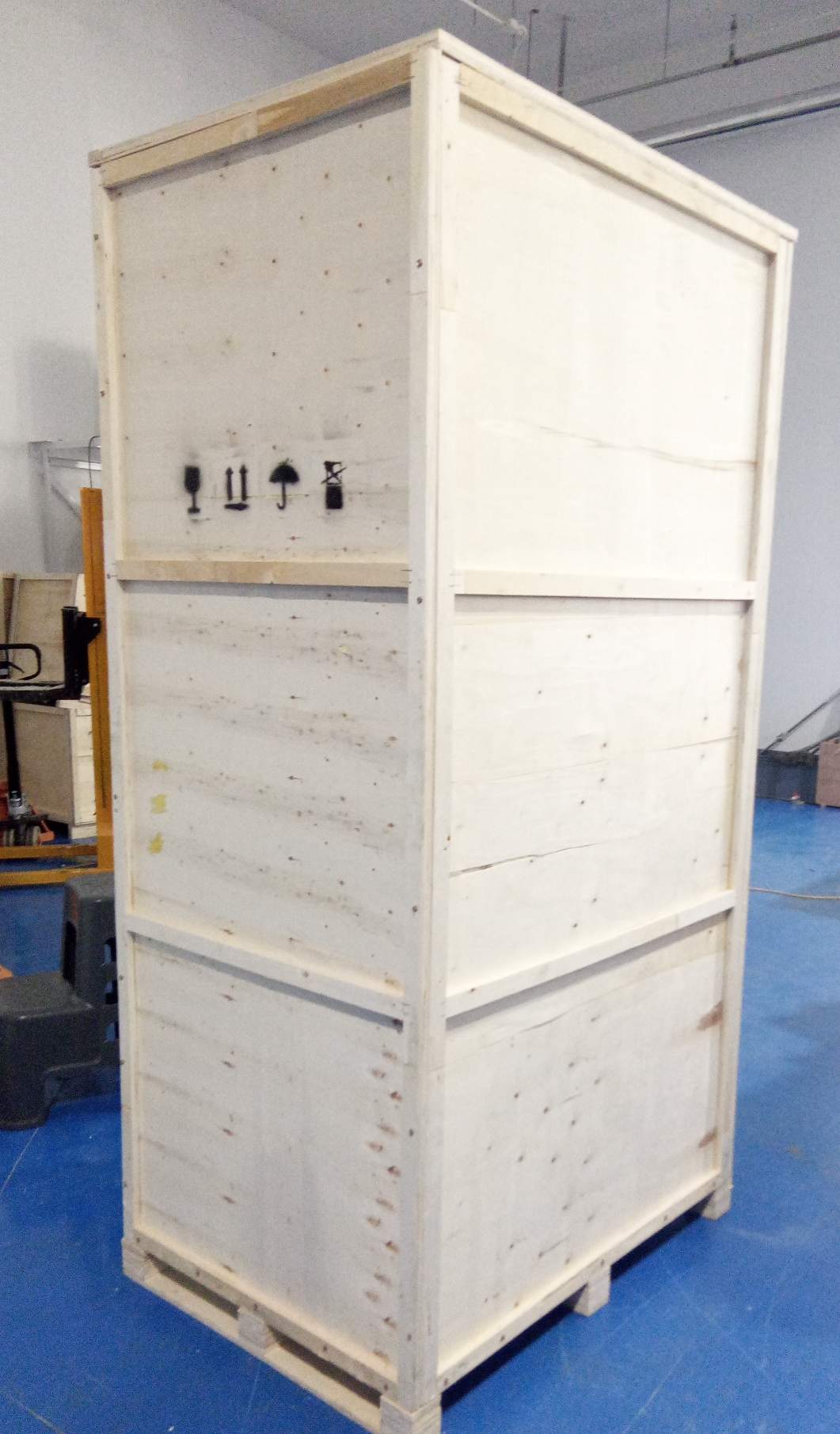

| Shipping Size (W×D×H)(mm) | 1240×910×2280 | 1540×910×2280 | 2060×910×2310 |
| Shipping Volume (m³) | 2.6 | 3.2 | 4.4 |
