Culture Medium Sterilizer utilizes pressure steam to integrate the automatic and efficient preparation, sterilization, and dispensing of culture media, reducing the risk of contamination during transfer. Empowers pharmaceutical companies, food testing agencies, Centers for Disease Control (CDCs), and research institutes to significantly boost laboratory throughput, ensuring every batch of culture medium meets quality compliance standards.

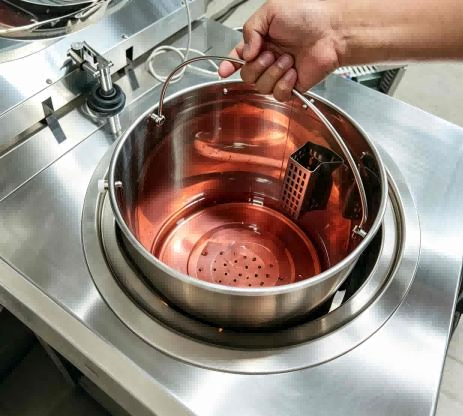

Electromagnetic Lid Lock & Removable Basket

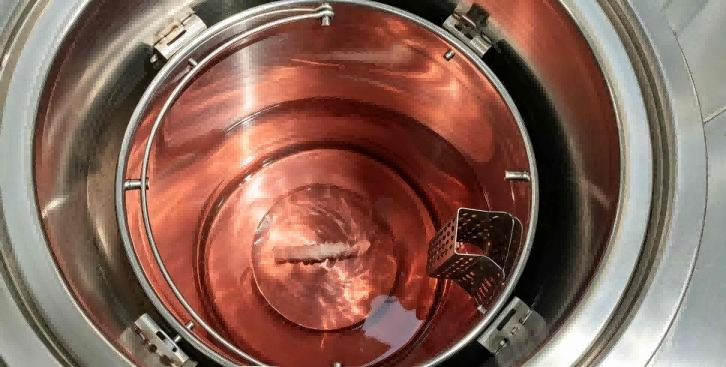

Precise Temperature & Stirring Control

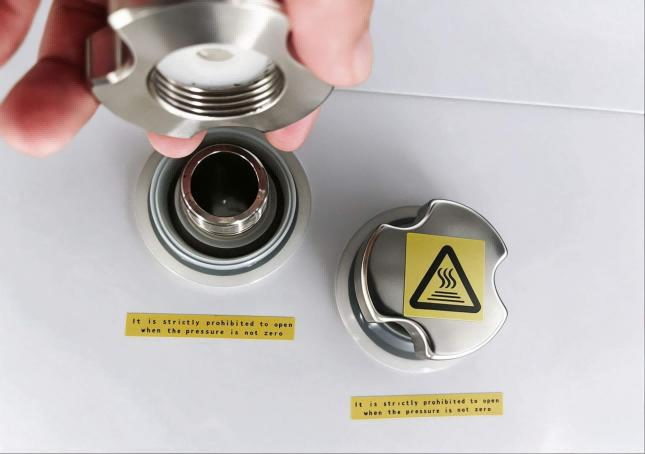

Sterilizable Addition Port for Safe Supplementation

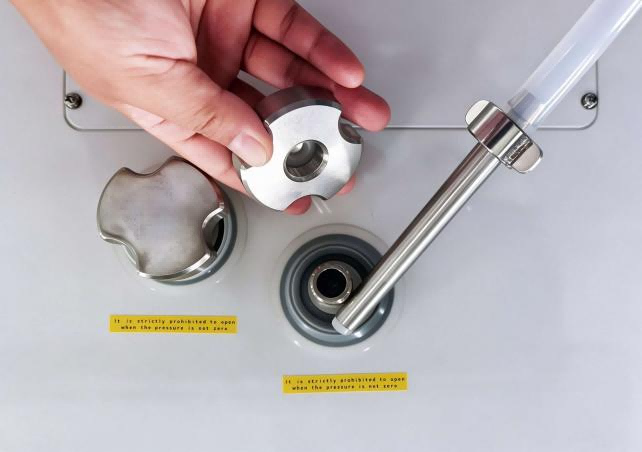

Sterilizable Dispensing Port and Connector

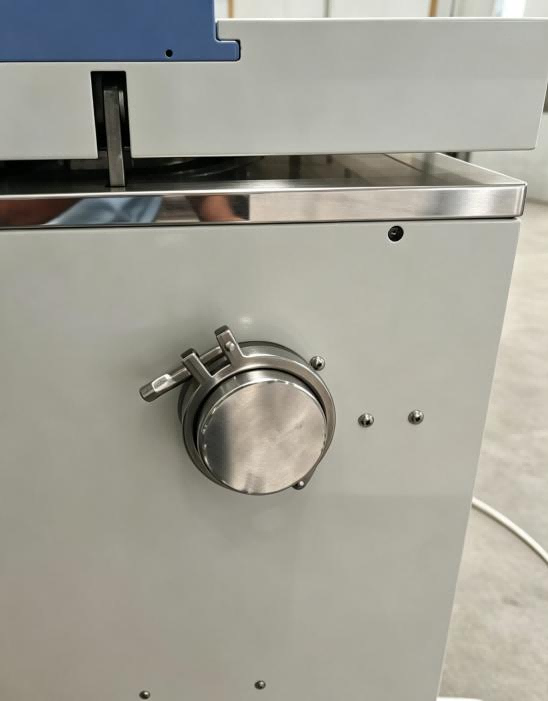

Sterilization-in-Place (SIP) Air Filter System
Culture Medium Sterilizer Feature:
7" touchscreen displays operational status, temperature, pressure and time, as well as fault alerts.
Supports multiple programs, such as medium sterilization and incubation, medium dissolution and incubation, etc. Single unit covers multiple stages from preparation to filling.
PLC control technology enables the entire process to run automatically according to a program, reducing batch-to-batch variations caused by manual settings.、
Sterile-filtered compressed air effectively prevents foaming and boil-over of the culture medium, reducing sample loss and the workload associated with chamber cleaning.
Filter supports Sterilization-In-Place (SIP) with quick and easy replacement, requiring no disassembly of the equipment and allowing for manual replacement.
High-quality heating elements ensure efficient heating, combined with external water circulation and heat exchange technology, achieving rapid cooling from 121°C to 60°C in 30 minutes.
Heating, sterilization, and cooling to the set dispensing temperature all support agitation of the culture medium by a stir bar with adjustable speed, ensuring uniform mixing and consistent temperature throughout the medium.
Preset standard main programs (P1–P7), the corresponding cycle can be started with a single click, simplifying the workflow.

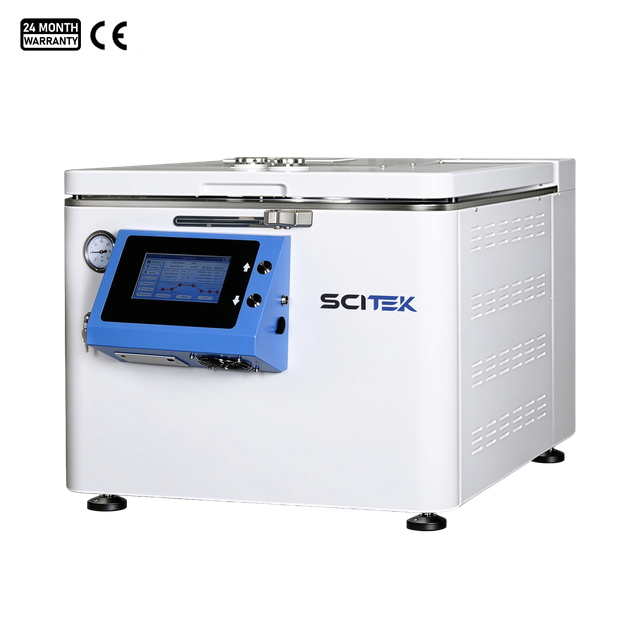

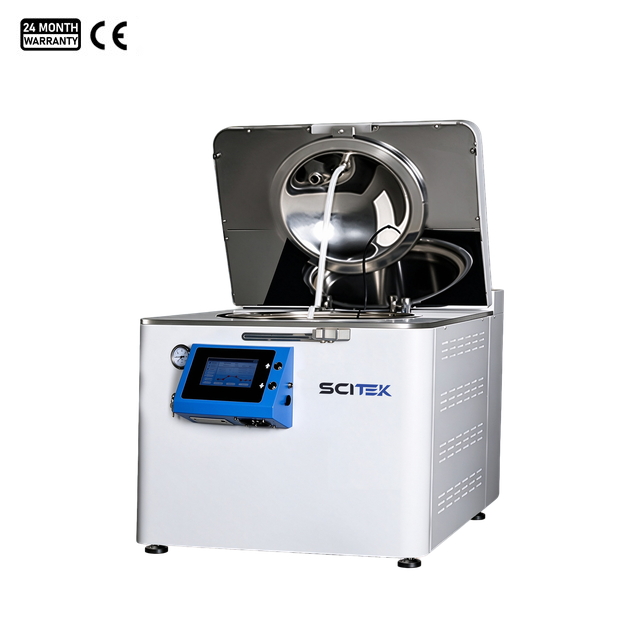

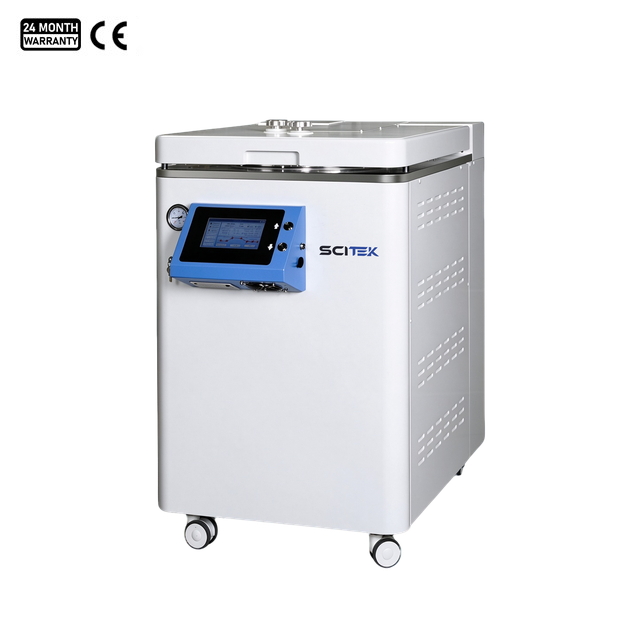

One-click door opening for the ST-V20M/30M, and flip-top automatic door opening and closing for the ST-V60M/90M. Designed with self-expanding seals, the electromagnetic locks intelligently interlock and lock based on pressure and temperature parameters, strictly preventing accidental operation for safe and simple use.
Built-in microprinter, USB port, supports printing, outputting, and storing sterilization records, facilitating data traceability and auditing.
PT-100 flexible temperature sensors provide direct monitoring of culture medium temperature (optional).
Peristaltic pump precisely controls the volume of culture medium dispensed, adjustable from 1 mL to 10 L, with a foot switch, one person can complete sterile dispensing after sterilization (optional).
Culture Medium Sterilizer Specification:
Model
ST-V20M
ST-V30M
ST-V60M
ST-V90M
Display
7" Touchscreen
Capacity (L)
20
30
60
90
Chamber Size (mm)
Φ316×250
Φ316×420
Φ400×500
Φ400×720
Sterilization Bucket Size (mm)
Φ280×200
Φ280×370
Φ380×445
Φ380×665
Internal Cylinder Volume (L)
12
23
50
75
Process Volume (L)
10
20
43
65
Door Opening Method
One-click door opening
Flip-top automatic door opener
Design Pressure
0.4 MPa
Max.Working Pressure
0.3 MPa
Design Temp.
150 ℃
Max.Working Temp.
139 ℃
Sterilization Temp. Range
105–136 ℃
Sterilization Timer
0–999 min
Dissolution Temp.
40–100 ℃
Holding/Dispensing Temp.
40–60 ℃
Holding/Dispensing Timer
0–999min
Power Supply
AC 220V 50/60Hz
AC 380V 50/60Hz
Consumption (kW)
6
12
External Size (W×D×H)(mm)
600×910×515
600×910×715
730×980×890
730×980×1088
Shipping Size (W×D×H)(mm)
750×1060×865
750×1060×1065
1120×850×1080
1240×880×1330
G.W (kg)
150
170
209
243
Media Preparator Selection Guide (90 mm Petri Dishes)
Estimation based on 18–20 mL agar per 90 mm Petri dish
