Combined Emergency Shower & Eye Wash

Model : EW-CS1

Material : Stainless Steel 316

Pipe Diameter : 42 mm
Nominal Pressure : 1.0 Mpa

Distance Between Spray Heads : 170 mm
Package Size(W×D×H)(mm) : 1020x350x220

The combined emergency shower & eye wash offers both full-body shower coverage and targeted eye and face washing capabilities, ensuring comprehensive protection for individuals exposed to hazardous substances.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Combined Emergency Shower & Eye Wash Specifications:

Model	EW-CS1
Material	Stainless Steel 316
Surface Finishing	Sanded
Shower & Eye Wash Switch	Two-piece ball valve
Shower Head	Spinning-formed with curled rim, diameter 250 mm
Pipe Diameter	42 mm
Nominal Pressure	1.0 Mpa
Working Pressure	0.2~0.4 Mpa
Testing Pressure	1.5 Mpa
Temperature Requirement on Working Environment	0°C~40°C
Flow Rate of Body Shower	≥76 L/min
Flow Rate of Eye/Face Wash	≥11.4 L/min
Inlet Thread	Rc 1" , female
Outlet Thread	Rc 1-¼ ", female
Inlet Height (From Above the Floor)	1540 mm
Outlet Height (From Above the Floor)	100 mm
Distance Between Spray Heads	170 mm
Package Size (W×D×H)(mm)	1020x350x220
Gross Weight	14.5kg

Notes: The inlet part and outlet part are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end

Combined Emergency Shower & Eye Wash Feature:

Assembling feature: Pipes connected by innovative inserting & turning
Usage: Drenching body and rinsing faces / eyes can be operated separately or simultaneously
Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing
Dust cover: Integrated with the spray head ( not connected by chain ),and easily removed by water flow.
Spray head feature: Patented design, each spray head equips with one water-flow control valve.
Water pattern coverage: At the height of 1520 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter.

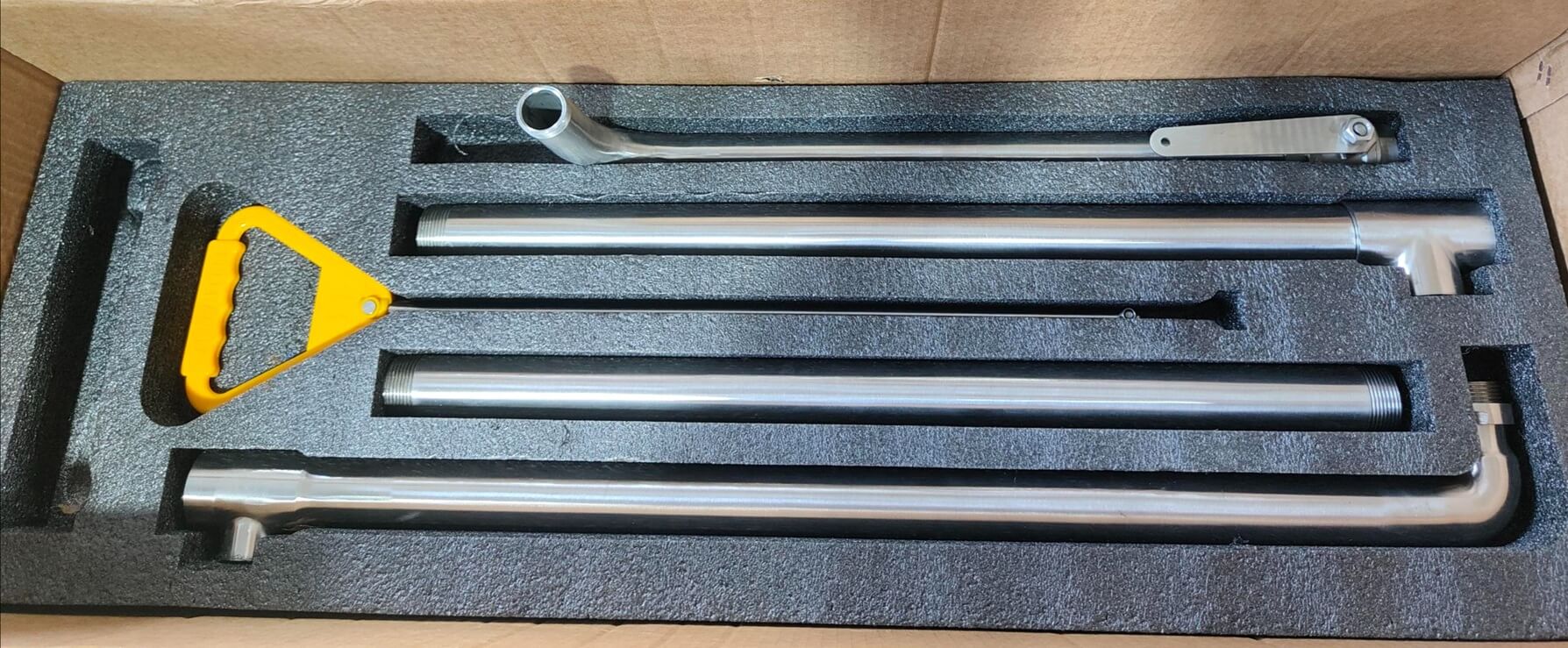

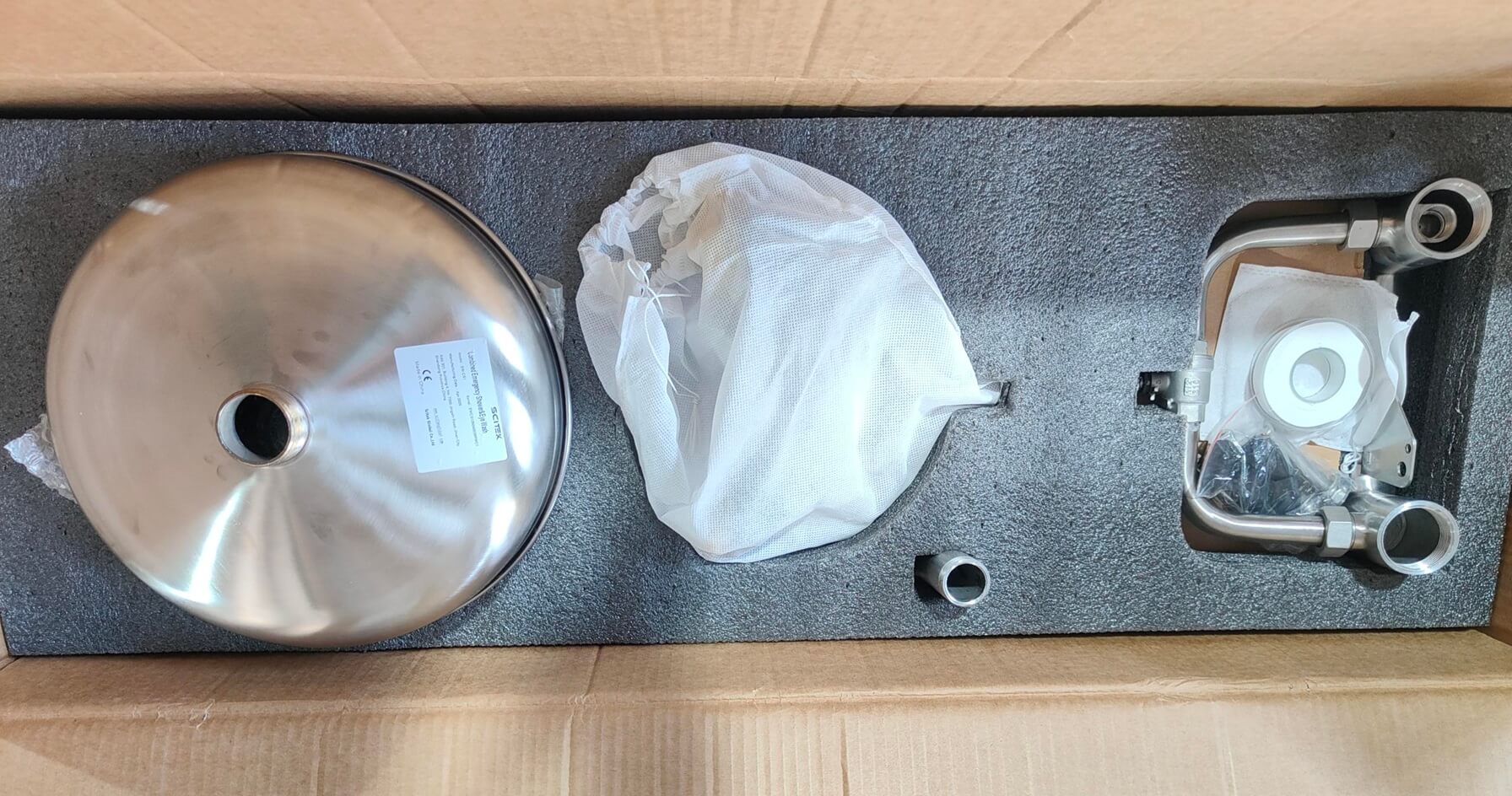

Details of Combined Emergency Shower & Eye Wash:
