Combined Emergency Shower & Eye Wash Specifications:
| Model | EW-CS2 |
| Material | Stainless Steel 304 |
| Shower & Eye Wash Switch | SS304 ball valve |
| Shower Head | Spinning-formed with curled rim, diameter 250 mm |
| Pipe Diameter | 42 mm |
| Nominal Pressure | 1.0 Mpa |
| Working Pressure | 0.2~0.4 Mpa |
| Testing Pressure | 1.5 Mpa |
| Temperature Requirement on Working Environment | 0°C~40°C |
| Flow Rate of Body Shower | ≥76 L/min |
| Flow Rate of Eye/Face Wash | ≥11.4 L/min |
| Flow Rate of Eye Wash | ≥1.5 L/min |
| Inlet Thread | Rc 1", female |
| Outlet Thread | Rc 1", female |
| Inlet Height (From above the Floor) | 1540 mm |
| Outlet Height (From above the Floor) | 100 mm |
| Distance Between Spray Heads | 170 mm |
| Package Size(W×D×H)(mm) | 1020x350x220 |
| Gross Weight | 14.5kg |
Notes : The inlet parts and outlet parts are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end; stainless steel – made foot treadle is optional as eye wash switch.
Combined Emergency Shower & Eye Wash Feature:
Surface finishing : fine-polished, which makes the pipe surface performs better on corrosion resistance
Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously
Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing
Dust cover: integrated with the spray head (not connected by chain)
Spray head feature: patented design, each spray head equips with one water - flow control valve
Water pattern coverage: at the height of 1524 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter
Details of Combined Emergency Shower & Eye Wash:

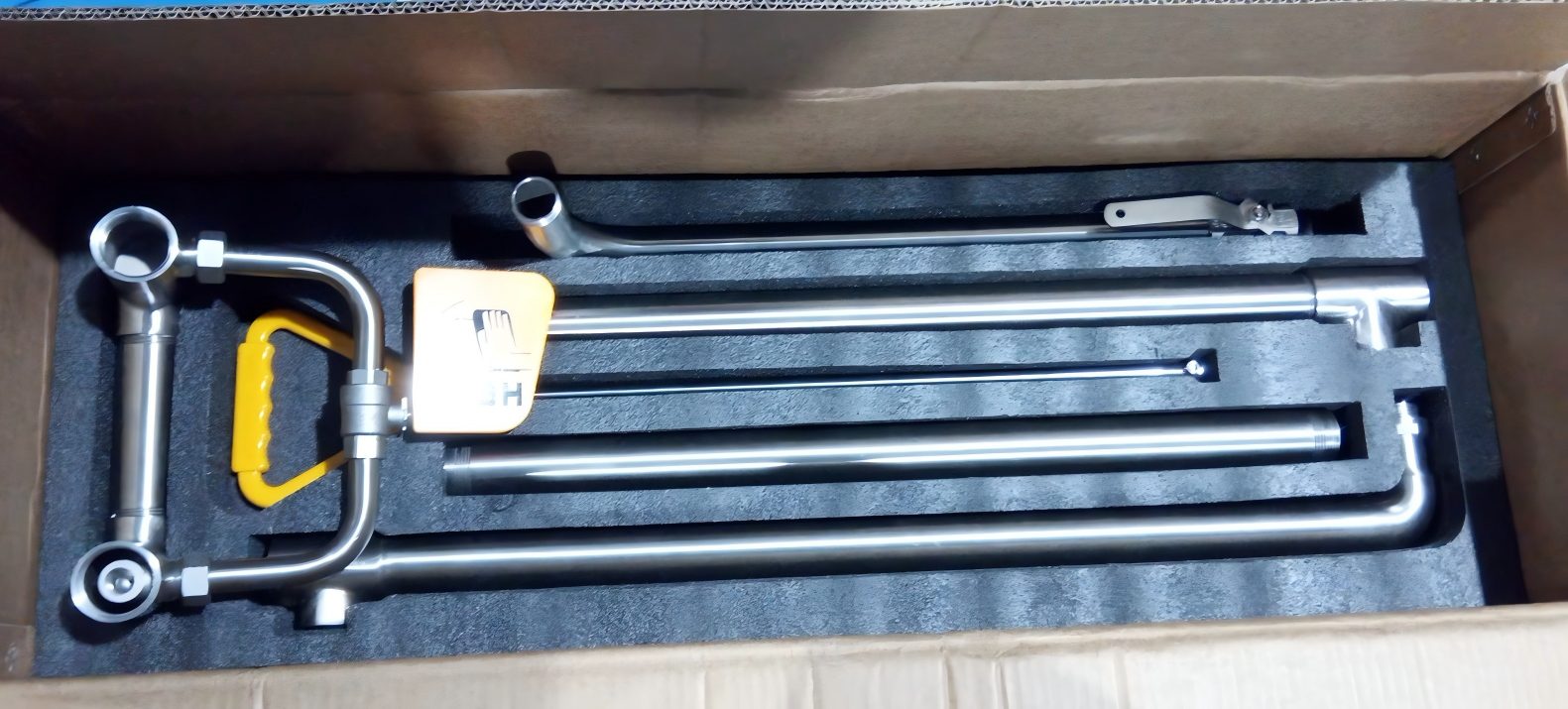

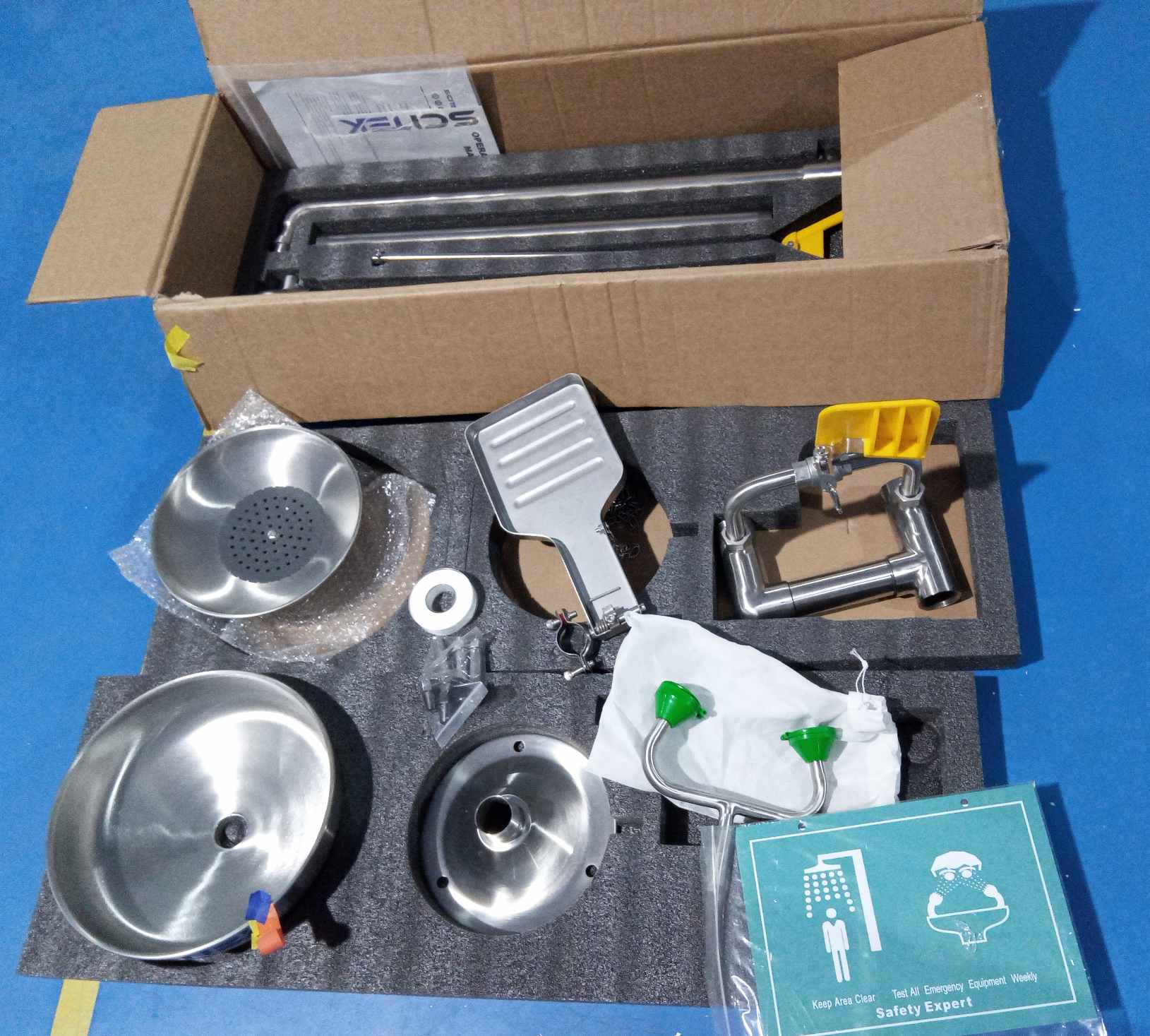

The combined emergency shower & eye wash is carefully inspected before shipment, with the emergency shower, eye wash basin, and stainless-steel components checked to ensure reliable operation and safe delivery.
