Combined Emergency Shower & Eye Wash EW-CS4

Model : EW-CS4

Material : Stainless Steel 304
Pipe Diameter : 38 mm
Nominal Pressure : 1.0 Mpa
Flow Rate of Body Shower : ≥76 L/min
Package Size(W×D×H)(mm) : 1250x330x250
The combined emergency shower & eye wash‘s surface fine-polished, which makes the pipe surface performs better on corrosion resistance. User-friendliness makes it easy to use for beginners and professionals.
Availability:
Quantity:

Combined Emergency Shower & Eye Wash Specifications:

ModelEW-CS4
MaterialStainless Steel 304
Shower & Eye Wash SwitchTwo-piece ball valve

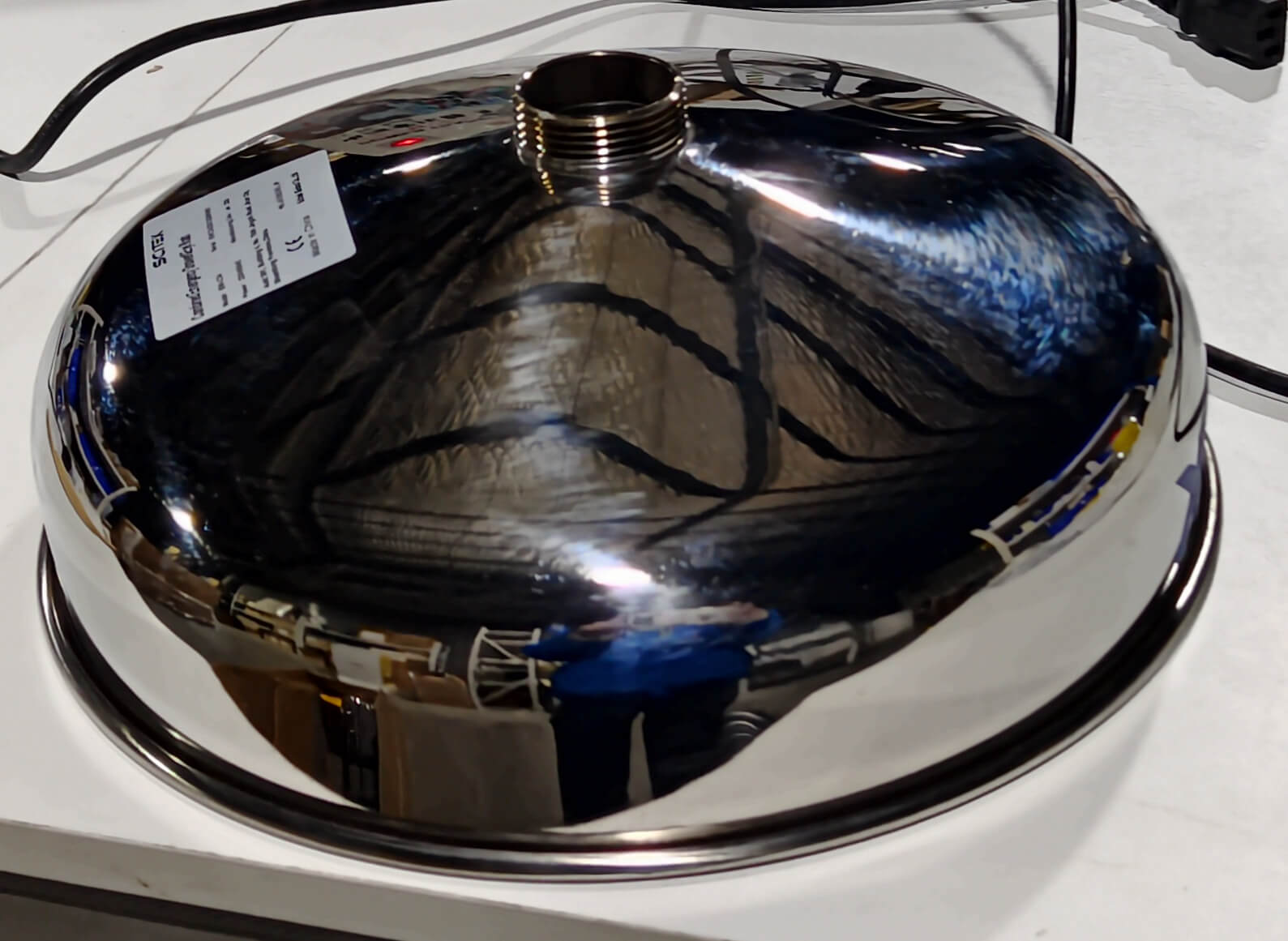

Shower HeadSpinning-formed with curled rim, diameter 250 mm
Pipe Diameter38mm
Nominal Pressure1.0 Mpa
Working Pressure0.2~0.4 Mpa
Testing Pressure1.5 Mpa
Temperature Requirement on Working Environment0°C~40°C
Flow Rate of Body Shower≥76 L/min
Flow Rate of Eye/Face Wash≥11.4 L/min
Flow Rate of Eye Wash≥1.5 L/min
Inlet ThreadRp 1", female
Outlet ThreadRp 1", female
Inlet Height (From above the Floor)1201 mm
Outlet Height (From above the Floor)86 mm
Distance Between Spray Heads170 mm

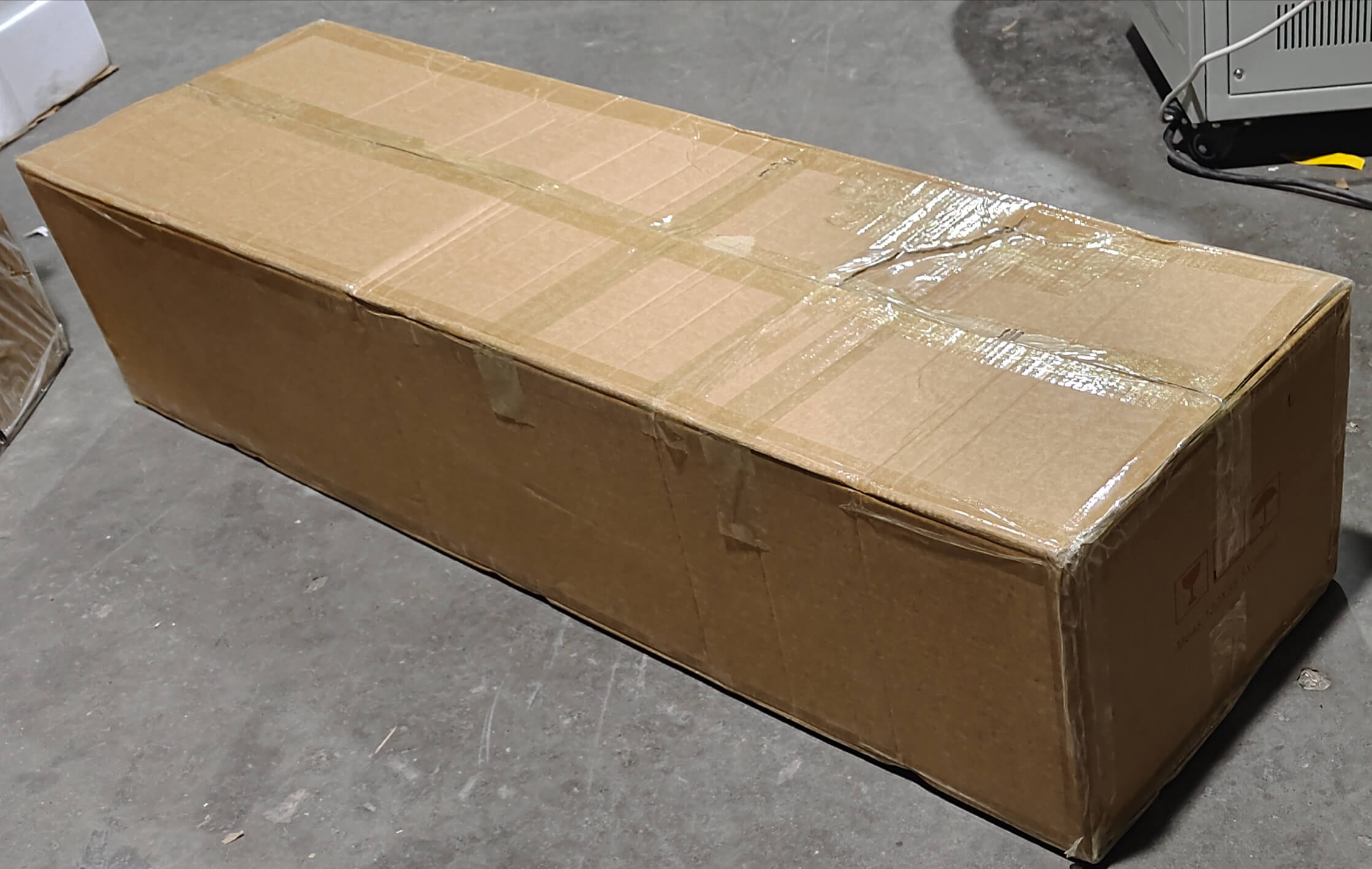

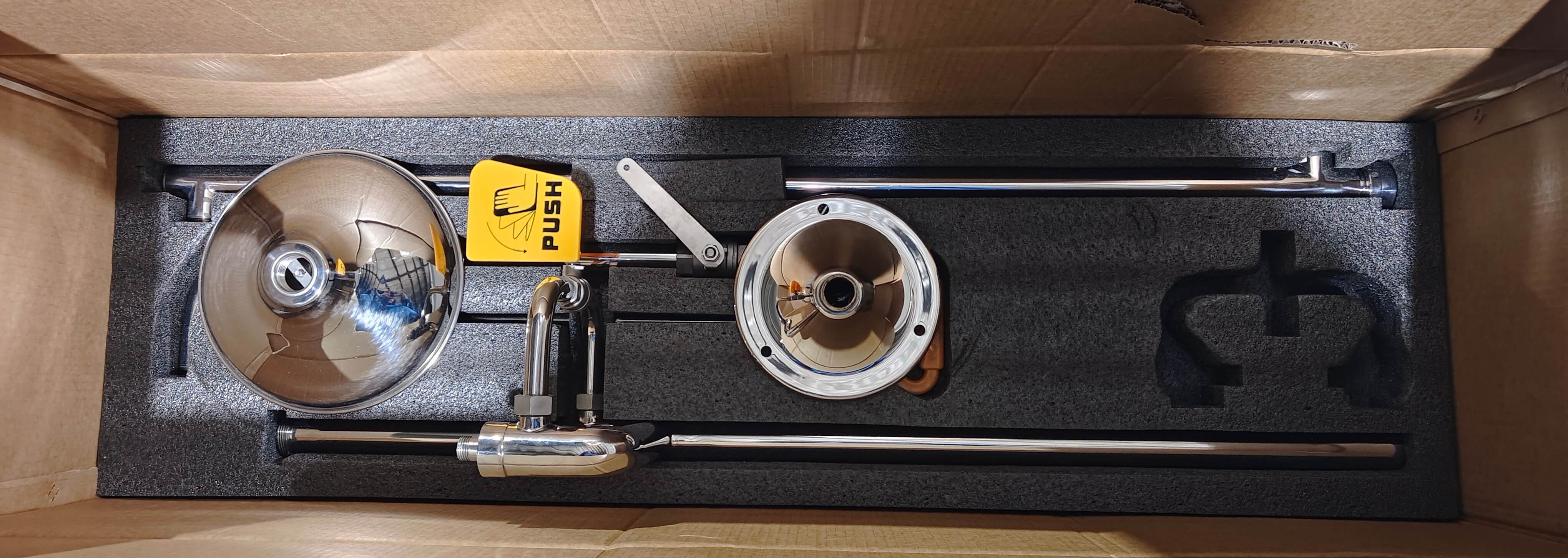

Package Size(W×D×H)(mm)1250x330x250
Gross Weight16.2kg

Notes : The inlet parts and outlet parts are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end; stainless steel – made foot treadle is optional as eye wash switch.

Combined Emergency Shower & Eye Wash Feature:

  1. Surface finishing: fine-polished, which makes the pipe surface performs better on corrosion resistance

  2. Assembling feature: pipes connected by innovative inserting & turning

  3. Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously

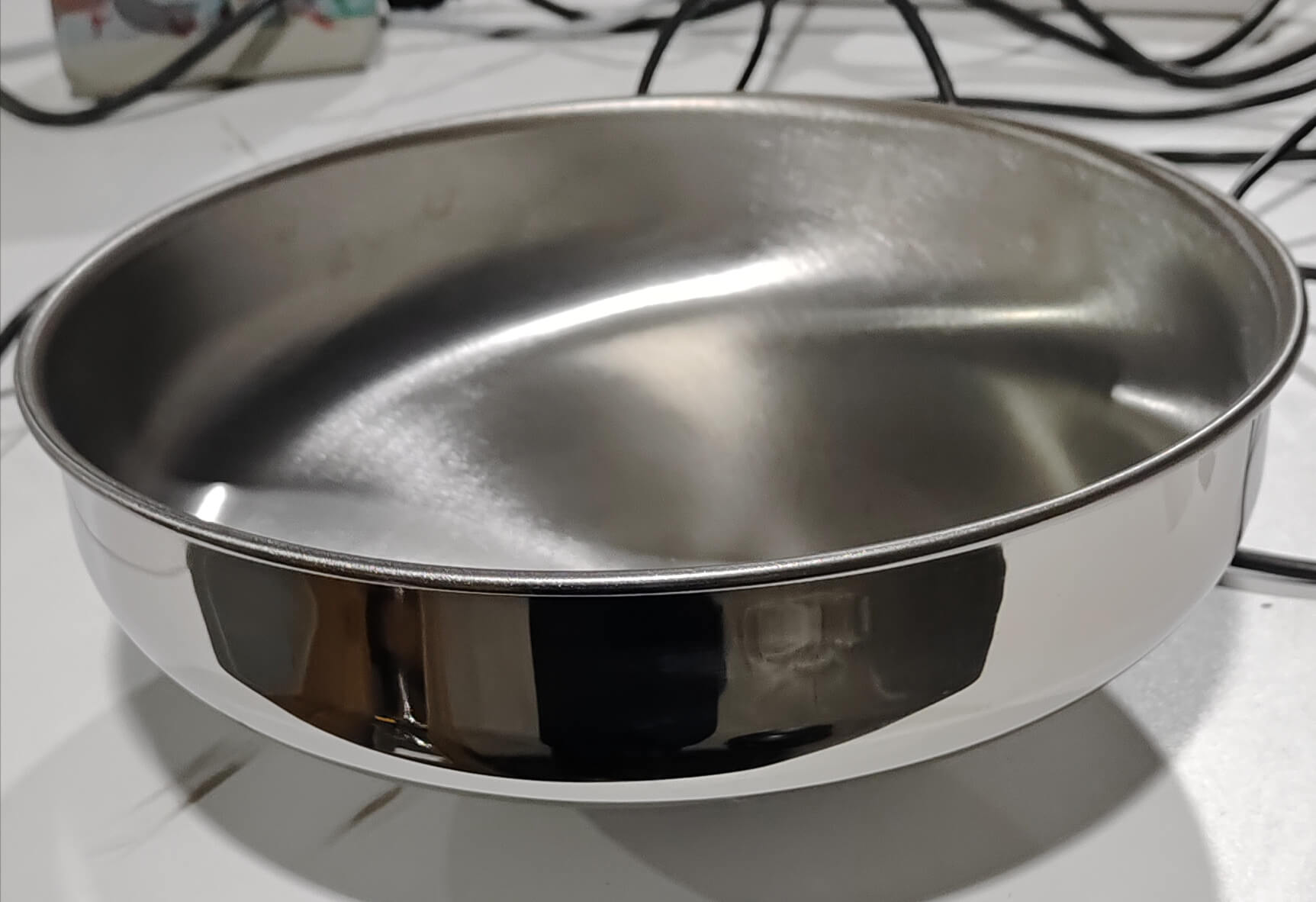

  4. Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing

  5. Dust cover: integrated with the spray head (not connected by chain), and easily removed by water flow.

  6. Spray head feature: patented design, each spray head equips with one water-flow control valve

  7. Water pattern coverage: at the height of 1520 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter
