Automatic Chemistry Analyzer Technical specifications:
System Functions
Fully automatically, discrete,random STAT function
Online test items: at most 40 testing items
Throughput: 400 tests/hour
Analysis Method: end-point, kinetic, two-pointdouble-reagents, double-wavelength, multi-standardetc, open to various reagents
Data Processing: memory up to 2 million patients' data
Sample/Reagents Handling
Sample Position: 93 pcs (Include standard, QC, STAT positions)
Sample volume: 2-50ul,0.1μl step
Sample Probe Cleaning: Automatic intemal & extemal washing
Sample Dilution: Automatic/Manual pre-dilution, withdilution ratio up to 1:100
Reagent Position: 80 pcs (With refigerated function, 2℃-8℃ )
Reagent Volume: 10-500μl,1μl step
Reagent Probe: Automatic liquid level detect, with collisionprotection function
Reagent Probe Cleaning: automatic intemal & extemal washing
Reaction System
Reaction Cuvette: 90 pcs made of special material
Optical Length of Cuvette: 6mm
Reaction Volume: 200~500μ
Reaction Time: 8-14 minutes
Reaction Temperature: 37℃±0.1℃
Mixing System: two independent mixing probe
Optical System
Light Source: halogen-tungsten lamp
Wavelength: 300-700nm, 9 wavelengths, precision +2nm
Spectrophotometry: rear spectrophotometry
Test Range: 0-4.0 Abs
Resolution: 0.001Abs
Bar-code Reader(Optional)
Bar-code reader used for sample/reagent programming
ISE Module(Optional)
Optional 1:K, Na, Cl, Ca,PH(5 items)
Throughput: 300 tests/hour
Optional 2: K,Na,Cl(3 items)
Throughput: 180 tests/hour
QC
Various QC management function and random
QC insert
Control and Calibration
Calibration: linear/nonlinear multi-points calibration
Re-test: retest the sample automatically when the resultis out of the linearity range or the sample is not sufficient
Automatic sample dilute function
Cleaning System
8-step automatic washing, automatic cuvette dry function
Water Consumption: 8L/hour
Working Condition
Power Supply: ~100-240V, 50/60Hz, 1KVA
Temperature: 10-35℃
Humidity: ≤90%, no dew
Operation System
Windows XP or Windows 2000
Input and Output
Input: RS-232 interface/keyboard/computer
Output: multi-format printout
Dimension and Weight
Upper cabinet: 950x710x1180mm
Net Weight: 136kgs
Packing Information
890x1135x1400mm; G.W.: 215kgs(With plywood case)
Details of Automatic Chemistry Analyzer:
R1 Reagent Position
40 pcs R1 reagent positions
Non-stop reagents refrigerating
Auto detect of reagent volume
R2 Reagent/Sample position
40 pcs Rl reagent positions
93 sample positions, suitable for primary tube abd serum cup
Non-stop reagents refrigerating
Auto detect of reagent volume
Sample/Reagent Probe
Probe telfon coating technology
Automatic liquid level detect
Collision protection function
Independent mixing probe
Probe internal/external washing
Reaction Cuvettes
90 pcs reusable cuvettes
Automatic blank testing for cuvette
Dismountable, easy to replace Cuvette
Advanced thermostat to ensure accurate test result
8-step auto cleaning System
Automatic 8-step washing
Automatic cuvette dry function
Hi-tech washing station to ensure accurate test results
With low water consumption: 3-5L/H
Mixing Probe
Two independant mxing probes
High precision mixing station
Collision protection function
Probe internal/external washing
Probe telflon coating technology
Automatic washing cuvette when start up & shut down the instrument

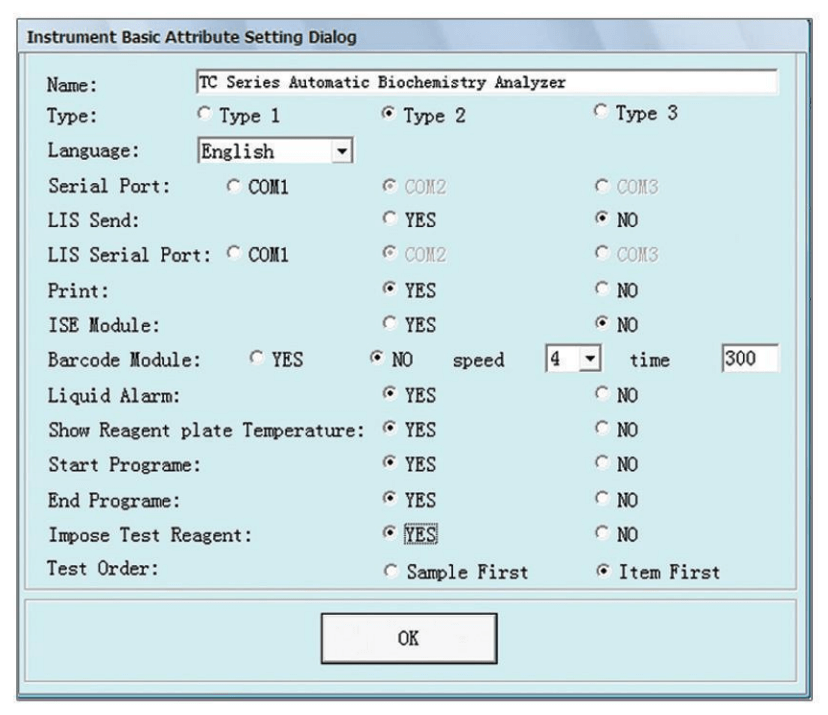

Test order setting program is available to avoid carry-over

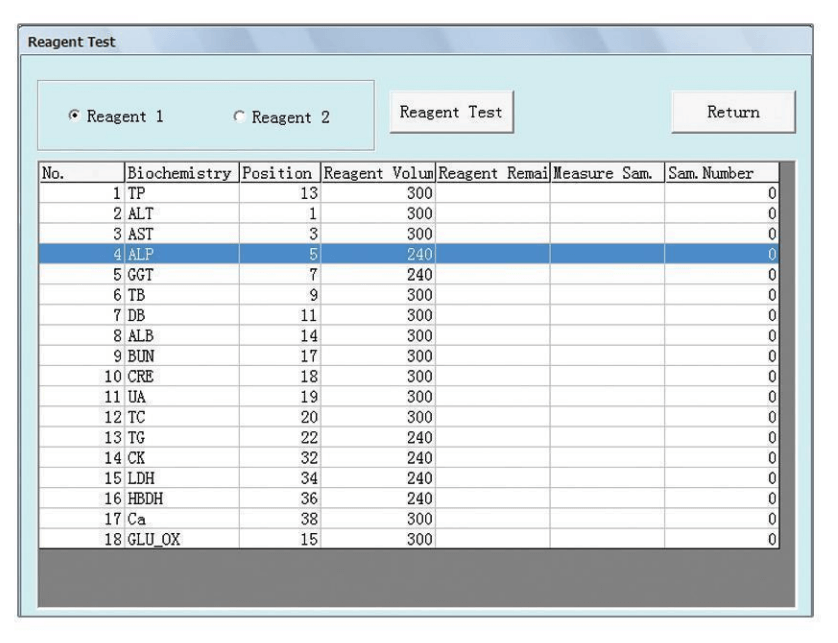

Automatic detect reagent volume during every startup of the instrument
Show reagent plate temperature during every startup of the instrument

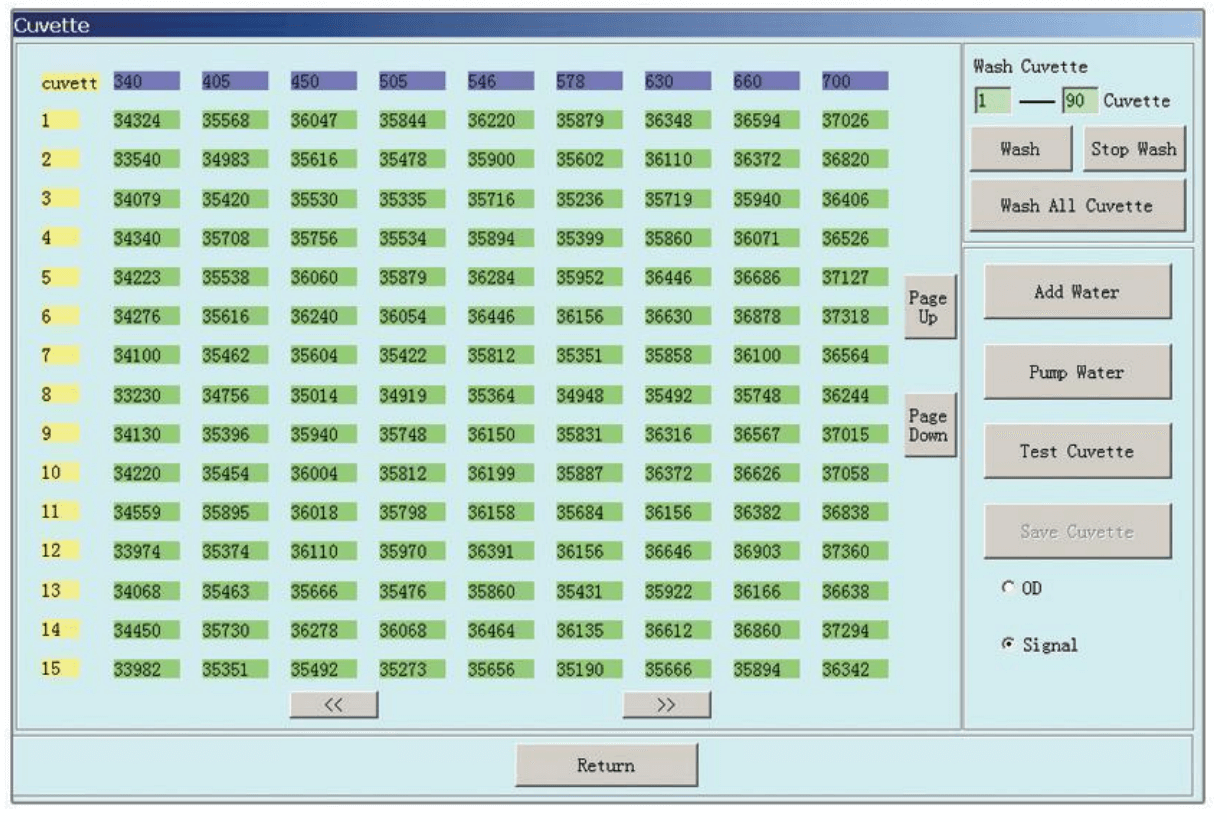

Automatic cuvette blank testing
Automatic wash selected cuvettes
Real-time online monitoring running status of cuvette
Real-time online monitoring running status of ample tray, reagenttray cuvette
Real-time online monitoring reagents residual volume
Real-time online monitoring wastel volume

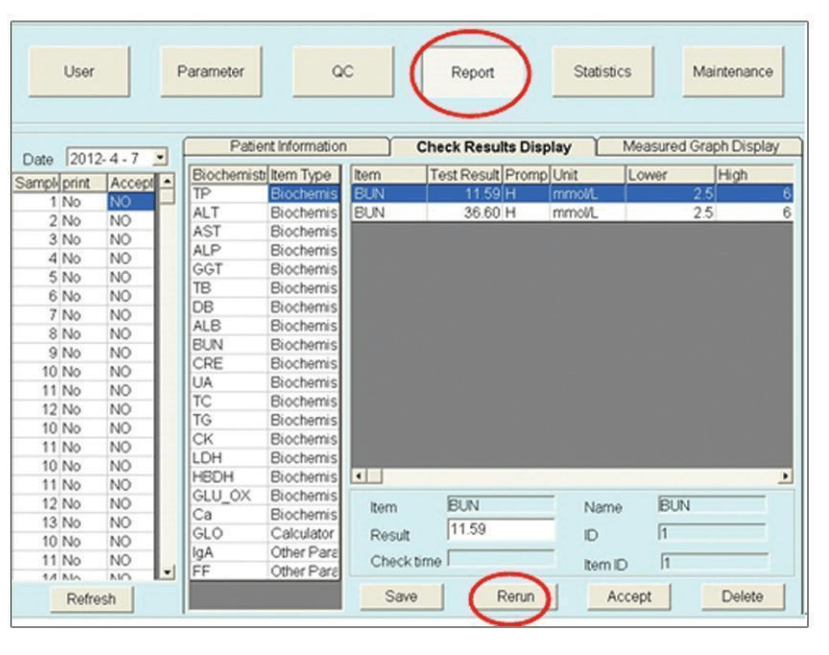

Automatic dilute and re-test when absorbance range is overrange
Automatic dilute and re-test when linear limit is overrange

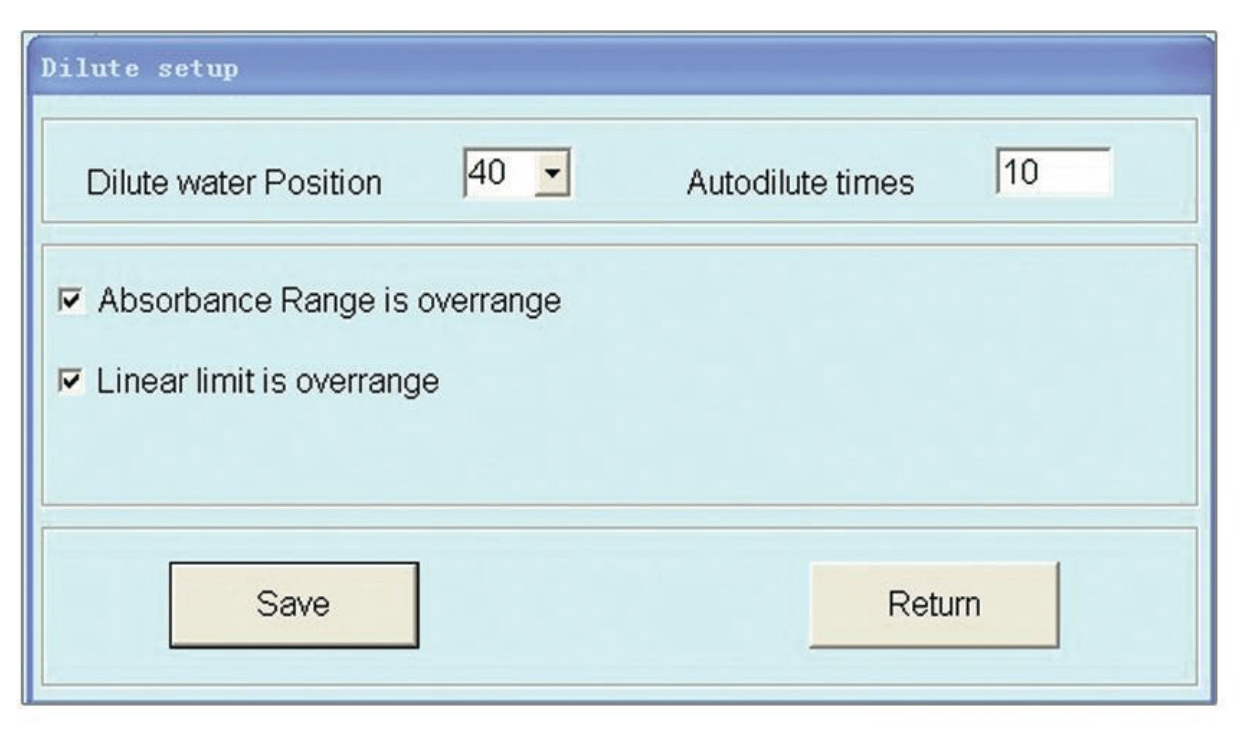

Three modes (no dilute, autodilute and handwork dilute) are available
Freely set the autodilute ratio and dilute water position
Freely set the autodilute ratio when re-testing
"No dilute" re-testing mode is available
