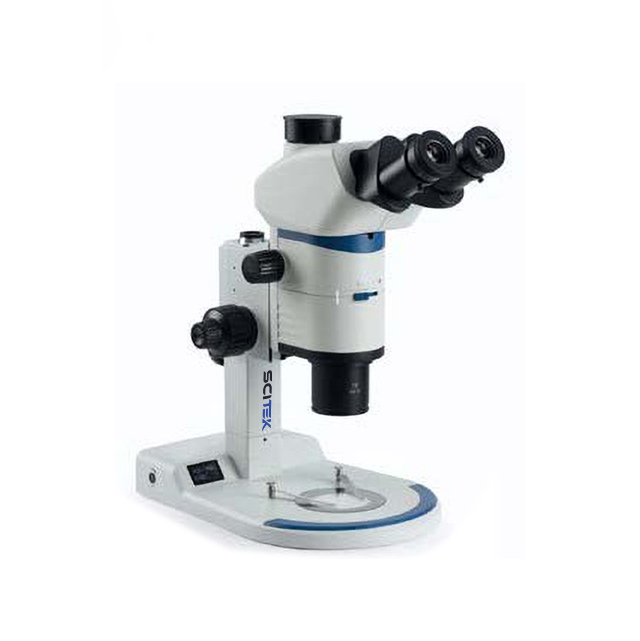

Continuous Zoom Fluorescence Stereo Microscope, MSC-F13TY

High Eyepoint, Wide Field of View, Flat Field Eyepiece 10×/22

6.3× field of view: 34.92 mm

80× field of view: 2.75 mm

Zoom Range

1:12.5 (6.3-80×)

Binocular Interpupillary Distance Adjustment Range

50 mm -76 mm

Nosepiece

2-hole, supports simultaneous installation of two main objectives

Mounting

Vertical arm-type coaxial focusing mechanism with coarse and fine adjustment, integrated with the lens body, 50mm focusing stroke, 0.002 mm fine adjustment accuracy

Illumination

Intermediate magnification: 1.5×; with 1/4 lambda wave plate, 360-degree rotation; 20W LED cold light source power supply with brightness adjustment knob; with flexible dual optical fiber, 1 meter long

Base

Ultra-thin base, multiple LEDs (total power: 5 W), with color temperature and brightness display (color temperature range: 3000-5600K)

Excitation Group

UV: 360/50 nm; Blue: 475/35 nm; Green: 530/45 nm
