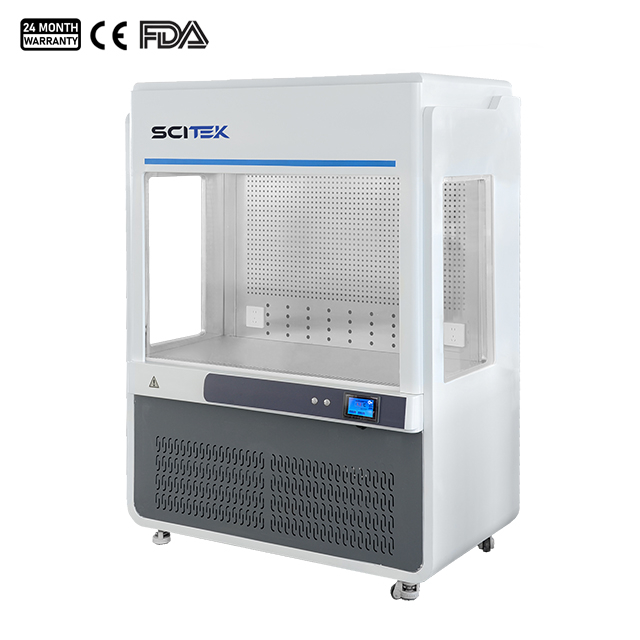

Low Temperature Blood Operating Bench

Model : BOT-120; BOT-160

Cooling Time : ≤30 min
Countertop Temperature : 2-8 ℃
Refrigerating Method : Forced air cooling
Effective Working Area (Refrigerated Area) : 0.66 m² / 0.88 m²
The Blood Operating Table equipped with an original imported compressor, offers exceptional energy efficiency, environmental sustainability, and stable performance.
Availability:
Quantity:

Features:


  1. Adopting IPS high-definition touch display, the circuit control is more accurate, intuitive and reliable, and displays fault information for easy troubleshooting.

  2. The device can display the dynamic change curve of temperature/time in real time.

  3. This device has USB data export function, achieving data traceability and facilitating quality monitoring.

  4. Using original imported compressors, energy-saving, environment-friendly,stable performance, and silent operation. The condenser adopts a finned copper tube type forced air cooling circulation.

  5. The refrigeration method adopts air cooling, with uniform temperature control and fast cooling speed. The internal circulation uses imported constant speed motors, which are efficient and stable, and will not cause icing.

  6. Dual compressor refrigeration system, if one compressor fails, the other can continue to work to ensure safe use.

  7. The equipment casing is made of spray coated galvanized steel plate and polyurethane high pressure integral foam, with good insulation effect.

  8. MThe operating table is made of imported high quality corrosion-resistant 304 stainless steel. Inner chamber is made of high-quality 304 stainless steel plate, corrosion-resistant and easy to clean.

  9. Independent sound and light alarm system, automatically shuts down and alarms when the temperature on the operating table exceeds the set value.

  10. Equipped with lighting and ultraviolet lamps, it can sterilize and disinfect the inner cavity.

  11. The compressor unit is built-in and equipped with movable casters, making it easy to move.

  12. The device size can be customized according to user needs.

  13. According to the requirements, dual hand operation holes can be added, and operating gloves can be equipped.

  14. According to the requirements, a filtration and purification system can be installed to meet the diverse needs of users.

Specifications:


ModelBOT-120BOT-160
Working Voltage220 V/50 Hz
Rated Power1200 W
Countertop Temperature 2-8 ℃
Refrigerating MethodForced air cooling
Cooling Time≤30 min
Effective Working Area (Refrigerated Area) (m²)0.66 0.88
Countertop Size (L×W)  (mm)1200×5501600×550
External Dimensions (L×W×H) (mm)1270×800×17501670×800×1750
Package Size (L×W×H) (mm)1360×880×19401750×880×1960
Gross Weight (Kg)292419
