The blood thawing machine is mainly suitable for blood centers, blood stations, hospital blood transfusion departments and other units, and is widely used for the rapid thawing of frozen blood components and biological products. The general working principle of the thawing device is to use water as the circulating medium, and control the water temperature within the set range by heating or cooling, and then circulate the constant temperature water to the thawing chamber through the water pump and circulation pipeline, so that the water and plasma are fully in contact to achieve heat exchange and transfer.
After the set time is reached, the water pump stops circulating, and the water in the thawing chamber flows back to the heating water tank to achieve a thawing process. If the water quality becomes dirty or the plasma bag ruptures, it can be automatically cleaned and replaced with water immediately. The blood thawing machine produced by our company is also equipped with UV lamps to provide a sterilization function for the internal heating water tank.

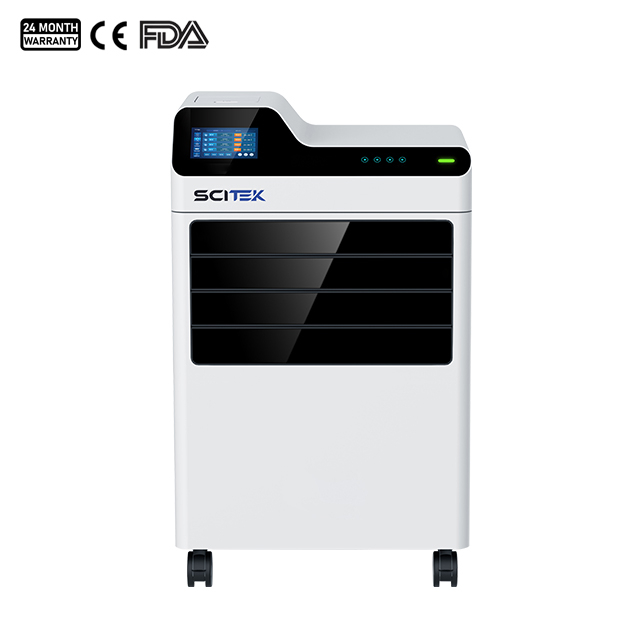

Blood Thawing Machine Specifications:
| Model | BTM-VT |
|---|
| Defrosting Mode | Thaw/Rewarm |
| Maximum Pulp Volume (200ml) | 20 bags |
| Number of Stations | 20 pieces |
| Temperature Control Range /Accuracy | Range 25-42℃/Accuracy ±1℃ |
| Defrosting Time | Thaw time ≤20min |
| Timing Range | 1-999min |
| Rated Power | 3500W |
| Rated Voltage/Frequency | 220V +10%, frequency 50Hz |
| Weight | 115kg±10% |
| Sizes (W×D×H)(mm) | 860x700x1330 |
| Cycle Capacity | 20L/min*4 |
| Data Recording and Storage | With automatic water inlet, drainage, preheating and cycle cleaning functions. |
| Package Size(W×D×H)(mm) | 980x800x1520 |
| Weight | 210kg |
Optional:
Optional scanner can scan the barcode of plasma bag to input data, and record the melting data of each bag of plasma for easy management and query.
Blood Thawing Machine Feature:
Drawer-type dry thawing method, more reasonable structure, more convenient to use.
Four positions are independently controlled, and independent status indicator lights can intuitively see the status of each position.
Dual-channel core components are configured to ensure smooth operation of the equipment.
The operation panel adopts a medical 8-inch IPS high-definition touch screen
Real-time monitoring of the melting temperature, forming a temperature curve, recording and saving the entire melting process, and supporting wireless data export.
Automatic constant temperature, reducing energy consumption and extending the service life of the equipment.
It has a variety of quick melting modes, which can be set to thaw, rewarm, and customize.
Built-in FOF water purification system to completely solve the scale problem
The inner cavity UV sterilization lamp automatically disinfects to ensure convenient disinfection, no dead corners, and ensure plasma safety.
There is a leakage alarm function. When the melting bag is broken or leaked, the corresponding position will issue an audible and visual alarm to prompt the operator to handle it, without affecting the continued melting of plasma in other positions.
