Model | BGE-95I | |
---|---|---|
Analyte | Measuring range | Unit |
Hydrogen Ion Activity(pH) | 6.000―9.000 | pH scale |
Carbon Dioxide | 0.667―26.67 | kPa |
partial Pressure(pCO2) | 5.0―200.0 | mmHg |
Oxygen Partial Pressure (pCO2) | 0―106.7 | kPa |
0―800.0 | mmHg | |
Hct | 12.0―65.0 | % |
B.P. | 500―800 | mmHg |
Derived(Calculated) Parameters: | ||
pH(TC) | pH temperature corrected | |
pCO2 (TC) | pCO2 temperature corrected | |
pO2 (TC) | pO2 temperature corrected | |
TCO2 | 0-50mmol/L | |
HCO3 | 0-50mmol/L | |
Beb | -25.0-25mmol/L | |
Beecf | -25.0-25mmol/L | |
SBC | 0-50mmol/L | |
SO2 | 40-100.0% | |
AG | Anion gap | |
RI | 0.0-70.0 | |
AaDO2 | 0-700mmHg | |
O2SAT | Oxygen Saturation | |
tHb(c) | Hemoglobin(Calculated) | |
Sample | Whole blood, Serum, Plasma, Dialysate, CSF | |
Test Items | pH, pCO2, pO2, Hct | |
Input Parameter | Patient temperature | |
Hemoglobin | ||
FiO | ||
B.P. | ||
Interface | Serial Line RS-232 | |
TCP/IP interface | ||
USB port | ||
Integrated Bar-code reader | ||
Analysis Time | <90s | |
Sample Volume | 95μL Whole blood | |
50μL Capillary blood | ||
Calibration | Automatic, programmable1-point and 2-point calibration | |
Data Storage | >10000 | |
Display | 10.4” TFT touch screen | |
Battery | Nickel-metal hydride battery 3.0Ah | |
Printer | Build-in Thermal printer70mm | |
Barcode Reader | Up to 14 kinds barcode type | |
Work Environment | 15℃~30℃ | |
Storage Environment | 5℃~40℃ | |
Power Supply | 100-240V~50/60Hz | |
CAL PAK | 258x180x70 | |
AUTOQC | 103x180x70 | |
Sizes(W×D×H)(mm) | 400x574x344 | |
Shipping Size(W×D×H)(mm) | 940x670x620 | |
N.W./G.W. (kg) | 30/60 |

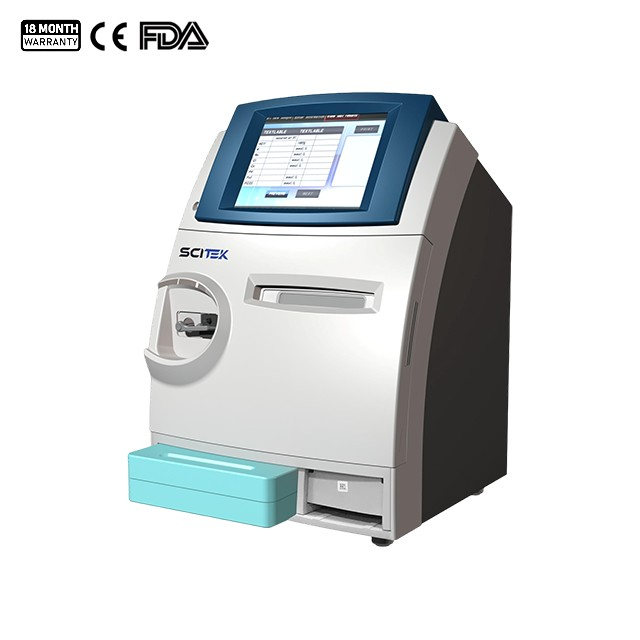

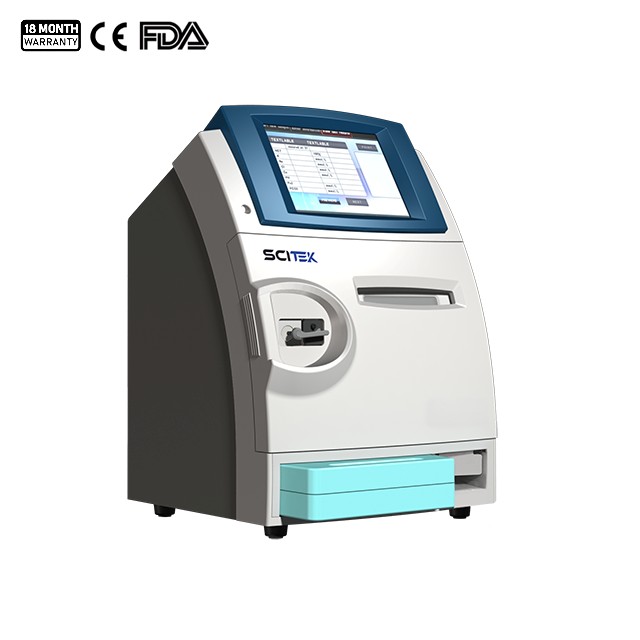

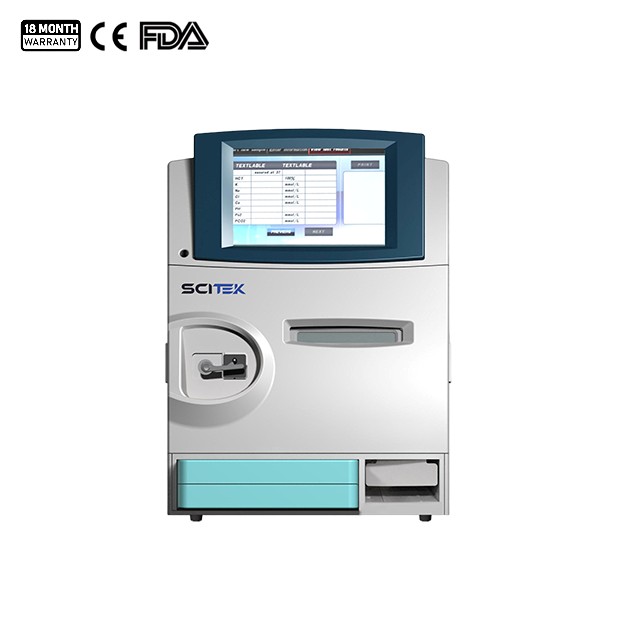

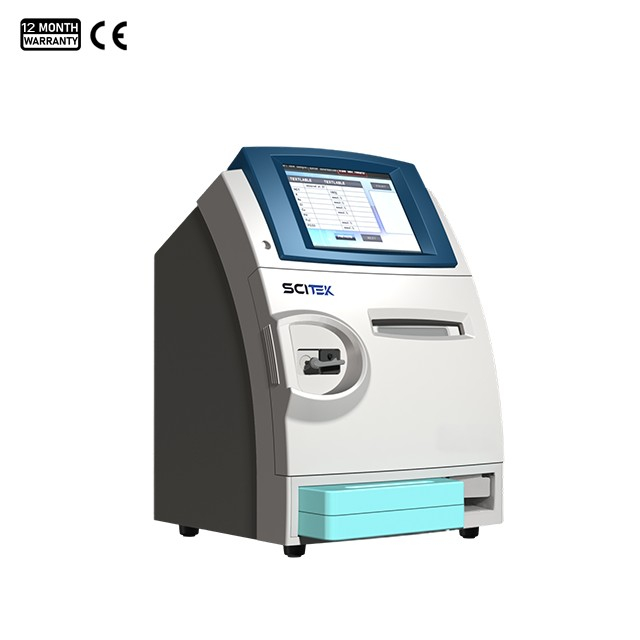

The BGE-95I is an easy-to-use portable blood gas analyzer that provides accurate blood gas, electrolyte and critical care biochemistry results and is widely used in the healthcare industry.
Multiple combinations can test multiple parameters at once
Maintenance-free electrodes, saving maintenance cost and time
Capillary 50 UL, whole blood 95 UL, suitable for syringes and capillaries
Fast detection time can produce results in a short period
Automatic alarm in case of malfunction
Data storage >10,000 items, you can easily view the monitoring data
High-resolution color touch screen, user-friendly operation interface
Built-in thermal printer for real-time printing of test data
Equipped with a battery backup, even if the power outage can work normally
