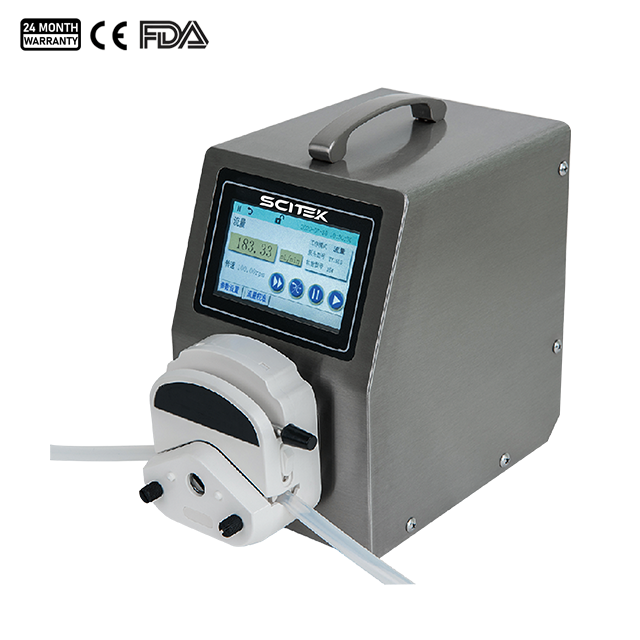

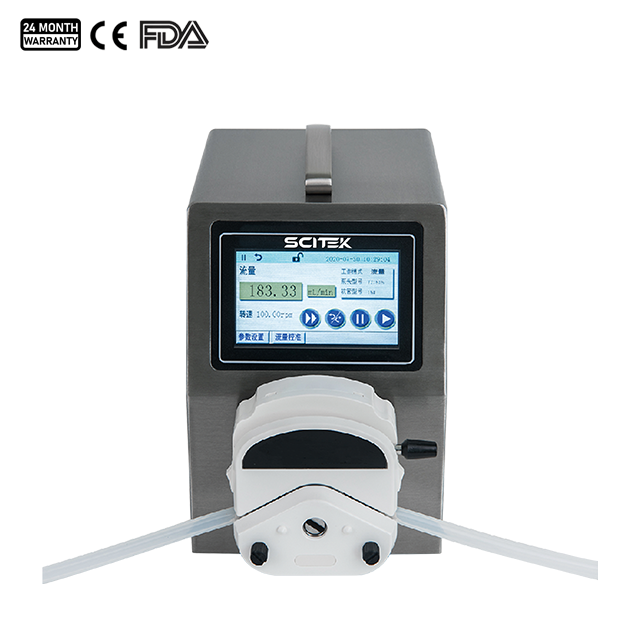

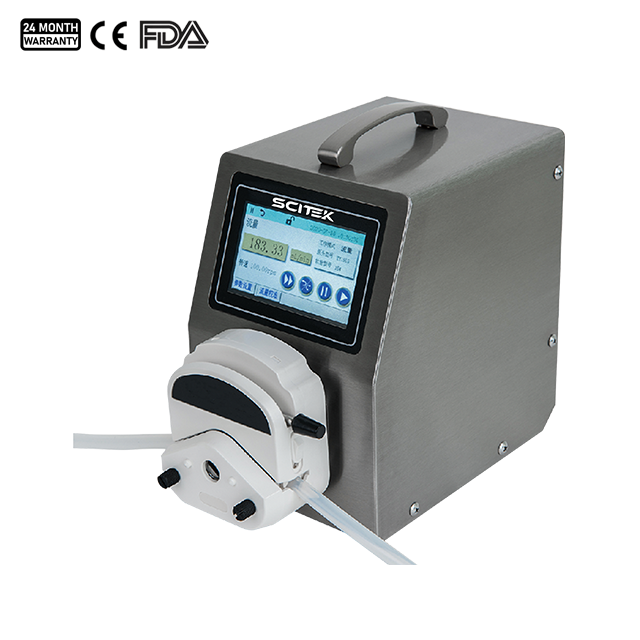

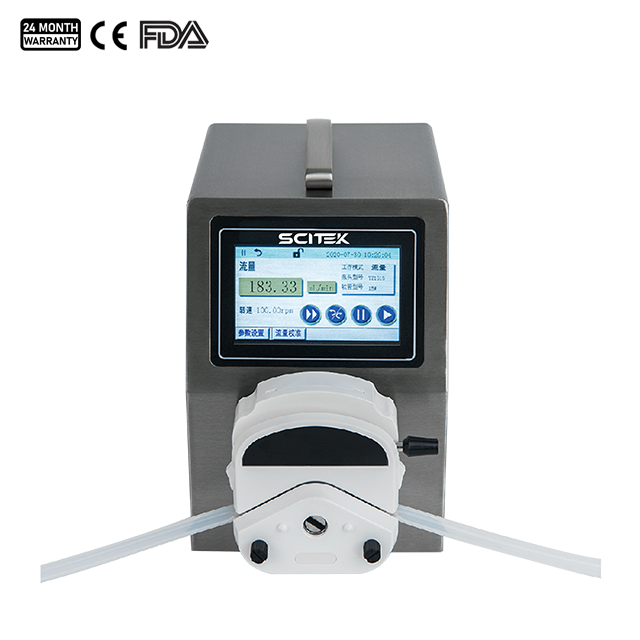

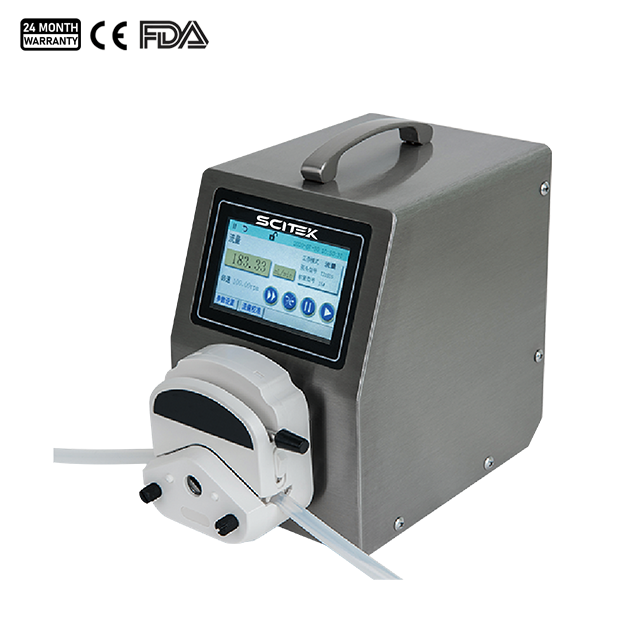

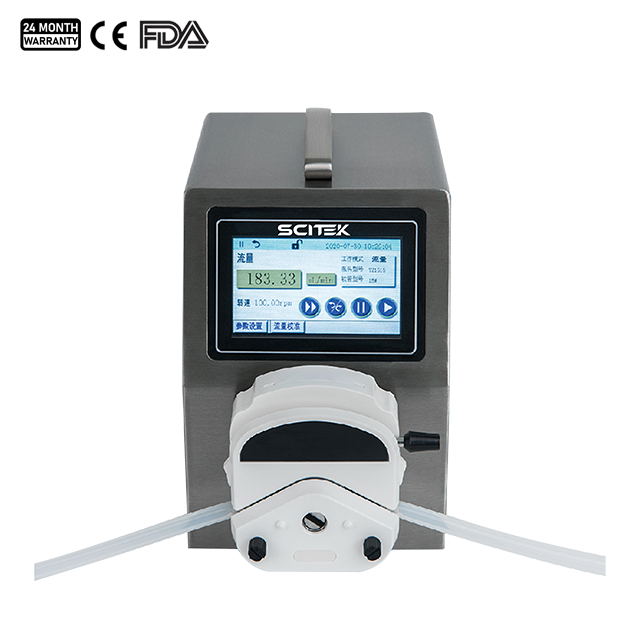

Flow Rate Peristaltic Pump, Color Touch Screen

Model : FPP-100LC; FPP-300LC; FPP-600LC

Speed Range : 0.01-100rpm; 0.01-300rpm; 0.01-600rpm
Display Method : 4.3-inch color LCD
Speed Display Resolutio : 0.01rpm
External Size(LxWxH)(mm) : 155×212×232
This easy-to-use flow rate peristaltic pump is equipped with independent full-speed button, capable of rapid pipeline filling and emptying.
Availability:
Quantity:
Inquiry Add to Inquiry List

Flow Rate Peristaltic Pump Features:

  1. 4.3-inch industrial-grade true color LCD display, with intuitive interface and convenient touchscreen operation.

  2. Compatible with various pump heads, including YZ1515, YZ2515, and BZ25.

  3. External control interface allows for the control of peristaltic pumps.

  4. With calibration function to ensure high accuracy through calibration.

  5. RS485 communication utilizing modbus protocol, easy to debug and use.

  6. Constructed with a 304 stainless steel metal casing.

  7. Scheduled quantitative function

Flow Rate Peristaltic Pump Specifications:

ModelFPP-100LCFPP-300LCFPP-600LC
Speed Range0.01-100rpm0.01-300rpm0.01-600rpm
Display Method4.3-inch color LCD
InterfaceRS485
Power Consumption<40W<50W<60W
External Size (LxWxH)(mm)155×212×232
IP GradeIP31
Speed Display Resolution0.01rpm
External Control Input Interface0-5V, 0-10V, 4-20m, 0-10kHz
Power SupplyAC90-265V, 50Hz/60Hz
working EnvironmentTemperature,0~40℃, Humidity＜80%, No condensation
Drive Weight4.45kg
Pump HeadYZ1515, YZ2515
DG Series
Suitable pump head & Flow reference  (ml/min)
Pump HeadYZ1515YZ2515DG1, 2, 4 (6)DG1, 2, 4, 6 (10)
Tube13# 14# 19# 16# 25# 17# 18#15#, 24#Wall thickness 0.8-1mm, inner diameter ≤3.17mm
FPP-100LC0.007~3800.17~2700.002~480.0015~32
FPP-300LC0.007~11400.17~800--
FPP-600LC0.007~22800.17~1600--
Channel1 for BT100FC; 1·2 for BT300FC and BT600FC1 for BT100FC; 1·2 for BT300FC and BT600FC1, 2, 4 for BT100FC1, 2, 4 for BT100FC
