Speed Range : 0.01~600rpm Flow Resolution : 0.01ml/min Flow Range : ≤6000ml/min
Drive Size(WxDxH)mm : 309×153×241
The dispensing peristaltic pump feature multiple pump heads that can be operated simultaneously or sequentially, and offer enhanced versatility in a compact design.
Features a 4.3-inch color LCD display with touch screen control, offering both Chinese and English language options.
Compatible with various pump head specifications, catering to a wide range of flow applications.
Utilizes servo motor drive technology, providing high torque and precision for dual pump head operation.
Incorporates an online fine-tuning function to enhance filling accuracy during operation.
Supports wireless control, enabling remote wireless control in collaboration with our company's remote control system.
Enables mobile phone control, integrating IoT technology for advanced artificial intelligence control capabilities.
Offers external control interface for convenient peristaltic pump control.
Includes a calibration function to maintain high accuracy through calibration processes.
Utilizes RS485 communication with the Modbus protocol, ensuring easy debugging and usage.
Housed in a durable 304 stainless steel metal shell for long-lasting reliability and robustness
Dispensing Peristaltic Pump Specifications:
Drive model
DPP-T600FC
Speed Range
0.01~600rpm
Flow Resolution
0.01ml/min
Flow Range
≤6000ml/min
Flow Calibration
Yes
Control Method
Touch screen (Support external signal control and communication control)
Display Mode
LCD (English and Chinese optional)
Filling Volume Range
0.01-6000.00ml
Copy Number Range
0~9999times, “0” is infinite loop
Pause Time Range
0~9999.99s
Time Resolution
0.01s
Suckback Angle
0°~360°
Power Supply
AC220V±10%(standard) or AC110V±10%(optional)
Power Consumption
＜120W
Environment Temperature
0~40℃
Relatively Humidity
＜80%, No condensation
Drive Size (WxDxH)(mm)
309×153×241
Drive Weight
5.75kg
Motor Type
Servo motor
IP Grade
IP31
External Control
Control Rev. Stop, Direction, Speed.-Support RS485/MODBUS communication protocol, analog quantity control (0-5V 0-10V 4-20mA ...)foot switch control.
Suitable pump head & Flow reference (ml/min)
Pump Head
KZ25
YZ1515
YZ2515
DG1, 2, 4, 6(6)
DG1, 2, 4, 6(10)
Tube
15# 24# 35# 36#
13# 14# 19# 16# 25# 17# 18#
15# 24#
0.5x0.8, 1x1, 2x1, 2.4x0.8, 3x1
Max. Flow Rate
3-6000 (Single Channel)
0.07-2280 (Single Channel)
1.7-1600 (Single Channel)
≤48 (Single Channel)
≤32 (Single Channel)
Details of Dispensing Peristaltic Pump:

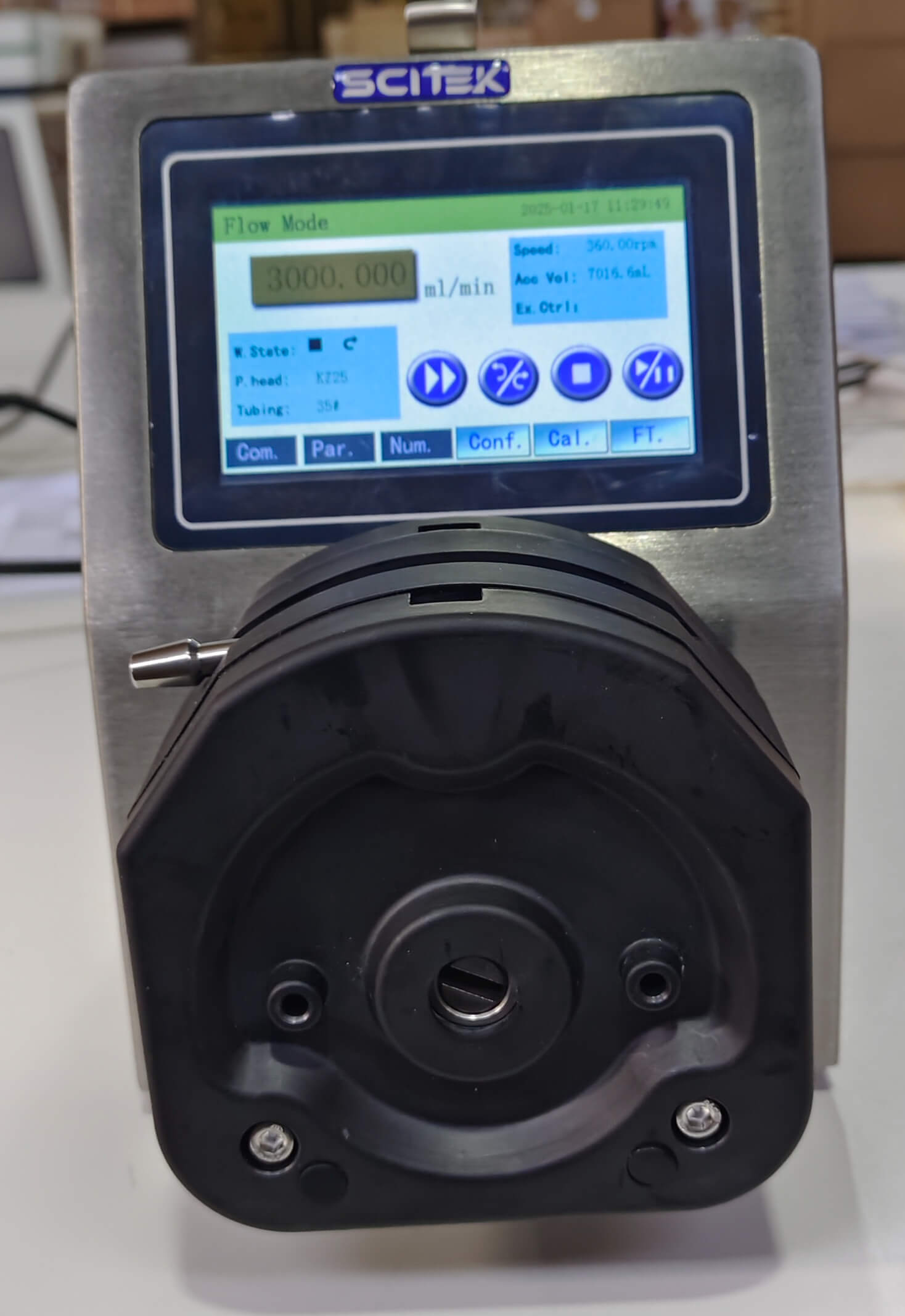

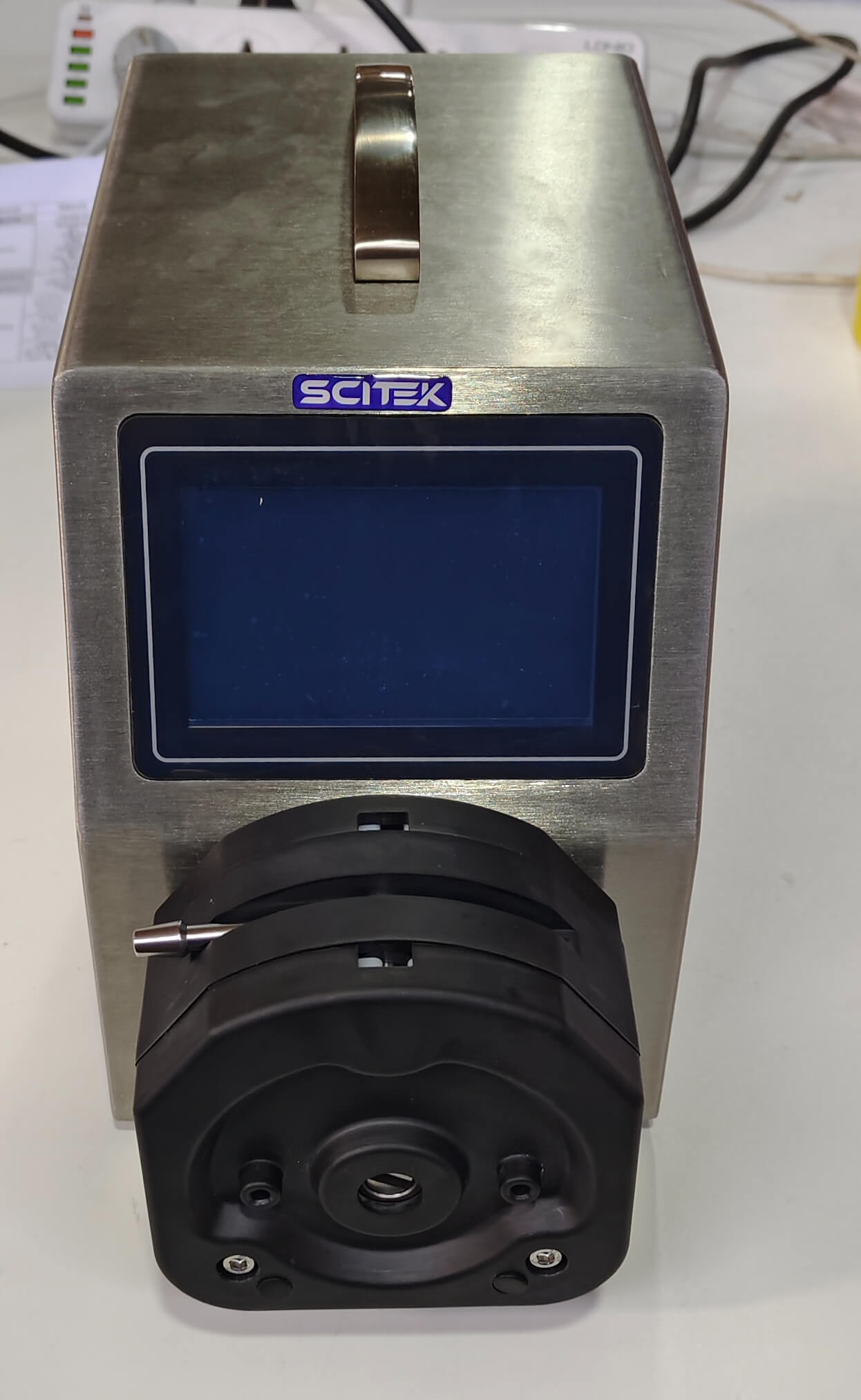

Front view showcasing the digital display and control panel for precise flow adjustments. Close-up of the LCD screen and rotary dial, enabling accurate speed and volume control.

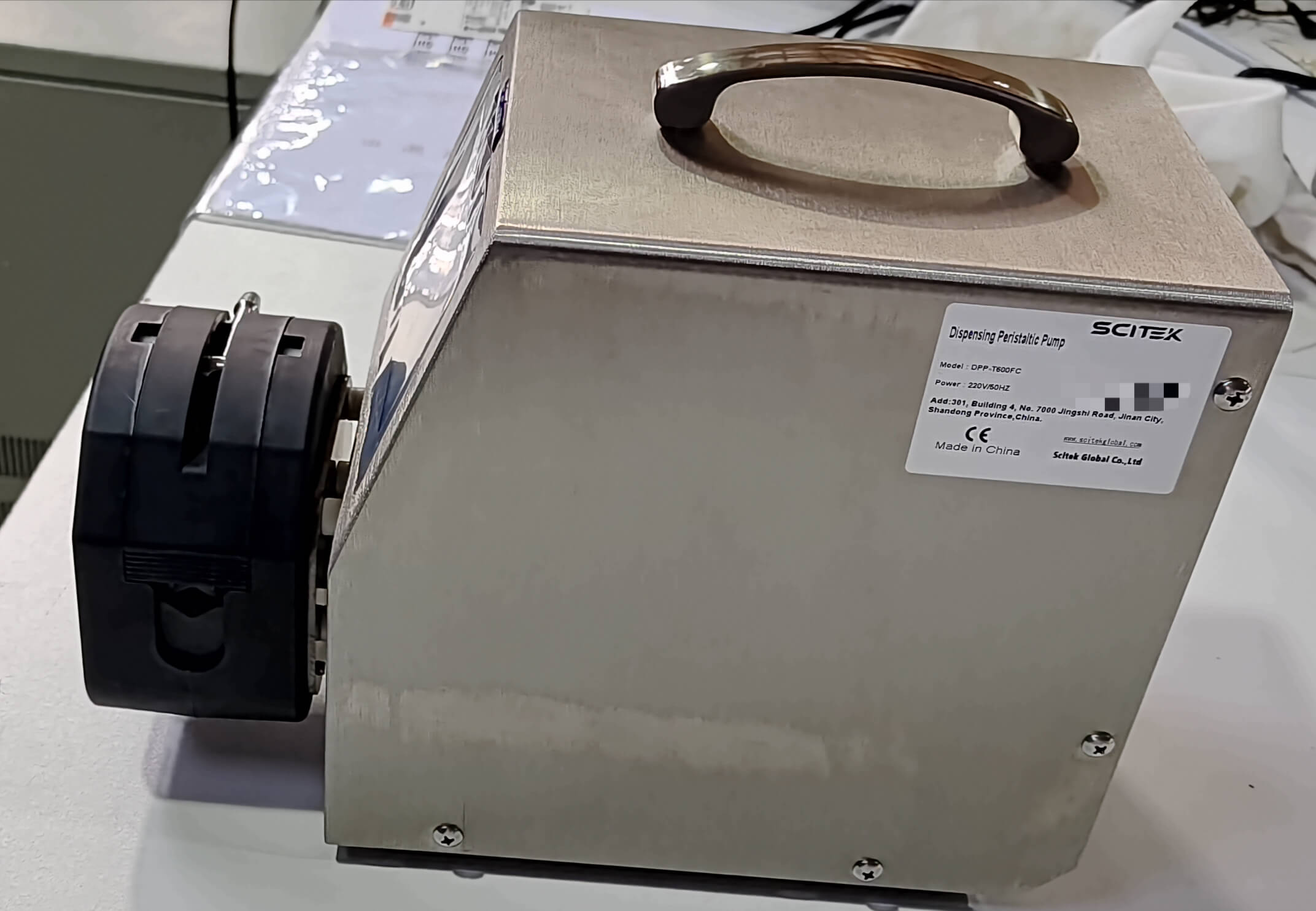

Stainless steel dispensing peristaltic pump with a compact, durable design and motorized operation.

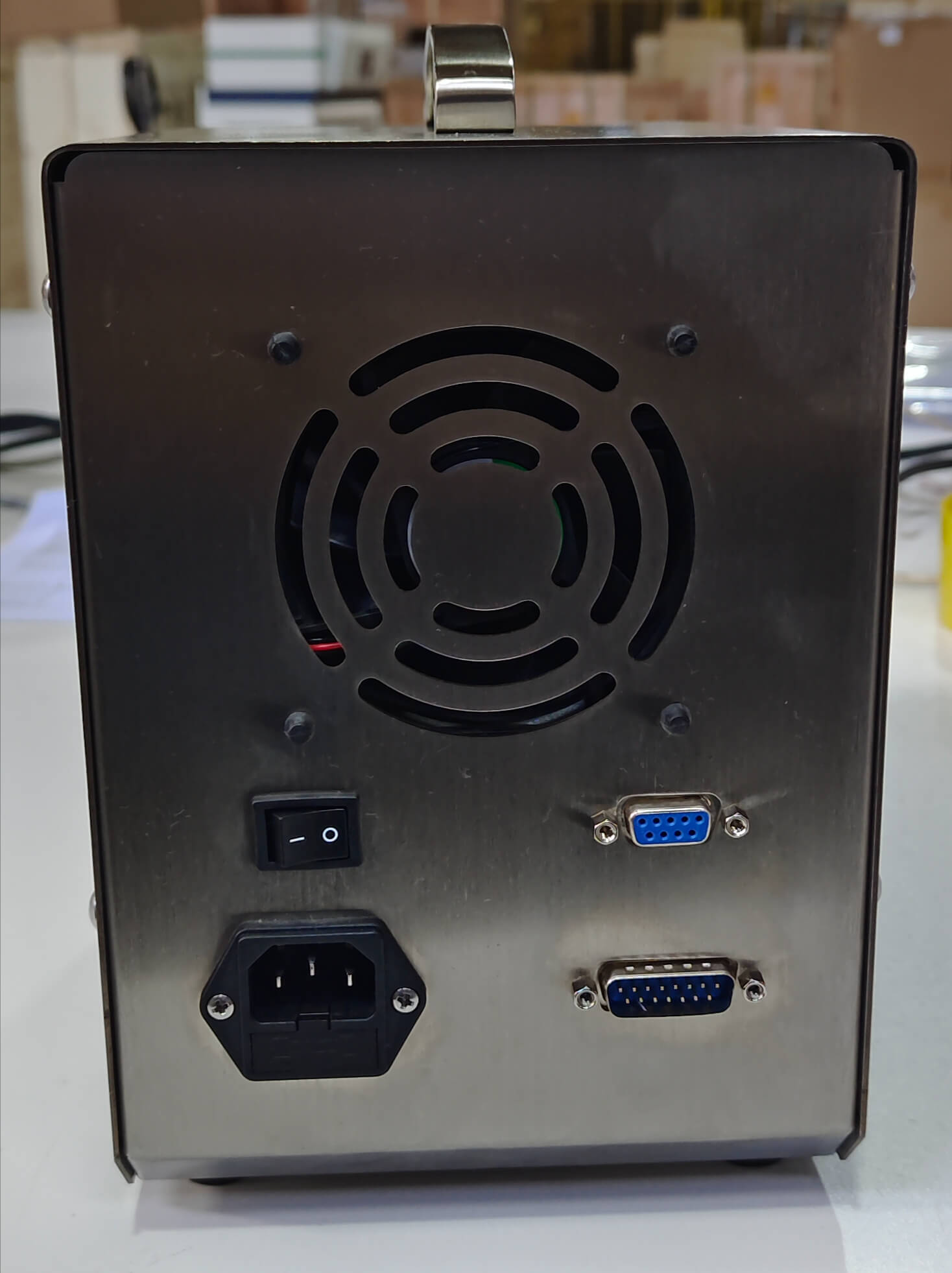

Rear panel with cooling fan, power supply ports, and connectivity interfaces for external control.
Sturdy cardboard packaging designed to protect the pump during transportation.
Dispensing Peristaltic Pump Features:
Features a 4.3-inch color LCD display with touch screen control, offering both Chinese and English language options.
Compatible with various pump head specifications, catering to a wide range of flow applications.
Utilizes servo motor drive technology, providing high torque and precision for dual pump head operation.
Incorporates an online fine-tuning function to enhance filling accuracy during operation.
Supports wireless control, enabling remote wireless control in collaboration with our company's remote control system.
Enables mobile phone control, integrating IoT technology for advanced artificial intelligence control capabilities.
Offers external control interface for convenient peristaltic pump control.
Includes a calibration function to maintain high accuracy through calibration processes.
Utilizes RS485 communication with the Modbus protocol, ensuring easy debugging and usage.
Housed in a durable 304 stainless steel metal shell for long-lasting reliability and robustness
Dispensing Peristaltic Pump Specifications:
Drive model
DPP-T600FC
Speed Range
0.01~600rpm
Flow Resolution
0.01ml/min
Flow Range
≤6000ml/min
Flow Calibration
Yes
Control Method
Touch screen (Support external signal control and communication control)
Display Mode
LCD (English and Chinese optional)
Filling Volume Range
0.01-6000.00ml
Copy Number Range
0~9999times, “0” is infinite loop
Pause Time Range
0~9999.99s
Time Resolution
0.01s
Suckback Angle
0°~360°
Power Supply
AC220V±10%(standard) or AC110V±10%(optional)
Power Consumption
＜120W
Environment Temperature
0~40℃
Relatively Humidity
＜80%, No condensation
Drive Size (WxDxH)(mm)
309×153×241
Drive Weight
5.75kg
Motor Type
Servo motor
IP Grade
IP31
External Control
Control Rev. Stop, Direction, Speed.-Support RS485/MODBUS communication protocol, analog quantity control (0-5V 0-10V 4-20mA ...)foot switch control.
Suitable pump head & Flow reference (ml/min)
Pump Head
KZ25
YZ1515
YZ2515
DG1, 2, 4, 6(6)
DG1, 2, 4, 6(10)
Tube
15# 24# 35# 36#
13# 14# 19# 16# 25# 17# 18#
15# 24#
0.5x0.8, 1x1, 2x1, 2.4x0.8, 3x1
Max. Flow Rate
3-6000 (Single Channel)
0.07-2280 (Single Channel)
1.7-1600 (Single Channel)
≤48 (Single Channel)
≤32 (Single Channel)
Details of Dispensing Peristaltic Pump:
Front view showcasing the digital display and control panel for precise flow adjustments. Close-up of the LCD screen and rotary dial, enabling accurate speed and volume control.
Stainless steel dispensing peristaltic pump with a compact, durable design and motorized operation.
Rear panel with cooling fan, power supply ports, and connectivity interfaces for external control.
Sturdy cardboard packaging designed to protect the pump during transportation.
