Features a 4.3-inch color LCD display with touch screen control, supporting both Chinese and English languages.
Compatible with YZ1515, YZ2515, and DG series pump heads for versatile applications.
Equipped with a built-in memory function for storing historical parameters and quick access to commonly used settings.
Includes an independent full-speed button for rapid pipeline filling and emptying.
External control interface allows for remote control of the peristaltic pump.
Calibration function ensures high accuracy by calibrating as needed.
RS485 communication utilizes the modbus protocol for easy debugging and usage.
Encased in a durable 304 stainless steel metal shell for robustness and longevity.
Appliction of Dispensing Peristaltic Pump:
Peristaltic pump is used in a variety of industries where precise and accurate fluid dispensing is essential. Some of the common applications include.
Laboratories: Dispensing peristaltic pump is widely used in analytical chemistry, biochemistry and pharmaceutical research.
Medical and Pharmaceutical Industries: Peristaltic pump is used for precise dosing in drug formulation, compound synthesis and pharmaceutical manufacturing.
Food and Beverage Processing: Multi-channel peristaltic pump is used in the food and beverage industry for the accurate dispensing of ingredients, flavourings and additives.
Biotechnology and bioprocessing: In the biotechnology industry, peristaltic pump is used for cell culture media dispensing, fermentation and bioreactor feeding.
Dispensing Peristaltic Pump Specifications:
Drive Model
DPP-100FC
DPP-300FC
DPP-600FC
Speed Range
0.01~100rpm
0.01~300rpm
0.01~600rpm
Flow Resolution
0.01ml/min
Speed Display Resolution
0.1rpm(<100rpm), 1rpm(≥100rpm)
Flow Range
0.0015~380ml/min
0.007~1140ml/min
0.007~2280ml/min
Flow Calibration
Yes
Control Method
Touch screen (Support external signal control and communication control)
Display Mode
LCD (English and Chinese optional)
Filling Volume Range
0.01-9999.99ml
Filling Volume Resolution
0.01ml
Copy Number Range
0~999times, “0” is infinite loop
Filling Time Range
0.1s~9999.99s
Pause Time Range
0.1s~9999.99s
Time Resolution
0.01s
Suckback Angle
0°~360°
Power Supply
AC220V±10% (standard) or AC110V±10% (optional)
Power Consumption
＜40W
＜50W
＜60W
Environment Temperature
0~40℃
Relatively Humidity
＜80%, No condensation
Drive Size (WxDxH) (mm)
212×155×232
Drive Weight
3.0kg
3.2kg
3.5kg
Motor Type
Stepper motor
IP Grade
IP31
Working Mode
Filling mode, Transmission mode
External Control
Control Rev. Stop, Direction, Speed.-Support RS485/MODBUS communication protocol, analog quantity control (0-5V, 0-10V, 4-20mA ...) foot switch control.
Suitable pump head & Flow reference (ml/min)
Pump Head
YZ1515x
YZ2515x
DG1, 2, 4, 6 (6)
DG1, 2, 4, 6 (10)
Tube
13# 14# 19# 16# 25# 17# 18#
15# 24#
0.5x0.8, 1x1, 2x1, 2.4x0.8, 3x1
DPP-100FC
0.007~380
0.17~270
0.0025~48
0.002~32
DPP-300FC
0.07~1140
1.7~800
-
-
DPP-600FC
0.07~2280
1.7~1600
-
-

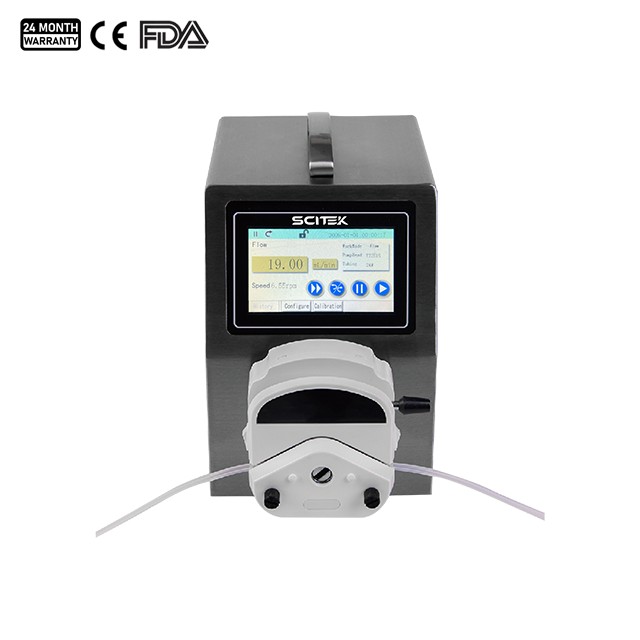

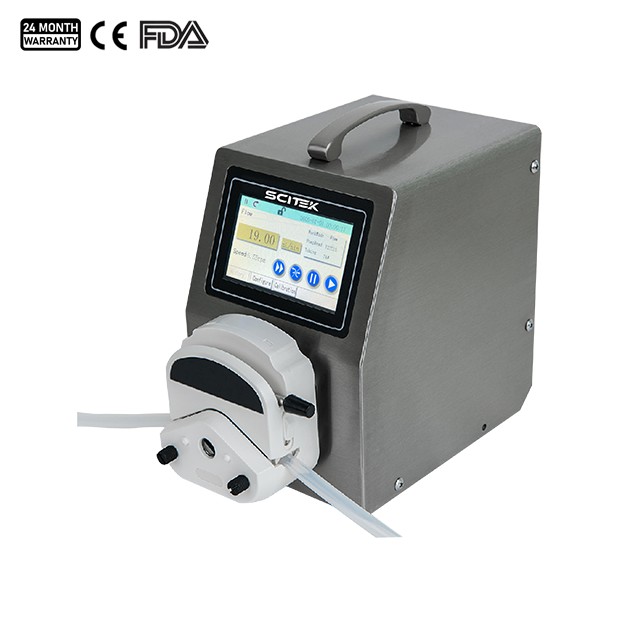

Details of Dispensing Peristaltic Pump (DPP-100FC):

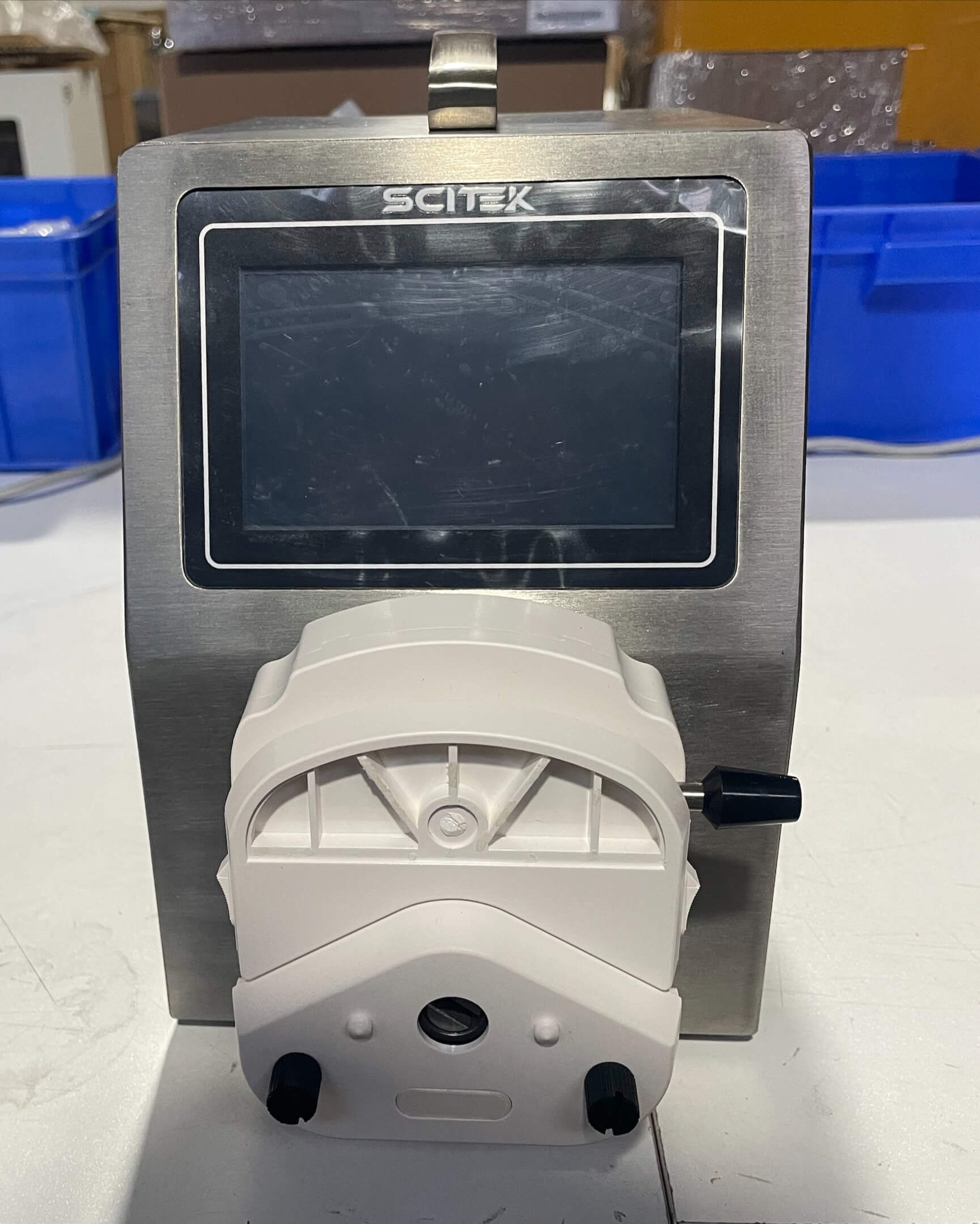

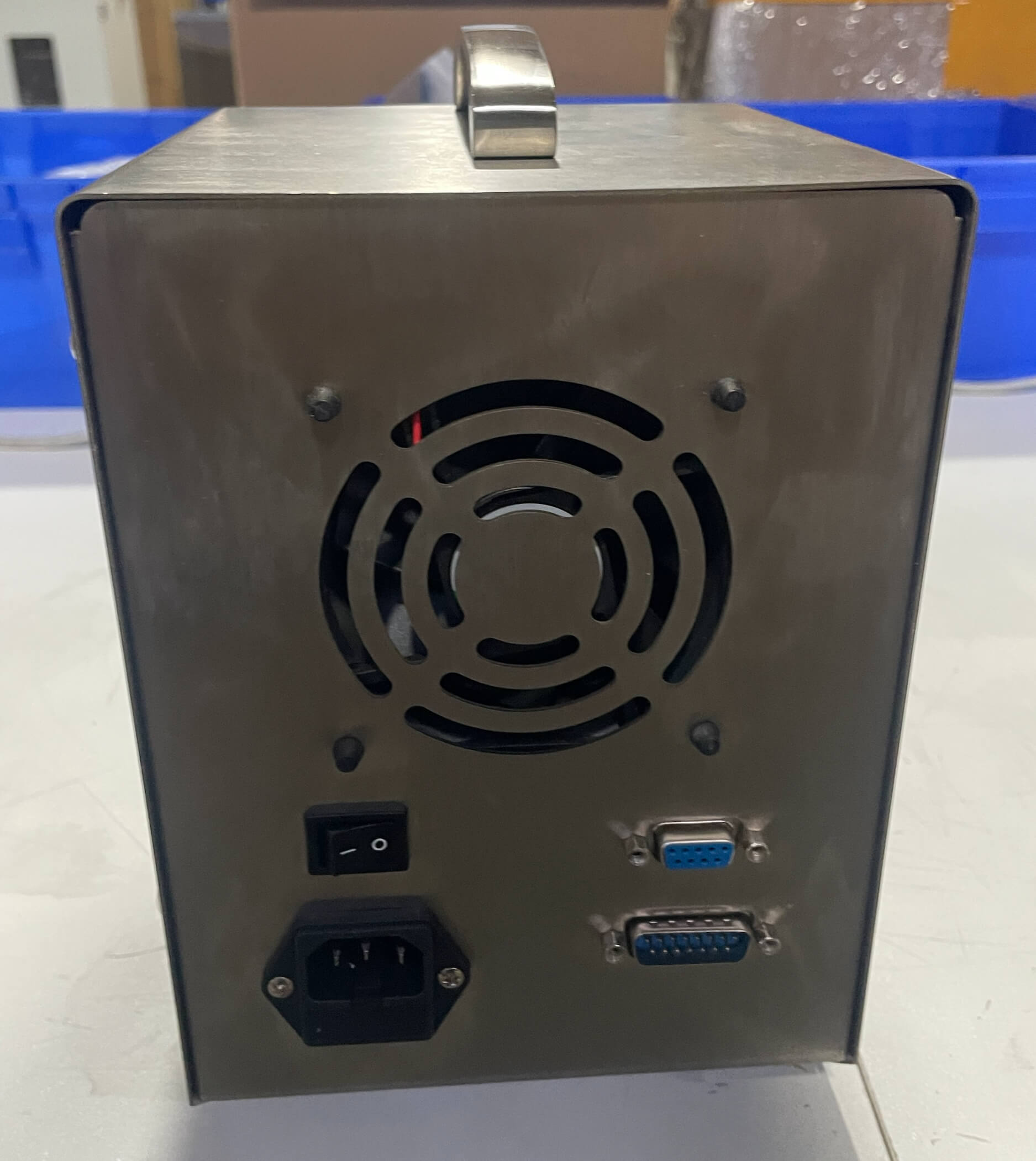

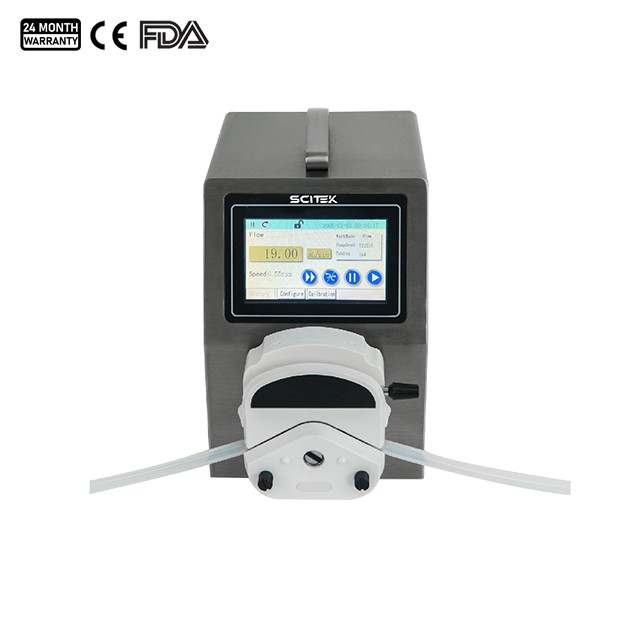

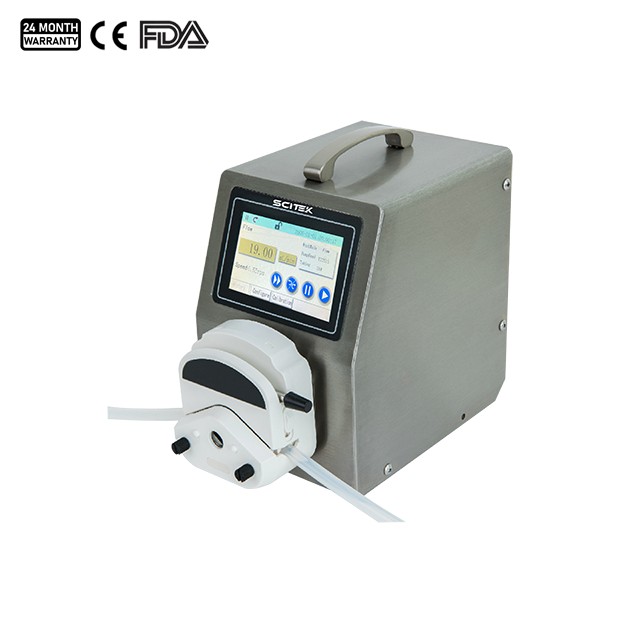

The dispensing peristaltic pump features a compact, robust housing with a clean, industrial design. The front panel integrates the pump head and control interface, ensuring efficient fluid transfer and user-friendly operation. Its stable structure minimizes vibration, supporting precise and repeatable dispensing performance.

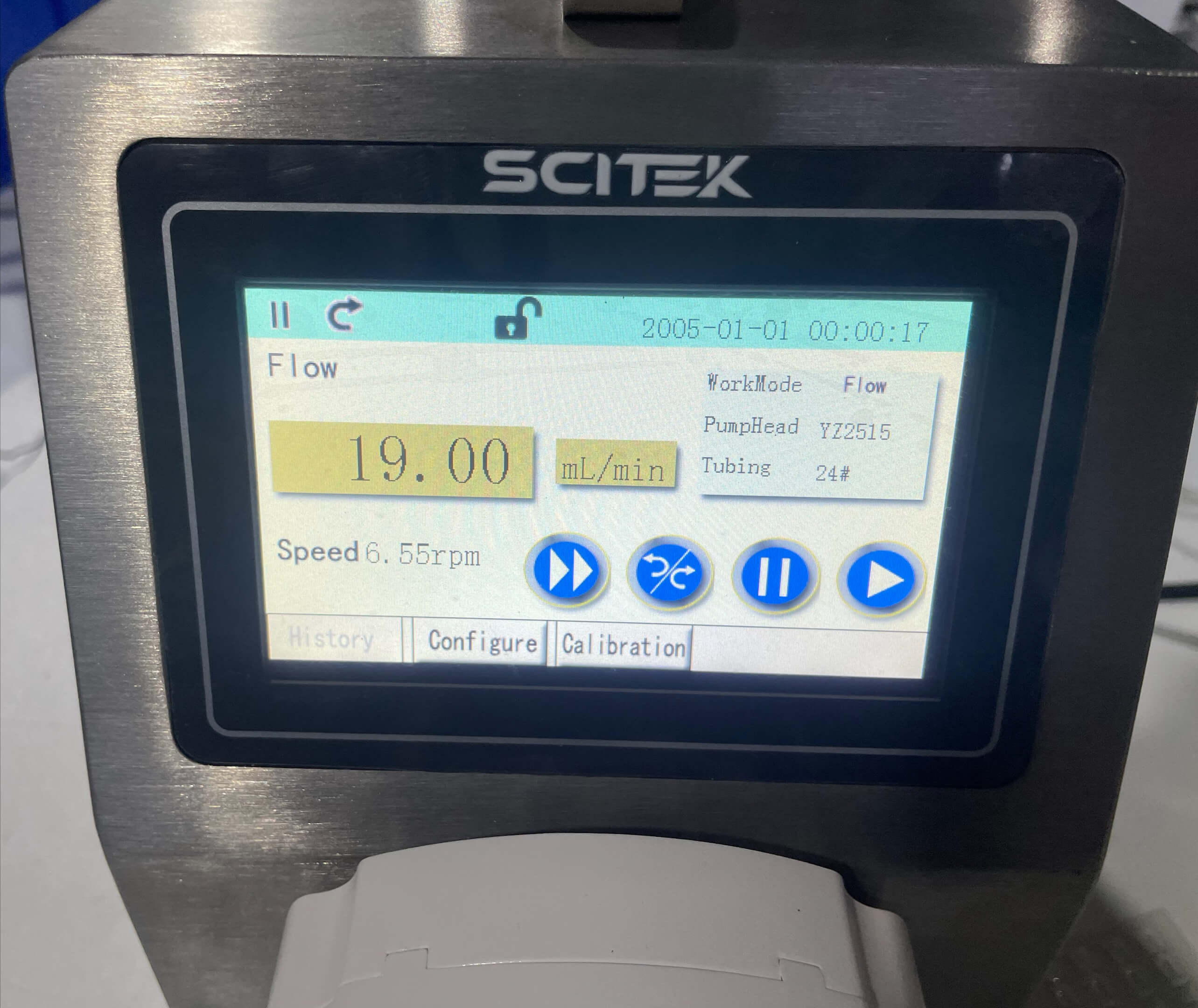

Equipped with an intuitive touchscreen interface, the system allows real-time monitoring and precise parameter control. Users can easily set flow rate, dispensing volume, and operation modes, enhancing accuracy and workflow efficiency. The clear display ensures straightforward navigation and quick adjustments.
The product is securely packed in a reinforced outer carton with custom protective foam inserts to prevent movement and impact during transit. The internal layout is well-organized for safe handling, while clear labeling ensures easy identification and efficient unpacking upon delivery.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
