Availability: | |
---|---|
Quantity: | |
Model | VP-OF1A |
---|---|
Flow Rate (L/min) | 10 |
Maximum Vacuum kPa) | 80 |
Maximum Working Temperature | 40 °C |
Optimum Working Time (min) | 30 |
Power (W) | 50 |
Power Supply | AC220/110V, 50/60Hz |
Shipping Size (W×D×H)(mm) | 350x250x330 |
N.W./G.W. (kg) | 3.6/7 |

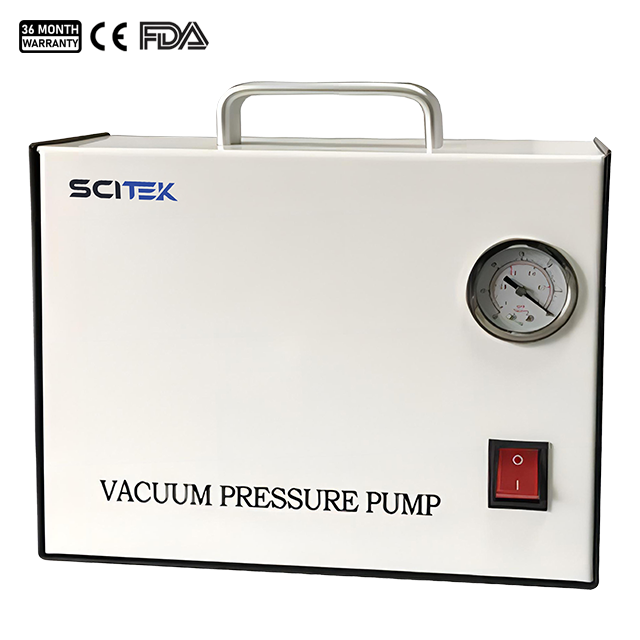

All-metal shell, aluminum alloy handle, easy to use, full-featured.
Providing a clean vacuum environment without pollution.
Unique membrana dermalis design reduces wear and extends working life.
It is equipped with overheating protection device to prevent motor damage and prolong the service life of the pump body.
With dual functions of air extraction and blowing (It can be customized.)
Oil-free vacuum suction filter pump is widely used in filtration, sample concentration, solid phase extraction and other devices, and are important basic equipment in the laboratory. Single-stage or two-stage pumps provide a completely clean vacuum environment. The pump body itself requires no maintenance and does not produce any contaminants.

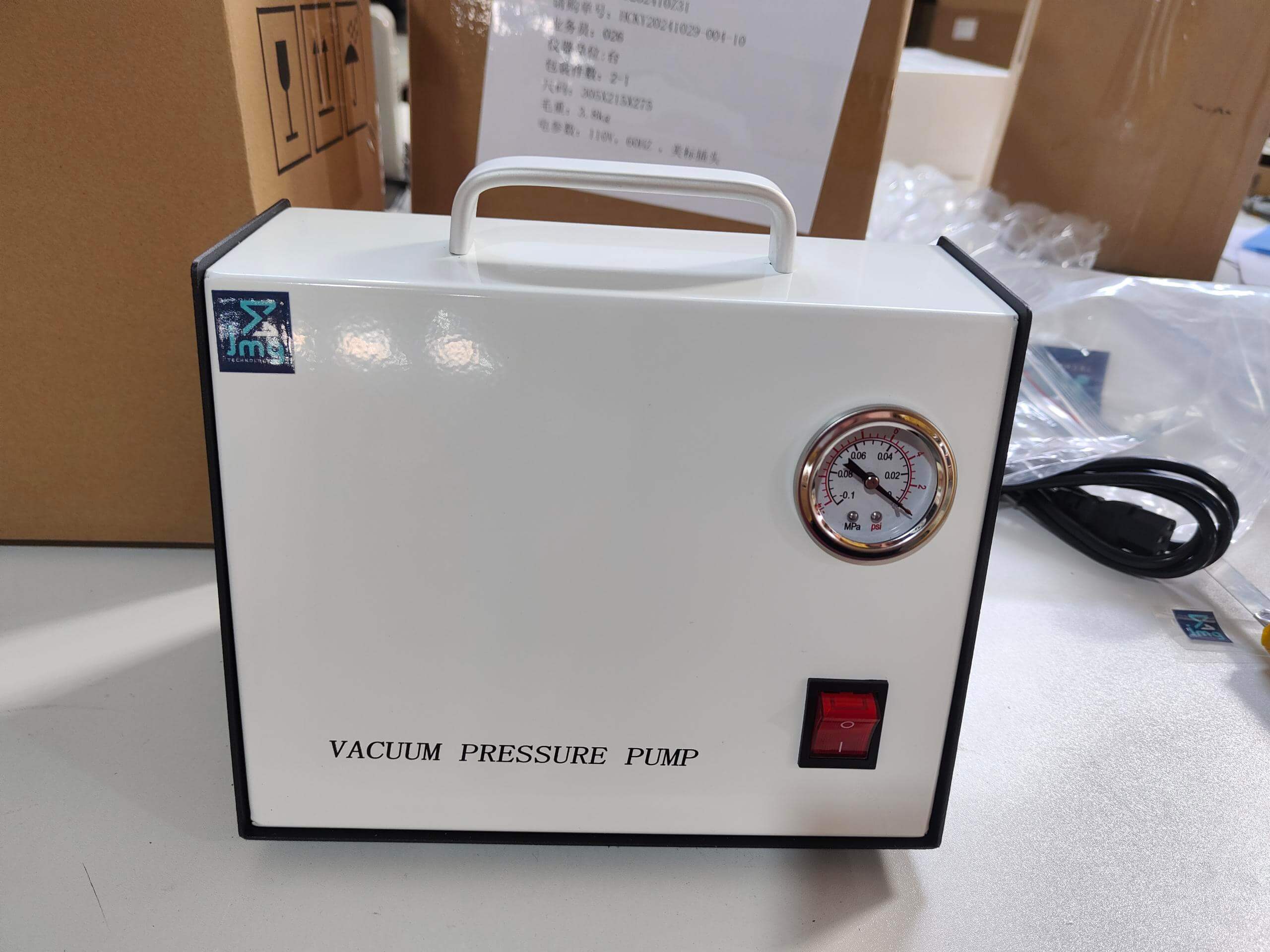

The Oil-free Vacuum pump body is compact and adopts high-strength alloy shell, oil-free design to avoid contamination, suitable for clean environments such as laboratories, biopharmaceuticals and so on. The operation panel is centralized on the front side, with reasonable layout of switches, indicator lights and vacuum ports, which makes it easy for users to access and use quickly.

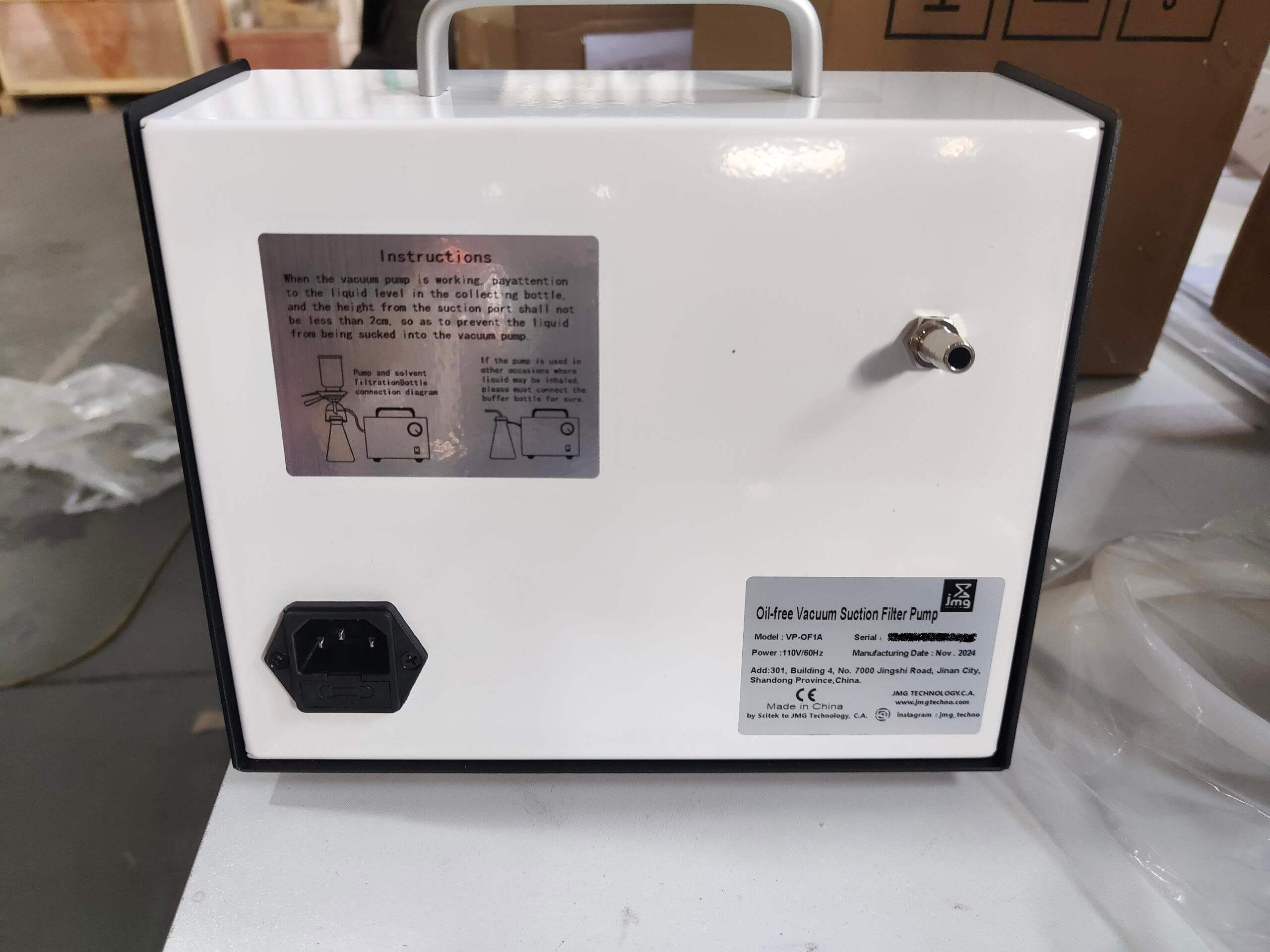

The back is equipped with a highly efficient cooling fan and filter design to ensure the stability of long-time operation and quiet operation. The power connector is protected by a fuse to enhance the safety of use. Some models also support foot control interface to improve flexibility.
Model | VP-OF1A |
---|---|
Flow Rate (L/min) | 10 |
Maximum Vacuum kPa) | 80 |
Maximum Working Temperature | 40 °C |
Optimum Working Time (min) | 30 |
Power (W) | 50 |
Power Supply | AC220/110V, 50/60Hz |
Shipping Size (W×D×H)(mm) | 350x250x330 |
N.W./G.W. (kg) | 3.6/7 |
All-metal shell, aluminum alloy handle, easy to use, full-featured.
Providing a clean vacuum environment without pollution.
Unique membrana dermalis design reduces wear and extends working life.
It is equipped with overheating protection device to prevent motor damage and prolong the service life of the pump body.
With dual functions of air extraction and blowing (It can be customized.)
Oil-free vacuum suction filter pump is widely used in filtration, sample concentration, solid phase extraction and other devices, and are important basic equipment in the laboratory. Single-stage or two-stage pumps provide a completely clean vacuum environment. The pump body itself requires no maintenance and does not produce any contaminants.
The Oil-free Vacuum pump body is compact and adopts high-strength alloy shell, oil-free design to avoid contamination, suitable for clean environments such as laboratories, biopharmaceuticals and so on. The operation panel is centralized on the front side, with reasonable layout of switches, indicator lights and vacuum ports, which makes it easy for users to access and use quickly.
The back is equipped with a highly efficient cooling fan and filter design to ensure the stability of long-time operation and quiet operation. The power connector is protected by a fuse to enhance the safety of use. Some models also support foot control interface to improve flexibility.
