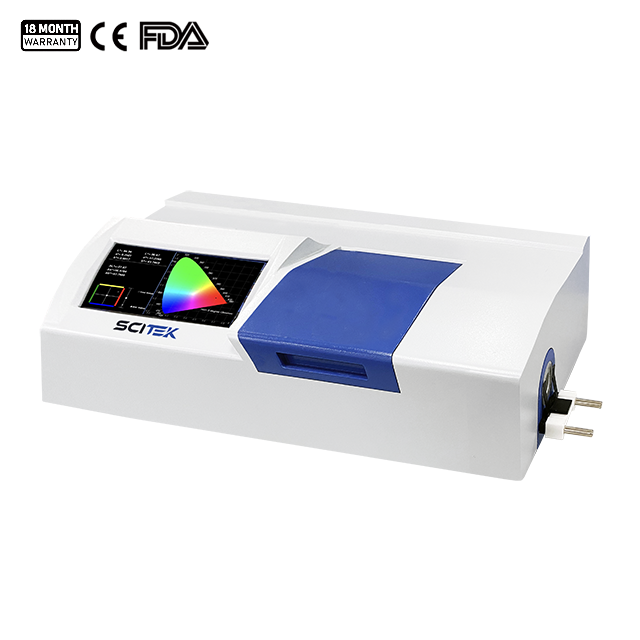

Benchtop Spectrocolorimeter

Model : CM-B1S

Measuring window : Ø20mm
Wavelength range : 400nm~700nm
Accuracy of wavelength : ±2nm
Accuracy of spectrum transmit-tance (%) : ±1.5
The benchtop spectrocolorimeter is widely used in laboratories to monitor coatings, plastics, textiles, food and other products.
Availability:
Quantity:
Inquiry Add to Inquiry List

Benchtop Spectrocolorimeter Feature:

  1. Wide application range and easy-to-operate feature.

  2. Measure reflection color and transmission color of objects and can test chromaticity, whiteness and color difference between two objects or two kinds of liquid.

  3. d/8 lighting specified by CIE.

  4. Display reflectance and transmittance of objects or liquid within the scope of visible light wave (400nm-700nm), and generate a spectral curve on reflectance and transmittance of objects or liquid, which greatly facilitates analysis on object color.

  5. Widely used in such industries as textile, dye, printing, coating, paint, paper making, building materials, food, and printing.

Benchtop Spectrocolorimeter Specifications:

ModelCM-B1S
Illuminantd/8
Spectrum conditionsThe overall response is equivalent to tri-stimulus values X, Y, and Z calculated in corresponding functions under GB3978 standard illuminant D65, A, C and 10°, 2° view of field
Measuring windowØ20mm
Wavelength range400nm~700nm
Accuracy of wavelength±2nm
Accuracy of spectrum transmit-tance (%)±1.5
Repeatabilityσu(Y)≤0.5, σu(x), σu (y)≤0.003
Instrument stabilityΔY≤0.4
AccuracyΔY≤2, Δx, Δy≤0.02
Color: X, Y, Z; Y, x, y; L*, a*, b*; L, a, b; L*, u*, v*; L*, C*, H*
Palette systemColor difference: Δ E (L*a*b*); ΔE (Lab); ΔE (L*u*v*); ΔE(LCH)
Yellowness Index: YI, ΔYI
Whiteness: Gans whiteness; Blu-ray whiteness: W=B; Tabble: W=4B-3G
Operation SystemAndroid
InterfaceRS232, U disk, TCP
Power supply220V ±22V, 50Hz±1Hz, 70w
Shipping Size(WxDxH)(mm)530×380×300
N.W/G.W. (kg)8/11
